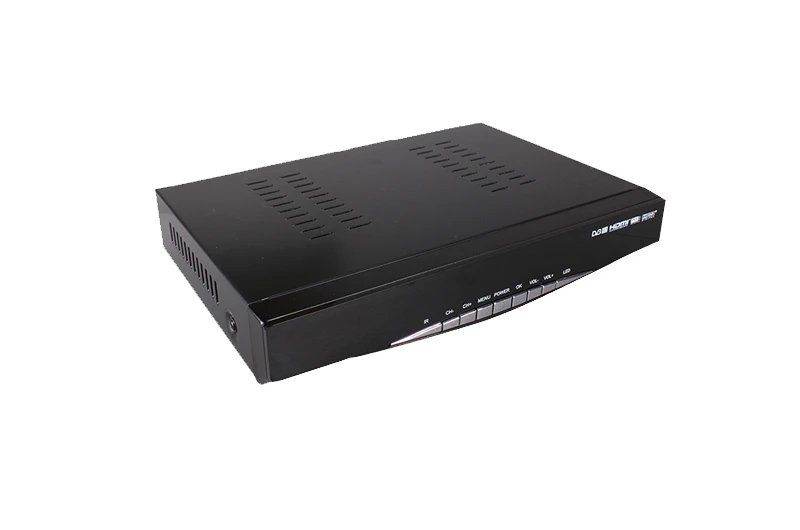

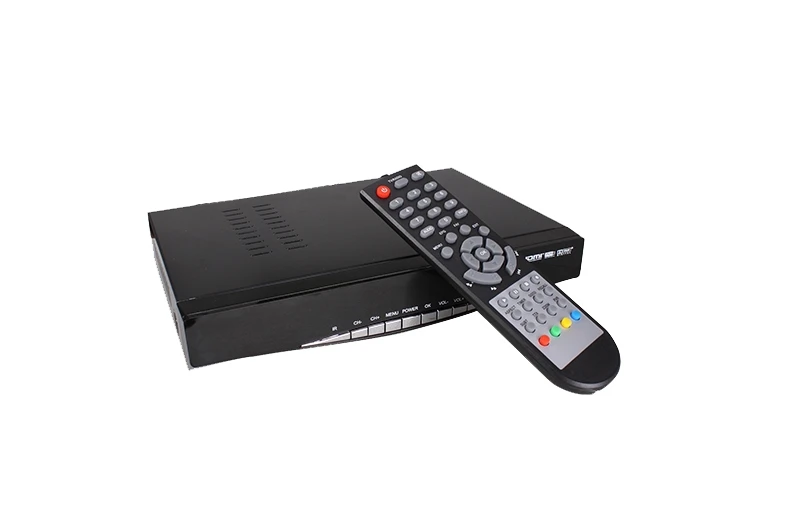

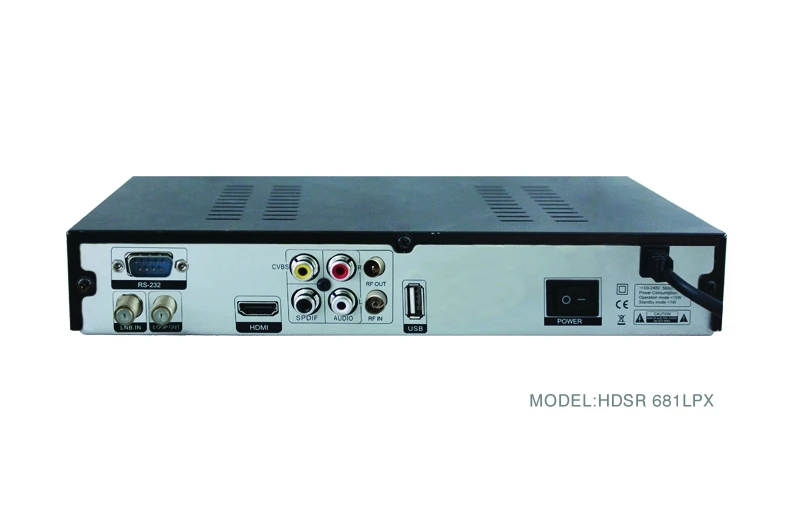

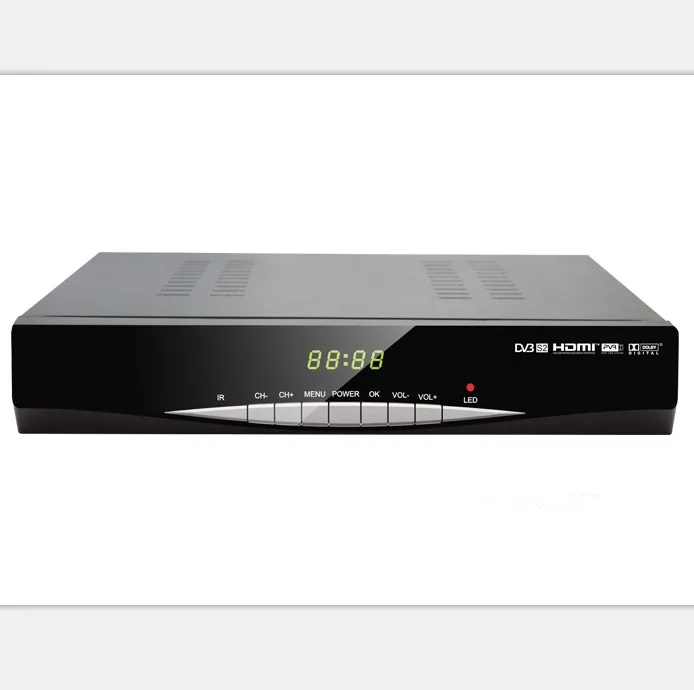

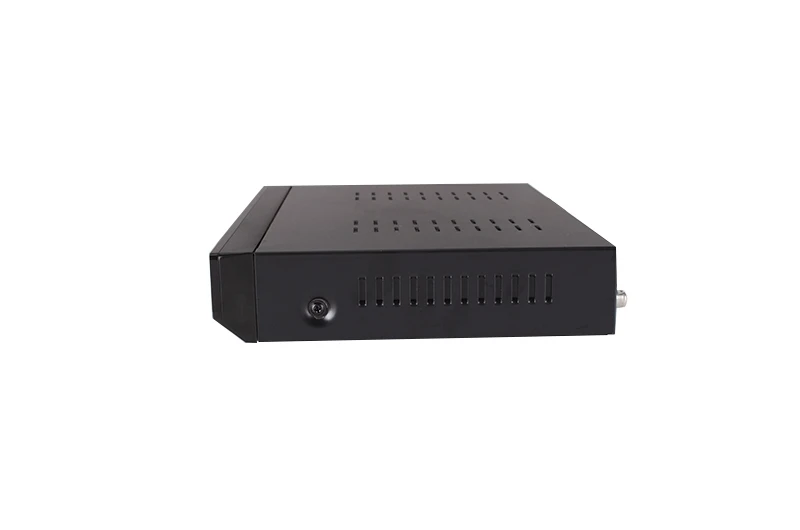

Gecen HD Digital Dvb S2 satellite receiver with RF IN and RF OUT and BISS model HDSR 681LPX
- Category: >>>
- Supplier: Zhuhai Gecen Electronic Co. Ltd.
Share on (60315288582):
Product Overview
Description
FULL HD Digital Dvb-s2 satellite TV receiver with RF IN and RF OUT and BISS
Product Description
Model:HDSR681LPX (M3510E + AV2018)
SIZE:260*180*41mm
Standard:DVB-S2
Features:• Full compliant with DVB-S2 and DVB-S
• Support MPEG-4 ASP@L5 HD resolution, MEPG-2 MP@HL, MPEG-1 Decoding,H.264 MP&HP@L4,HW JPEG decoding
• HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
• Input/loop out Frequency:950~2150.
• Waveform: QPSK, 8PSK.
• Video decoding and output: 1080p/1080i/720p.
• Analog Video output: PAL/NTSC.
• Conversion between SD programs and HD programs.
• USB2.0 supported for upgrade, PVR and Time Shifting.
• SupportParental Control, Teletext, Subtitle.
• Aspect ratio: 4:3/16:9, By Pan&Scan and Letter Box conversion.
• Electronic program guide (EPG).
SIZE:260*180*41mm
Standard:DVB-S2
Features:• Full compliant with DVB-S2 and DVB-S
• Support MPEG-4 ASP@L5 HD resolution, MEPG-2 MP@HL, MPEG-1 Decoding,H.264 MP&HP@L4,HW JPEG decoding
• HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
• Input/loop out Frequency:950~2150.
• Waveform: QPSK, 8PSK.
• Video decoding and output: 1080p/1080i/720p.
• Analog Video output: PAL/NTSC.
• Conversion between SD programs and HD programs.
• USB2.0 supported for upgrade, PVR and Time Shifting.
• SupportParental Control, Teletext, Subtitle.
• Aspect ratio: 4:3/16:9, By Pan&Scan and Letter Box conversion.
• Electronic program guide (EPG).
| CPU and Memory | CPU | 3510E |
| MIPS 34K@350MHz | ||
| DDR2 | DDR2 512Mbit(64MByte) or DDR2 1024Mbit(128MByte) | |
| Flash | 32Mbit(4MByte) | |
| Tuner | Connector Type | F-Female *1 for LNB Input, ,F-Female* 1 for LOOP OUT ,IEC-Female* 1 for RF IN ,IEC-Male* 1 for RF OUT |
| Input Frequency | 950MHz~2150MHz | |
| Signal Input Level | -65~-25dBm | |
| Input Impedance | 75 Ohm | |
| LNB Power Out | 13V/18V, Imax=500mA, overload protection | |
| LNB Waveform Out | 0/22kHz switch | |
| Demodulation scheme | QPSK/8PSK: 1~55Msps | |
| Code Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10(8PSK) | |
| DiSEqC | 1.0, 1.1, 1.2, USALS, Unicable | |
| FFT | 1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended. | |
| FECE mode | 64800 bits, 16200 bits | |
| Guard Interval | 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 | |
| Software Function | EPG | Fully support to 7 days Electronic Program Guide(EPG) |
| Video Decoding | MPEG4, MPEG2,MPEG1, H.264 | |
| Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts | |
| Audio Decoding | MPEG-1/2/3, wma | |
| Audio Format | mp3, wma, ogg | |
| Picture Format | JPEG, BMP | |
| Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P | |
| Video Aspect Ratio | 4:3(LB/PS), 16:9(LB/FIT) | |
| Analog Video System | PAL, NTSC | |
| OSD Language | 13 kinds of language(English,French,German,Italian,Spanish,Portuguese,Russia,Turkish,Polish,Arabic,Persian,Thai,Korean) | |
| LCN Sort | Support Logic Channel Number(LCN) | |
| Teletext | VBI insertion for Teletext | |
| Time Shift | Support Time Shift | |
| Hardwar Interface | Video Output | RCA(CVBS, L/R), HD Interface |
| SPDIF Output | 1*Coaxial | |
| USB Interface | 1*USB2.0 | |
| RS-232 | 1*RS-232 | |
| Button | POWER, OK, MENU, CH-, CH+, VOL-, VOL+ | |
| Power supply | AC Input 100~240V 50Hz, 15WMax |
Packaging & Shipping
Our Services
Company Information
FAQ
Q1. Can I get some samples beore mass prduction?
A: Yes, samples can be offered for testing.
Q2. What is the delivery time?
A:30-35days
Q3. OEM can be supported?
A: Yes, OEM can be support. Package, specification can be supported.
Q4: What is the guarantee for the products?
A: One year.
