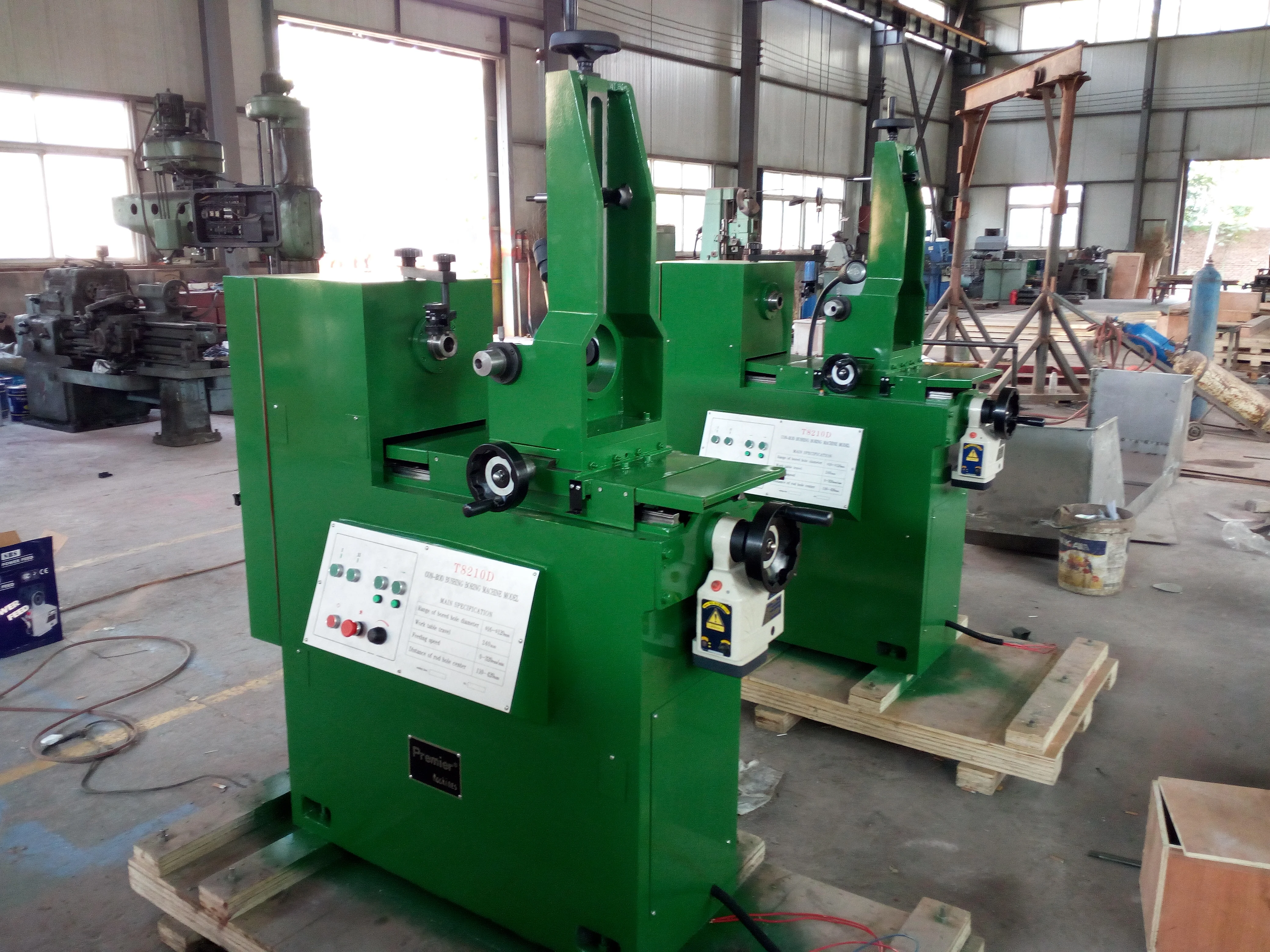

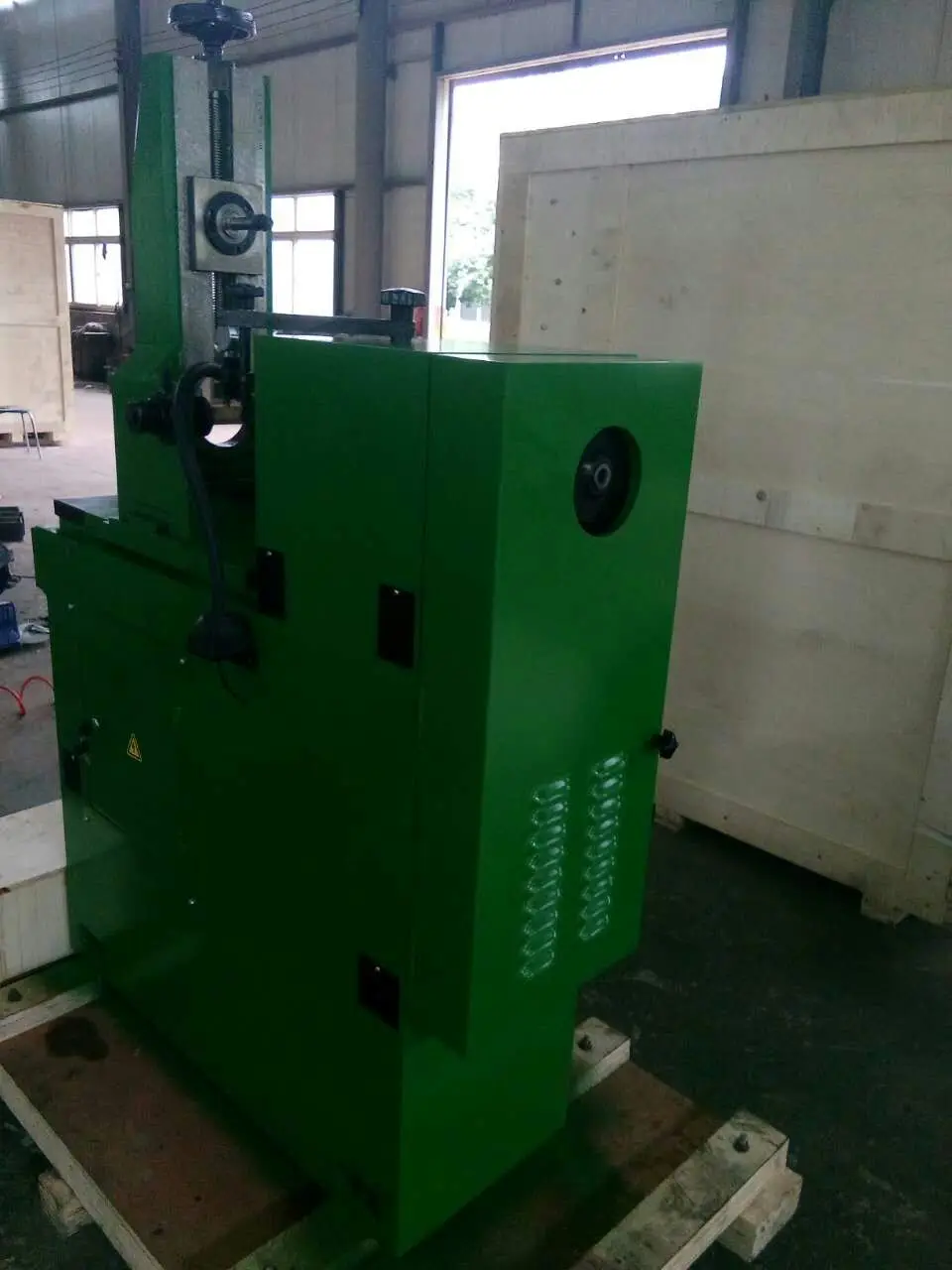

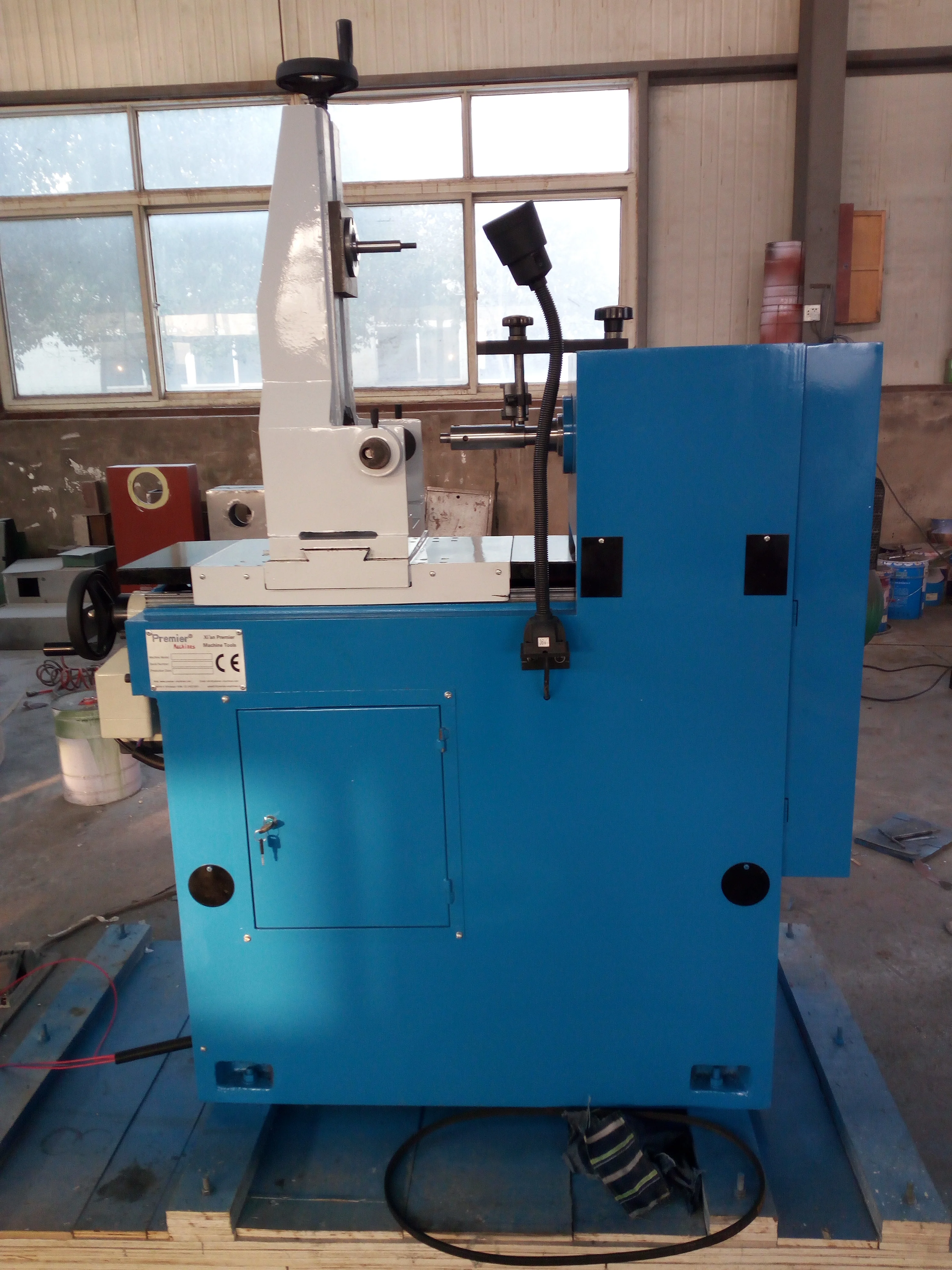

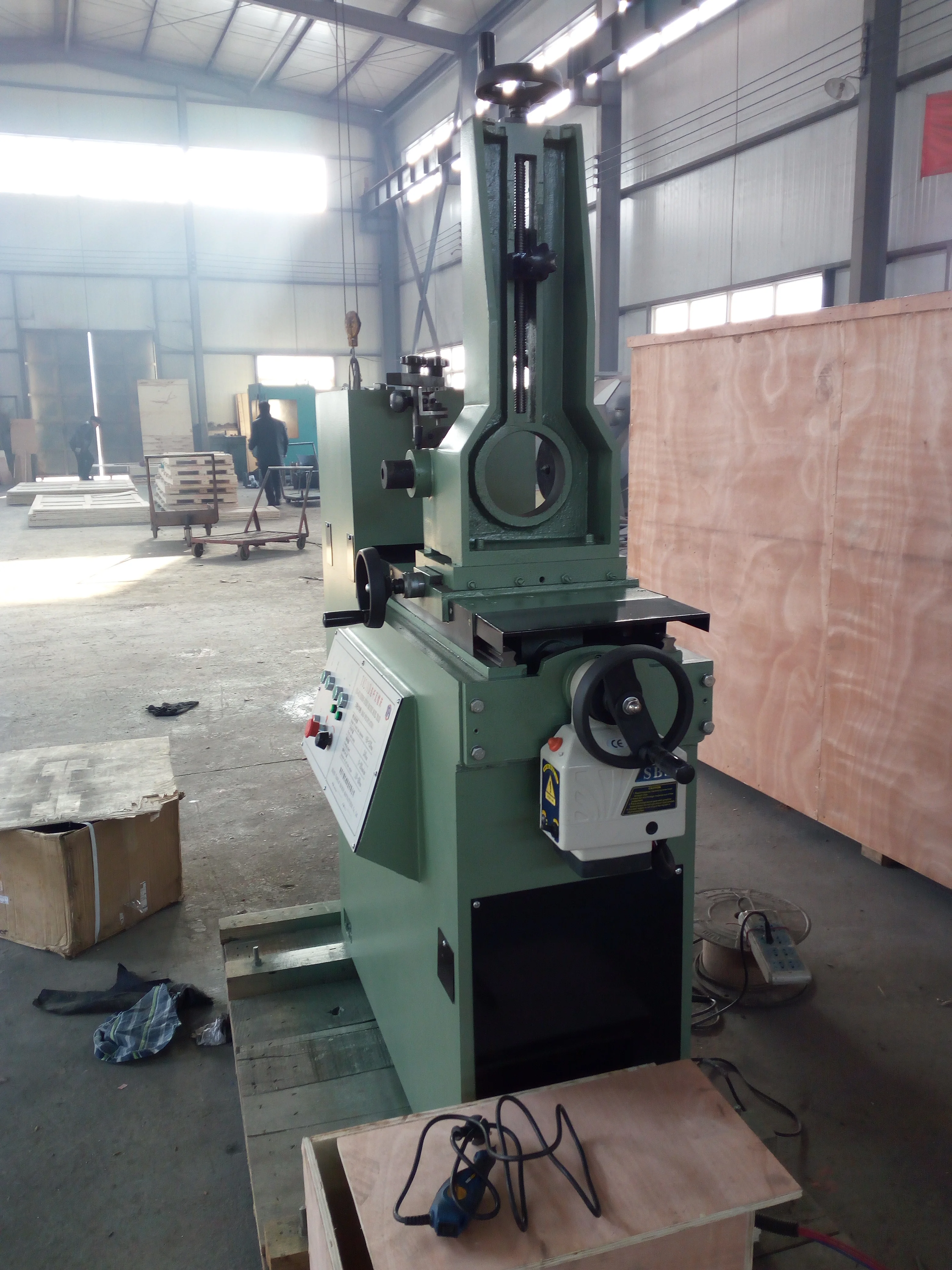

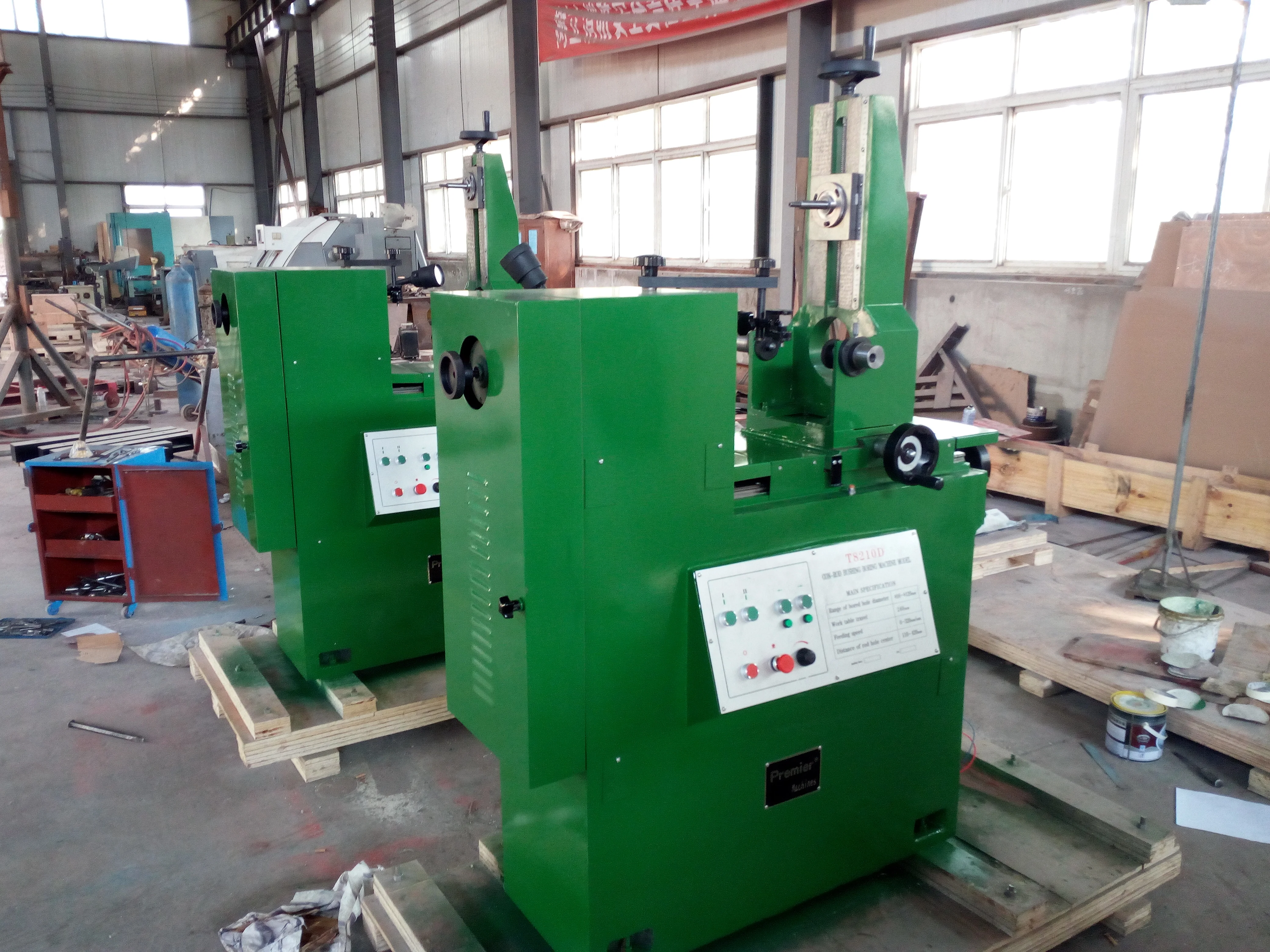

This machine can be used with cylinder body bushing boring machine Model T8115Bx16. It has good performance, better structure easy operation and high accuracy. It is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors. In case of necessity, rod bushing seat hole can be fine bored. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
Main Specifications
Model
T8210D
T8216
Bored hole diameter
F16 – Φ100 mm
F15 – F150 mm
Distance of rod 2 hole centers
100-425mm
85-600mm
Work table travel
220mm
320mm
Main shaft speed
350, 530, 780, 1180rpm
140,215,355,550,785,1200rpm
Boring rod diameter
14, 16, 24, 40mm
14,29,38,59mm
Main motor power
0.65 / 0.85KW
0.85/1.1KW
Dimensions
1150x570x1710mm
1300x860x1760mm
Net Weight
800kg
92kg
Accessories Detailed
Align center gauge, Align cutter gauge, Boring cutter, Positioning core axle and expanding core axle.
