SFX brand new portable edm machine, can remove any size taps, drills, screw
- Category: >>>
- Supplier: Luoyang Xincheng Precision Machinery Co. Ltd.
Share on (60315405263):
Product Overview
Description
brand new portable edm machine, can remove any size taps, drills, screw
Portable EDM (broken tap remover) is the ultimate solution to solving broken tools, This machine can fast and easily remove broken taps, reamers, drills, screws by spark erosion, thus no extern
force and damage to the workpiece; it also can mark and process holes on conductive metals that can't be drilled by conventional means;
*Before the Portable broken tap remover EDM delivery, the machines are all go through series strict tests, and all products have passed CE and ISO 9001-2000 certification, and we have a professional quality inspection team to assure the product quality.
Just to be No.1
Advantages Description
1.Small size, light weight, convenient to operate;
2.Spark erosion principle, no damage to workpiece;
3.Alarm automatically for preset depth;
4.Magnetic base, easily to adsorb on the small and large workpiece;
5.Cooling fan installed keep the machine continue working;
6.Separated workhead design, helpful for complex machining;
7.Wide processing range, remove broken taps and bolts sized Φ2mm to Φ48mm;
8. Tap water as working liquid, economical and convenient;
9.Wide range of electrodes for your choice: electrode bar, sheet, square and hexagonal.
The details show

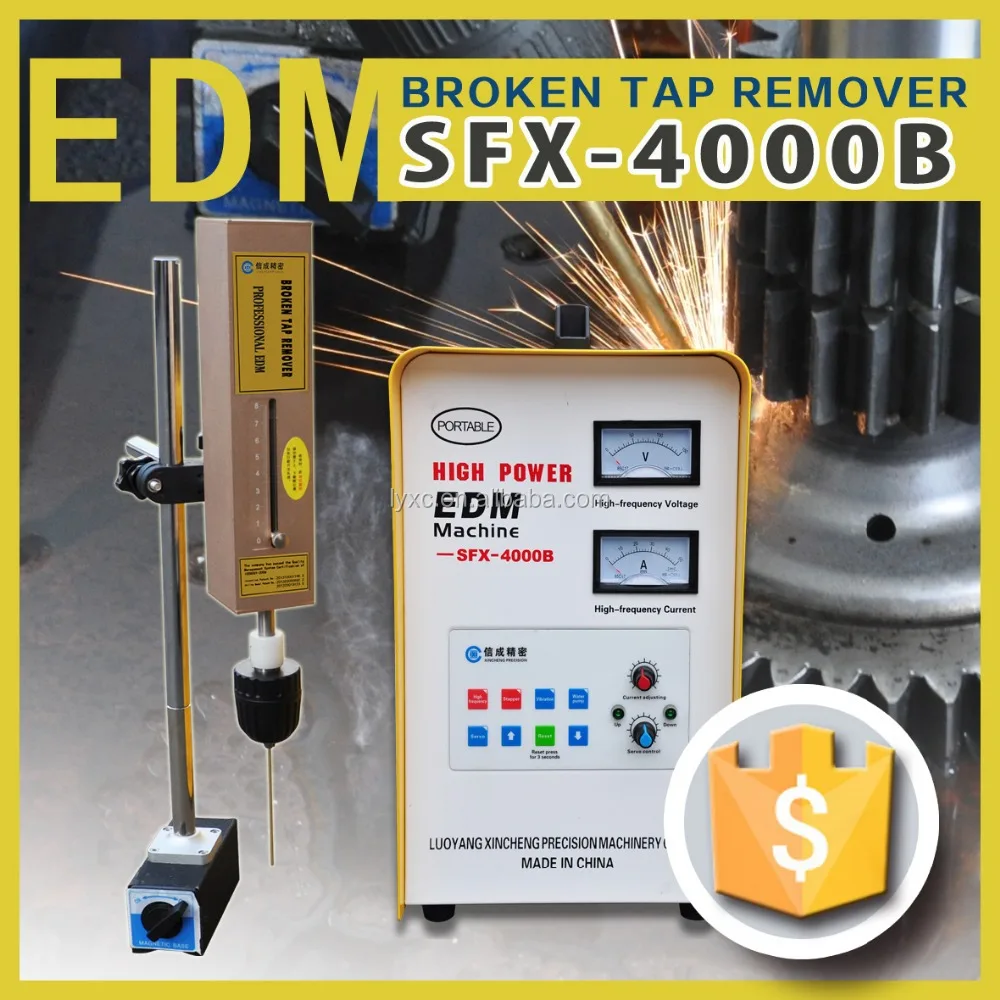

Specification for SFX-4000B:
SFX brand new portable edm machine, can remove any size taps, drills, screw
Technical Specification:
Item: | SFX-4000B |
Input Voltage: | AC220V±10% |
Input Power(W): | 3000W |
Electrode Diameter(mm): | 2~24mm |
Working Liquid: | Tap Water |
Max Processing Depth of Spindle Servo(mm): | 80mm |
Max Processing Speed(mm/min): | ≈2mm/min |
Gross Weight: | 24kg |
Adjustable Current: | Stepless Adjustment |
Set Depth: | Alarm Automatically for Certain Depth |
Power box size(mm): | 420*220*370 |
Packing Size(mm): | 525*325*460 |
Quality Guarantee

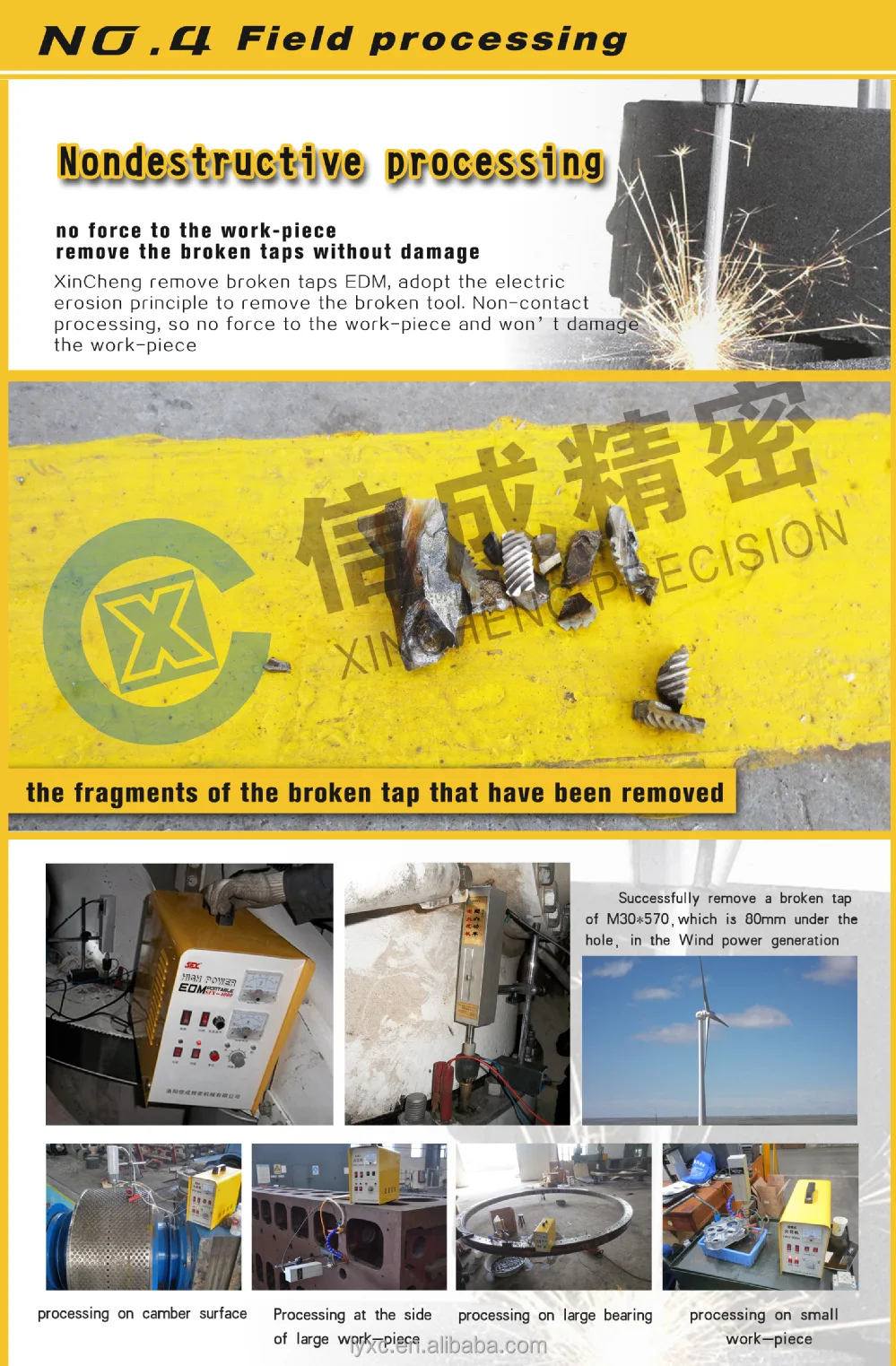

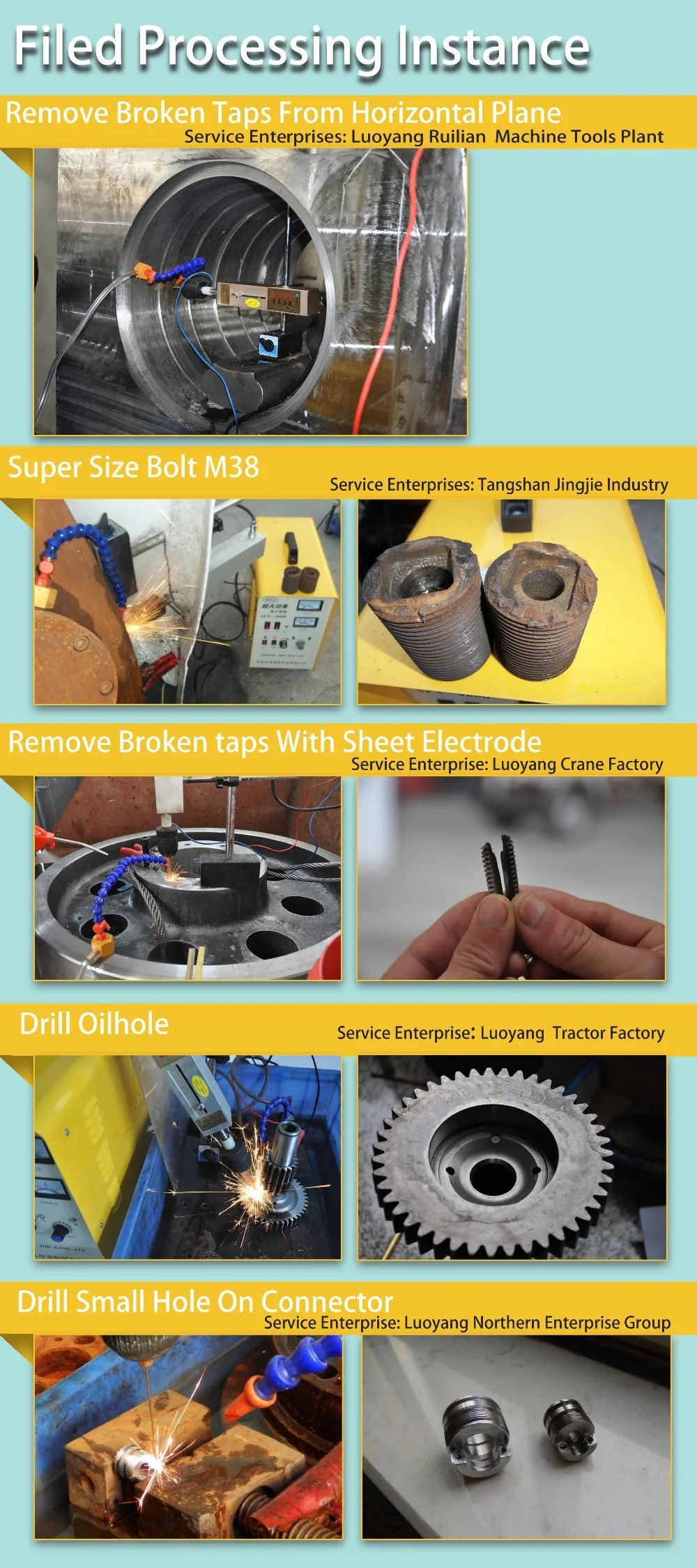

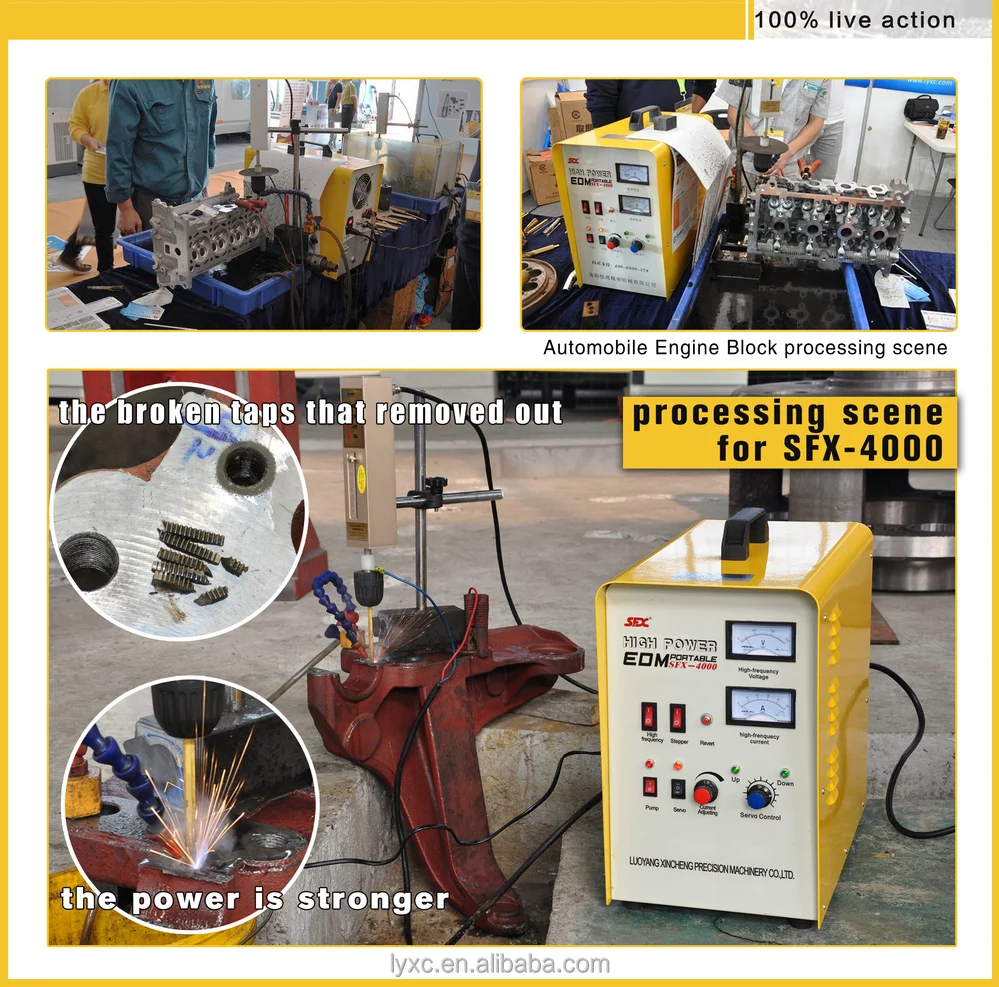

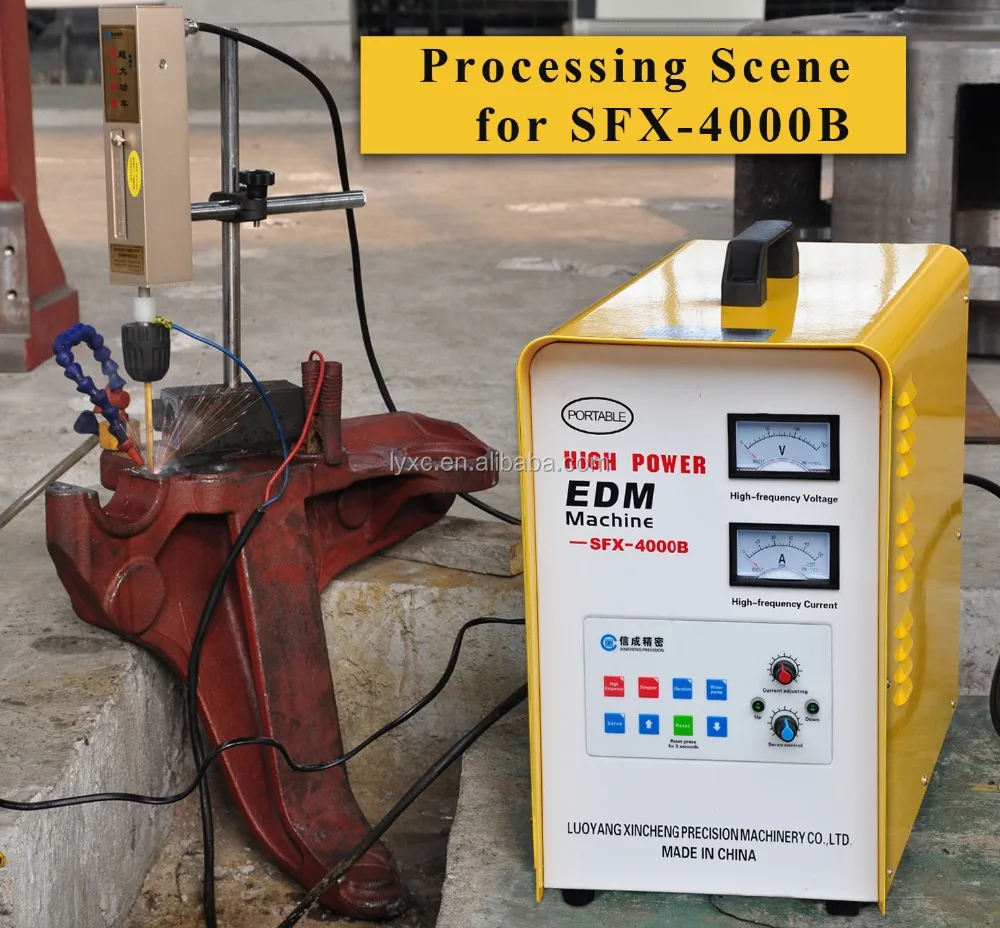

Field Processing
Usage SkillsThe sche
Our Services
First of all, our product will have to go through a thorough quality exam process to ensure that our devices won’t have any glitch before delivery.
Secondly, the warranty period is usually around one year and within this time frame, if there are any technical problems,we would repair them for free including the new parts that needed for the repair.
PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely, the damages were done by mishandling the machine.
FAQ
FAQ:
Q: Are you a manufacturer or trading company?
A:Our company is a leading manufacturer with over 10 years experience in machining work. We mainly produce broken tap remover and pull studs.
Q:How does your machine work?
A:Adopting spark erosion principle, this machine can remove taps without damaging to the thread.
Q. Do you offer a pump for through the electrode flushing?

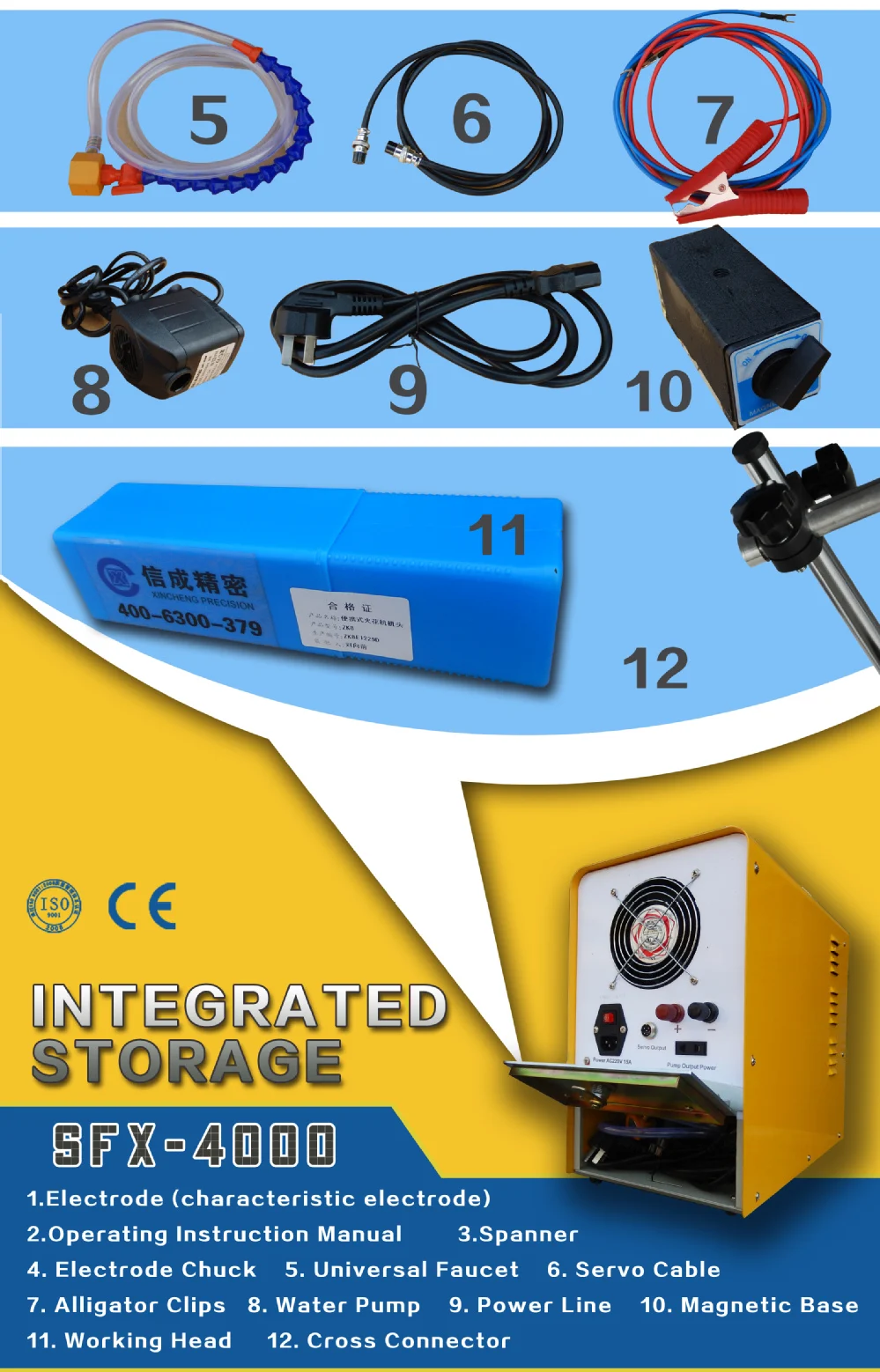

A: Yes, a water pump is included in the parts,and you need to buy nothing else to start operating. We provide you various size electrodes, such as electrode tube,bar and slice electrode, even dia with the machine.
Q:Does this machine could remove taps from big work-piece?
A:Split type design, working head can rotate in any direction;With magnetic base, the working head can be adsorbed on the machine, so it is convenient for clamping, making the cost to the minimum.
Q: Does it can process through or blind holes?
A: Because this machine has a depth setting function, it could process blind and through holes
Q. What's the delivery method?
A: The machine will be delivered by international express such as TNT, Fedex, DHL, etc
Q: Does this machine can fix depth, If for example i need to work just for 10mm is possible? Machine stop?
A: Yes, our machine can do it, there is a depth setting knob, you could preset the depth of it.The machine has a reset button, the machine can set the working course, when the electrode arrive at the setting position, it will alarm and the working head will return.
Q. What's the payment terms?
A: We accept payment terms. T/T, Western Union, Paypal, etc..
Q: Can you support OEM?
A:We support OEM
Q:what is the target market of this machine?
A: Molds, precision machinery, factory shop in machinery, maintenance shop and bearing factory or anywhere who seeking a supplier to remove super big taps.
Q: What is your culture of your company?
A: Honesty deserves sincere, behavior before work.This is our belief. By referring to the operation philology of medium and small-sized enterprises at home and abroad, the company’s core team give priority on viewing “quality portable edm machine”and “pull stud and structural balanced nut ” as the responsibility and mission of the national enterprise.
Q: what is the range of processing with the machine?
A:Wide range of electrodes for your choice: electrode bar, sheet, square and hexagonal electrodes is included in the packing list, could broden the processing range with these electrode clamped on the machine.
With over 10 years’ experience, we are one of the top manufacturer of broken taps remover in Henan, China.
Super power 3000w edm machine have the unparalleled advantage in removing the big size broken taps ranges from M2-M48, and the clumped electrode is 2-24 mm, can meet the most working requirements to a great extent.
Compact size and portability design can be fixed the big workpiece so as to improve the efficiency and reduce the cost.
The work-head has vibration function, Significantly improved the processing ranges and efficiency.
Additionally, the marking function is prominent!
One machine at hand, NO HEADACHE forever!
What are you waiting for?
