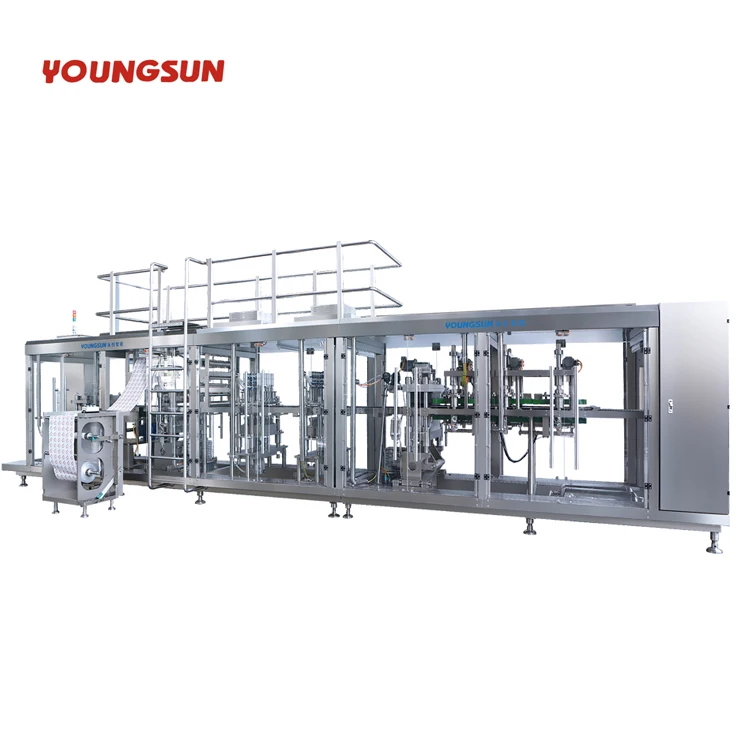

Yogurt Filling Machine Automatic Plastic Cup Forming Filling and Sealing Machine

Product Overview

Description

Welcome to>>Hangzhou Youngsun Intelligent Equipment Co., Ltd.

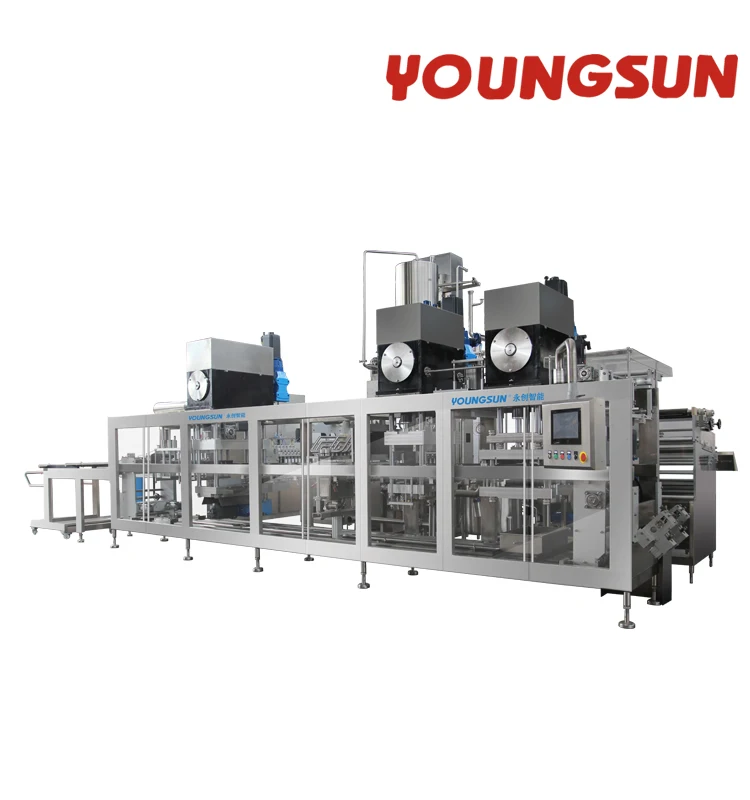

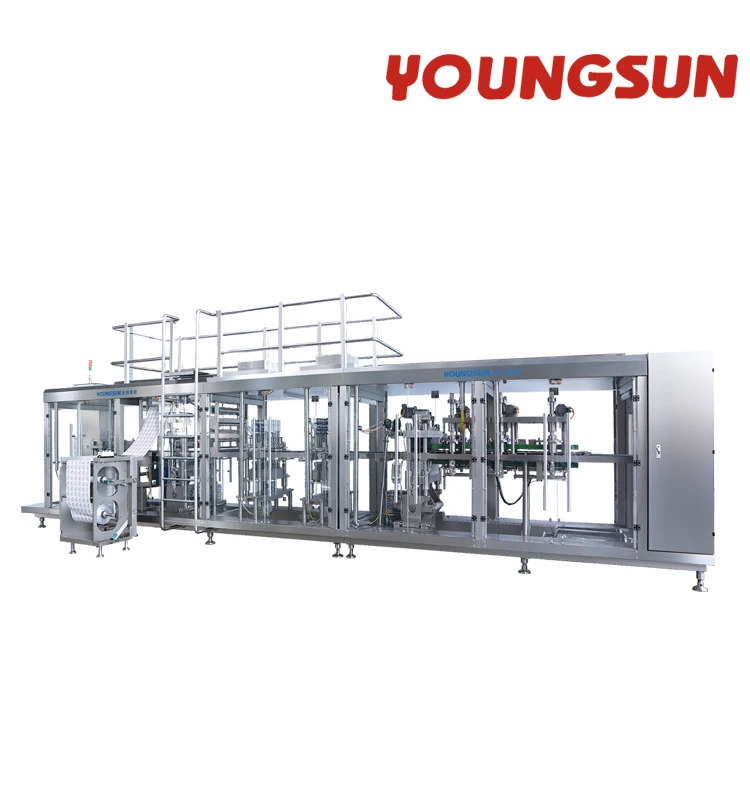

YSDXR Yogurt Filling Machine ,Series automatic plastic cup forming, filling and sealing machine offers a competitive forming,filling and sealing solution for liquid,semi-liquid and pasty food products, such as yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on.

The process is from ionization dedust remove,preheating,cup forming and labeling, dynamic fruit mixing and filling, cover sealing, date printing, cutting and product conveying. The cutting mould could be adjusted based on product requirement to form six-pack cups, eight-pack cups, twelve-pack cups.

YSDXR Yogurt Filling Machine ,Serial machine will be equipped with the laminar flowing air purify system, CIP connection and volumetric dynamic fruit mixing system, it is full-automatic equipment for high-efficiency, high-quality production in modern enterprise.The machine can be customized according to customers’ requirements so as to meet different customers’ needs.

Applicable Filling material:Liquid:yogurt ,milk,mineral water, beverage , ice cream, seasoning and so on Cap film material:Al+plasticlaminated film;paper+plastic laminated film Forming film material: PS/PP/PET etc.



Machine Features:



It's suitable for packing yoghurt, milk, cheese, water and so on. Capacity can be 8000-40000 cups/hour.



Technical Specifications:



Model	YSDXR-8000
Degree of automation	Automatic
Power Supply	3+N+PE 50Hz 380/220V±10% (3P 5 wires) Can be optional according to different areas.
Working efficiency	Not lower than 90% (product, packaging material, equipment maintenance will affect the efficiency and capacity)
Capacity	8000 cups/H
Filling volume	50-200g
Filling temperature	Normal: (4-40)℃ For special material, we can supply 85℃ filling system.
Filling error	≤±1%
Product qualification rate	≥99.5%
Cup specifications	63mm*63mm (can customize according to requirements. The appliable cup shape and size based on customer's confirmation or sample.)
Single step specification	8 cups
Total power	25kw
Air pressure	0.6 Mpa
Air consumption	1.2m³/min
Equipment dimensions (about)	6500mm*2300mm*2600mm (L*W*H)
Weight (about)	3.2t
Multiple product filling	Yes
Driving	Servo





Optional:



Servo driving the filling Sheet van Sheet dust removal by ion Heraeus high temp. sterilizing module (for sheet and film) Common high temp. sterilizing module (for sheet and film) Code printer, inkjet printing Conveyors Can be equipped with automatic packaging lines



Process:

Sheet-Pre-Heat-Forming-Filling- Cap film convey-Sealing-Cooling-Cutting-Scrap edge collect-Output
