Motor use shaft coupling flex tire coupling

Product Overview

Description

Motor use shaft coupling flex tire coupling

Advantage of Motor use shaft coupling flex tire coupling

1. Easy to maintain, no need the tooled can install

2. Can undertake high torque

3. Have the good buffer

4. Flexibility, large damping, large compensation dosage



Design feature of Motor use shaft coupling flex tire coupling

1. Plastic components( tyres) and metal plates made into a whole by sulfur and felting. Connecting the 2 half-coupling directly by bolts when installing.

2. Flexibility, large damping, large  compensation dosage.

3. Simple designing ,easy for assembling and disassembling. The tyres can be replaced without moving 2 half-coupling.

4. Disadvantage, large axial power will be brought on the driven end as the rotate angle increasing.



Technical data of Motor use shaft coupling flex tire coupling

Type	bolt-number Md*L	allowable shaft hole	Main size			Length  of shaft hole	Allowable  Rotating speed	moment of  inertia	Weight	Slide  torque
						L	(n			Tn
		d       dz	D	H	D1	Y J1 Z1	r/min	kg	kg	N.m
UL1	12-M5*12	10  -- 18	80	20	29	22-42	5000	0.0003	0.7	10
UL2	12-M6*14	12 -- 22	100	26	36	27-52	5000	0.0008	1.2	25
UL3	12-M8*15	18 --  25	120	32	40	30-62	4800	0.0022	1.8	63
UL4	12-M8*18	20 -- 30	140	38	48	38-82	4500	0.0044	3	100
UL5	12-M10*20	24 -- 35	160	45	56	38-82	4000	0.0084	4.6	160
UL6	12-M10*22	25--40	180	50	65	44-112	3600	0.00164	7.1	250
UL7	12-M10*25	32 -- 48	200	56	78	60-112	3200	0.0029	10.9	315
UL8	12-M12*28	38 -- 50	220	63	80	60-112	3000	0.0045	13	400
UL9	16-M12*30	42 -- 60	250	71	100	84-142	2800	0.0089	20	630
UL10	16-M12*35	45 --70	280	80	120	84-142	2400	0.0159	30.6	800
UL11	16-M16*40	50 -- 75	320	90	125	84-142	2100	0.0279	39	1000
UL12	12-M16*45	55 -- 85	360	100	150	84-172	2000	0.535	59	1600
UL13	16-M16*50	63 --95	400	110	170	107-172	1800	0.896	81	2500
UL14	24-M20*60	75 -- 110	480	130	210	107-212	1600	2.261	145	4000
UL15	24-M20*68	85 --125	560	150	255	132-212	1200	4.645	222	6300
UL16	16-M24*68	100 -- 140	630	180	280	167-252	1000	8.092	302	10000
UL17	24-M24*76	120 -- 160	750	210	350	167-302	900	20.017	561	16000
UL18	24-M30*86	140 --180

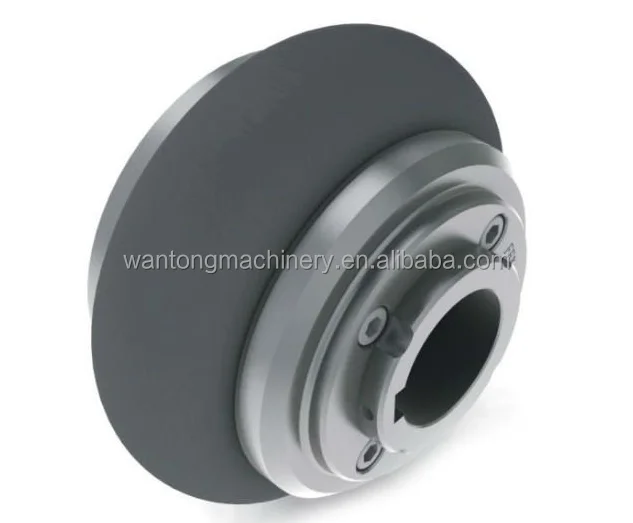

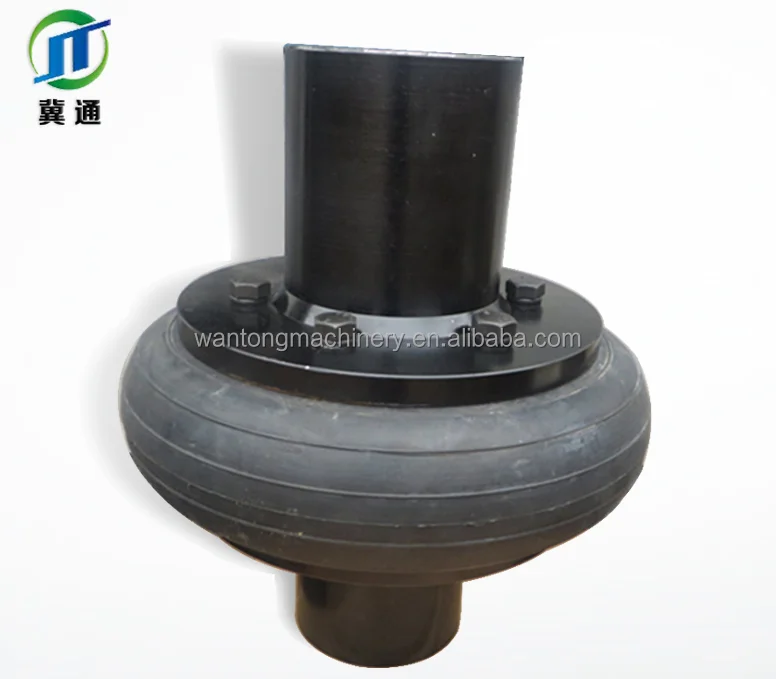

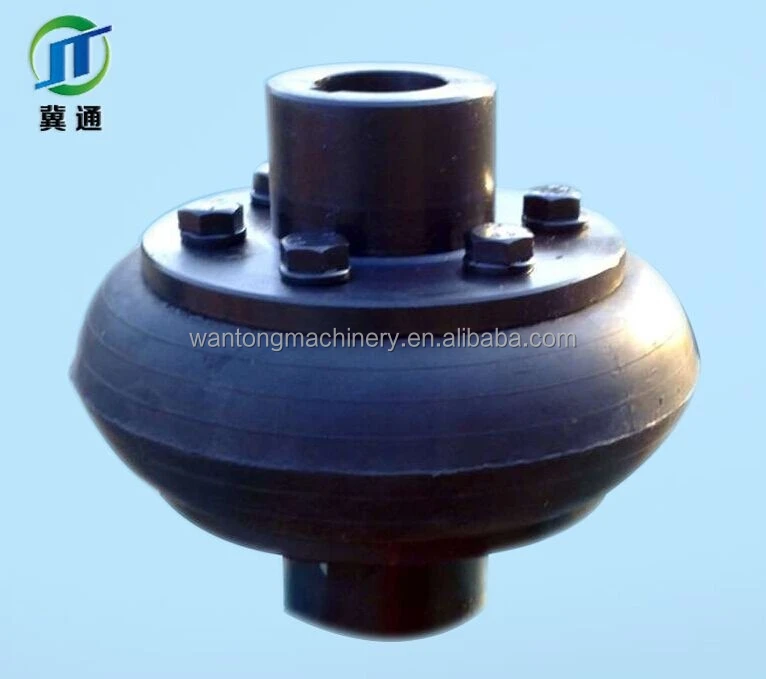

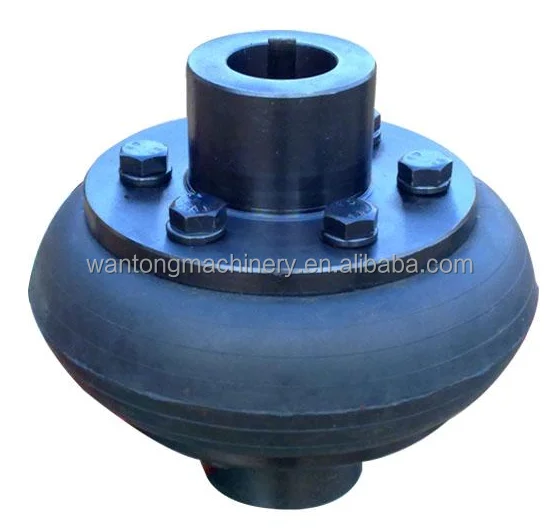

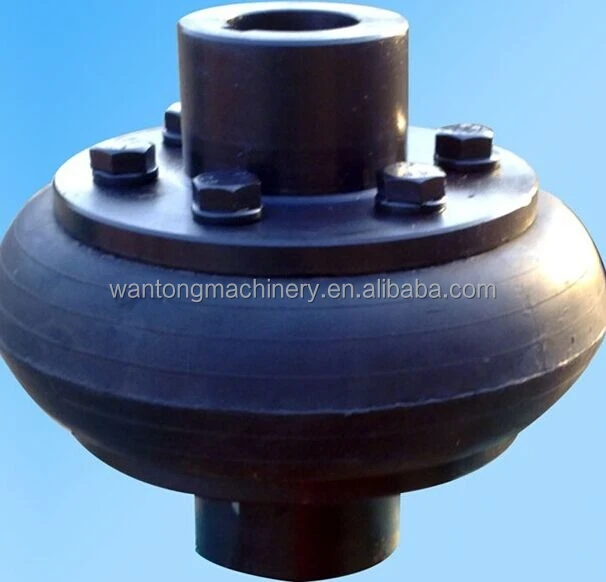

Photo of Motor use shaft coupling flex tire coupling



Package of Motor use shaft coupling flex tire coupling

Service of Motor use shaft coupling flex tire coupling

1. 12 months warranty period .

2. Free maintenance .

3. High quality, Lowest price , Fast delivery, Perfect service after sale

4. Chinese golden supplier, many years engaged in couplings
