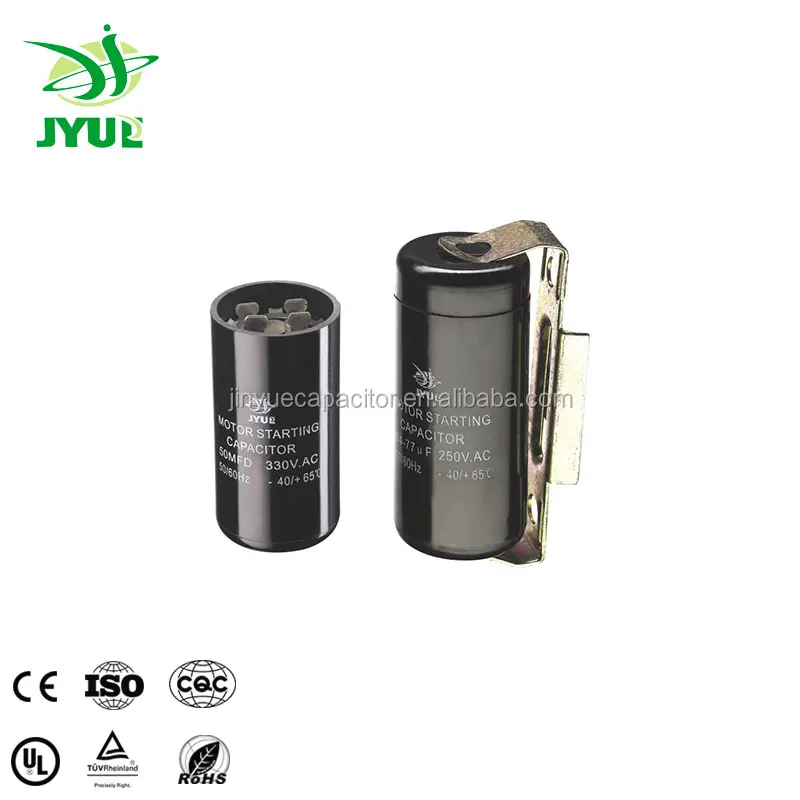

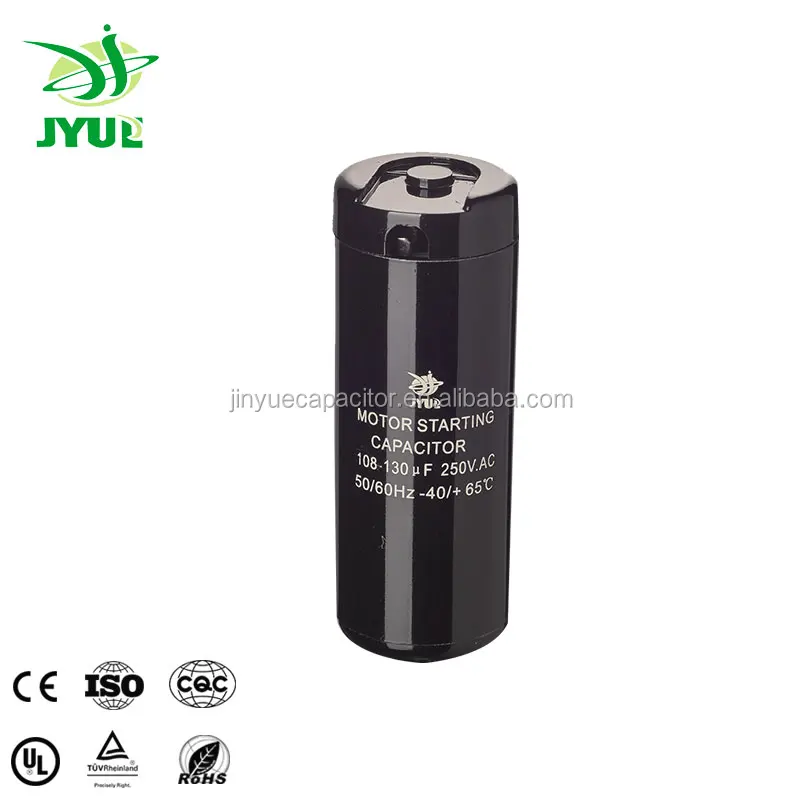

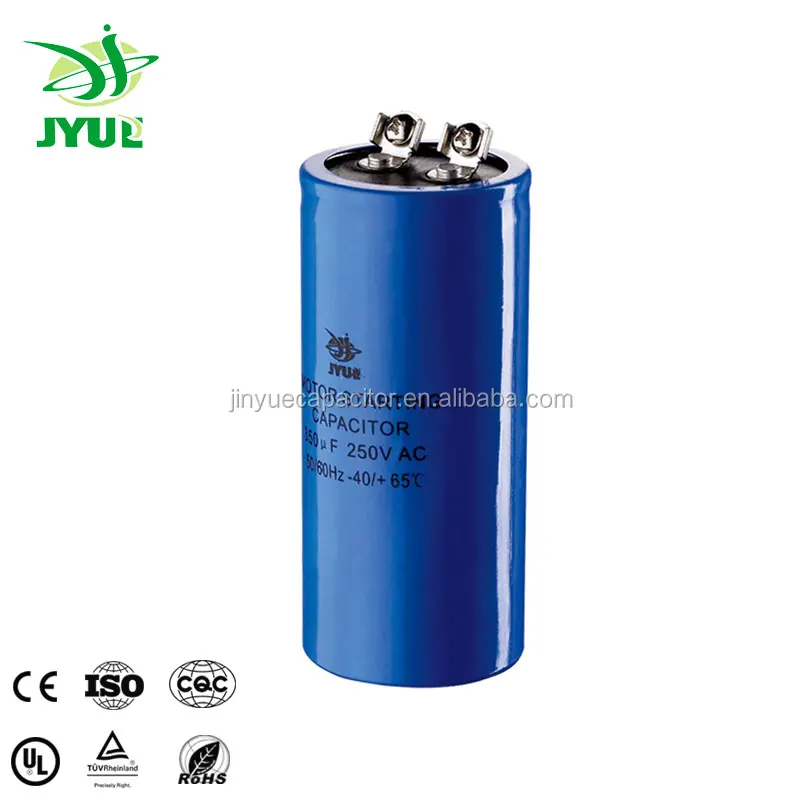

capacitor start ac motor 150uf 250v electrolytic capacitor
- Category: >>>
- Supplier: Wenling Jiayang Capacitor Co. Ltd.
Share on (60315877472):
Product Overview
Description
capacitor start 110v ac motor 150uf 400v electrolytic capacitor
Product Description
Product Description
Product Character

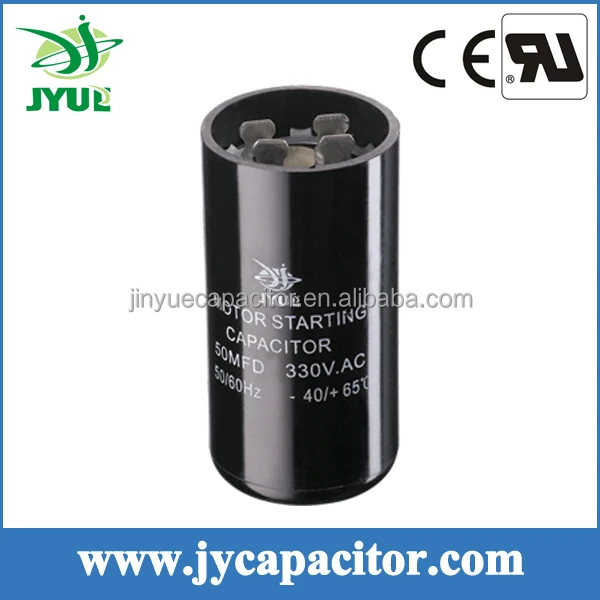

capacitor start 110v ac motor 150uf 400v electrolytic capacitor

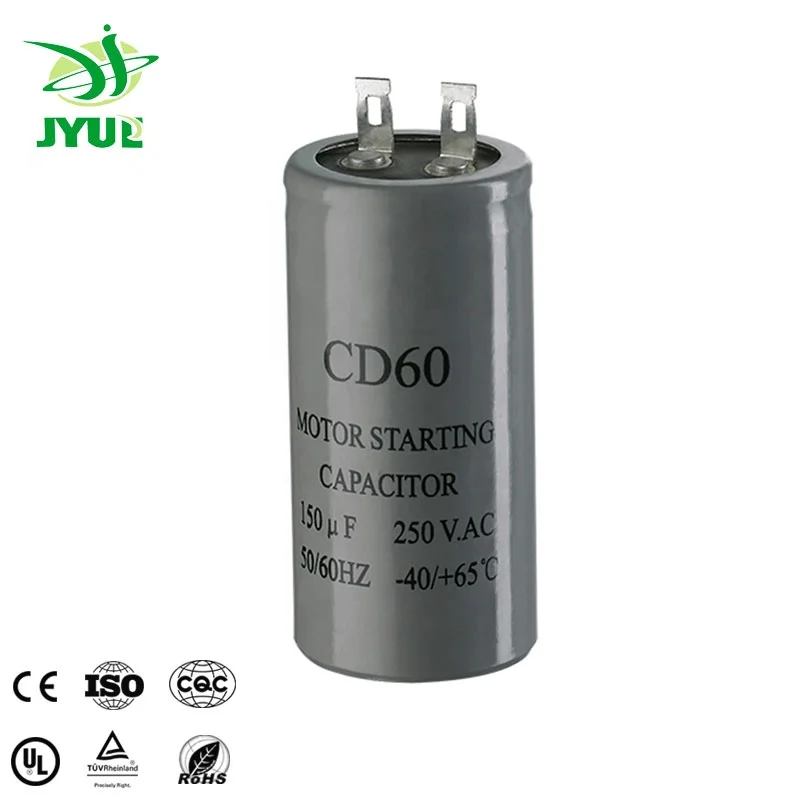

CD60 series aluminum electrolytic capacitor for starting A.C. motor. With aluminum sherll/bakelite/plastic/ABS shell and double pins,lead cable.
Advantage
1, safe , long life
2, with CE,ROHS,certificate
3, environmental
4, small size and low wastage.
5, high quality with available price
Technical Date
Performance Standard | GB/T3667.2-2008/ IEC60252-2:2003 |
| Climate Type | -10℃~+55℃ |
| Rated Voltage | 110~330VAC |
| Standard Capacitance&Tolerance | 50~1500uF (-105`+20%) |
| Loss Tangent | 0~+20% |
| Durability | +55°C, 110~165VAC, on 1s, off 59s, after 30000times +55°C, 220~330VAC, on 1s, off 59s, after 15000times |
| Withstand Voltage Between Terminals | 1.2 times working voltage, no break down within 2s |
| Withstand Voltage Between Termainal and case | 200VAC 60seconds, no break down |
Dimension(mm)
| capacitance(uF) | 100-165VAC | 200-250VAC | 300-330VAC | ||||||
| 21-25 | 36*70 | 36*70 | 36*70 | ||||||
| 25-30 | 36*70 | 36*70 | 36*70 | ||||||
| 30-36 | 36*70 | 36*70 | 36*70 | ||||||
| 36-43 | 36*70 | 36*70 | 36*70 | ||||||
| 43-52 | 36*70 | 36*70 | 36*70 | ||||||
| 47-56 | 36*70 | 36*70 | 36*70 | ||||||
| 53-64 | 36*70 | 36*70 | 36*70 | ||||||
| 64-77 | 36*70 | 36*70 | 36*70 | ||||||
| 72-88 | 36*70 | 36*70 | 36*70 | ||||||
| 88-108 | 36*70 | 36*70 | 46*86 | ||||||
| 108-130 | 36*70 | 36*70 | 46*86 | ||||||
| 124-140 | 36*70 | 36*70 | 46*86 | ||||||
| 130-156 | 36*70 | 36*70 | 46*86 | ||||||
| 145-174 | 36*70 | 36*70 | 46*86 | ||||||
| 161-193 | 36*70 | 36*70 | 46*86 | ||||||
| 189-227 | 36*70 | 46*86 | 52*111 | ||||||
| 216-259 | 46*86 | 46*86 | 52*111 | ||||||
| 223-280 | 46*86 | 46*86 | 52*111 | ||||||
| 243-292 | 46*86 | 46*86 | 52*111 | ||||||
| 270-324 | 46*86 | 46*86 | 52*111 | ||||||
| 324-389 | 46*86 | 46*86 | 52*111 | ||||||
| 340-408 | 46*86 | 46*86 | 52*111 | ||||||
| 378-454 | 46*86 | 46*86 | 52*111 | ||||||
| 400-480 | 46*86 | 46*86 | 52*111 | ||||||
| 430-515 | 46*86 | 46*86 | 52*111 | ||||||
| 460-552 | 46*86 | 46*86 | 52*111 | ||||||
| 540-648 | 46*111 | 52*111 | 52*111 | ||||||
| 890-708 | 46*111 | 52*111 | 52*111 | ||||||
| 645-774 | 46*111 | 52*111 | 52*111 | ||||||
| 708-850 | 46*111 | 52*111 | 52*111 | ||||||
| 720-850 | 46*111 | 52*111 | 52*111 | ||||||
| 720-865 | 46*111 | 52*111 | 65*111 | ||||||
| 800-960 | 52*111 | 52*111 | 65*111 | ||||||
| 815-978 | 52*111 | 52*111 | 65*111 | ||||||
| 829-995 | 52*111 | 52*111 | 65*111 | ||||||
| 850-1020 | 52*111 | 52*111 | 65*111 | ||||||
Please click "HERE" to get more detail of this product.
Application
capacitor start 110v ac motor 150uf 400v electrolytic capacitor
The specific type of capacitors with high electrical characteristics are widely used in single phase A.C. motors with rated voltage of 110V~330V and the frequency of 50/60Hz to get high rotary torque at low starting current, and also the motor at a lower starting current under high torque.

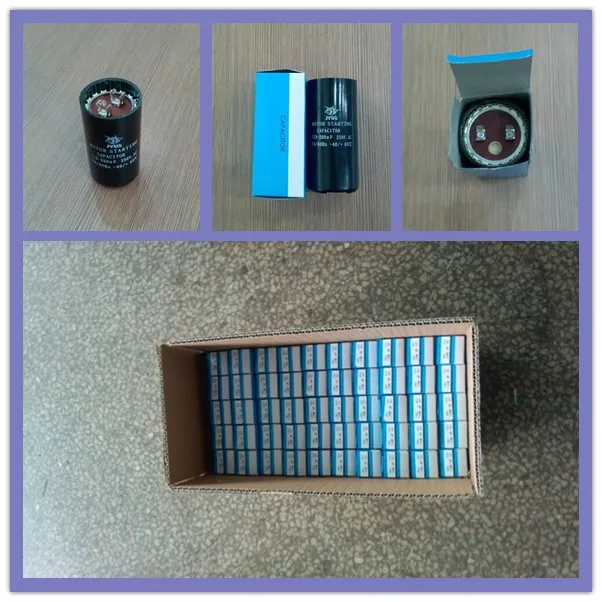

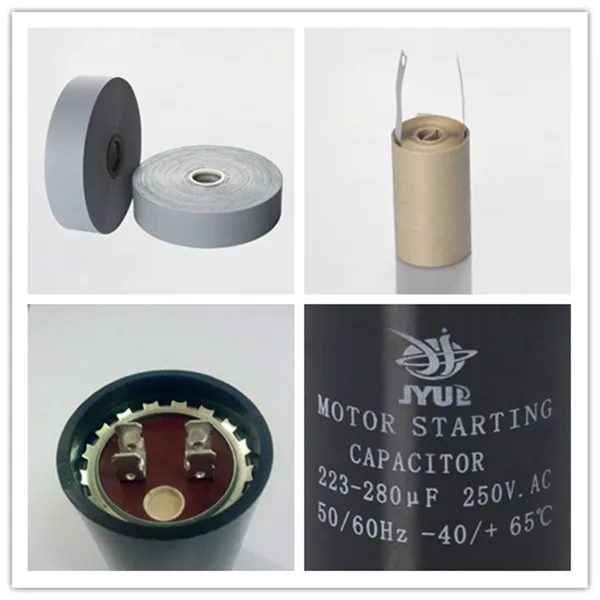

Detail Picture
PackingShipping
Packing&Shipping
Packing
1 piece in a small box, 100 pieces to an export carton
Shipping
If you are interested in our products, please "CONTACT" us now.
Company Information
Company Information

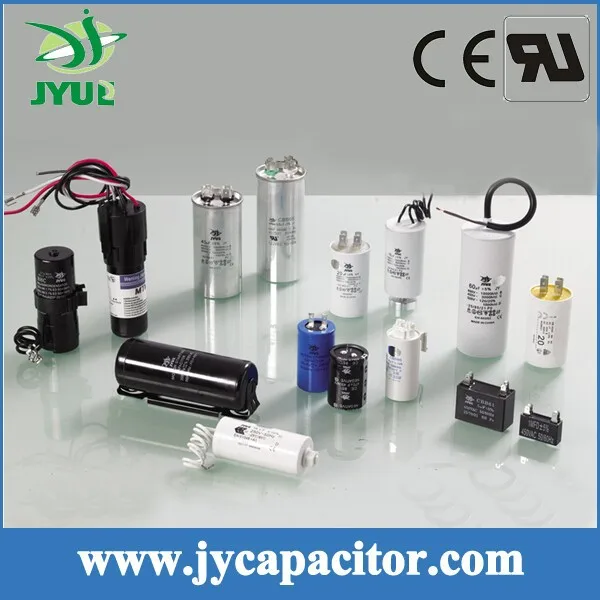

WENLING JIAYANG CAPACITOR CO., LTD is a professional manufacturer of all kinds of metallized
polypropylen film capacitors.we specialize in CBB and CD series capacitors,which are widely used
for micro water pump,washing machine,cleaning machine ,air compressor,etc.
We own big, clean, dustproof, constant temperature, whole sealing specialized plant. Besides, there
are many professional manufacturing equipment, such as Auto Capacity Slitting Machine, CBB Auto
Winding Machine, Auto Metal Spraying Machine, Auto Formation Machine, Wire Welding Machine,
Oiling Machine, CD Auto Winding Machine, Auto Impregnator Set, etc.
Till now, we are the supplier of many renowned companies. So we believe that we will definitely
satisfy all kinds of your needs.Your inquiry and OEM design requirement will be warmly welcomed.

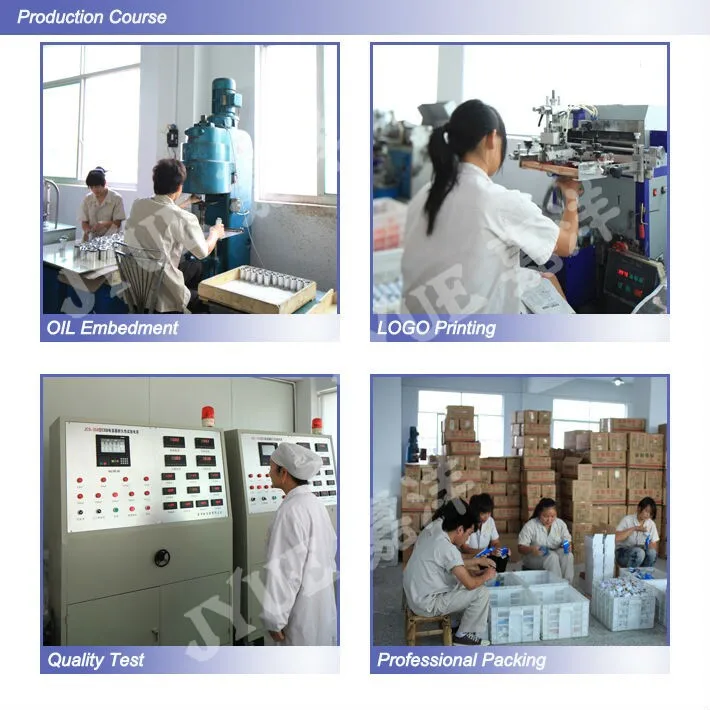

Our Workshop
Certifications
Product Certifications
Every type of our company products has been test by authority, and up to the international standand, so we got CE/UL/CQC/ROHS/ISO9001 certificate as followes.
FAQ
FAQ
Question 1 : Are you a manufacturer or a trading company ?
Answer : ♣ We are a manufactuer specialized in metalized polypropylene film capacitor since 2009.
Question 2 : How can I get some samples ?
Answer : ♣ We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.
Please click "HERE" to get sample now.
Question 3 : Can your factory print or emboss my logo on the goods ?
Answer : ♣ Yes,we can print or emboss your own logo on the goods or their packing box.
Question 4 : What's your MOQ of this product?
Answer : ♣ MOQ is 3000 pcs ,if less,please check with us firstly.
Question 5 : What's your delivery time?
Answer : ♣ It is about 25-35 days, if your goods required urgent, please contact us firstly.
