GMT28 CNC Gantry Milling Machine Table Moving Type With Long Travel
- Category: >>>
- Supplier: Qingdao Huiteng Machinery Equipment Co. Ltd.
Share on (60315899981):
Product Overview
Description
Product Description
1. Specifications Of GMT28 CNC Gantry Milling Machine Table Moving Type With Long Travel :(Other models available)
| Worktable size (L x W) | mm | 2000x3000-8000 |
| Worktable loading capacity | ton | 2.5 |
| X axis rapid travel | mm | 8000 |
| Y axis travel (spindle travel in crossbeam) | mm | 8000 |
| Z axis travel (Spindle vertical travel) | mm | 2000 |
| Distance from spindle nose to worktable | mm | 2000 |
| Distance between two columns | mm | 3200 |
| X axis positioning accuracy | mm | ±0.02/1000mm |
| Y axis positioning accuracy | mm | ±0.02/1000mm |
| Z axis positioning accuracy | mm | ±0.02/1000mm |
| Repetitive positioning accuracy | mm | 0.015/1000mm |
| X axis travel(Worktable) | mm | 6200 |
| Y axis travel (spindle travel in crossbeam) | mm | 2800 |
| Z axis travel (Spindle vertical travel) | mm | 1000 |
| Motor power | kw | 22 |
| Spindle speed | rpm | 20-2000(Op:6000rpm) |
| Spindle taper | ISO50 (7:24) | |
| Diameter of spindle bearing | mm | 100 |
2. Equipment Of GMT28 CNC Gantry Milling Machine Table Moving Type With Long Travel :
| Item | Model | Brand |
| CNC system | Fanuc 0i MD | |
| X axis Ballscrew | HIWIN-Taiwan | |
| Y axis Ballscrew | HIWIN-Taiwan | |
| Z axis Ballscrew | HIWIN-Taiwan | |
| Heavy load Linear guideway | Roller type | HIWIN-Taiwan |
| Bearing for screwbar | SKF-Germany | |
| Tool Magazine(Option) | 32station | Gifu-Taiwan |
| Air condition | Leibo | |
| Spindle | Kenturn Nano-Taiwan | |
| Clamping system for tools | Kenturn Nano-Taiwan | |
| Hydraulic parts | Shenyu-Taiwan | |
| Chip conveyor | Xinyu-Yantai | |
| Electric units | Siemens/Scheider/ABB |

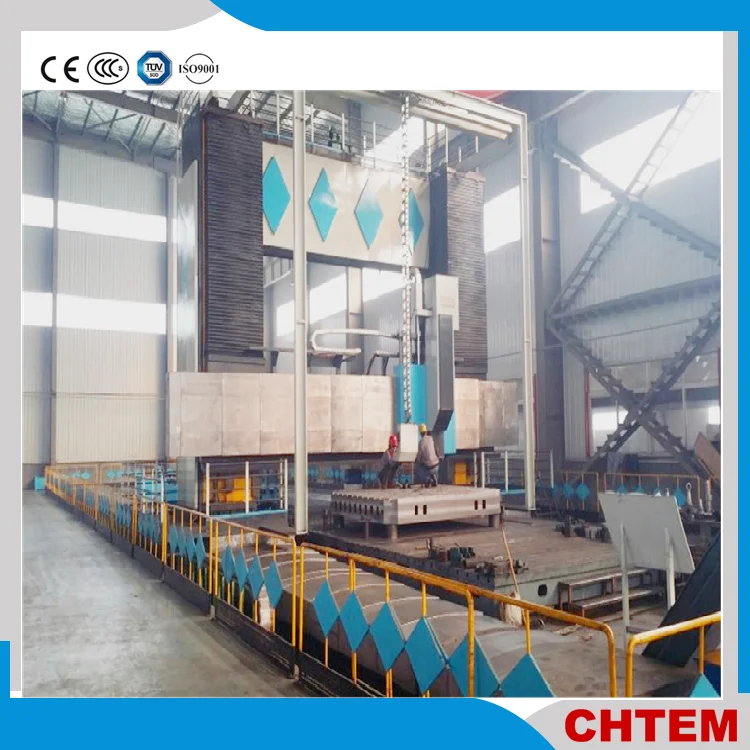

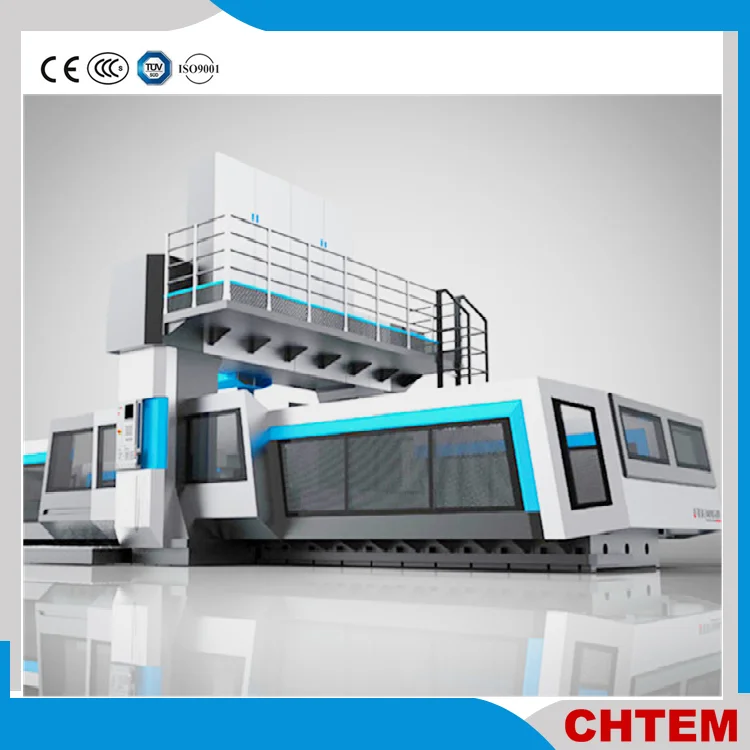

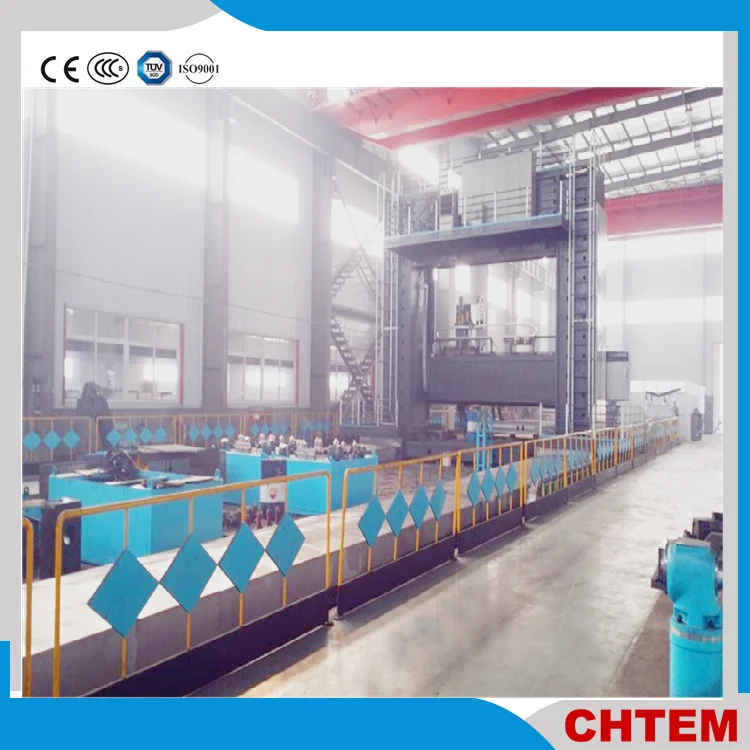

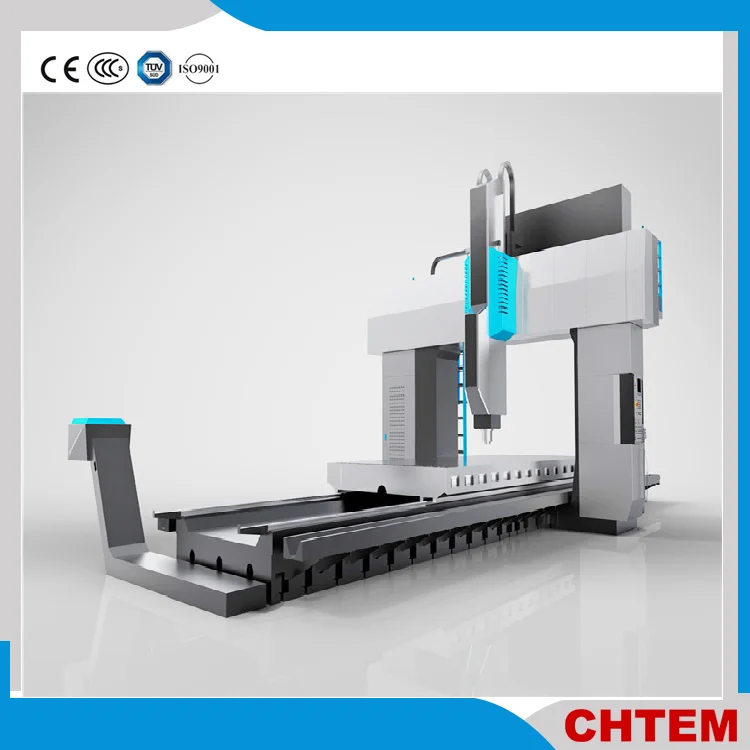

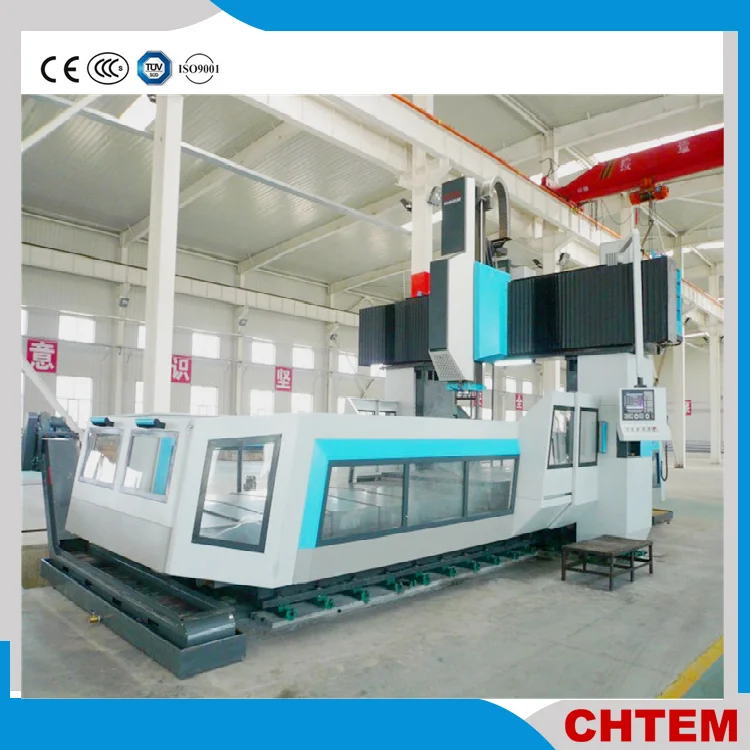

3. GMT28 CNC Gantry Milling Machine Table Moving Type With Long Travel Details:
Packaging & Shipping
1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible errosion during transportation.
2. A plastic cover to wrapp around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and sepcially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.
5. At seaprot, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving during transportation. |
Company Information
Our sales references
FAQ
1. MOQ?
2. DELIVERY TIME: tions
3. WARRANTY PERIOD: the after sale service will be covered by dealer (if there will be problem, plsnotify). After warranty per- iod, the spare parts will be supplied with a factory price.
4. PAYMENT TERMS: signed. The other 70% of the whole contract value should be paid before shipment. |
