cable machine 14DT drawing cca wire drawing machine plant

Product Overview

Description



cable machine 14DT drawing cca wire drawing machine plant



1.Characteristics wire drawing machine.

1.Dual-motor mode, dual-frequency, small slip, wire good appearance, high quality.

2. Adopt co-current annealing, the elongation ratio is stable, the wire rod is artistic.

3. Curl tension automatic revision electric controlled system.

4.Easy maintenance, simple operation, low noise, energy-saving, high efficiency.



 2. Technical Parameters of wire drawing machine:



machine type	22DT	24DT	14DT
inlet diameter(mm)	φ0.8-φ1.2	φ0.5-φ1.0	φ0.8-φ1.6
outlet diameter (mm)	φ0.1-φ0.32	φ0.08-φ0.25	φ0.25-φ0.6
drawing line speed(MPM)	2000	2000	1200
main motor	11KW	11KW	15KW
annealing power	16KVA	16KVA	30KVA
take-up motor	3.7KW	3.7KW	5.5KW
annealing power	DC. three-section annealing
suitable diameter of spool	φ300	φ300	φ300
revise system	PID synchronous spooler
capacity for wire receiving	50KG	50KG	50KG
power source	380V	380V	380V
brake	magnetic brake
machine dimension	2100L×1600W×1700H	2100L×1600W×1700H	2568L×1538W×2974H
machine weight	3000	3000	3000

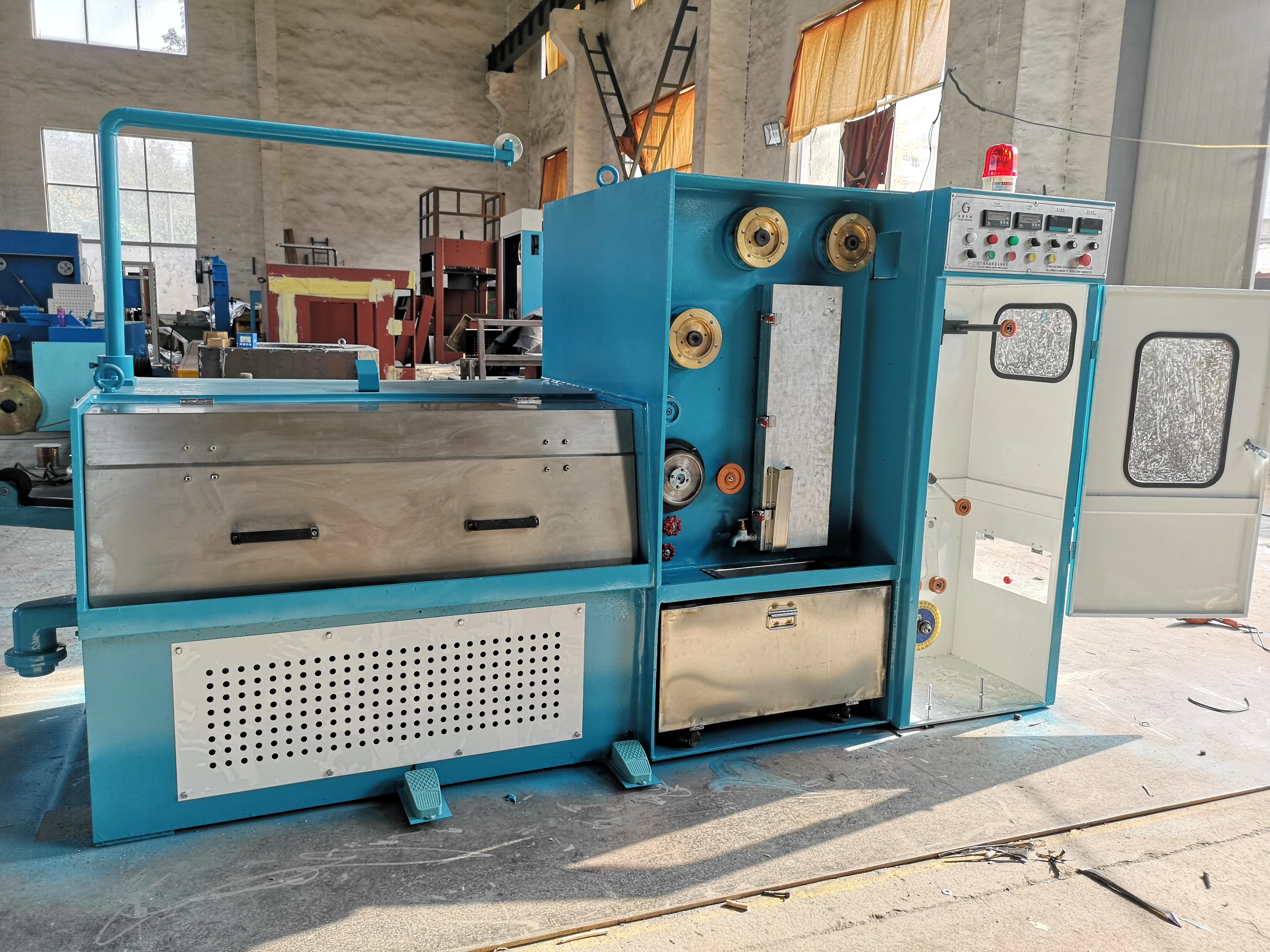

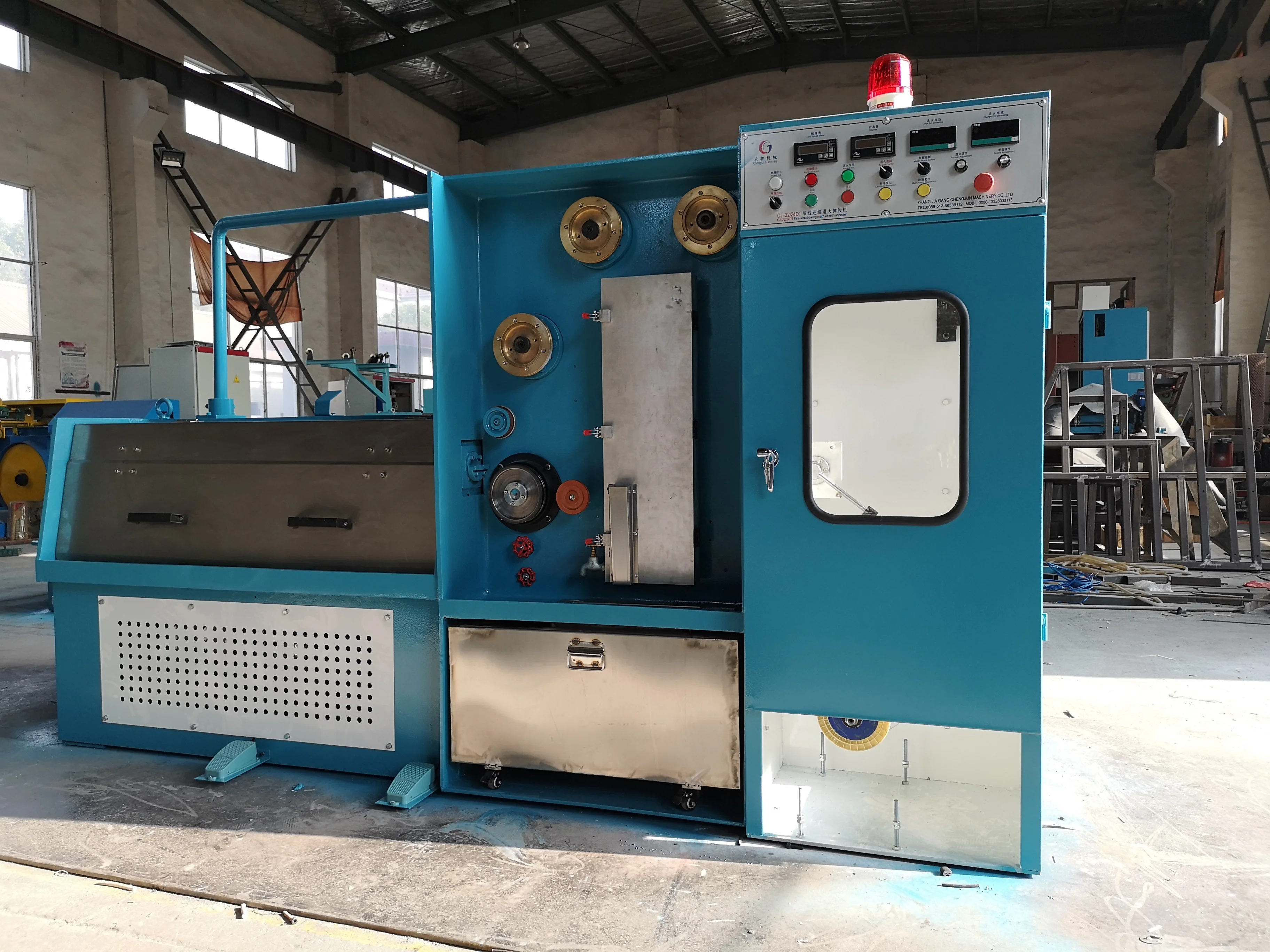

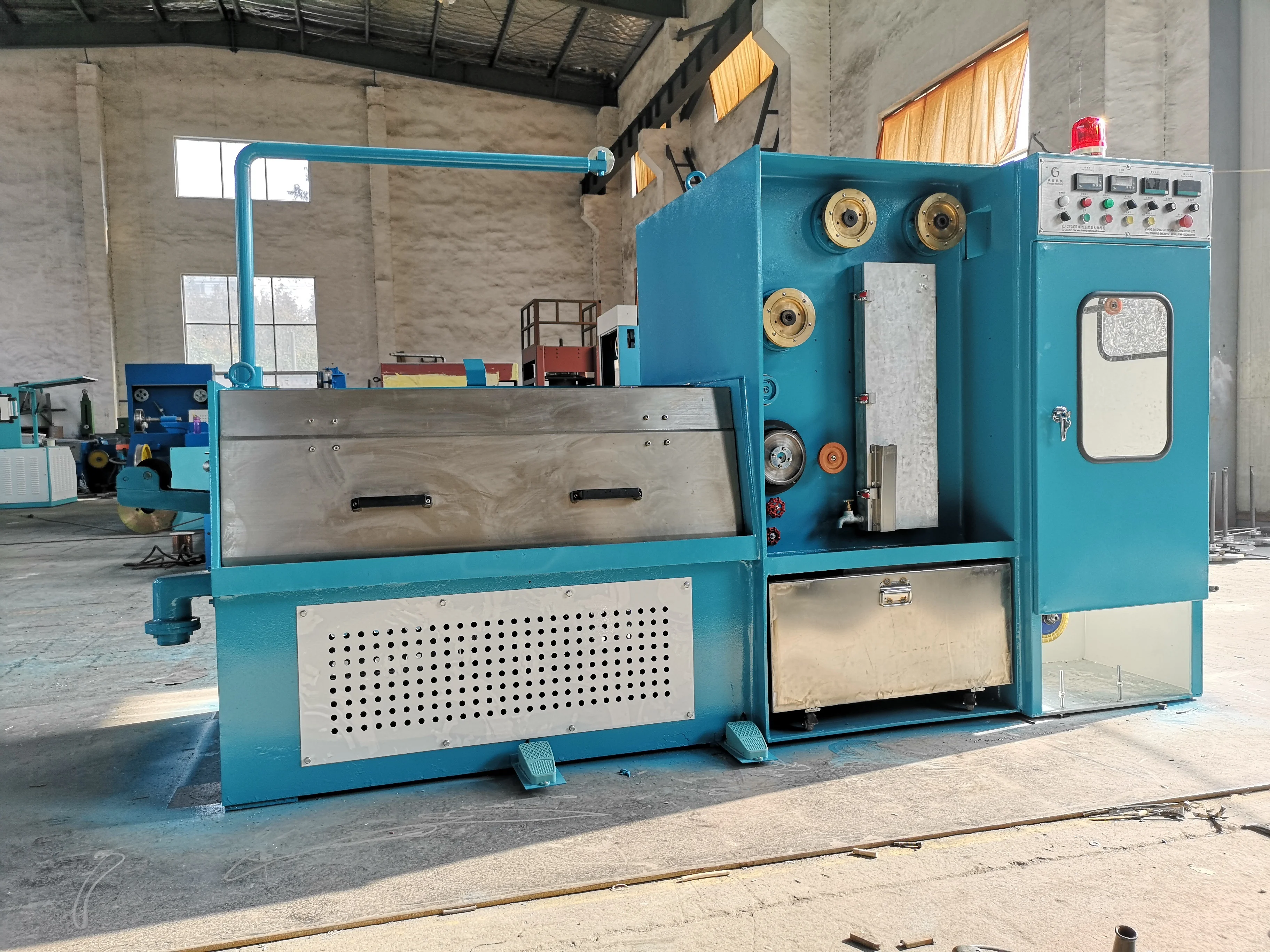

3. Pictures:













Delivery &packing: Wooden pallet or film wrapped.





After-Sale Service :



1: In order to help customers are able to operate the machine correctly, trainings on operation,

maintenance and simple repair can be supplied if necessary.



2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month

 since the shipment date.



We shall work with you as a team and to win as a team.



We provide not only quality products but also best service to you.



Quality, Innovation and Service
