OEM factory of Q235B ground screw spiral anchor

Product Overview

Description



1.Spiral  Earth Anchor Description

• Spiral  Earth Anchor Parameter

Item No.:	WBQ F76 x 1200 x 220-M24	WBQ F76x1600x220-M24	WBQ F76x1800x220-M24	WBQ F76x2000x220-M24
Material:	Steel, ISO 630 Fe360A
Surface:	Galavanized To DIN EN ISO 1461
Length:	1200mm	1600mm	1800mm	2000mm
Outer Dia:	76mm	76mm	76mm	76mm
Thickness:	3-4mm	3-4mm	3-4mm	3-4mm
Adjustment Dia:	M 24	M24	M24	M24
Durchmesser Lochbohrung:	6 x φ14	6x φ14	6x φ14	6x φ14
Throat Dia:	167mm	167mm	167mm	167mm
Flange Thickness:	8mm	8mm	8mm	8mm
Flange Outer Dia:	220mm	220mm	220mm	220mm
Packing:	In steel pallets
Time of delivery	15-20days after order
Payment:	30% advance payment by TT, 70% balance against B/L copy



• Spiral   Earth Anchor   Application

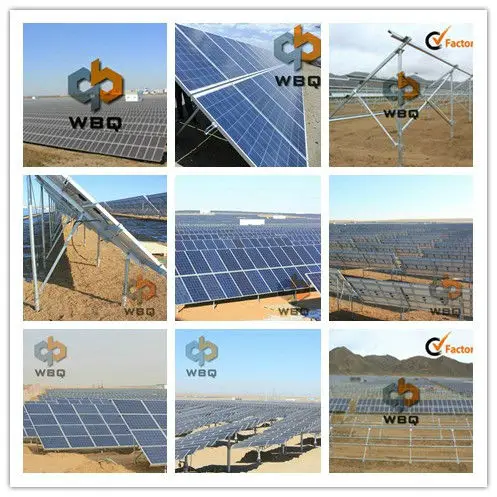

         As the foundation of solar power system, sun umbrella,traffic sign and so on.





• Range of Application for Spiral   Earth Anchor

Docking & Parks	Fencing & Traffic Sign
Flag Poles & Banners	Garden & Leisure
Sheds & Containers	Solar Power System
City & Parks	Stret Lamp





• Advantages of WBQ Spiral Earth Anchor  :

           The WBQ Spiral earth Anchor  System sets new standards for safe, fast, and affordable construction projects.



           The WBQ  Spiral earth Anchor   is extremely environmental.



           The WBQ  Spiral earth Anchor     is installed in a matter of minutes with no digging and no concrete.



           The WBQ  Spiral earth Anchor    is statically tested and have been approved by LGA in Germany.

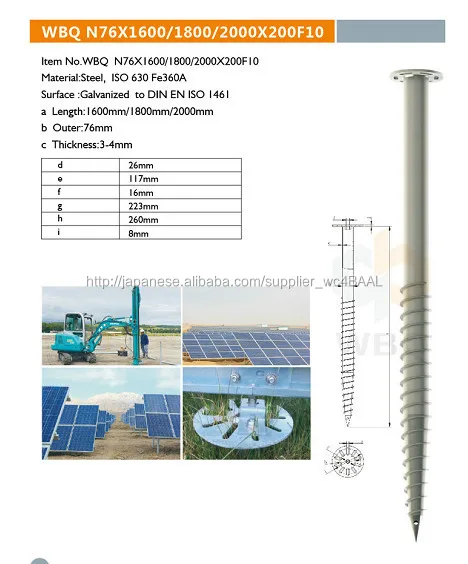

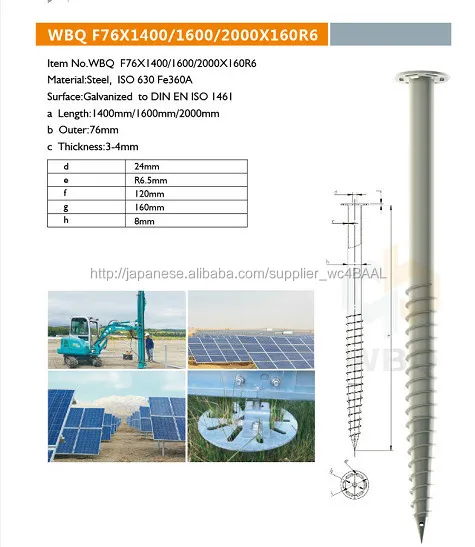

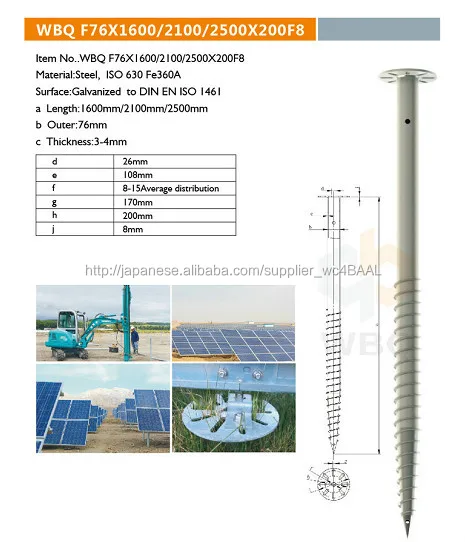

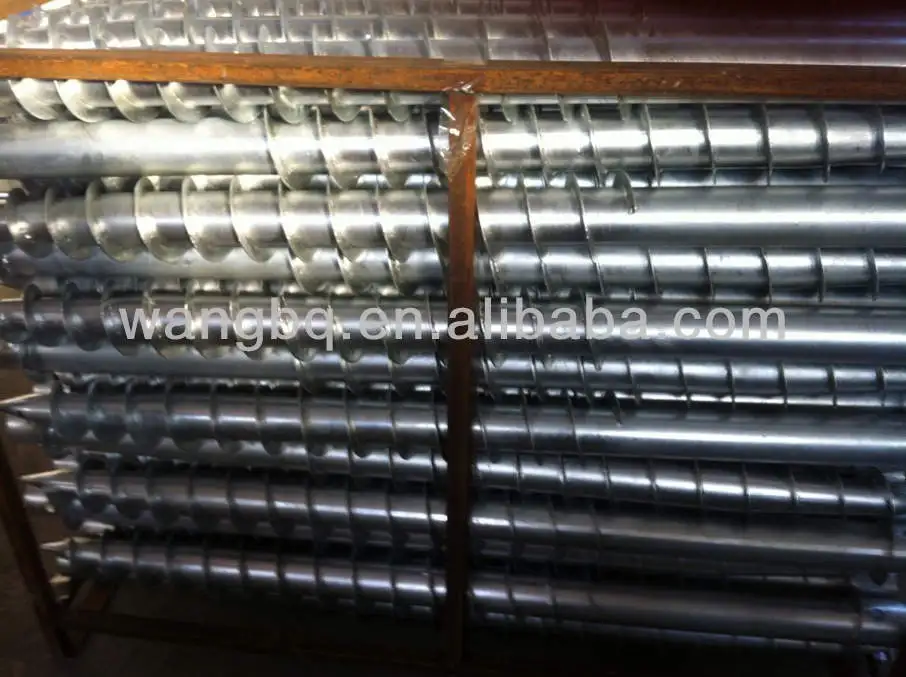

• Spiral  Earth Anchor Pictures

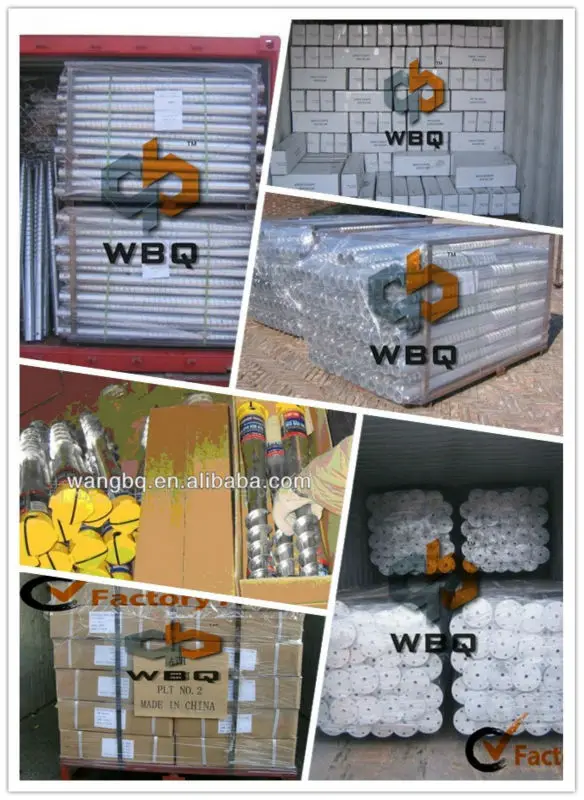

2.Packing & Shipping for Ground Screw Earth Anchor

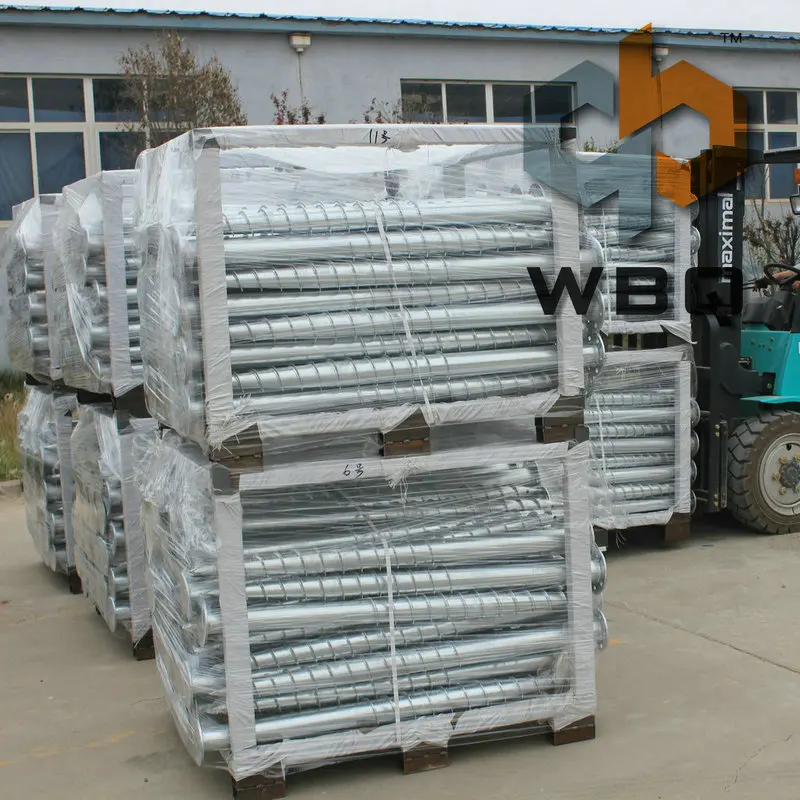

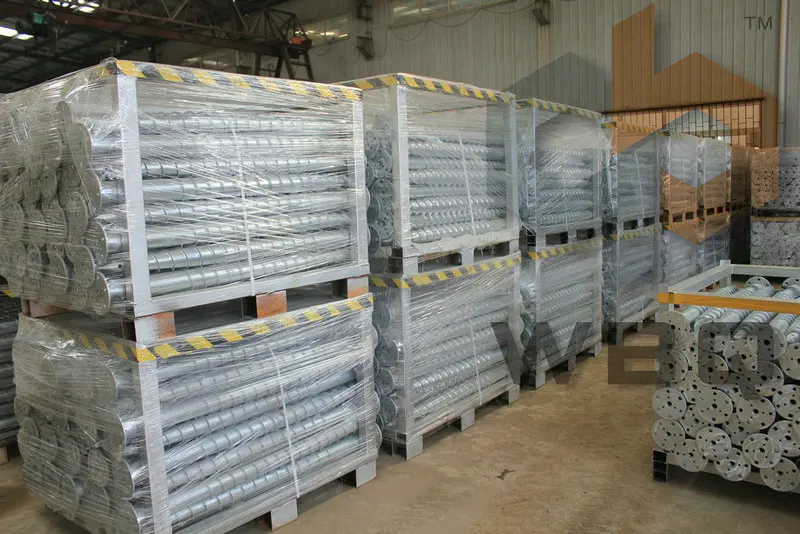

  In Steel Pallets and then film

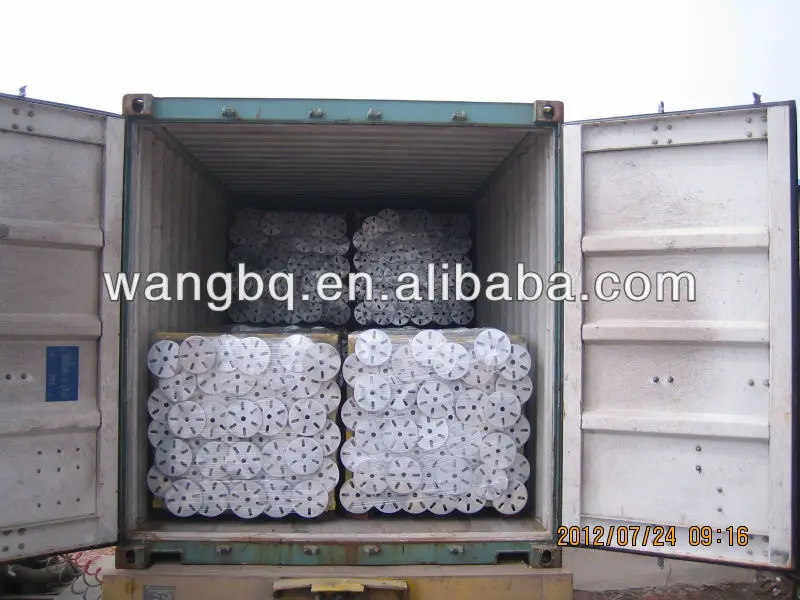

•  Shipment by sea





3.Our Services

• R&D and QC department to ensure the products quality and uniqueness
• Good after sale services
• Best price
• Fast delivery time

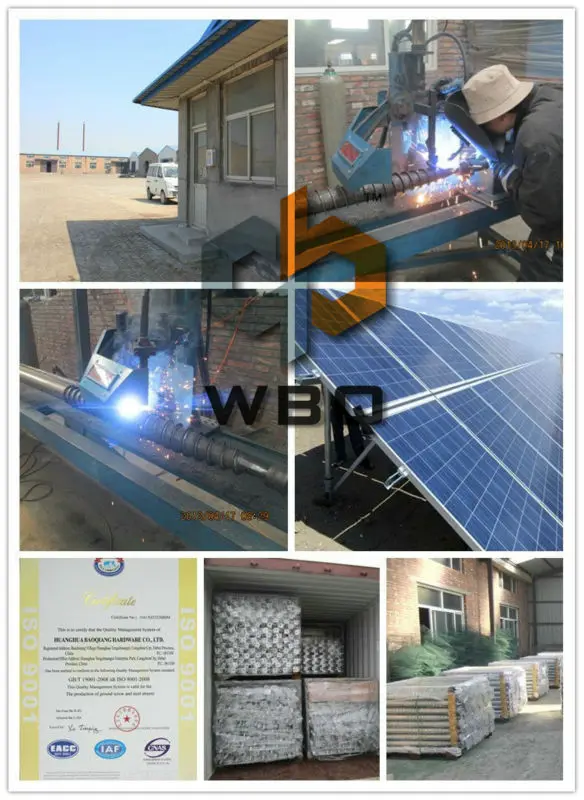

4.Company Information



• Factory for ground screw spike since 1999
• We are the biggest supplier of ground screw spike for two listed company in Japan and Thailand
• Factory with ISO 9001 certificate
• QC and R&D department ensure the products characristics
• Patent holder in China
• Market for EU, USA ,Canada, Australia, Czech Republic, Greece and Middle East Countries.
• Competitive price and fast delivery

5.FAQ

•  How to choose the ground screw Earth Anchor?

The soild condition is very important to choose the ground screw spike. If there is many stone,  multiple spiral ground screw spike is better than twobig spiral ground scrw. If it is the sand condition, two big spiral ground screw spike is better for choose.

•  Anticorrosion Ability

The surface treatment is Hot dipped galvanized. Which can hold more than 25years anticorrosion ability. The thickness of galvanized is above 85μm which can ensure the good anticorrosion.

• How to pile this ground screw into the ground?

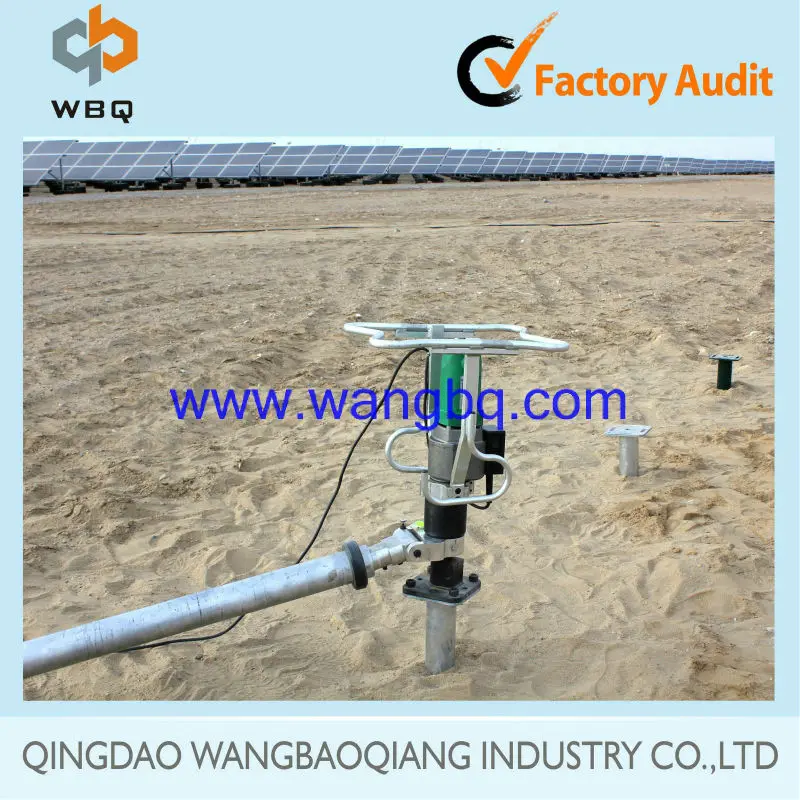

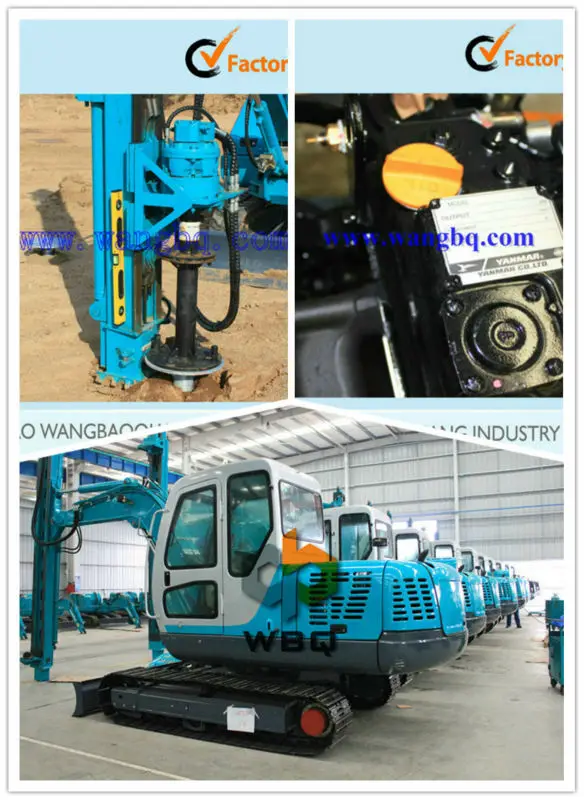

Our company have many kinds of ground screw piling machine which are easy opeation. Pls kindly check the followig mahcine pictures for your reference.



WBQ HD-05(Made in Japan)



SWDL 150/600 Spiral Piling Machine
