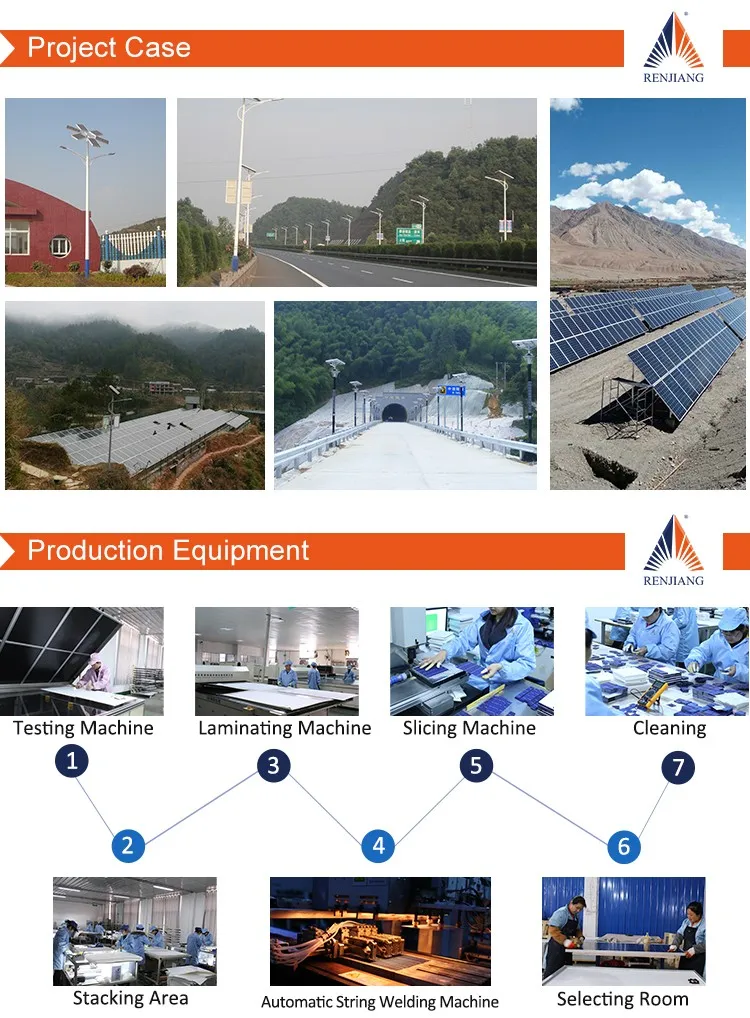

>>>>>>>>>>>Contact us to get more project pictures of our solar panels applied in many districts.

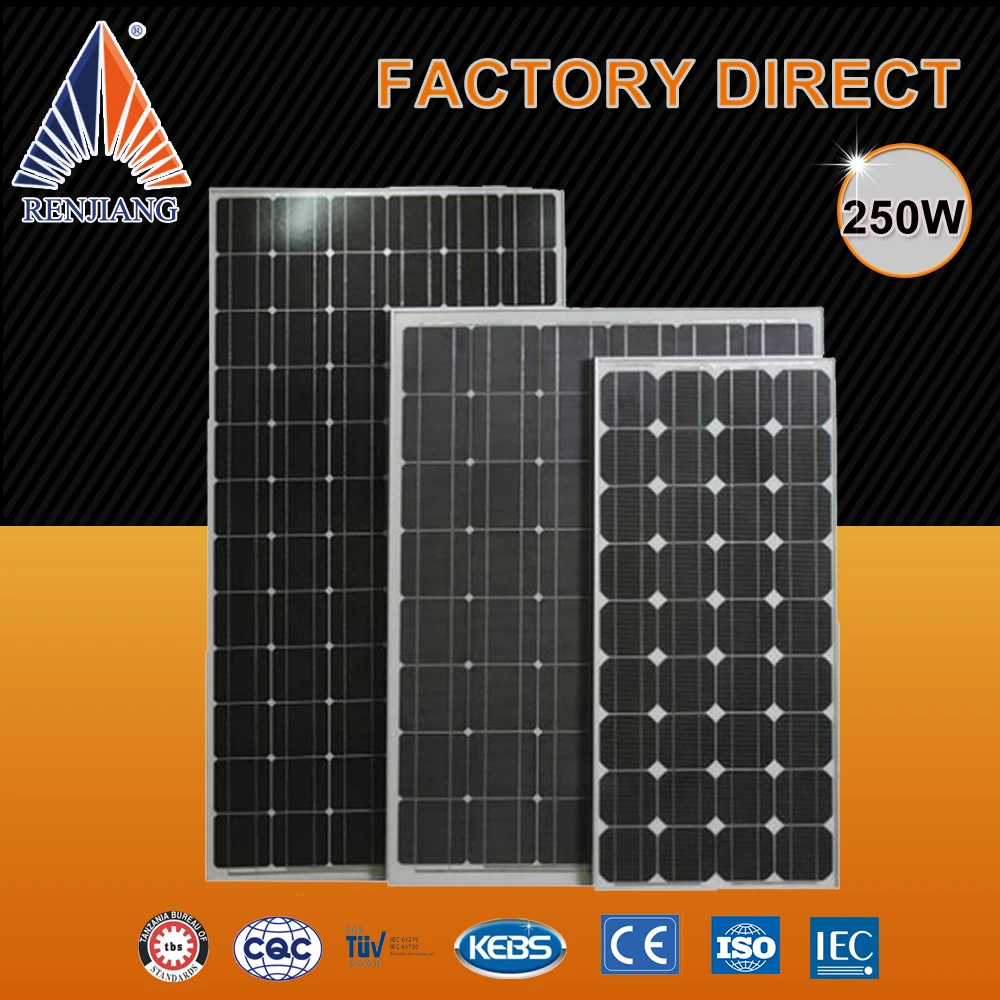

| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 250 | 37.92 | 30.96 | 8.62 | 8.08 |

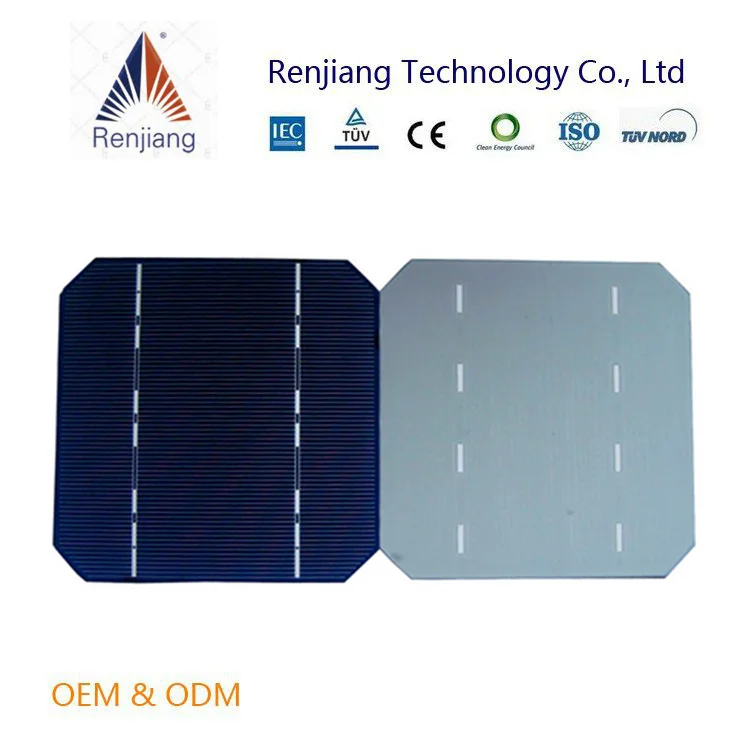

| Temperature Coefficient ofVoc | -0.38%/℃ | CeII(mm) | 156*156 | |
| Temperature Coefficient of lsc | + 0.04%/℃ | Weight(kg) | ||

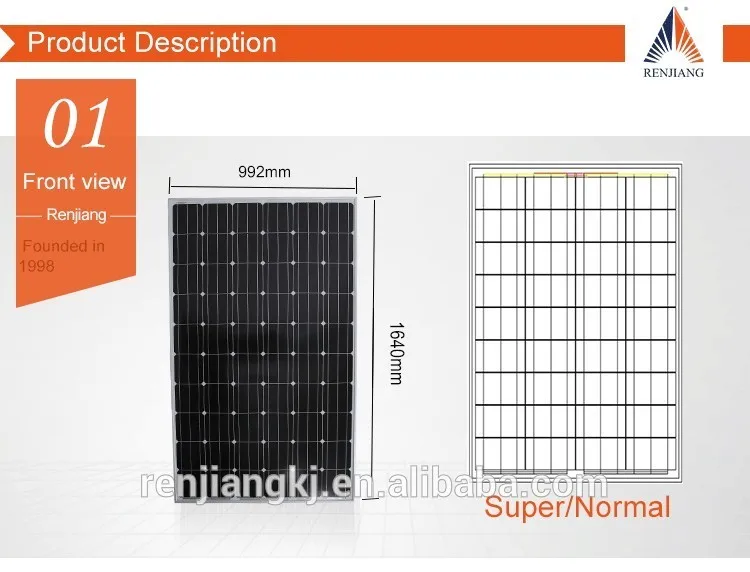

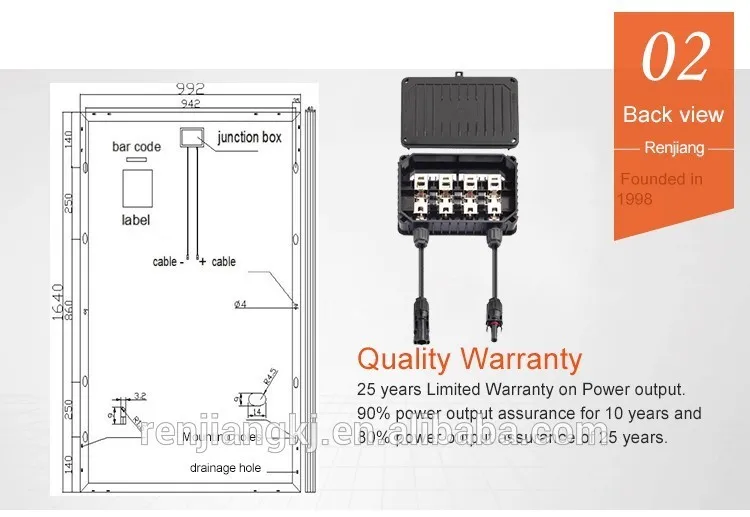

| Temperature Coefficient of Power | - 0.47%/℃ | Dimensions(LxWxH) (mm) | 1640*992*35 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 2*4 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 60(6*10) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 3*15A | |
| Maximum Series Fuse Rating(A) | 10 | Monolithic power | 3.61w-4.3w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 15.13%-18% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 26pcs/carton | |
