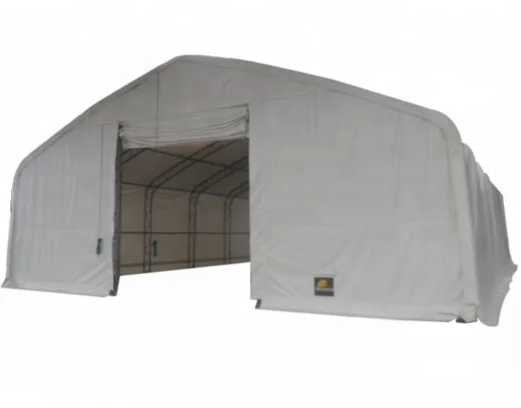

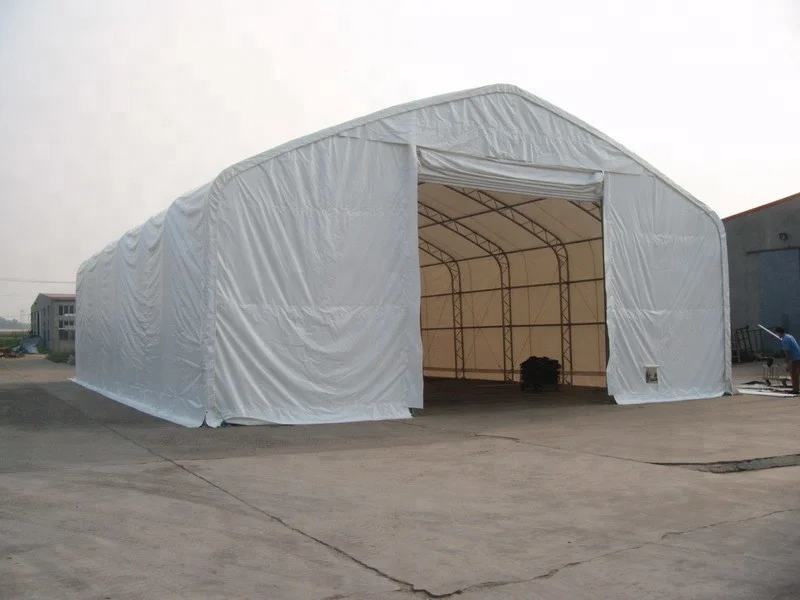

Steel Structure Large Outdoor PVC Storage Tent As Warehouse
- Category: >>>
- Supplier: Qingdao Desing Farm Technology Co. Ltd.
Share on (60316677223):
Product Overview
Description

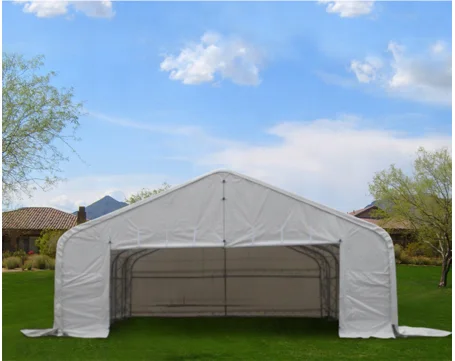

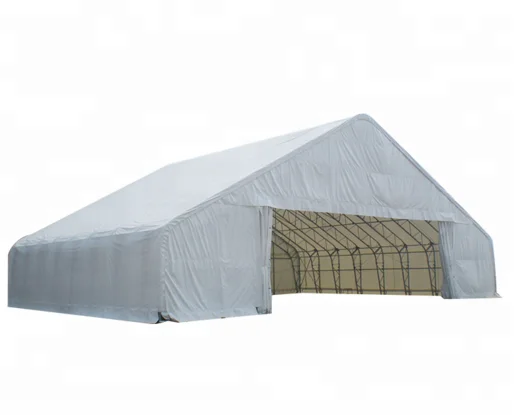

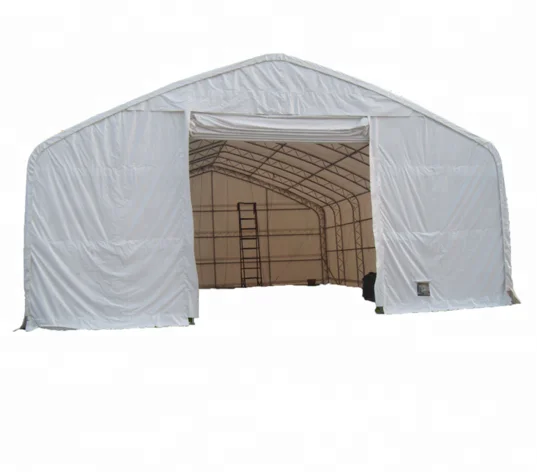

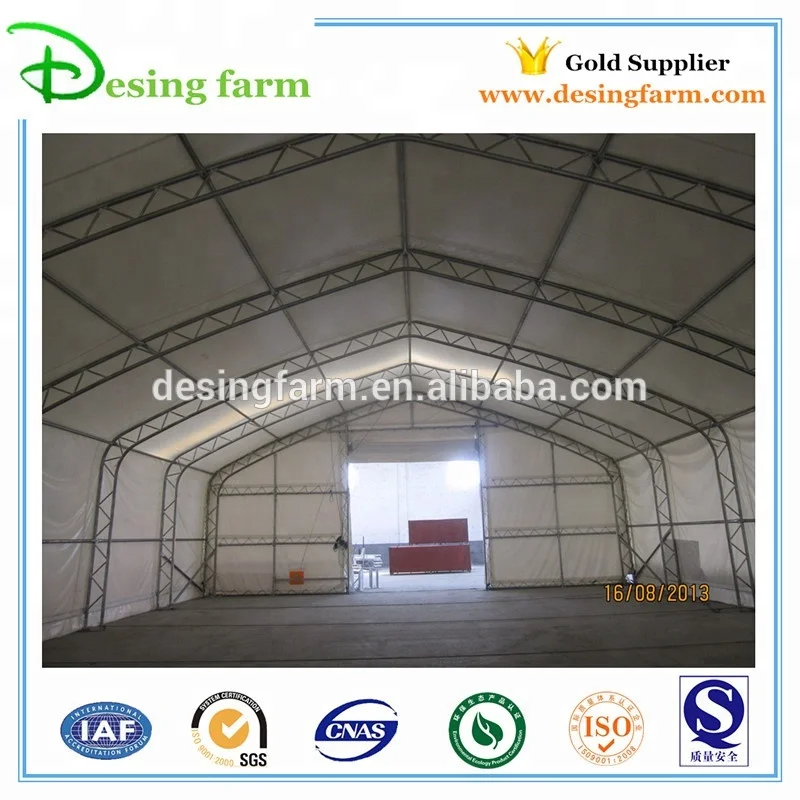

3230T large outdoor storage warehouse PVC tent
Specification:
| 3230T Large Warehouse Storage Tent | |
| Item No. | 3230T |
| Size | 9m L * 9.7m W * 4.7m H |
| Sail | PVC 610g or PE 300g |
| Frame | 1) Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ50mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm 5) 6 pairs of legs,1.8m distance |
| Finish | galvanized tubes for the frame |
| Usage | suitable for storage warehouse |
| Advantage | waterproof and anti-UV |
| MOQ | 1 set |
| Weight | 1190 kgs for PVC fabric,1106kg for PE fabric |
| Packing | steel pallet with plywood,12 sets/40'HQ |
Model |
SIZE |
MATERIAL | Weight PE 300g | Weight PVC 610g | QTY/ 40HQ |
3040 |
9.15 ×12 ×4.5 30’ x 40’ x 15’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 1240 KGS |
1330 KGS
| 12 SETS / 40HQ |
3065 |
9.15×20×4.5 30’x65’x15’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 1700 KGS | 1830 KGS | 8 SETS / 40HQ |
3085 |
9.15×26×4.5 30’x85’x15’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 2090 KGS | 2260 KGS | 6 SETS / 40HQ |
4060 |
18.3*12.2*5.8 60’x40’x19’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 2210 KGS | 2390 KGS | 7 SETS / 40HQ |
4070 |
21.4*12.2*6.4 70’x40’x21’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 2700 KGS | 2900 KGS | 5 SETS / 40HQ |
4080 |
24.5*12.2*6.4 70’x40’x21’ | 1)Double pipe truss: φ60mm×1.5mm 2) Roof purlin and horizontal tube: φ60mm×1.5mm 3) Slanting support tube: φ25mm×1.2mm 4) Lower roof cover tensioning tube: φ32mm×1.2mm | 2950 KGS | 3207 KGS | 4 SETS / 40HQ |

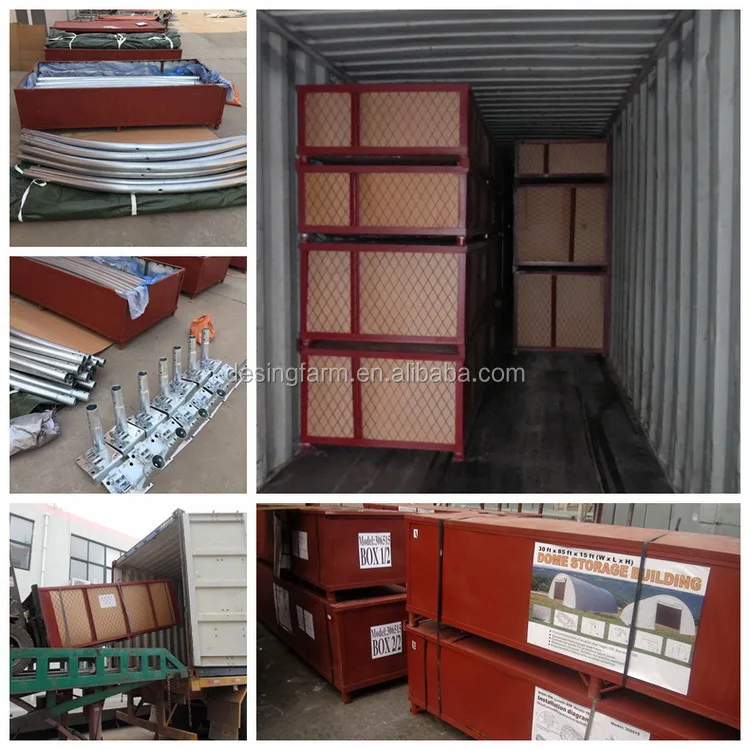

Packaging & Shipping

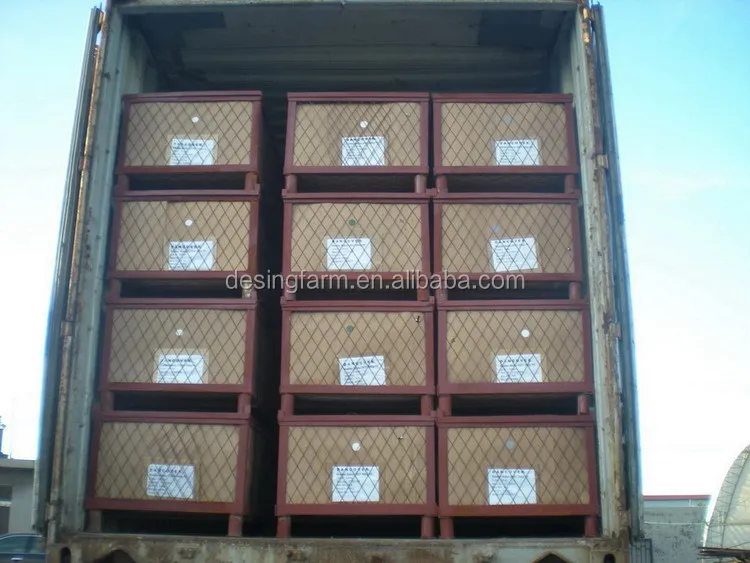

Packing and shipping photos for your reference
Transaction level

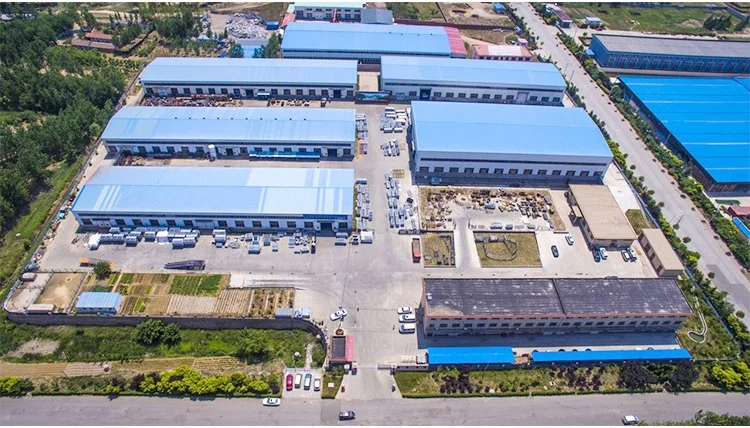

Company Information
1.Equipments
Our factory covers 53,613 square meters, the workshops cover 24,371 square meters,owing CNC punching machine, CNC plate bending machine, CNC plasma cutting machine, CNC Laser cutting machine, Plate Bending Machine, Plate Clipping Machine, Pipe Bending Machines, Pipe Swaging Machines, Punching Machines and Welding Machines etc.
We own so many professional equipments,so we can produce a lot different products for you by ourselves.
2.Professional teams:
We have 7 engineers and Qc teams in our factory,they will test and confirm the quality before and after production.After we confirming everything ok,we arrange the sailing.
3.Rich experience:
It has been more than 15 years for us to do this product,we have rich experience to design and produce it according to your requirements.

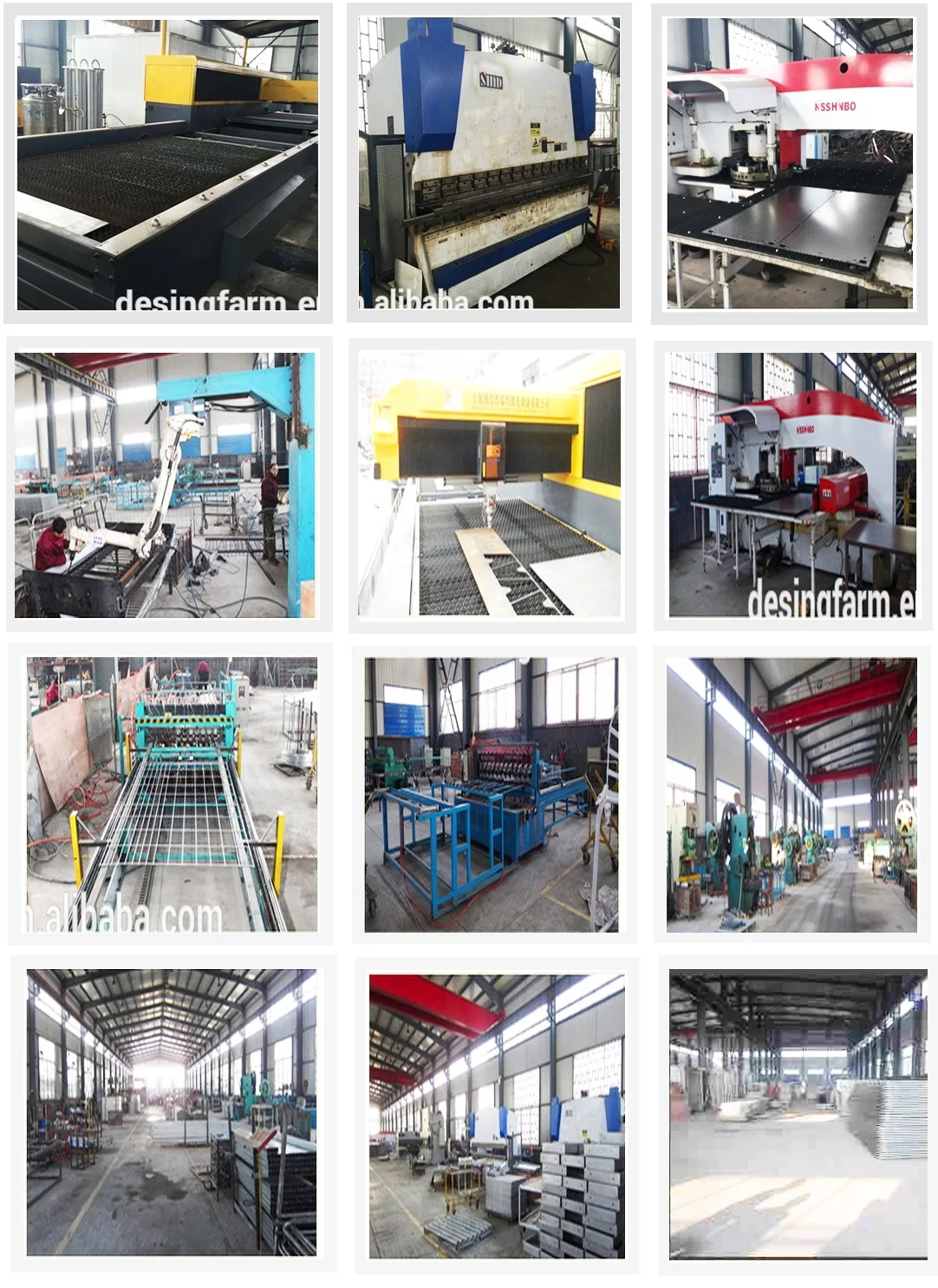

4.Some equipments photos:
5.Photos in the Fair
Certifications
FAQ
Q 1: Are you a manufacturer or a trading company?
A: We are a manufacturer which has more than 20 years' production experience. We have two factories over 56,000sqm and owns more than 150 experienced engineers and workers.
Q 2: How do you control your production quality?
A: We have an independent QC team. Our QC team do sample inspection, part inspection during production and 30% final inspection before shipment.
Q 3: Can I have a visit to your factory before placing an order?
A: Sure, welcome to visiting our factory. Our factory address is Huanbao Er Road, Qingdao Environmental Protection industry Park, Jimo, Qingdao, China.
It takes about 20 minutes from Qingdao Airport to our factory!
Q 4: Can you arrange the shipment in busy season?
A: We ship more than 500 container every year. We have good relationship with shipping lines. Our products can be shipped in priority.
Q 5: Can i add my logo on the product?
A: Yes. OEM and ODM are available for us.
But you should send us the Trademark authorization letter
Q 6: How can i get the after- service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problem, we also send the spare parts, but you should pay.
