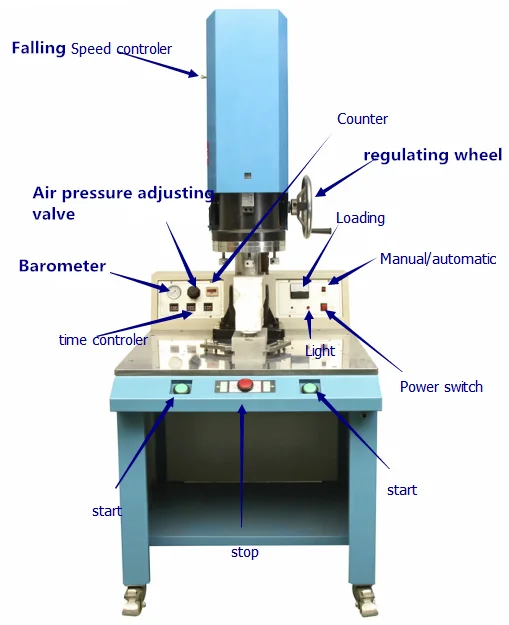

Automatic Servo Ultrasonic Welding Machine For Non woven Welding

Product Overview

Description

                      Automatic Servo Ultrasonic Welding Machine For Non-woven Welding



Application of ultrasonic plastic welding machine:

1. toy plastic welding machine have strong welding strength to meet waterproof and airtight requirement.

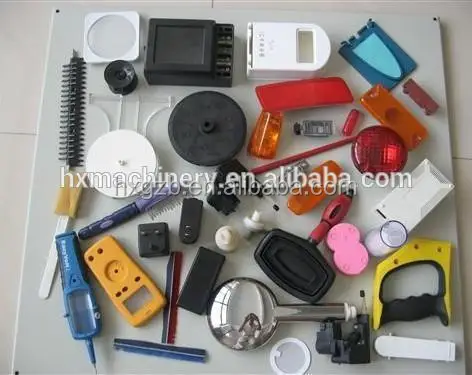

2. toy plastic welding machine can welding many kind of plastic material ,such as : AS .PP ,ABS .PE ,PC, PVC, NYLON, NORYL,ACETAL,POLYSULFON.ect...

Specifications of ultrasonic plastic welding machine:
Plastic welding machine manufacturer

1.welding thermosetting plastic.
2.customized sonotrode for customer.
3.safety protection.
2.easy to operate.



Parameters  of ultrasonic plastic welding machine:

style parameter		HX-2015	HX-2018	HX-2020	HX-2022	HX-1526	HX-1532	HX-1542
Output		1500W	1800W	2000W	2200W	2600W	3200W	4200W
Vibrating frequency	20KHz                                         15KHz
Power	50/60Hz 220VAC/1P 10A 50/60Hz 220VAC/1P 12A						50/60Hz 220/380VAC/1P 18A
Max stroke	350MM
Working journey	80MM                             100MM
Electron case size							650*600*180MM
Size of the head	1285*410*700MM
Welding area	¢100	¢150	¢170	¢180	¢190	¢220	¢240
Net weight	100KG						250KG
