Price:$9,000.00 - $15,000.00

Quantity:


Product Overview

Description

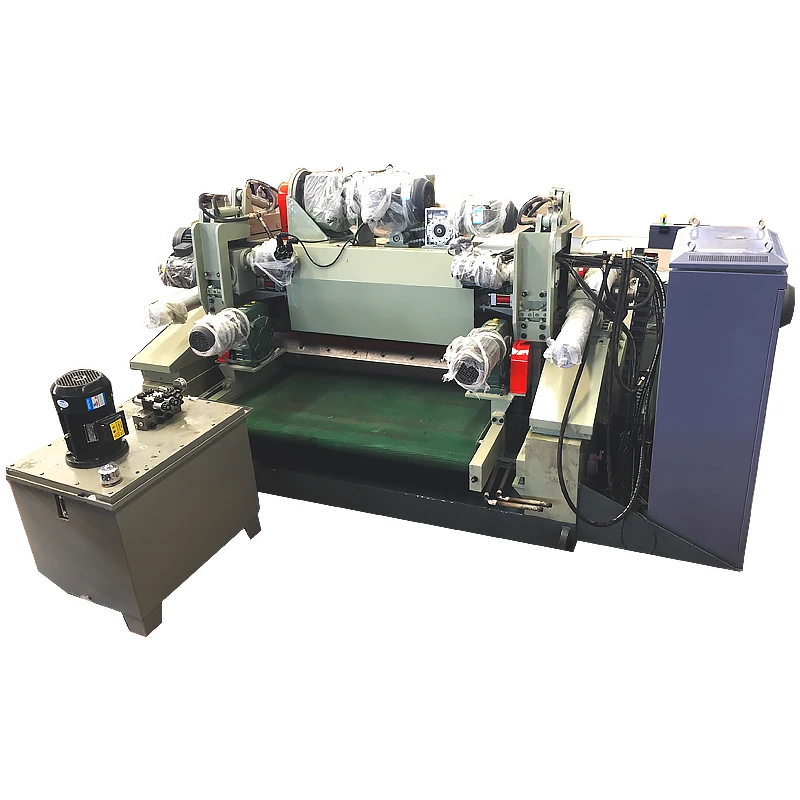

                       4 feet Rotary Wood Veneer Peeling Machine and Cutting Lathe

Type4 feet (1300mm)8 feet (2600mm)10 feet (3200mm)
ModelWWXQ130SY-40FWWXQ260SY-45FWWXQ320SY-50F

Cutting Size

(Diameter*Length)

Φ400*1300mmΦ450*2600mmΦ500*3200mm

Min Residual

Diameter

Φ28mmΦ35mmΦ35mm

Max Stroke of

Tool Slide

400mm450mm500mm
Cutting Thickness0.5~3.6mm0.5~3.6mm0.5~3.6mm
Cutting Speed48m/min48m/min48m/min
Power21.5KW31.5kw45kw

Rotary Cutter Size

(L*W*H)

1400mm*180mm*16mm2700mm*180mm*16mm3300mm*180mm*16mm

Rolling Cutter Size

(L*W*H)

1400mm*90 mm*12.7mm2700mm*90 mm*12.7mm3300mm*90 mm*12.7mm

Dimensions

(L*W*H)

2800mm*2100mm*1350mm4900mm*2500mm*1450mm6800mm×2200mm×1450mm
Total WeightAbout 3400KGAbout 7800KGAbout 12000KG
