One of the first mover wire drawing machine manufacturer in China. We think our cable
machine will give you an edge over your competitors.
Product Description
1.Short description
This machine is consisted in four main parts, i.e. drawing, annealing, double spooler and electrical control part. The machine body is made of Q235Asteel plates by welding, through annealing to eliminateinternal stress and then processed by precision milling machine.
2. Technical specification
Machine type
HT-22DTS
HT-24DTS
HT-24DTS-A
Material
Cu
Al,Al-alloys
Machine speed
1800m/min
Inlet dia.
1.20 - 1.60mm
0.50 - 1.20mm
0.50 - 2.30mm
Finished dia.
0.15 - 0.60mm
0.08 - 0.40mm
0.15 - 0.70mm
No. of dies
Max.22
Max.24
Max.24
Capstan dia.
159mm
Annealing current
Max.600A
Max.300A
Max.400A
Annealing power
Max.36KW
Max.24KW
Max.30KW
Bobbin size
180mm~300x290x30(37)mm,ABS plastic bobbin

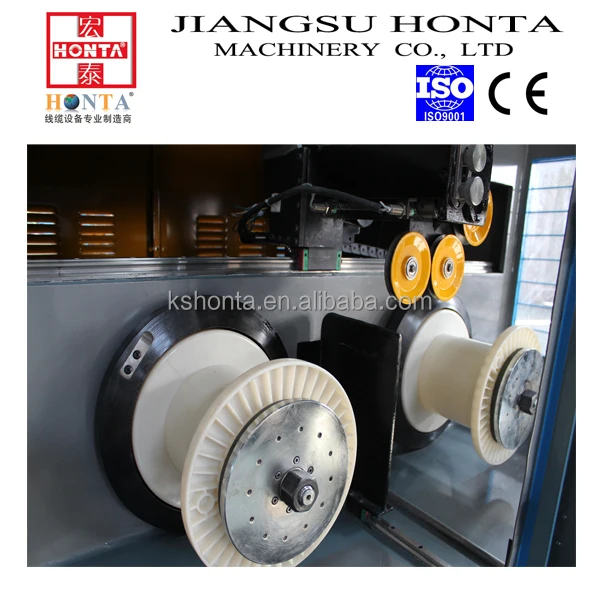

Spooler charge system
Auto change spooler without stop when spooling to preset length
Main capacity
60KVA
40KVA
55KVA
Machine dimensions
3200x1700x1800mm
3.Packing:packed on wooden pallets in1 x 20′container
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Mechanical Strength
Got any ideas, check here & mail to us now!
Our Services
5. After-service:
·Free training / introduction of the operating and maintenance personnel
·one mechanical engineer and one electric engineer will go to customer's factory for
commissioning after customer finished installation of the machines;
6.Warranty: machines will be tested in our factory before shipment; 12 months counted from
the date of signing the Certificate of Acceptance.
Questions must know
In order to help you find the correct machine and give you the best purchase scheme,
pls provide the below information at least:
·What's the material you want to produce,copper or aluminium?
·The local power supply
·The inlet/input diameter of the raw material rod
·The outlet/finished diameter range of the wire you want to produce
·What's the machine you want to buy,just one or totally line?
Commissioning
Product Range
• Copper rod breakdown machine with annealer
• Alumnium rod breakdown machine with annealer
• Wire electrolytic plating lines
• 16 wires multi wire drawing machine lines
• 8 wires multi wire drawing machine lines
• 4 wires multi wire drawing machine lines
• large medium wire drawing machine with annealer
• Medium wire drawing machine with annealer
• Fine wire drawing machine with annealer
• Fine wire drawing machine with automatic spoolers
• Aluminium wire drawing machine with automatic spoolers
• Fine wire drawing machine
• Annealing & Tinning machine
• Double twist bunching machine
• Dynamic spoolers for wire packages
• Dynamic spoolers
• Down coilers
