30G cheap ozone sterilizer / ozone generator for swimming pools / ozone sauna spa capsule

Share on (60316884263):


Price:

Quantity:


Product Overview

Description

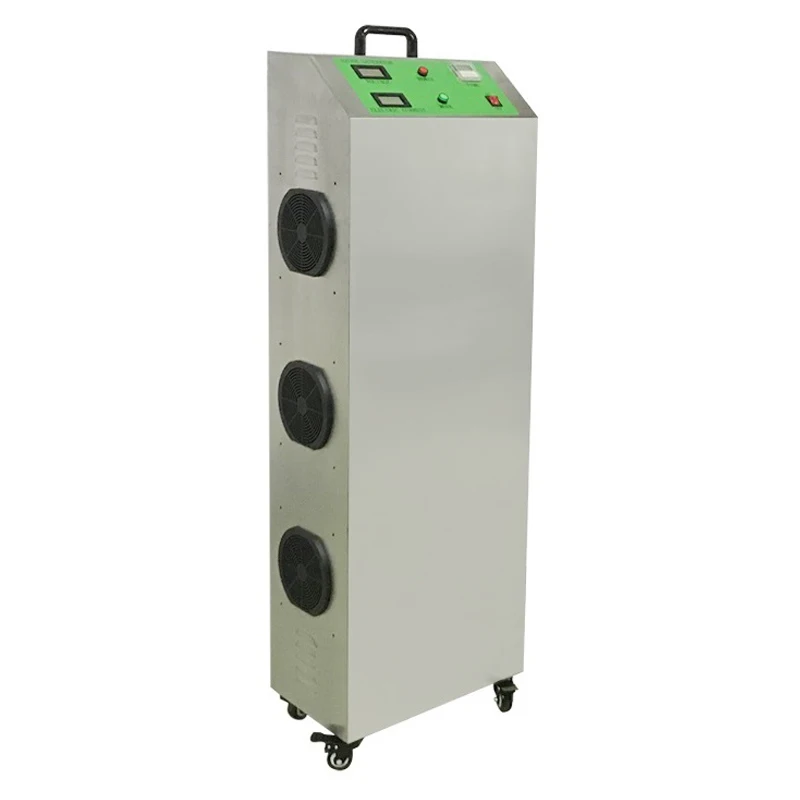

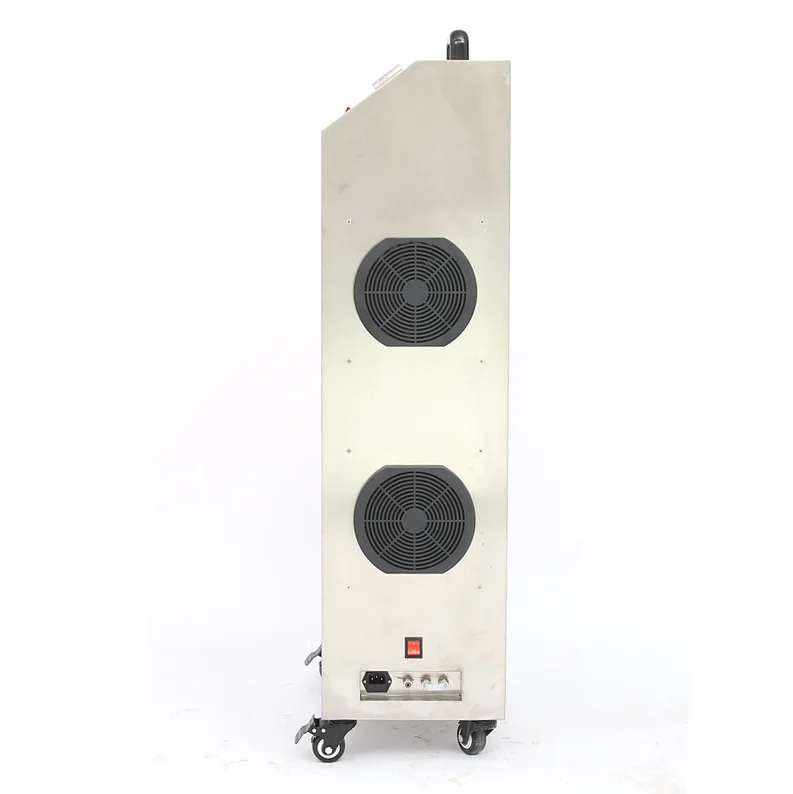

30G cheap ozone sterilizer / ozone generator for swimming pools / ozone sauna spa capsule



Functions

1. Sterilization: destroy variety of bacteria & viruses efficiently without secondary pollution.

2. Detoxification: effectively remove the residual pesticides from vegetables and fruits.

3. Deodorization: eliminate mould, smoke etc.

4. Oxygen increasing: improve the oxygen level for air and water.

5. Health: air purification, expedite human metabolism.

 Applications

1. Air purify for room, such as house, hotel, Karaoke, club, public house, Internet bar, game center, bus station, supermarket, office buildings.

It is also used for air disinfection in plane, steamship, train ,car and other transport tool.

2. Sterilize and disinfect for food, such as meat, vegetable and fruit.

3. Water treatment: SPA, small swimming pool, drinking water,well water, wastewater treatment, aquaculture water treatment etc.

4. Sterilize and disinfect for daily supplies, such as clothes, pillow towel, tool etc.

5.  Sterilize and disinfect for food processing workshop / packing material / cosmetic factory etc.

Features

1) . Ozone generator built in Domestic Patent High purity Ceramic /Quartz ozone tube with power supply.

2) . Ozone generator is cooled by air fan or water,  good heat dissipation effect.

3) . Ozone generator built in oil free air pump as feeding air source to produce ozone gas.

4) . Ozone output could be regulated based customer’s demand

5) . Digital Ammeter for showing circuit with ozone regulated.

6) . Working timer can be set 0.1s ~99 hours

7) . Movable design , small size and compact.

8) . This type is easier and safer to be operated.

9) . Input voltage: 110V/60hz,220V/50hz.

Specification

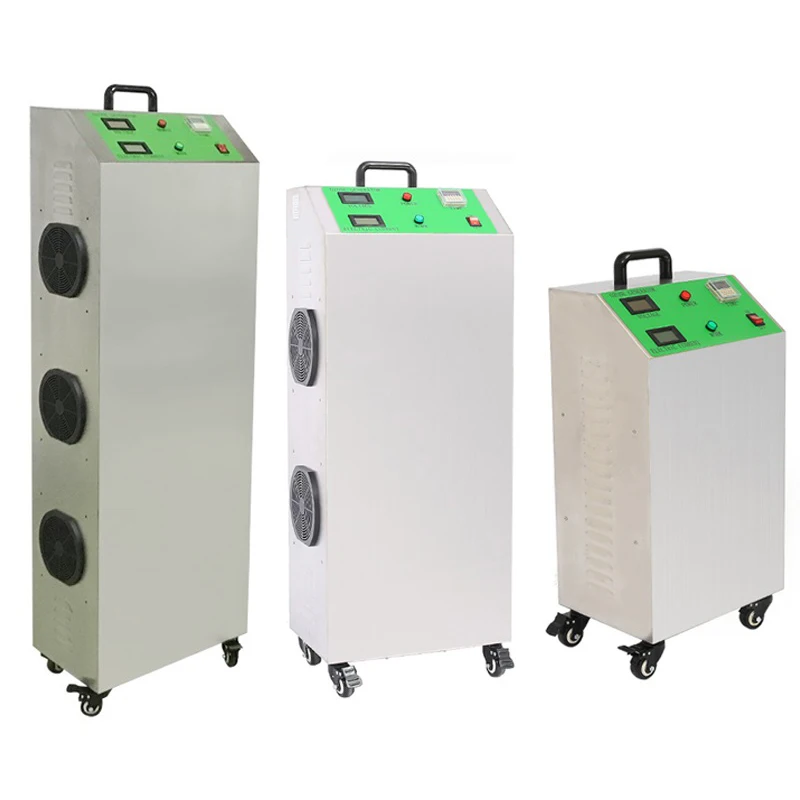

Model

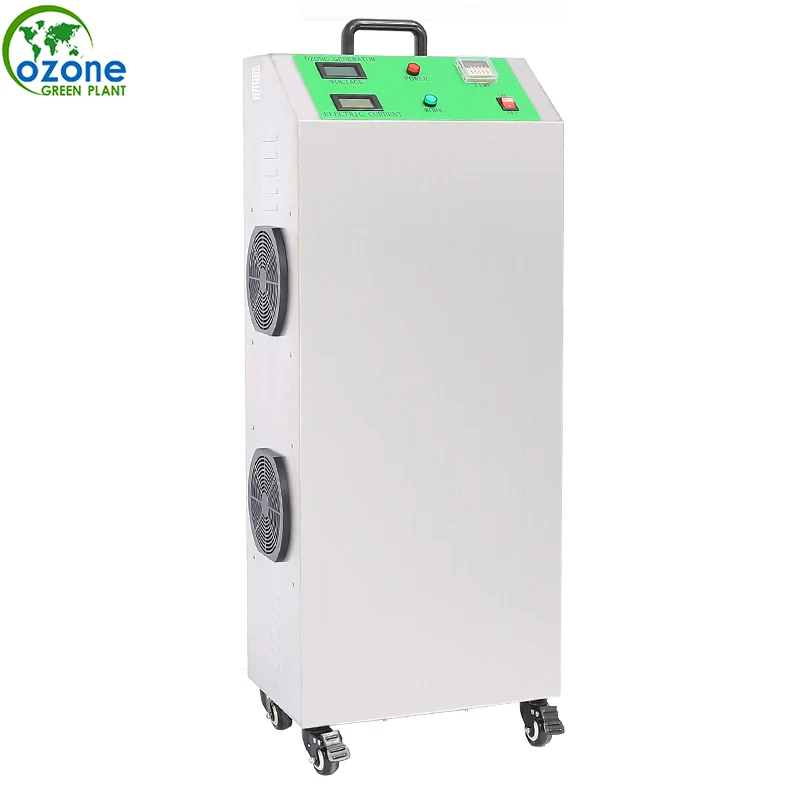

OGP-JZ10G

OGP-JZ15G

OGP-JZ20G

OGP-JZ30G

OGP-JZ40G

Input Voltage

AC 220V/110V

Power

206W

271W

306W

481W

601W

Ozone output

10g/hr

15g/hr

20g/hr

30g/hr

40g/hr

Feed air source

Feeding dryed air source and outside oxygen source

Cooling way

Air cooling

Ambient temperature

Normal temperature

Ambient humidity

≤90%

Ozone outlet mm

6 * 8mm

NW kg

14

15.5

18

24.6

26.5

GW

16

17

20

27

28

Size cm

L36*W26*H73

L42*W26*H109

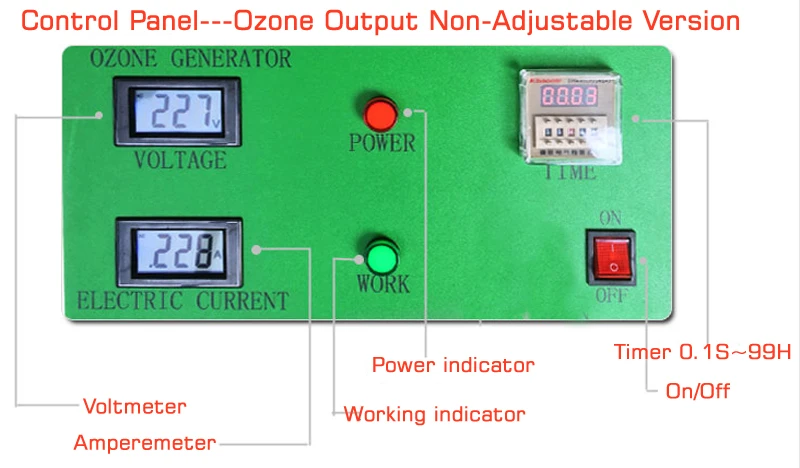

not adjustable

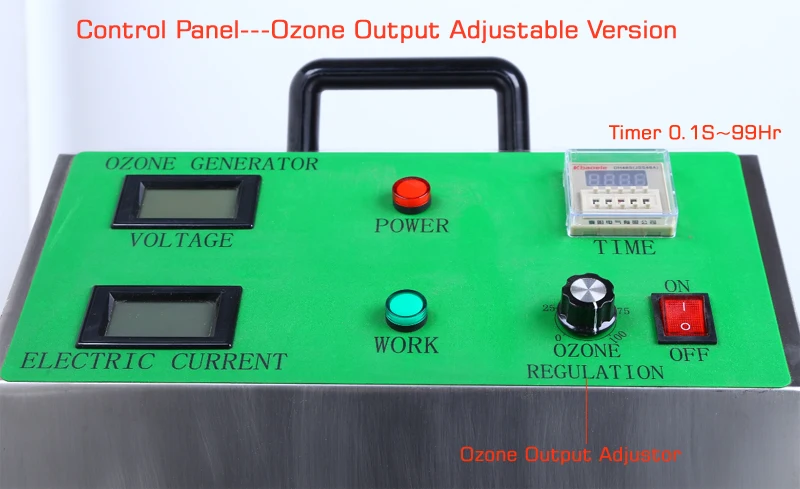

control panel

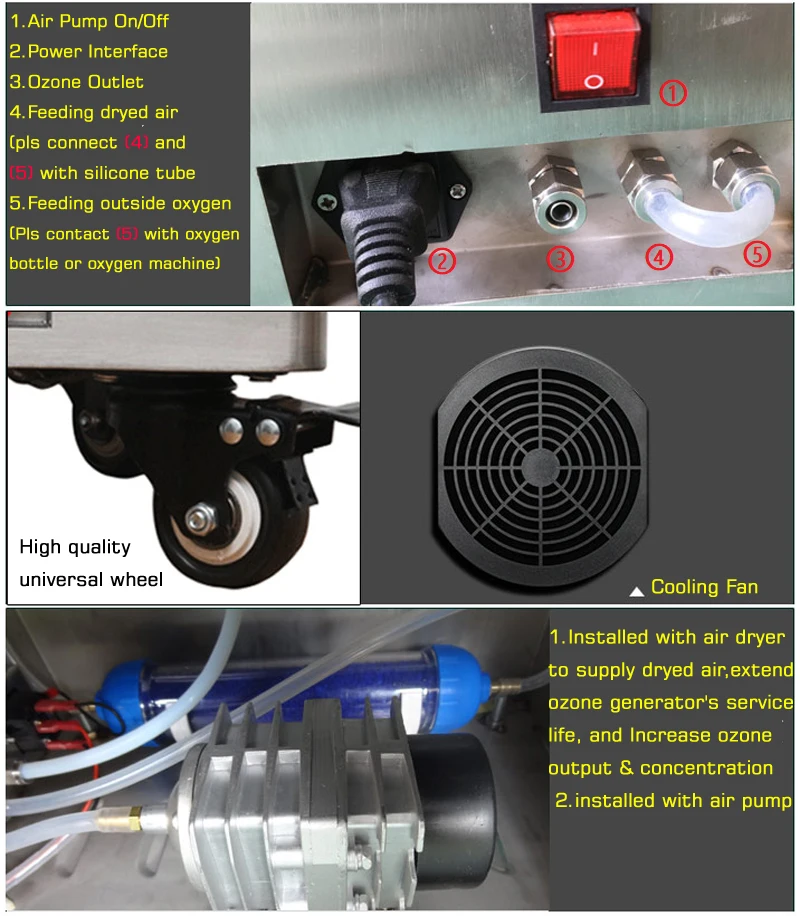

OGP-JZ10GA  rrrrOzone Bubble Ozone concOzone For Water treatmentApplication -
 Factory pictureProduction line
