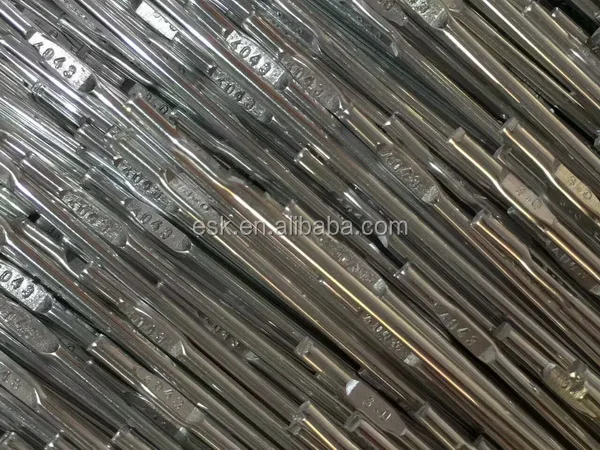

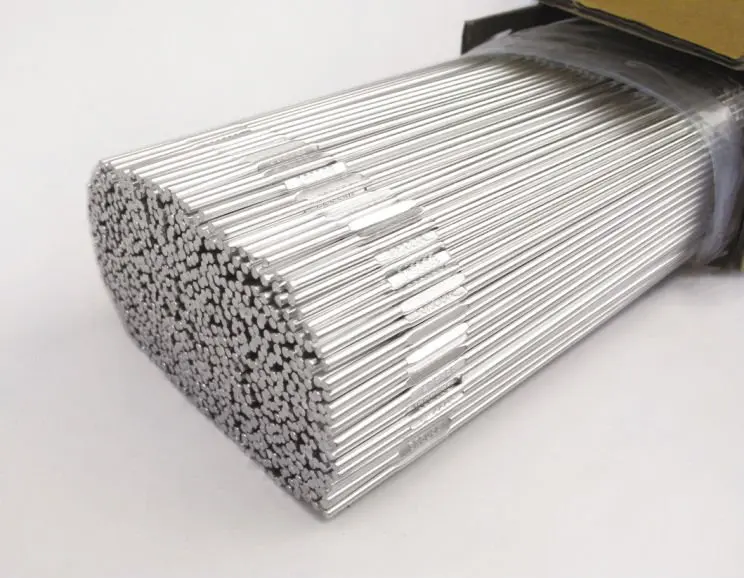

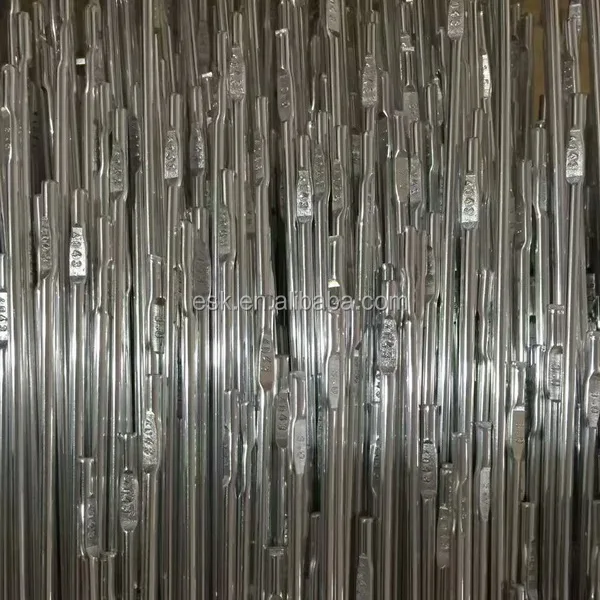

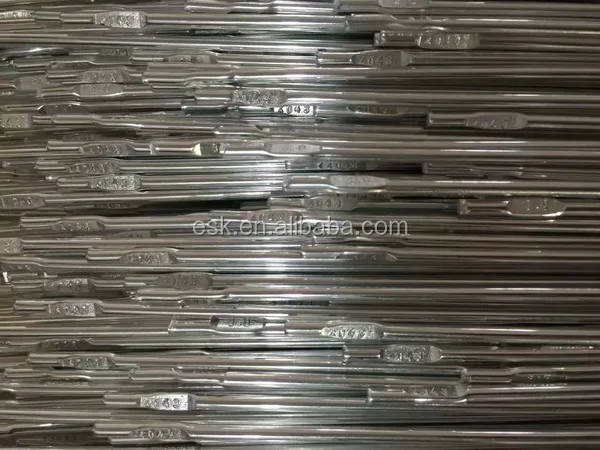

AWS ER4043 tig aluminium welding rod 2.4mm

Product Overview

Description



AWS A 5-10  ER 4043AlSi5
Performance & Usage
This type of product can be used in forging and casting alloys welding due to it has silicon of 5% with the good performance in anti-thermal crack
Product usage: jointing or overlay light alloy processing
Product usage scope :ships, engine, chemistry, food, sports equipment, mould, furniture, vessel, container, etc.
Shielding gas: I1,I2,I3(Argon Helium or Argon/Helium-mixtures)
Dimensions Φ :
TIG-rods(mm)……………………………  1.6/2.0/2.4/3.2/4.0/5.0/6.0

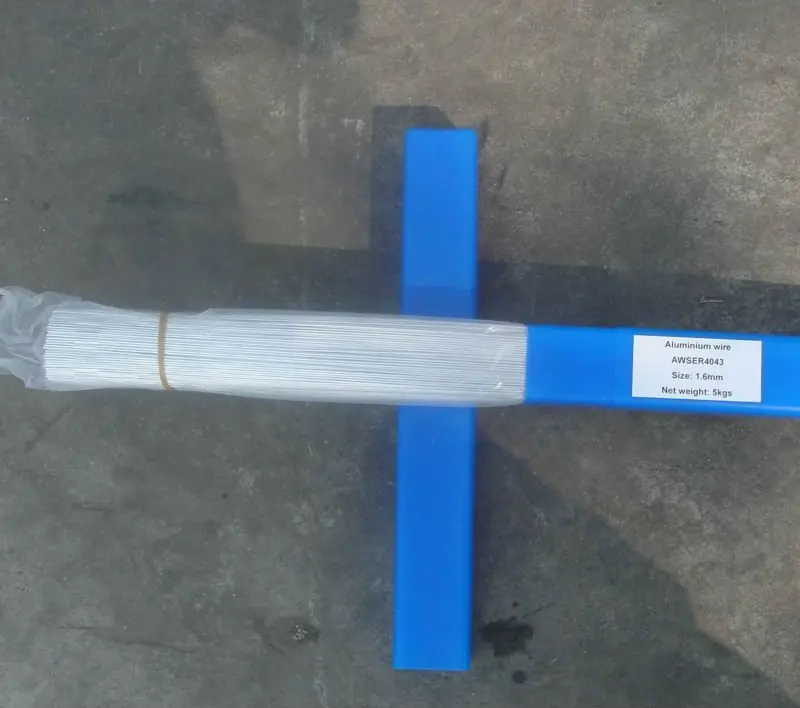

Rod packing: 5/10kg …………………………  Length 1.000mm



Technical data:
 composition in %



Si	4.5-5.5
Fe	< 0.80
Cu	< 0.30
Mn	< 0.05
Mg	< 0.05
Zn	< 0.10
Be	< 0.0003
Ti	< 0.20
Others	< 0.05

Physical properties (Approx. values)

Rp0,2(Mpa)/0,2% yield strength Rp0,2(Mpa)	40
Rm(MPa)/Tensile strength Rm(Mpa)	120
A5(L0=5d0)(%)/Elongation A5(L0=5d0)(%)	8
(°C)/Test temperature(°C)	20
