Manual powder gun cascade 1000 809 for powder coating application NON OEM part compatible with certain GEMA products

Product Overview

Description

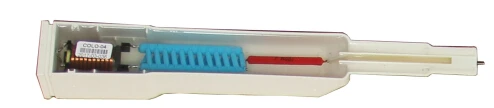

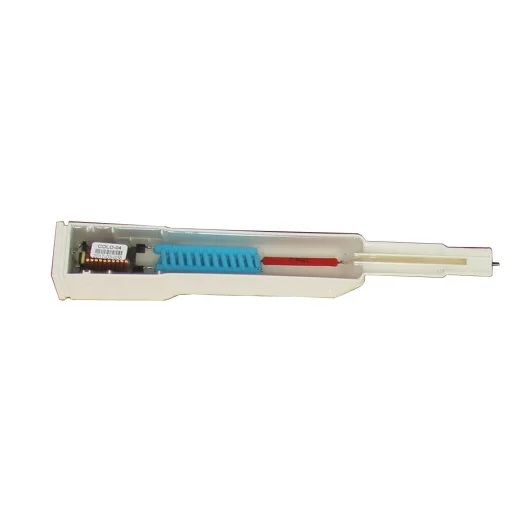

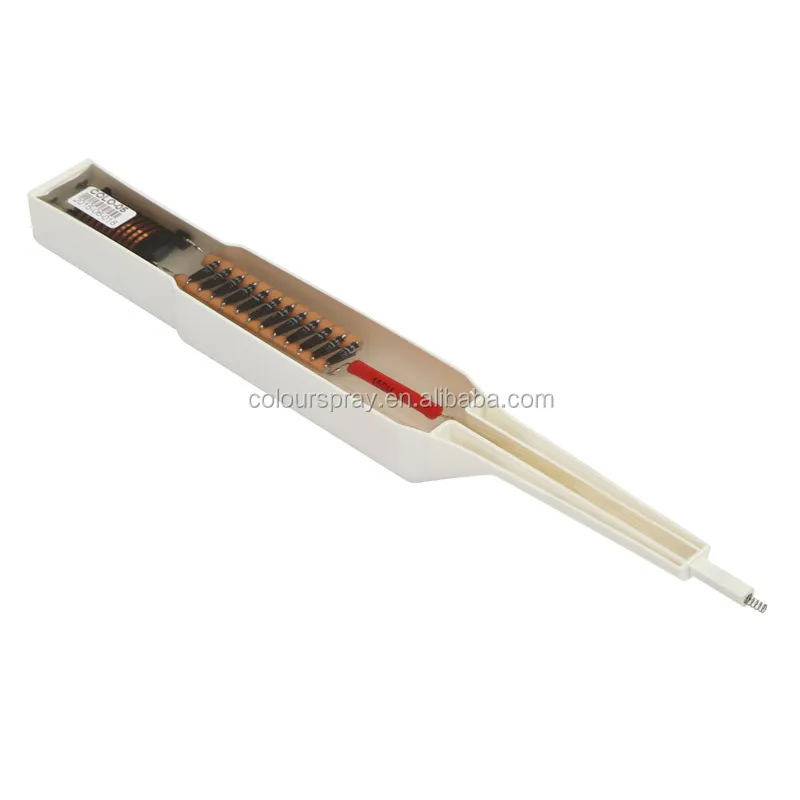

Manual powder gun cascade 1000 809 for powder coating application



Features

1. Replacement high voltage cascade for GM02 powder gun, 100kv, negative plarity

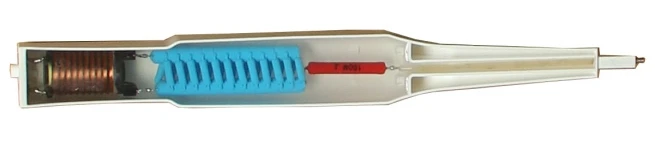

GM02 Manual Powder Gun Cascade





GA02 Automatic Powder Gun Cascade













• ^{A Manual powder gun - complete negative polarity, incl. gun cable - 2 m, rinsing air hose - 14 m, flat jet nozzle, brush and parts kit, without powder hose 1006 100}


• ^{B Manual powder gun body (incl. cascade), negative polarity 1006 099}


• ^{C Cascade (negative polarity) - complete 1000 809}


• ^{1 Gun body 1001 155   Grip - complete set (pos. 5, 6, 7 and 8) 1000 807}


• ^{2 Trigger - complete (incl. pos. 3) 1001 341}


• ^{3 Compression spring - 0,36x4,2x49,4 mm 1001 487}


• ^{4 Trigger cover 1000 801}


• ^{5 Grip 1000 806}


• ^{6 Radial gasket 1000 803}


• ^{7 Gun cable - L=2 m, complete 1006 096  Extension cable for gun cable - L=14m, incl. clamp 1002 162    Cable clamp for extension cable 1002 064}


• ^{8 Grub screw - M3x8 mm 1000 844}


• ^{10 Powder tube - complete 1001 339}


• ^{10.2 O-ring - Ø 12x1.5 mm 1000 822}


• ^{11 Rinsing air connection 1000 804}


• ^{12 Clip ring 1000 898}


• ^{13 Compression spring 1001 488}


• ^{14 Hopper cover - complete 1000 617}


• ^{14.1 Print holder - complete (incl. pos. 14.2) 1002 029}


• ^{14.2 Radial gasket 1000 795}


• ^{14.3 Gun holder plate - complete 1002 028}


• ^{14.4 Cap screw - M3x8 mm (not shown) 202 363}


• ^{15 Diffuser - complete (see corresponding spare parts list)}


• ^{16 Mounting hook (exchangeable) 1000 877}


• ^{17 Countersunk head screw - M 4x8 mm, plastic 263 516}


• ^{18 PT-screw 1000 843}


• ^{19 Threaded sleeve - complete 1000 948}


• ^{20 Flat jet nozzle - complete 1000 047}


• ^{20.1 Electrode holder - complete 1000 055}


• ^{20.2 Flat jet nozzle 1000 049}


• ^{Cleaning brush - Ø 12 mm 389 765}


• ^{Parts set (not shown), consisting of: 1002 359}


• ^{Round jet nozzle - NS02, complete 382 922}


• ^{Cable clamp 303 070}


• ^{Deflector - Ø 16 mm 331 341}


• ^{Deflector - Ø 24 mm 331 333}


• ^{Deflector - Ø 32 mm 331 325}


• ^{O-ring - Ø 12x1.5 mm 1000 822}


• ^{Countersunk head screw - M 4x8 mm, plastic 263 516}


• ^{Powder hose - Ø 7 mm (not shown) 1005 097}







Replacement 600101 for Manual powder gun cascade 1000 809









When order, pls mark the item No.
