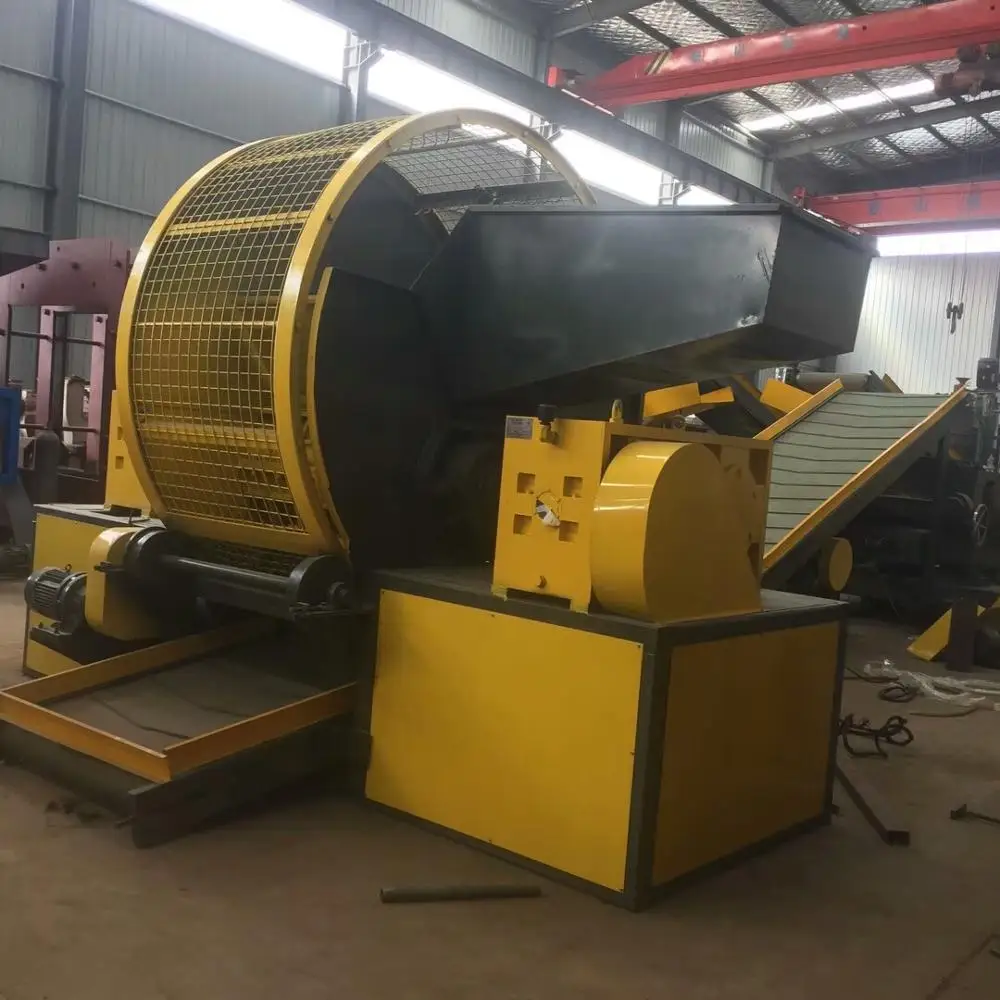

XKP 400/450/560 rubber shredder machine/rubber waste tire crushing plant

Product Overview

Description

XKP-450  rubber shredder machine/rubber waste tire crushing plant

1.Detailed Information

This machine is made up of one base, frame, front rollers, transmission gears, deceleration machine, adjustable from device, the temperature adjusting device, cutting knife components, the winder structure, safety switch and electric control system composition.

The rollers material for cold hard alloy iron, has high hardness &abrasion resistances. The temperature adjusting device, may to the general rollers within the steam and cooling water adjust the temperature to meet the technological requirement.

Turn the handwheel recoiler constitutive winding roller, can adjust the desired.

The machine is equipped with an braking brakes, emergencies, pull the security lever can immediately brake, which reduces the personal accident.

2.Feature

Rolls :: Alloy Chilled Cast Iron rolls with grooved teeth with hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling.
Roll Clearance Adjusting Unit :NIP adjustment at two roller ends is done manually using two separate screws attached to the bearing housing body

Journal Bearing Housing : Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
Lubrication: Manual / Motorized Grease pump for lubrication of Anti Friction Roller Bearings fitted in dust sealed housing.
Stand Frame & Apron (Cap) : Heavy Duty Steel Casting / Steel Fabricated.

Base Frame : Common base frame, heavy duty Steel fabricated of Double Channel and MS plate accurately machined for fitment of auxiliary equipment.

Gearbox : Helical Reduction Gearbox Greaves/ Shanti make direct coupled with Motor and Pinion Drive Shaft.

 Electric Control Panel : Star Delta Electric operating panel with Voltmeter, Ampere meter Overload protection relay, 3 Phase Indicator and Emergency Stop Switch

3.Parameter of the Rubber Cracker

 The Rubber Cracker with Gear-driven Ruducer

The Rubber Cracker with Hard-Tooth Reducer

 Plant and fitting:

Customers visiting: from Middle East, Europe, India and America

Delivery and ship:

100% Real Manufacturer,

Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
