XZ 5108 10A factlry supply limit switch coldroom micro door switch

Share on (60317413619):


Price:

Quantity:


Product Overview

Description


Features
  • Strong zinc cast outer shell, strong structure and high mechanical strength.
  • Preventing oil, water and pressure.
  • Double way switch, double spring inner switch.
  • Variety of levers.
  • Widely used in mechanical equipment, automatic machine, instrument, electro motion tool etc.
Model & Meanings

XZ-5 Model & Meanings.jpg

Mounting Holes & Contact Form

Mounting Holes & Form.jpg

Product Structure

Product Structure.jpg

Specification
ItemData
Rating Load10A/250VAC
Operation Speed1mm-1m/s
Operation FrequencyMechanical120 times/min
Electrical30 times/min
Insulation Resistance100mΩ (above) DC500V
Contact Resistance25mΩ initial value
Withstand VoltageNon-connection Wire1000VAC
Every Terminal1500VAC
VibrationMisoperation10-55Hz amplitude 1.5mm
ImpactDurable1000 m/s²
Misoperation300 m/s²
LifeElectrical100,000 above
Mechanical1,000,000 above
Protection DegreeIP66
Operating Temperature-10~+80 ℃
Operating Humidity<85%

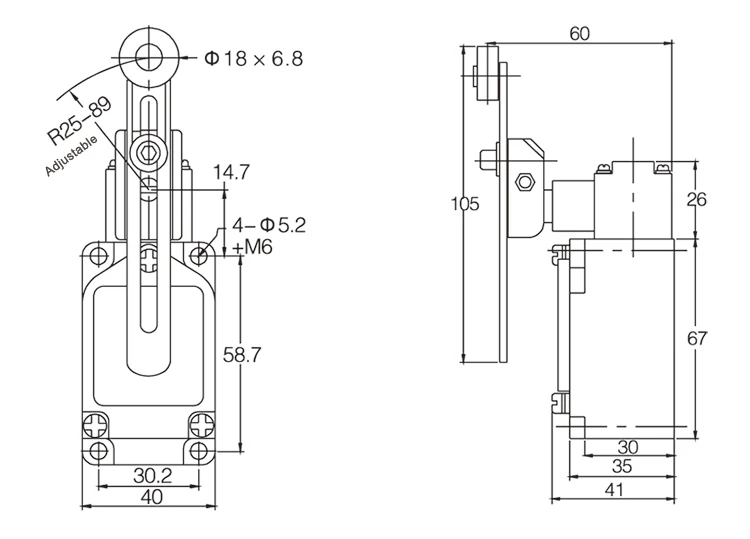

Dimension / Operating Characteristic
ModelXZ-5/108
OF max.1400g(13.72N)
RF min.220g(2.13N)
PT max.30°
OT min.25°
MD max.30°
OP/
TT55°

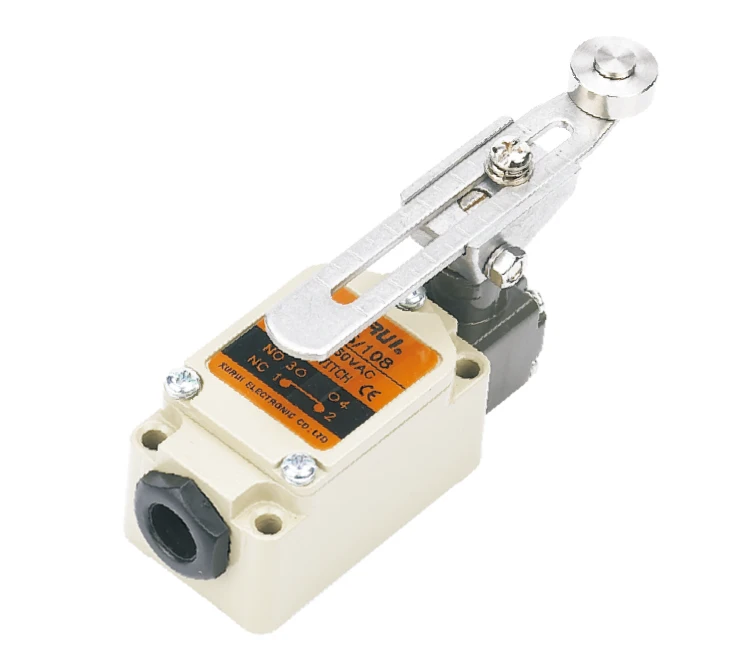

XZ-5108 detail.jpgDimension.jpg

Certifications


Why Choose Us
  • Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
  • Supplied directly from factory with more than 16 years experience.
  • Short Delivery Time: Stock in 2 days, order as short as 7 days.
  • Small order welcome.
  • Payment by Paypal, Western Union is supported.
Company

Company Profile

Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.



Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.



Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.



Main markets: Europe, America, Australia, Asia, Middle East and so on.

Production

XURUI Workshop

Exhibitions


FAQ

Q: How do you control the products' quality?

A: 100% auto inspection machine and manual test together before packing.



Q: Would you accept to use our logo?

A: If you have good quantity, we would like to do OEM and ODM, customized specification.



Q: Can I get a sample for reference?

A: We are glad to send the samples for testing. Samples are free, but you may need to pay the express cost.



Q: What's your delivery time?

A: Normally it takes 15-20 working days for production. If we get stock, it only takes two days.
