XINGYUAN WOBEN FABRIC RAISING MACHINE FOR FRENCH TERRY IN TEXTILE FINISHING
- Category: >>>
- Supplier: Wuxi City Xingyuan Machinery Manufacture Co. Ltd.
Share on (60317618774):
Product Overview
Description
Product Description

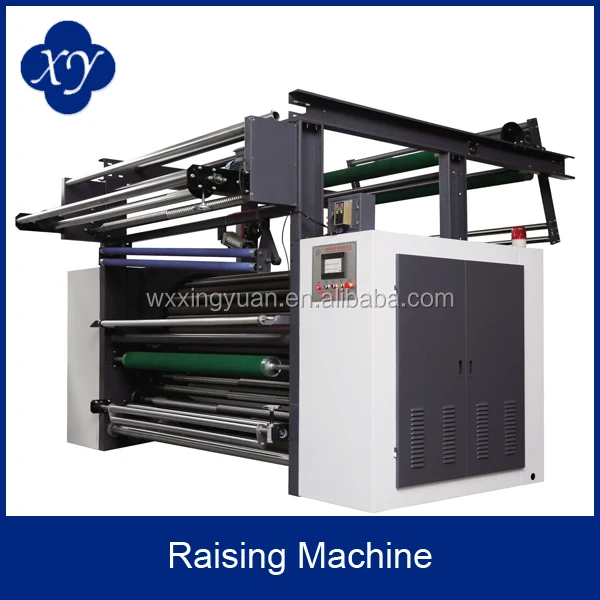

Equipped with 24 Raising Rollers, this machine adopts the gear type drive mode, and has one inverter. It is your most economic type of choice for processing most of the fabrics. This is a classic gear type of raising machine. Very easy to install and manipulate. Can be used for processing cotton, circular knitting fabric, etc.
Technical Data | |
Installed power | 15.5 kw |
Draught Fan Power | 5.5kw |
Adjustable production speed | 10-30 m/min |
Number of raising roller | 24 |
Diameter of raising roller | φ 70mm |
Drum speed | 105rpm |
Drum diameter | φ 850mm |
Drive Mode | Gear type |
Feature
1.With traditional operation interface, easy to handle, stable performance.

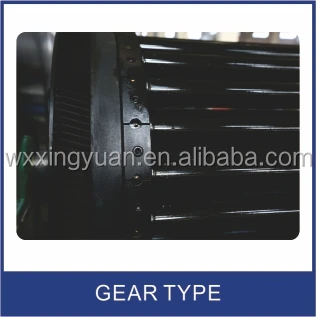

2.Needle roller equips gear type transmission, large transmission torque, stable, low noise.
3.The motor gear transmission, equipped with a single frequency control motor. Concise structure, easy to maintenance.
4.Separate machines can be combined each by each, the production line is completely synchronization.
Exbition
