  • ELGI OF Series Oil Free Screw Compressor OF 300 7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF 300 7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales
ELGI OF Series Oil Free Screw Compressor OF-300-7 52.0M3/min 0.7Mpa Hot Sales

ELGI OF Series Oil Free Screw Compressor OF 300 7 52.0M3/min 0.7Mpa Hot Sales

Share on (60317627197):


Price:

Quantity:


Product Overview

Description


Company Information

  ELGI is a multi-business global group company started from 1960 with the compressor business. Till today, ELGI has 2,000,000 compressors providing stable compressed air to many industries all over the world. We are not only providing compressed air, but also offering “UPTIME” and ‘Energy saving’ idea and solution.

 Employs regional management around the world, ELGI north and south Americas’ head office sets in USA, the Europe region’s head office sets in France (portable division in Italy), the Indian Ocean region’s head office sets in India, Pacific Rim’s head office sets in China. The strong sales and service network is consisted of hundreds of dealers all over the world. The production logistics centers which are in USA, Brazil, France, Italy, Dubai, India and China are the very important support for the global supply.

 In order to meet the different requirements of each country, ELGI improve the technology and quality control management on and on. All of the ELGI subordinate companies have got the ISO9001:2008 certificate of quality system, employing six sigma and total production management. What counts is that ELGI firmly believes- standards & rules are useful tools, but details and execution decide the achievement of quality.


Product Description

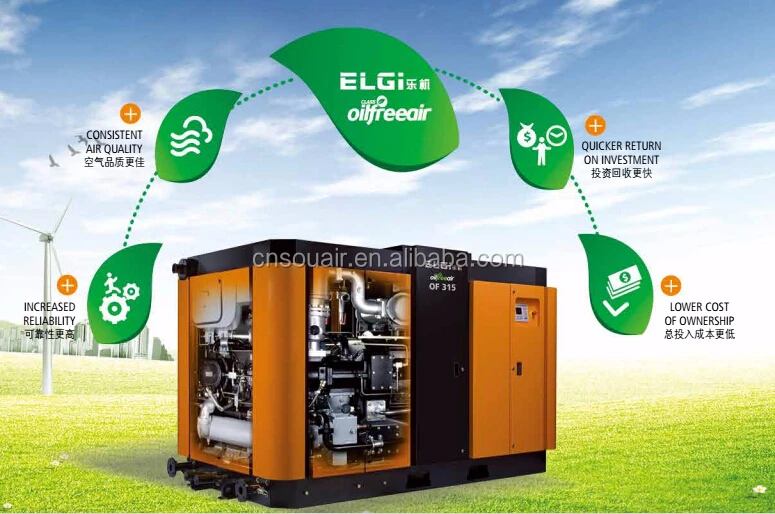

  Elgi’s oil free screw air compressors are one among the major outcomes of  Elgi’s expertise in manufacturing and marketing of  air compressors worldwide for the past 50 years. These compressors are backed by emerging  technology that conserves natural resources and environment from pollution.

  • Designed for energy saving and long life resulting in quicker return to Customer Investments.
  • Occupies less space and generates less heat

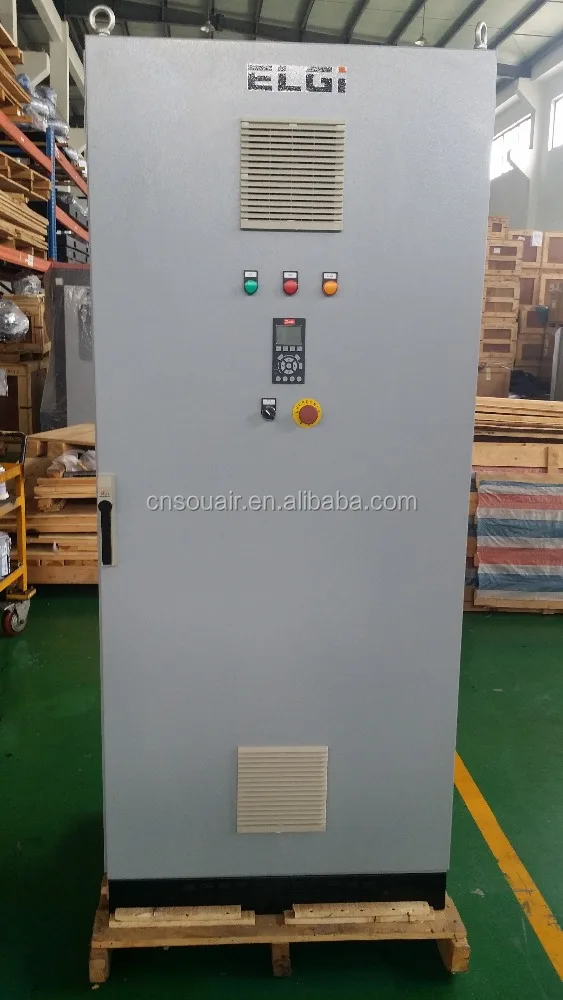

  • Intelligent and fail proof instrumentation and control system, hooked up to DCS.
  • Wide range of compressor with indigenised air end variety optimised for every customer need
  • Variants / custom made for individuals markets (multiple electrical inputs)
  • Air cooled/ Water cooled, low pressure and high pressure version covering wide range of applications.
  • Delivery of high quality air.
  • Affordable oil free package competing in all markets


Technical Information

50 HZ SPECIFICATION

ModelNominal PowerWorking PressureFADDimensionWeight
 KWbar gcfmm3/minlxwxh(mm)kg
OF- 9090757216.22955 x 1650 x 18504500
OF-110110767519.12955 x 1650 x 18504500
OF-135132786024.42955 x 1650 x 18504900
OF-145160788024.92955 x 1650 x 18504900
OF-1701607107730.52955 x 1650 x 18504900
OF-200E2007125035.43500 X 1850 X 20506350
OF-2002007136038.53500 X 1850 X 20506350
OF-2102507146641.53500 X 1850 X 20506350
OF-2502507151843.03500 X 1850 X 20506350
OF-2652757166047.03500 X 1850 X 20506350
OF-2752757171248.53500 X 1850 X 20506350
OF-3003157183652.03500 X 1850 X 20506350

OF-9090850514.32955 x 1650 x 18504500
OF-110110860017.02955 x 1650 x 18504500
OF-135132880022.72955 x 1650 x 18504900
OF-145160881523.12955 x 1650 x 18504900
OF-170160899028.02955 x 1650 x 18504900
OF-2002008125035.43500 X 1850 X 20506350
OF-2102508138039.13500 X 1850 X 20506350
OF-2502508142040.23500 X 1850 X 20506350
OF-2652758156044.23500 X 1850 X 20506350
OF-2752758161045.63500 X 1850 X 20506350
OF-3003158170548.33500 X 1850 X 20506350

OF-90908.848013.62955 x 1650 x 18504500
OF-1101108.856516.02955 x 1650 x 18504500
OF-1351328.875021.22955 x 1650 x 18504900
OF-1451608.877521.92955 x 1650 x 18504900
OF-1701608.895026.92955 x 1650 x 18504900
OF-2002008.8123034.83500 X 1850 X 20506350
OF-2102508.8132537.53500 X 1850 X 20506350
OF-2502508.8136538.73500 X 1850 X 20506350
OF-2652758.8145541.23500 X 1850 X 20506350
OF-2752758.8155544.03500 X 1850 X 20506350
OF-3003158.8165046.73500 X 1850 X 20506350

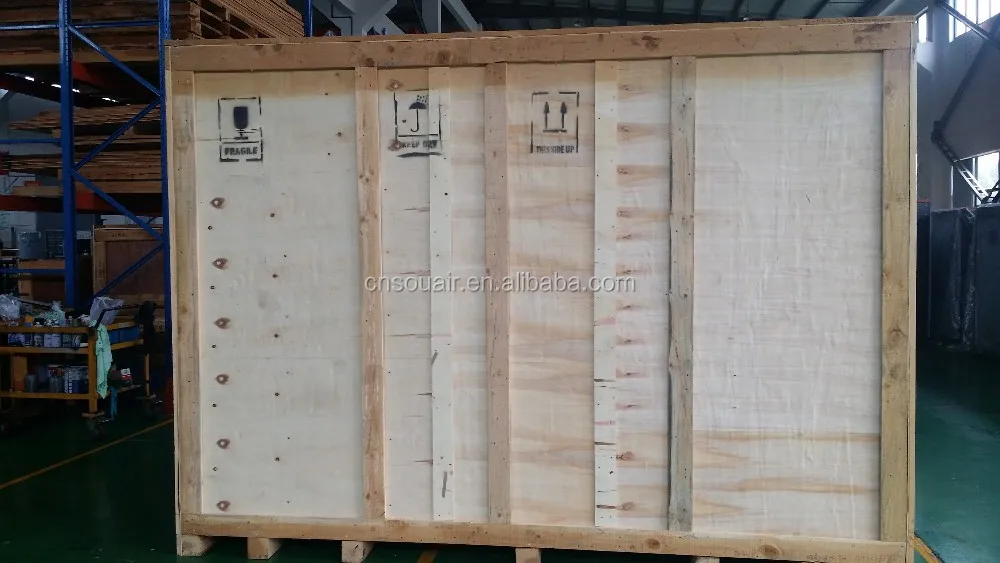

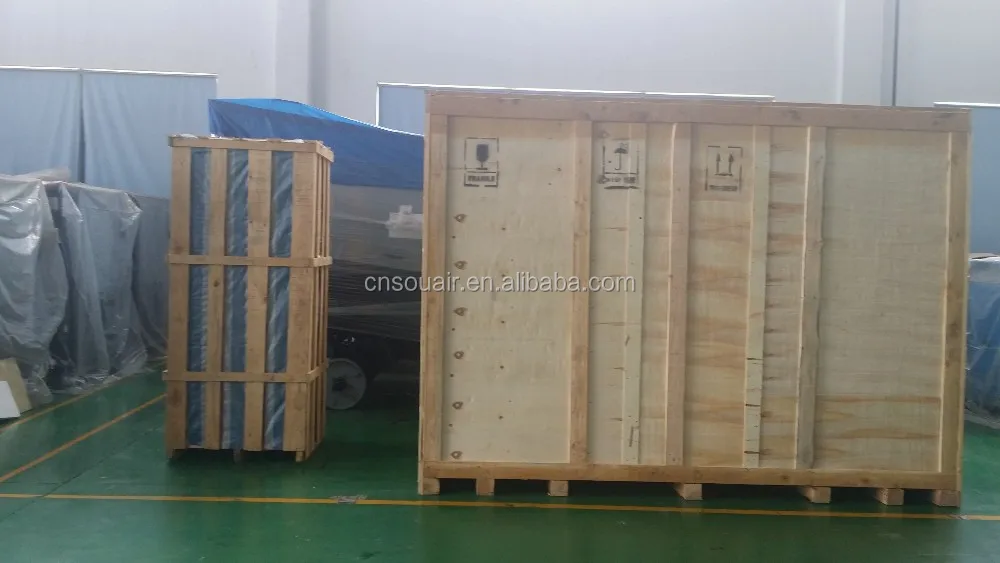

Packaging & Shipping
