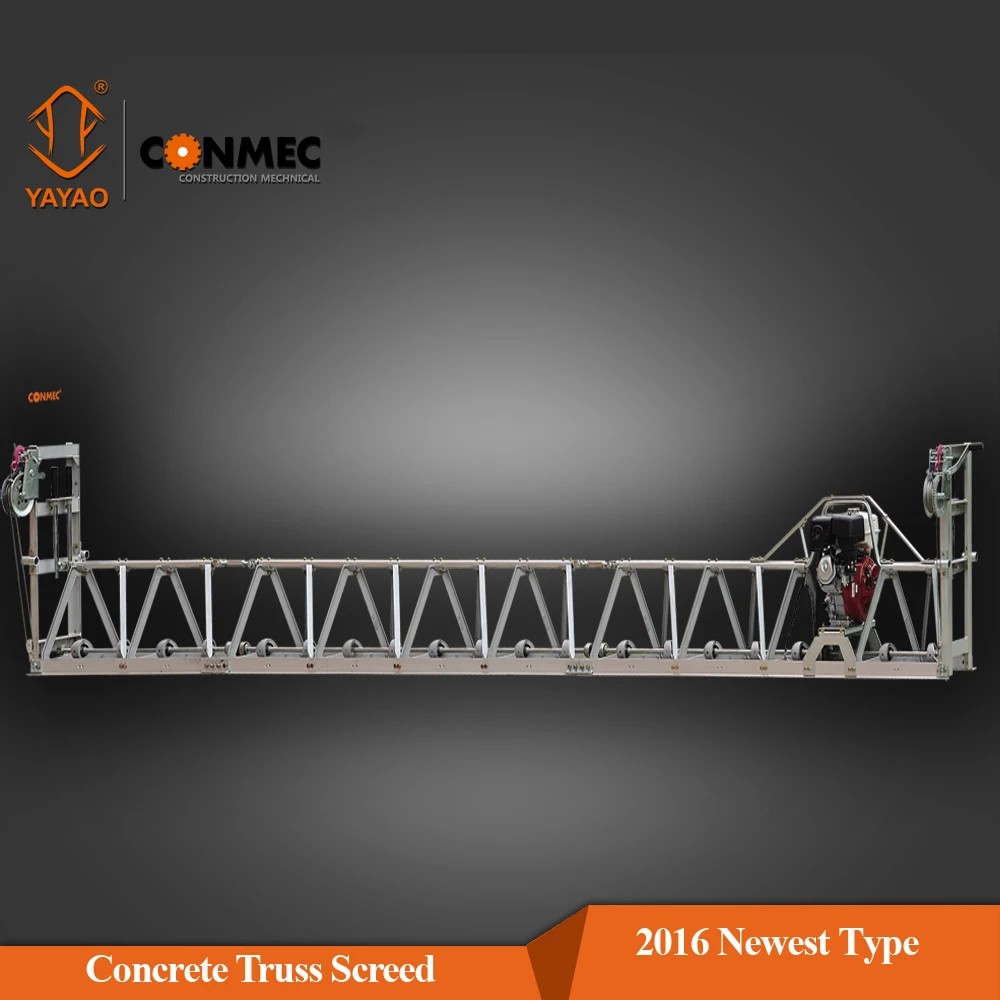

CONMEC Concrete Vibrating Truss Screed with high strength Aluminium,Vibratory screeding machine with Honda GX270

Product Overview

Description

CONMEC Concrete Vibrating Truss Screed with high strength Aluminium,Vibratory screeding machine with Honda GX270



Technical Specification

Model	CTS200
Engine Type	Honda GX270
Power kw(hp)	6.6(9.0)
Drive	Manual Winches
Max. Width m(ft)	12(39)
Max. Vibration Thickness mm(in)	200(8)
Leveling tolerance	≤3mm
Section Width m(ft)	2.54(8.3)/1.32(4.3)/0.71(2.3)



Features:

1.Using advanced American technology,it’s the most sophisticated truss screed,with better working results and higher efficiency than traditional truss screeds,just 1/3 of their weight

2.Material is zinc-magnesium alloy,by special processing,hardness is several times of

general aluminum alloy.It’s wear-resistant and light.

3.Minimum leveling span is 2.54m,maximum is 12m.

4.Slight leveling tolerance(<3mm).

5.Long service life:150000-200000sq.m.

6.Maximum vibration depth is 210mm,meeting the needs of different construction conditions.

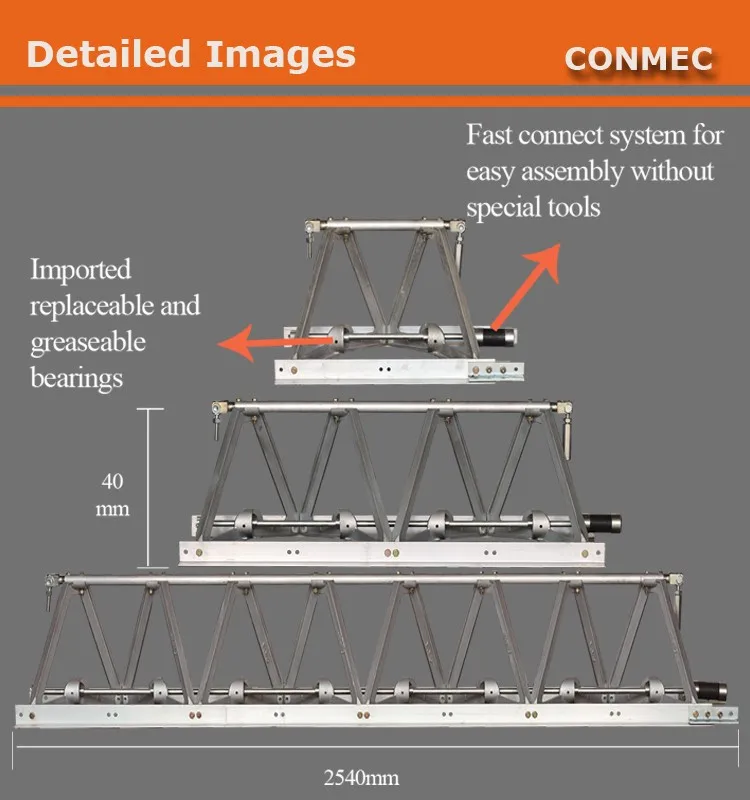

7.Strong triangle frame is integrally casted for strong structure.

8.High quality bearings,Gates belt and centrifugal clutch ensure machine’s longer service life.

9.It is widely used in airport,highway,bridge and tunnel,mining plant(wear-resisting floor,super flat ground) construction.

10.Eccentric shaft connecting method,rubber soft connection instead of high noise mechanical connection,easy for quick assembly.

11.Lightweight, high strength aluminum truss screed
