fire alarm data gathering panel conventional addressable

Share on:

Price in USD:Details


Product Overview


 fire alarm data gathering panel conventional addressable




Why need Asenware?

Why need Asenware fire alarm system?


1.Low cost

   (Compatible Honeyell,Zeta etc brands,our price is much favorable)




2.Not only equipment,also offer total fire alarm system design


  (Just send your buidling drawing to us,our engineer can make total solution for you)



3.Offer fire safety total system,one stop for all your fire safety needs!


  (Like fire fighting FM200,CO2;

   fire sprinkler system

   fire pump system)


4.In time after sale service,solve all your question


(Our engineer will answer all your question by video chat,ppt etc)





Product Descriptions

 fire alarm panel manufacturers addressable and conventional.jpg







ITEM1 Zone panel2 Zone panel4-8Zone panel4-32 Zone panel
Model No.AW-CFP2166-01AW-CFP2166-02AW-CFP2166-04-16AW-CFP2166-04-32
Power specification
Mains supply voltage110VAC or 240VAC
Internal power supply27.2VDC
Total output current limited500mA @ 240VAC500mA @ 240VAC3A @ 240VAC3A @ 240VAC
Batteries (Default Configuration)12V2AH*2=24VDC in Total
End of Line device6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
End of line resistor value6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
Size and weight
Weight (without batteries)4kg5kg7kg8kg
Weight (with batteries)5.8kg6.8kg9.6kg12.5kg



Suggest for conventional fire alarm system


1.Fire alarm panel

2.smoke detector

3.heat detector

4.manual call point




Also we offer addressable fire alarm system








AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding)


AC input voltage: AC 220V±20%  50Hz


AC input power: 120W


DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series


The 24V DC power has a long-term constant output current of 6A.


The 5V DC power has a long-term constant output current of 4A.


Circuit bus: two-wire system; total length: ≤1500m


Voltage UL of the circuit bus:


+20V≤UL≤+26V(when the DC power is operating)


+24V≤UL≤+26V(when the AC power is operating)


System working conditions


1.Temperature: -10℃~+50℃


2.Humidity: ≤95%


3.Power supply:AC   220V    50HZ


DC    24V    6A


4.Output contact capacity:AC   220V   1A


    DC   27.6V   3A



 Suggest parts for addressable fire alarm system


1.addressable fire alarm panel

2.smoke detector

3.heat detector


5.manual call point

6.strobe horn



 Also welcome send us your building drawing,so our engineer team can make a total system design for you




 Notice:We also offer fire alarm panel and other fire alarm parts like bells,heat detector,MCP.


               For more details,please email  sales08 at



fire alarm system.jpg








Packing and shipping


DHL,FEDEX,TNT etc accept


Company Information


Asenware is a professional manufacturer of fire alarm systems.


Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.

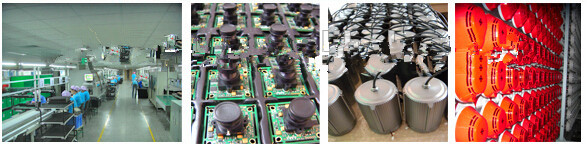

Our factory(Conventional fire detection system fire alarm panel system)




Show room









Our clients


fire alarm panel manufacturers addressable and conventional.jpg


Welcome you inquiry us at any time!
