Product Overview
Description
Products Description

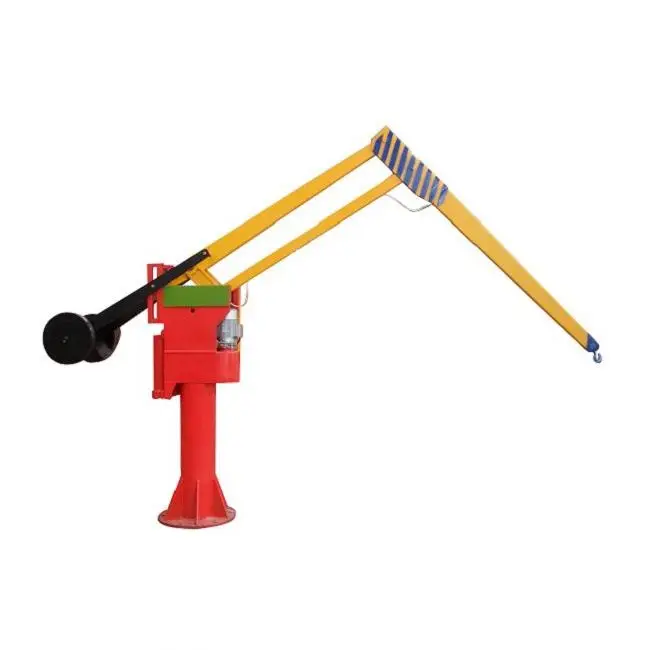

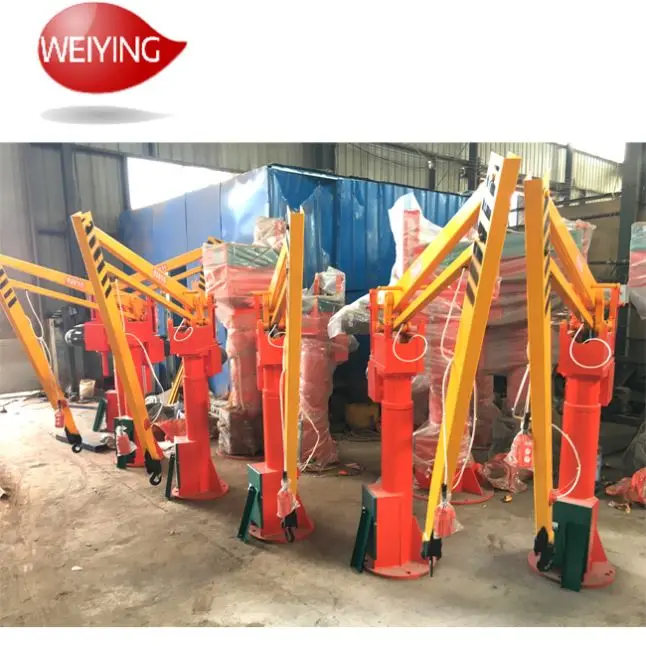

Factory Supply Lift Crane In China
APPLICATION

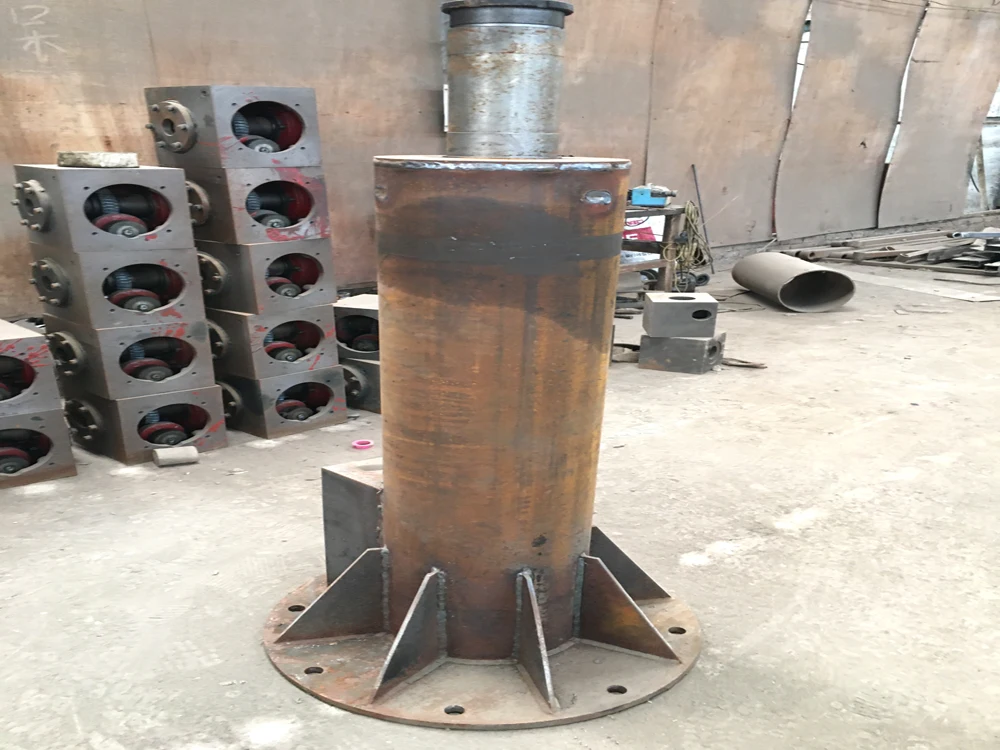

Factory Supply Lift Crane In China is a small and medium-speed lifting equipment developed recently . It has characteristics of unique structure , safe and reliable operation , high , efficiency , energy-saving , effort-saving , and flexibility . It is widely used at various sites for various trades .360 degree rotation floor mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt .
MAIN FEATURES
1) New generation of the hoist equipment developed to meet the requirement of modernized production.
2) Reasonable structure, easy operating and high efficiency, etc .
3) It is widely used in Wareshop,Workshop,Plant,port,Open Yard,Storage Area and etc.
2) Reasonable structure, easy operating and high efficiency, etc .
3) It is widely used in Wareshop,Workshop,Plant,port,Open Yard,Storage Area and etc.

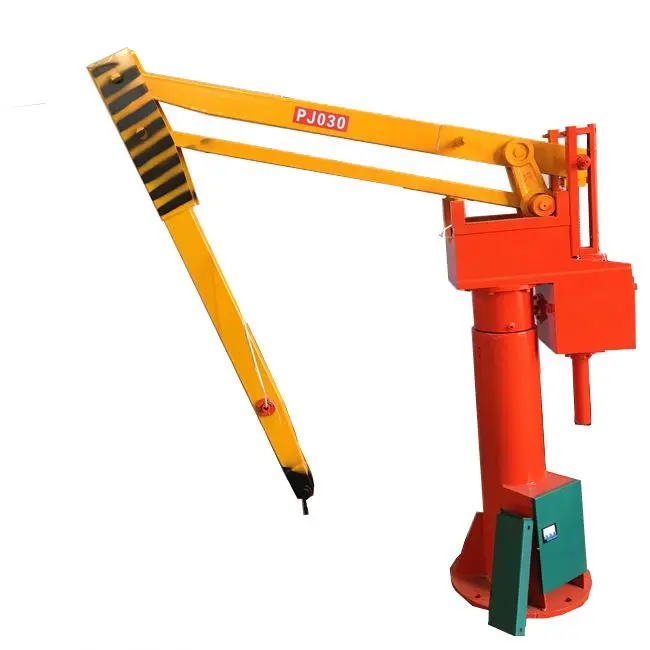

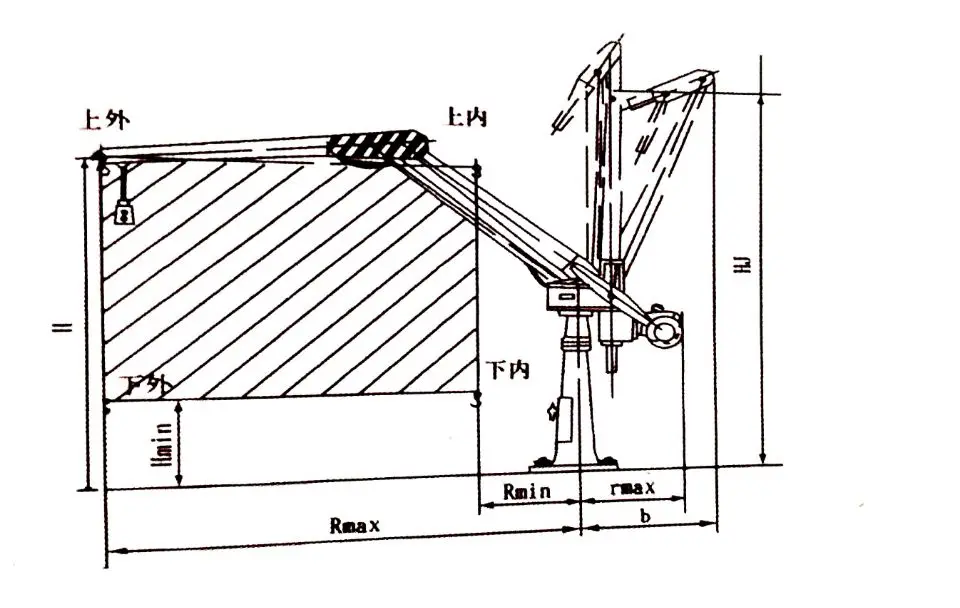

PJ Balance crane technical parameters
Type | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 | PJ100 |
Lifting weight(kg) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 1000 |
Light height(Hmax)(mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 | 2600 |
Starting height（Hmin）(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 600 |
Turning radius（Rmax）（mm） | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 | 3200 |
Minimum turning radius(mm) | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 | 1000 |
Level（mm） | 1920 | 1920 | 1730 | 1730 | 1730 | 2200 | 2200 | 2200 |
Swivel angle（°） | 345 | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
Lifting speed(m/min) | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 | 5.08 |
The above parameters are for reference only. If you have any questions, please contact us.

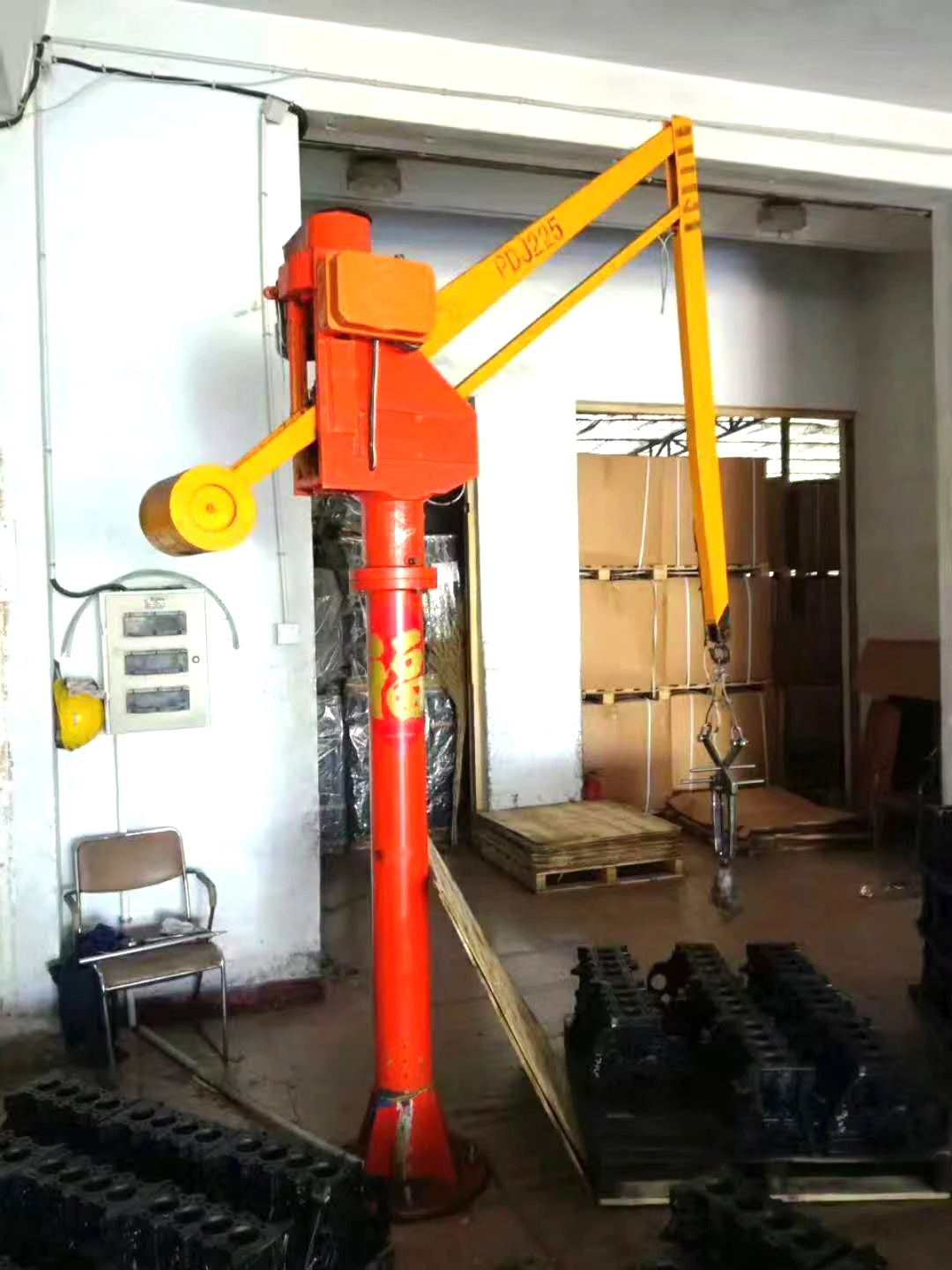

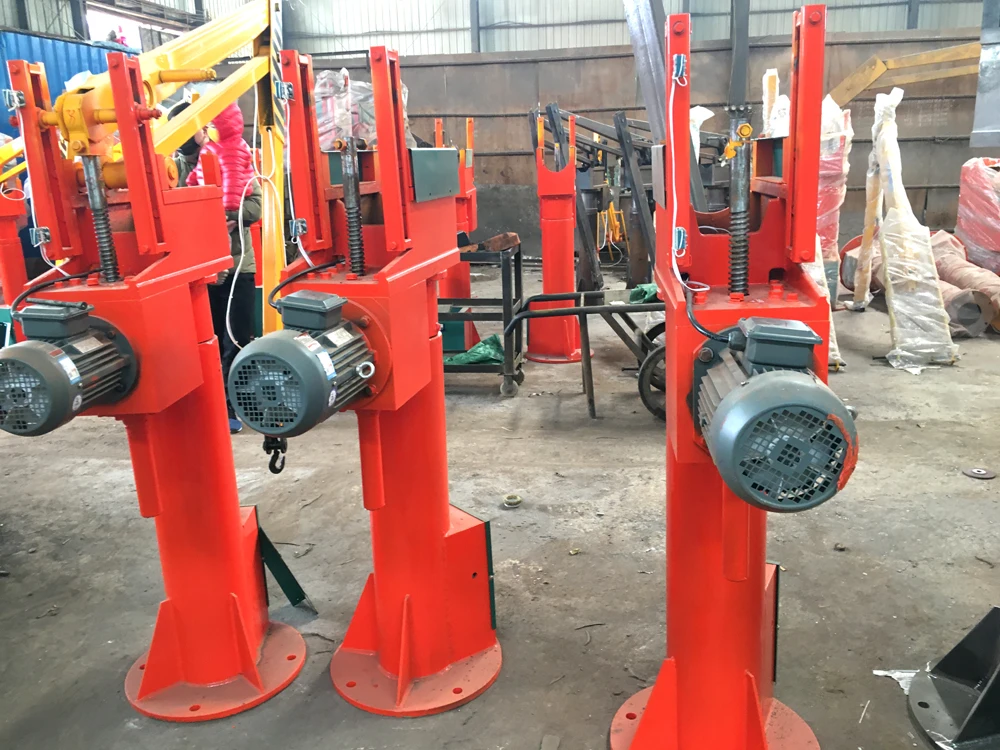

PDJ Balance crane
Advantages
1.Simple structure and ingenious conception;
1.Simple structure and ingenious conception;
2. Small size, occupying small workshop space;
3. Light weight, flexible and convenient;
4. Accurate positioning and dexterous operation;
5. Simple installation and maintenance;
6. It can be hoisted on the ground or moved;
7.The power supply of crane is three-phase AC, rated frequency is 50Hz, rated voltage is 380V;
Type | PDJ025 | PDJ125 | PDJ225 | PDJ325 | PDJ1025 |
Rated lifting capacity（kg） | 50 | 100 | 200 | 300 | 1000 |
vertical route(mm) | 1500 | 1500 | 1500 | 1500 | 1500 |
level route(mm) | 2100 | 2100 | 2100 | 1960 | 1960 |
Maximum working radius（mm） | 2500 | 2500 | 2500 | 2500 | 2500 |
Lifting speed(mm) | 7.5 | 7.5 | 7.5 | 7.8 | 5.5 |
Swivel angle（°） | 340 | 340 | 340 | 340 | 340 |
Details Images
Related product
Company Profile
XINXIANG WEIYING MACHINERY CO.,LTD
XINXIANG weiying machinery CO.,LTD is an experienced manufacturer and exporter of lifting equipments. We are specialized in the

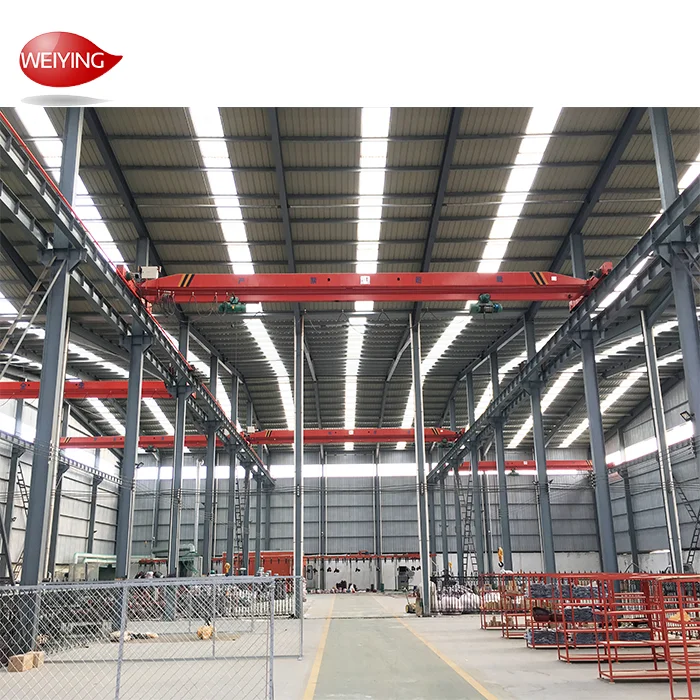

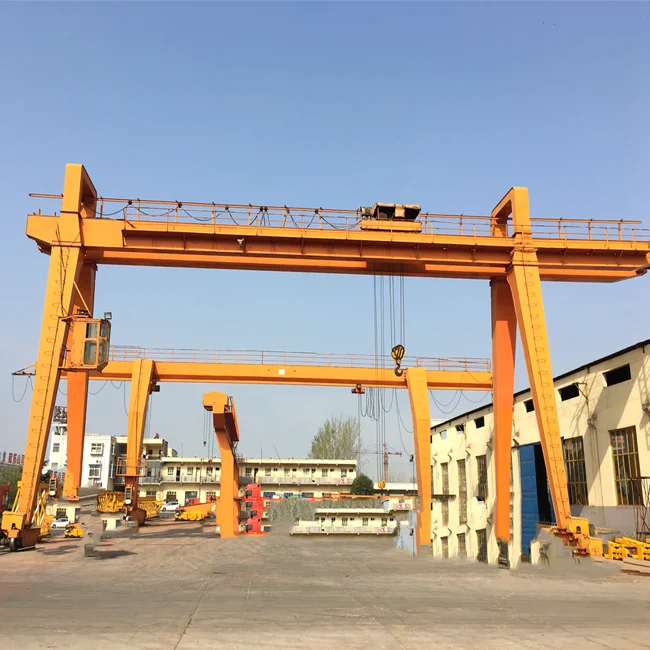

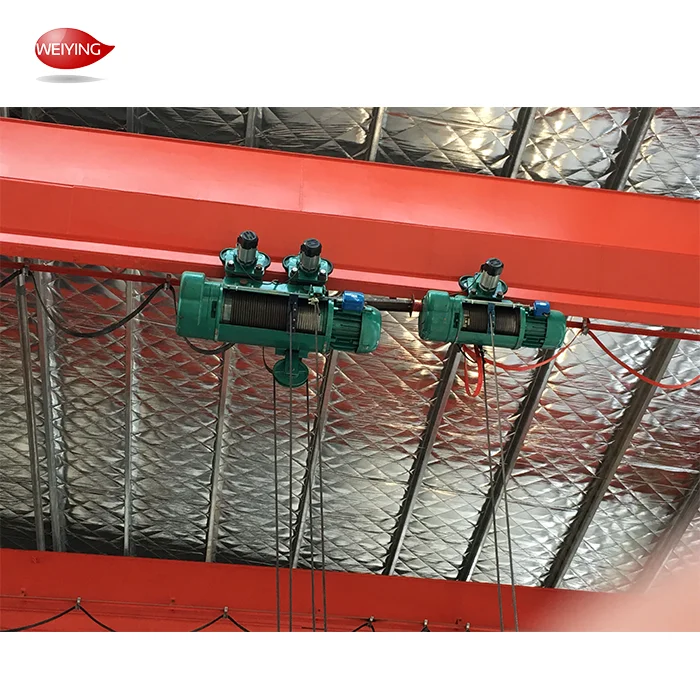

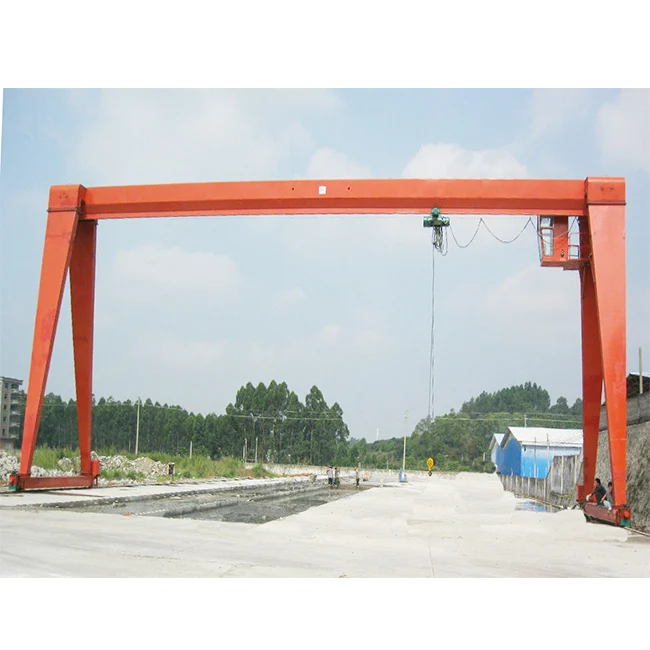

development and production of Overhead cranes, Gantry crane, JIB crane, wire rope hoist, electric chain hoist, electric winch etc.
Lifting machines. XINXIANG weiying machinery CO.,LTD is a modern high technology enterprise integrated R&D, we can customize the
clients as their request. We products exported to 108 countries allover the world, and get many good feedbacks from the clients
based high quality products and best service.
development and production of Overhead cranes, Gantry crane, JIB crane, wire rope hoist, electric chain hoist, electric winch etc.
Lifting machines. XINXIANG weiying machinery CO.,LTD is a modern high technology enterprise integrated R&D, we can customize the
clients as their request. We products exported to 108 countries allover the world, and get many good feedbacks from the clients
based high quality products and best service.
If you have any questions about the product, please contact us in time. >>> contract us
Main products
If you are interested in the above products, please contact us in time.
Welcome your inquiry，My friend!
FAQ
To providing you a precise crane offer efficiently, please kindly provide details as flowing:
1.Lifting height （kg）?
2.Working radius(mm)?
3. V HZ Phrase ?
4.Lifting speed ?
Answer above questions and send us ☞ click here to send your information
