Product Overview

Description





Products Description

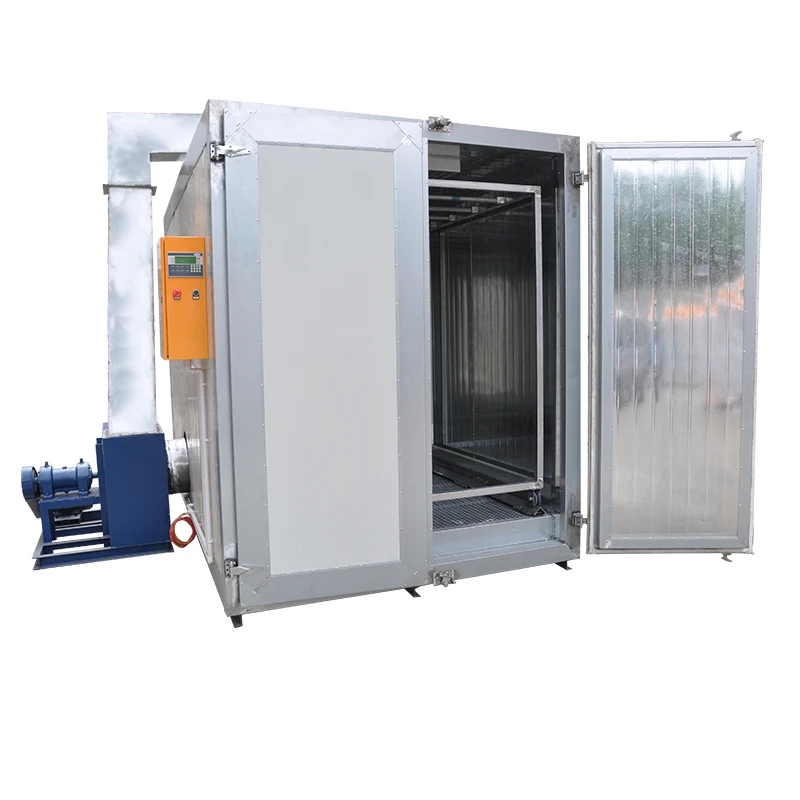

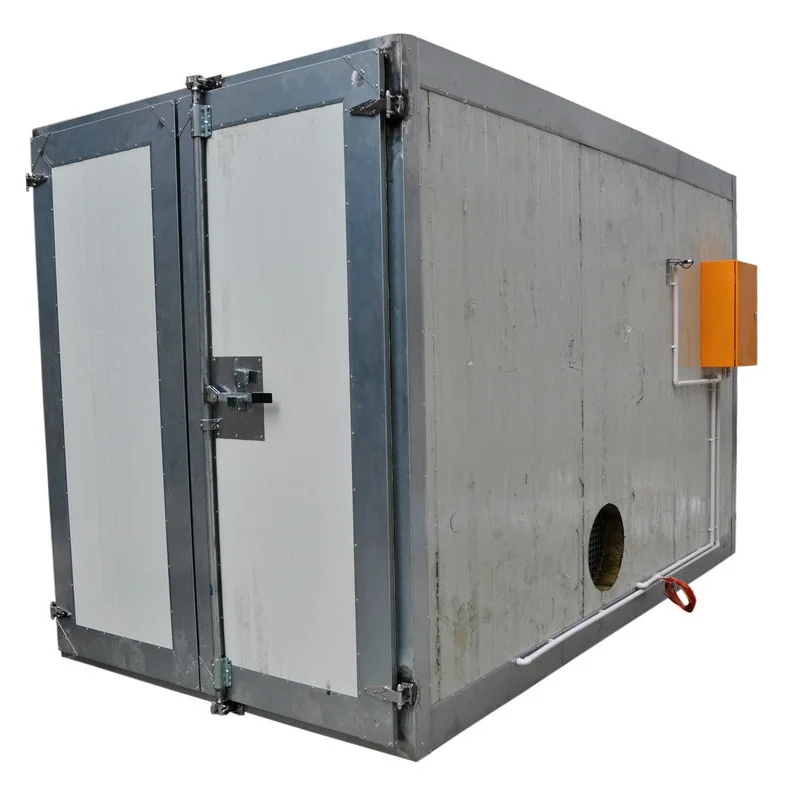

High Efficiency Electrical or Gas Fired Powder Coating Curing Oven

The 4.5 meter length curing oven is designed for powder coating bigger bulky parts or a big batch of small-sized parts.
Electric heating style reduces the task of operation and maintenance as well as creates a more clean environment.
COLO powder coating ovens are constructed from high quality components that ensures quick and uniform heating.








Details Images

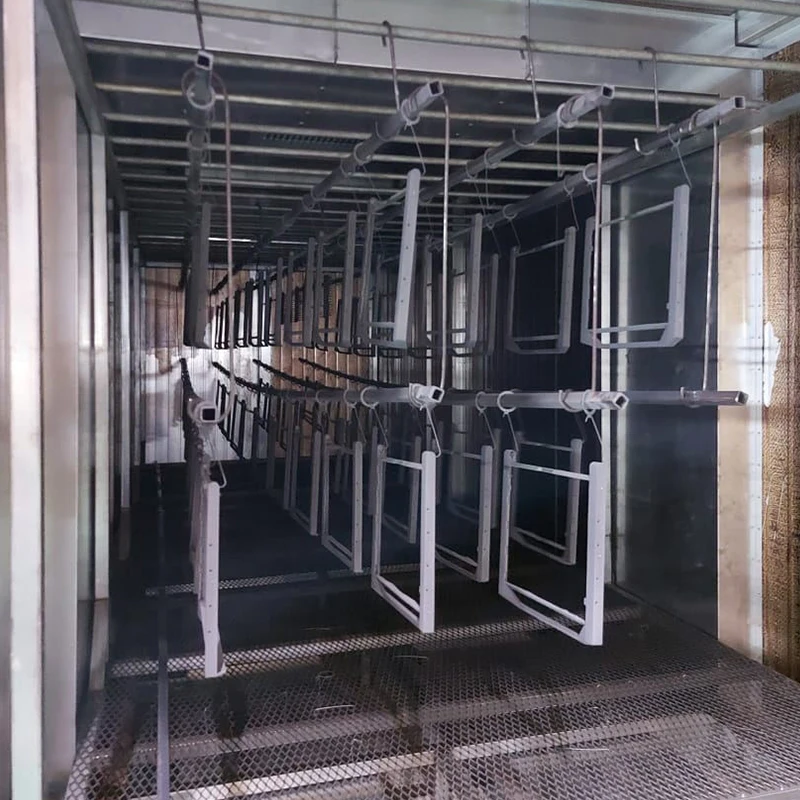

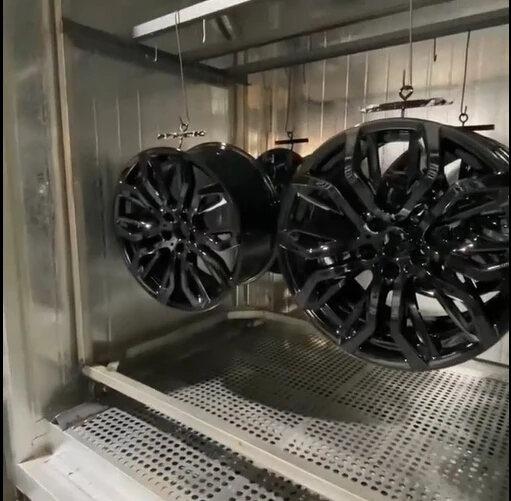

This powder curing oven is used for curing the workpiece which has been spraying during the powder coating. When thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

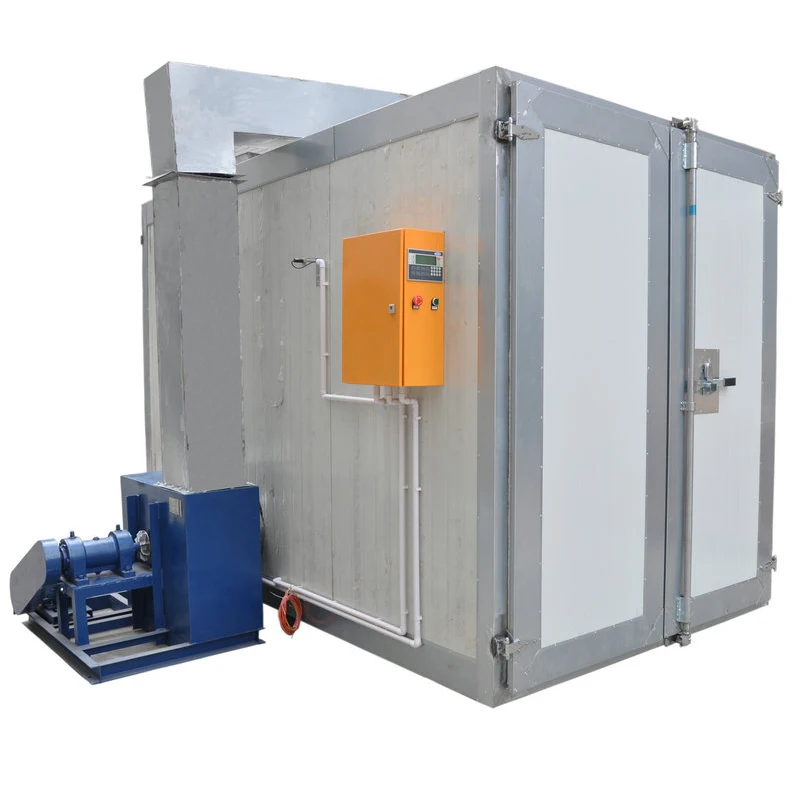

Automatic Control-Simple PLC System
PLC Control provides high precision heating process, it offers all the features you need. The panel allows you to set the accurate temperature and duration you require, as well as control the working of fan.

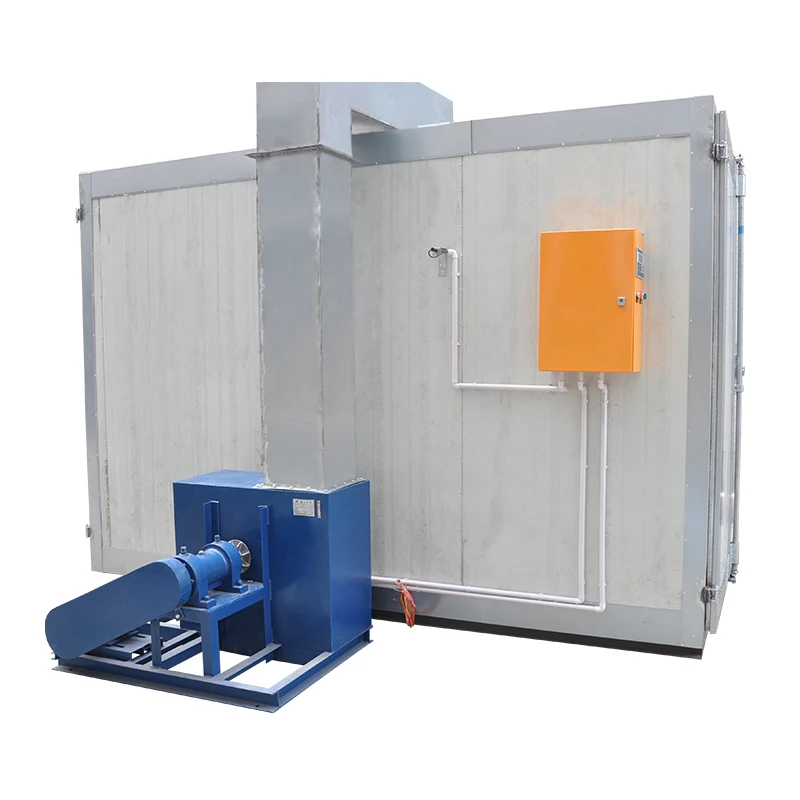

Circulation Fan
Powerful 0.75kw fan speeds up hot airflow that leads to quality cured finishes and optimum cure cycles. The fan for small powder coating ovens can be installed on the top to save space.


Parts Transporting System

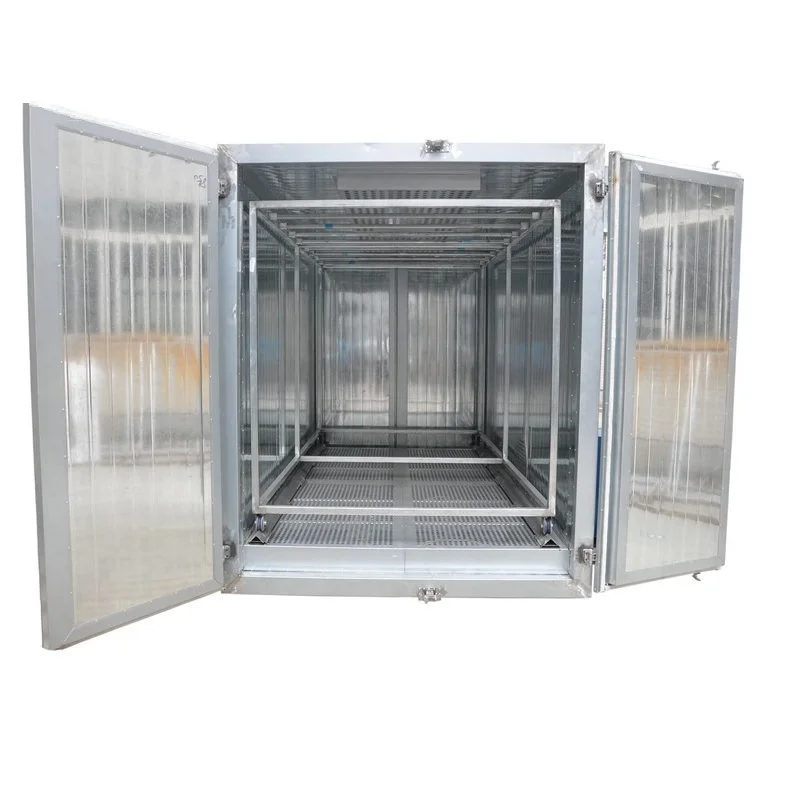

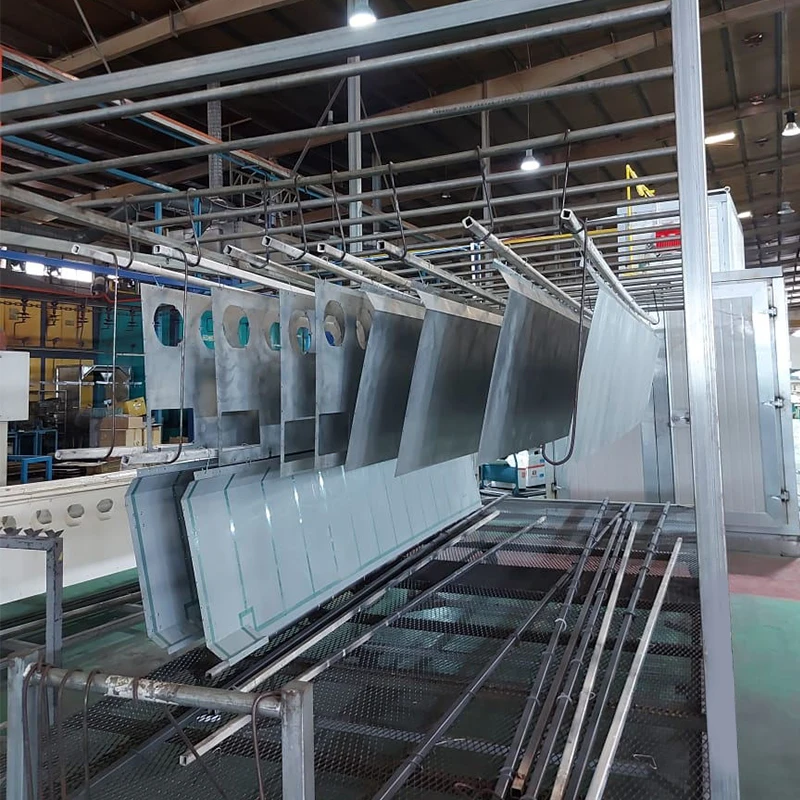

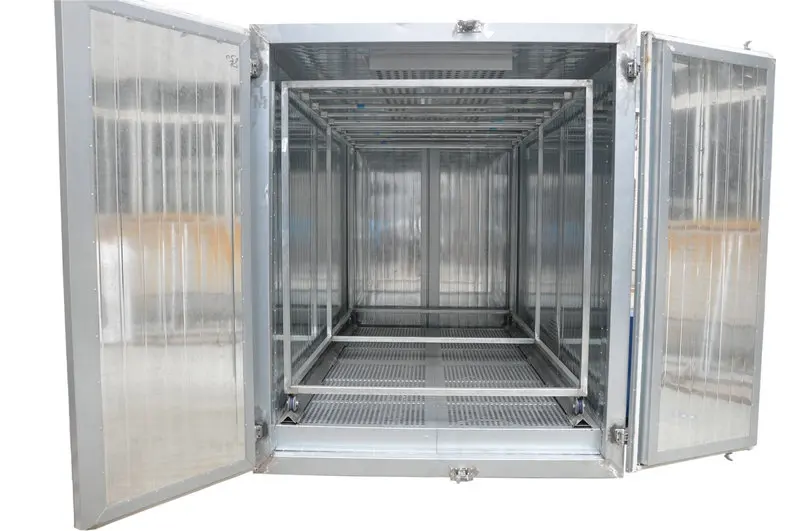

COLO powder coating ovens optional 2 trolleys, with inside and outside sets. It is easy for loading and transporting workparts. The inner trolley holding parts always stays clean that will not pollute the oven chamber, keeping the purity of cured parts.
Rock Wool Insulation Board 100mm
The powder coating oven insulation material is 100mm thickness rock wool board, which always maintain the warmness in the oven chamber.
The inner wall is 1mm galvanized steel which is heat-resistant, while the outerwall is durable color steel sheet.


Product Paramenters


Model
COLO-1645
Worksize dimensions
Width1500 x Height1650 x Depth4500 mm
Overall dimensions
Width1800 x Height2050 x Depth4800 mm
Voltage
380V/220v
Frequency
50-60hz
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3-5°C
Temperature max
250° C
Ventilation performance
1131-2565m3/h
Motor power
3kw
Circulation/ Air flow Vertical
Variable through holes on the walls
Warranty
12 months


Customer Feedback

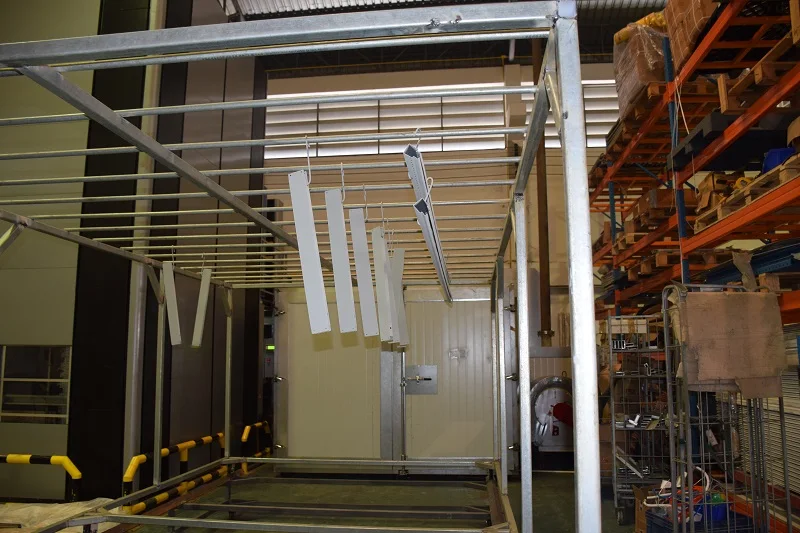

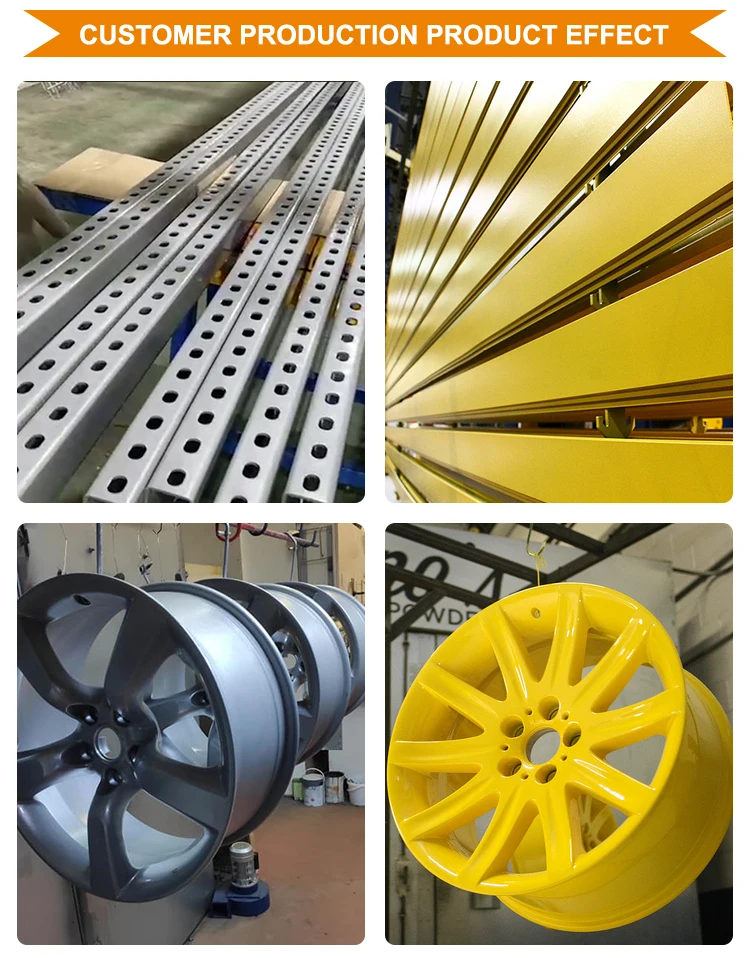

Electrostatic powder coating curing oven is the most popular oven applying to batch heating jobs for aluminum profile, such as aluminum grills and difusers, alloy wheels, bike frames, motorcycle parts, etc.

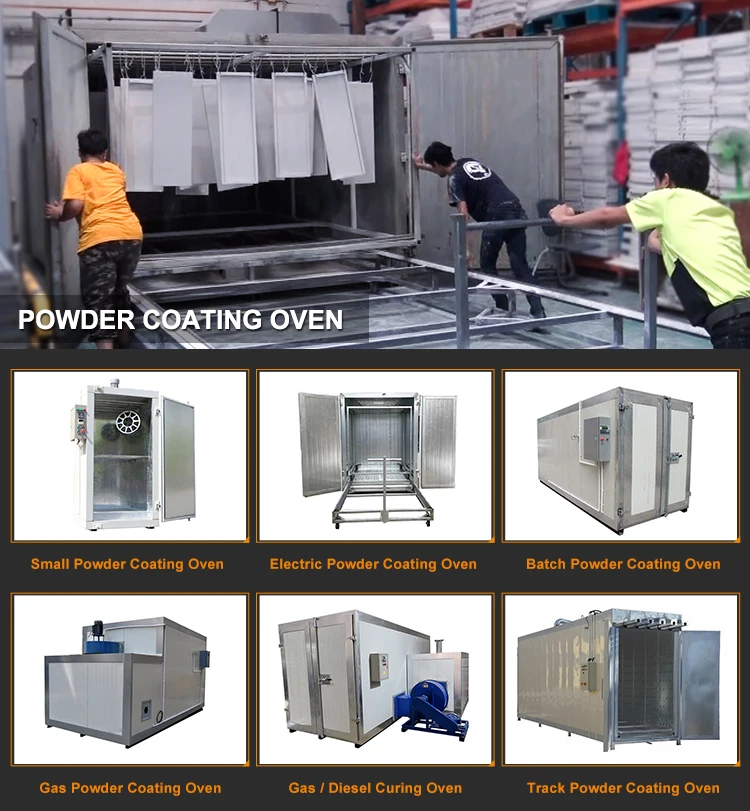

Recommend Products




Product packaging


Standard and Safety Export Packages
Inside with environment-friendly soft bubble paper , EPE foam wrapped well, carton outside for the delivery.






Company Profile

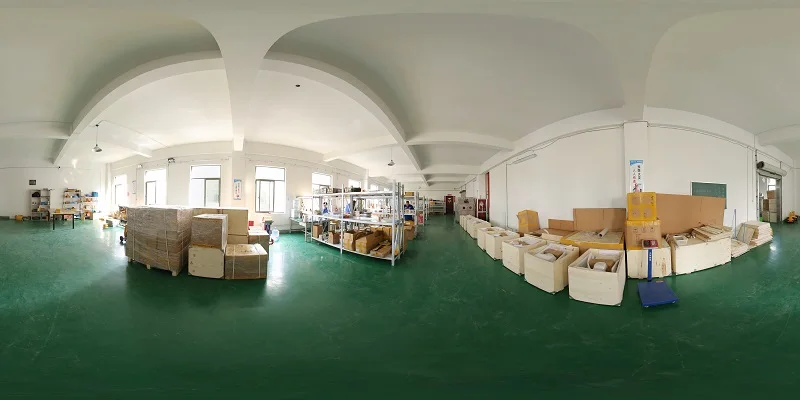

HANGZHOU COLOR POWDER COATING EQUIPMENT CO., LTD is a leading manufacturer of electrostatic powder coating equipment since year 2009. Over the past 10+ years we COLO have been recognized as the Top brand in the world industry thanks to our rich experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating equipment.




We export the products to a wide range of industrial users from more than 100 countries, and build a broad network including international wholesalers from US, UK, Canada, Austrialia, Mexico, Malaysia, Thailand, Vietnam, Poland, Peru, Brazil, etc.




FAQ


Powder Coating Oven FAQ

1. Q: Are you trading company or factory?
 A: we are factory since 2009, we have own workshop, warehouse, and professional technique team, we can provide customized and OEM service. Welcome to visit our factory.

2. Q: What certificates you can supply?
 A: CE, LVD, ISO, ATEX certificate available. If you need other certificates, we will help with it, for example: FORM A, FORM E and COC.

3. Q : What is the warranty of the powder coating oven?
 A: One year warranty period.

4. Q: If the size of powder coating oven can be customized?
 A: Yes, not only we have standard sizes of powder coating oven, but also we can design the custom-model according to your requirement.

5. Q: What is the package and delivery ?
 A: We use pearl cotton or wooden case to pack the oven and shipped with sea container, or pick up by yourself.

6. Q: How about the delivery time?
 A: Standard ovens cost about 15-20 workdays; customized ovens will cost around 30-35 workdays from the design to the end of the producing process.

7. Q : Whether the voltage and frequency of the oven can be customized?
 A: Yes, we can make the voltage and frequency according to your need.（For example: 110V/220V/380V/415V...）

8. Q:What are the heating method available?
 A: We have Electrical/Gas/diesel/LPG heating method for choosing.

9. Q: What is the heating time and temperature of powder coating oven?
 A: The powder coating oven has to be exposed to a temperature range 160 to 210 (Celsius Degree) for 15-30 minutes.
