INVT Modified off grid sine wave dc to ac inverter for pumps

Product Overview

Description



Modified off-grid sine wave dc to ac inverter for pumps



Description

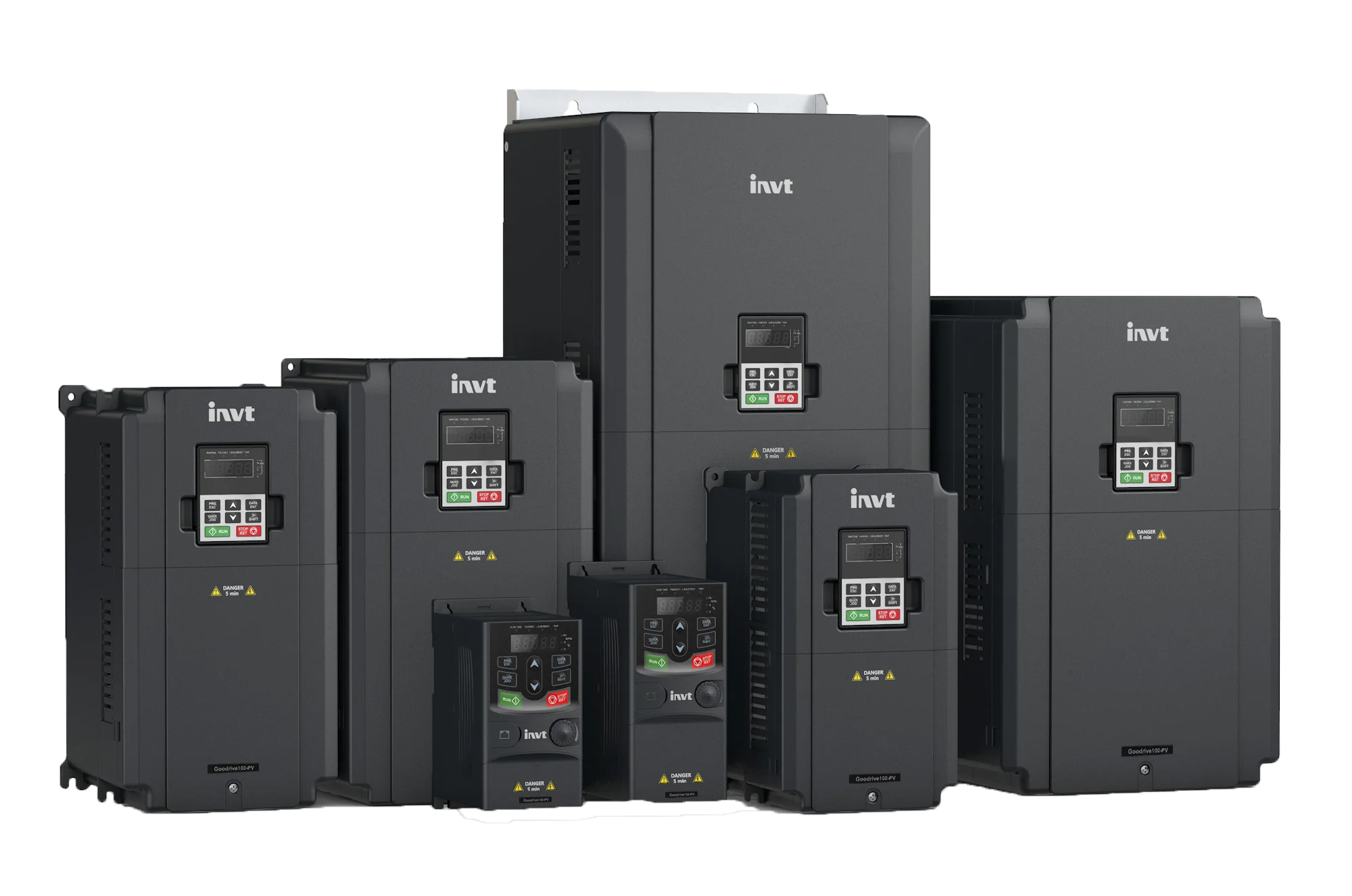

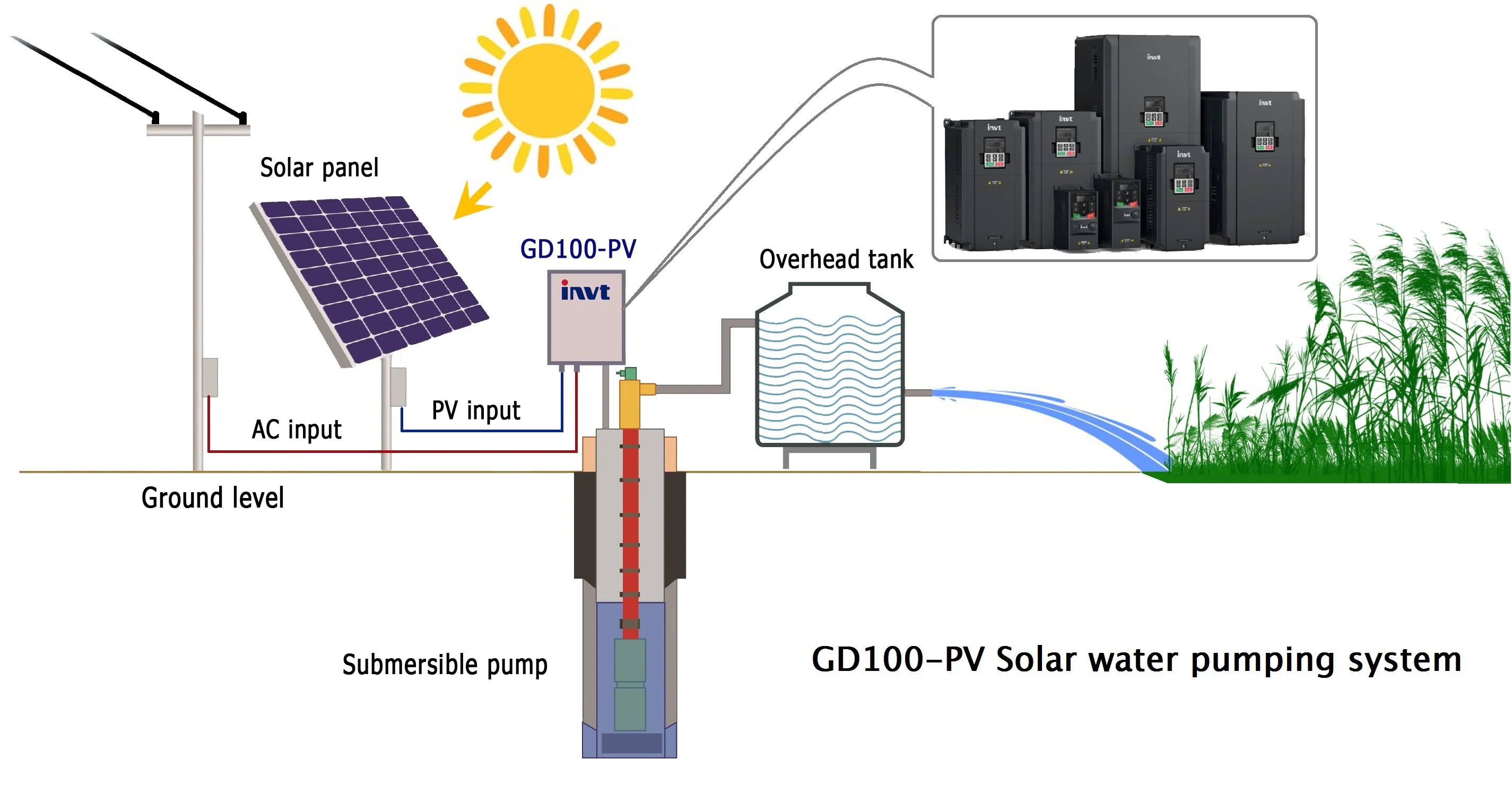

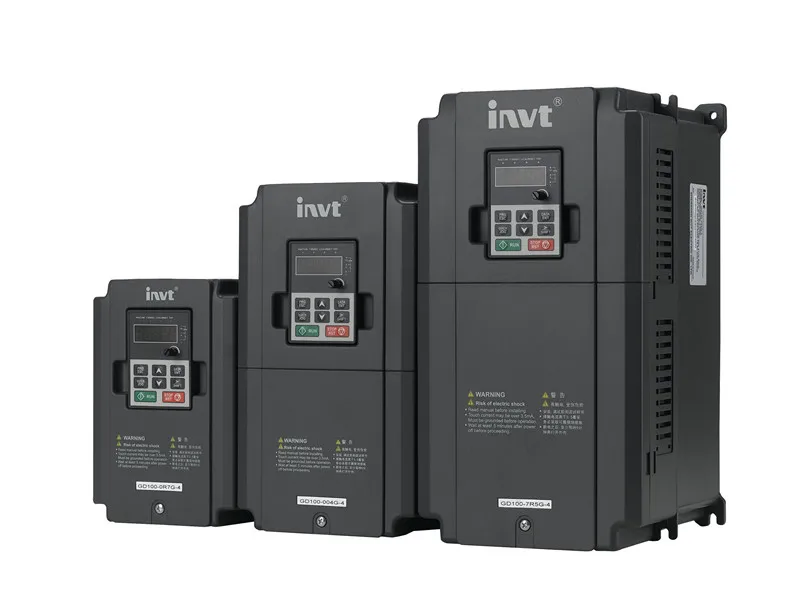

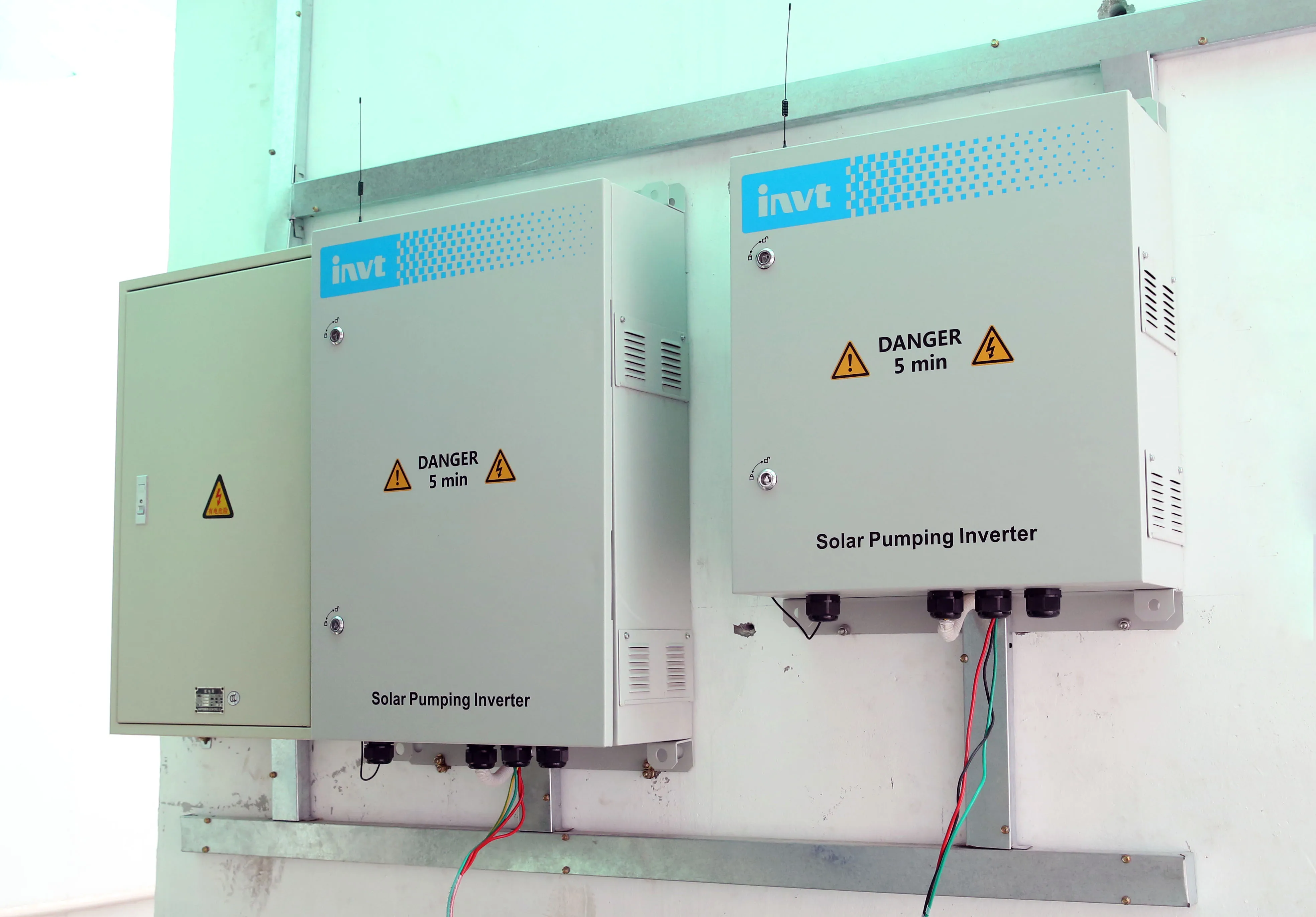

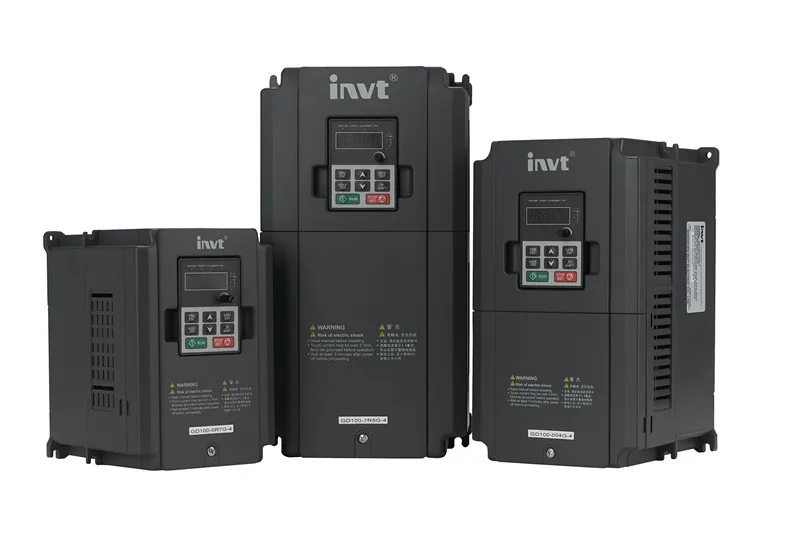

INVT Goodrive100-PV is a variable frequency drive in the environmentally friendly and economical PV market, with the product being applicable to PV pump systems, replacing water storage with electric storage and not requiring any batteries. In addition, the generation of direct current by solar modules is input to the inverter and is then converted into alternating current, driving various pumps directly. The output frequency is adjustable in real time, in accordance to sunlight intensity changes.

As for the features, maximizing power generation efficiency of solar modules and the use of advanced MPPT control technology are important advantages. At the same time, adjusting the water outflow of pumps using sunlight intensity change and the automatic hibernation and wake up functionality complete the list of features. Finally, the underload protection, fault protection and the DSP technology are also worth mentioning.

Features

1. Maximizing power generation efficiency of solar modules with the use of advanced MPPT control technology;



2. Adjusting water outflow of pumps quickly on basis of sunlight intensity change;



3. Automatic hibernation and wakeup;

(1) Hibernate at high water level and wake up at low water level;

(2) Hibernate at sunrise and sunset and wake up at strong sunlight.



4. Underload protection and fault protection of water level sensor avoiding pumping off after water supply dries up;



5. TI DSP technology and Infineon PIM design, with functions of overcurrent, overvoltage and overtemperature protection, built-in C3 filter, achieving reliable, automatic and unattended running.
