Offshore Platform High Sulfur Venting Gas Recovery Compressor Oil & chemical process compressor Low Pressure Fuel Gas Compressor
- Category: >>>
- Supplier: Shanghai Souair International Trade Co. Ltd.
Share on (60319033924):
Product Overview
Description
Venting Gas Recovery Compressor Oil & chemical process compressors
Oil & chemical process compressors produced by our company mainly include: Natural gas compressor, biogas compressor, coalbed compressor, shale gas compressor, gas compressor for underbalanced drilling, compressor for booster transferring, compressor for venting gas recovery, compressor for light hydrocarbon producing test, compressor for gas production with process gas lift, compressor for gas injection and recovery at gas storage, etc.
Technical Specifications
Typical Case Specifications (CNOOC Offshore)
| Compressor Code | D-19.77/0.9-8 Low Pressure Fuel Gas Compressor |
| Compressor Type | D Type Horizontal Symmetric Balanced Structure |
| Rotation | 988rpm |
| Compressor Stage | 2 |
| Medium | Natural Gas |
| Inlet Pressure (Gage) | Design Point 0.09MPa |
| Final Discharge Pressure(Gage) | 0.8MPa |
| Inlet Temperature | ≤20℃ |
| Diacharge Temperature(Behind Air Cooler) | Not Exceeding 15℃ of the Ambient Temperature |
| Discharge Capacity | Design Point 1500Nm3/h |
| Shaft Power | Design Point 107KW |
| Main Motor Power | 132KW,Electric Proof: Exd II BT4 |
| Cooling Method | Gas: Air Cooling; Cylinder: Natural Cooling |
| Drive Mode | Direct By Shaft Coupling |
| Lubrication | Cylinder, Packings: Less Oil Lubricated |
| Lubricated Oil Consumption | 150mm/hour |

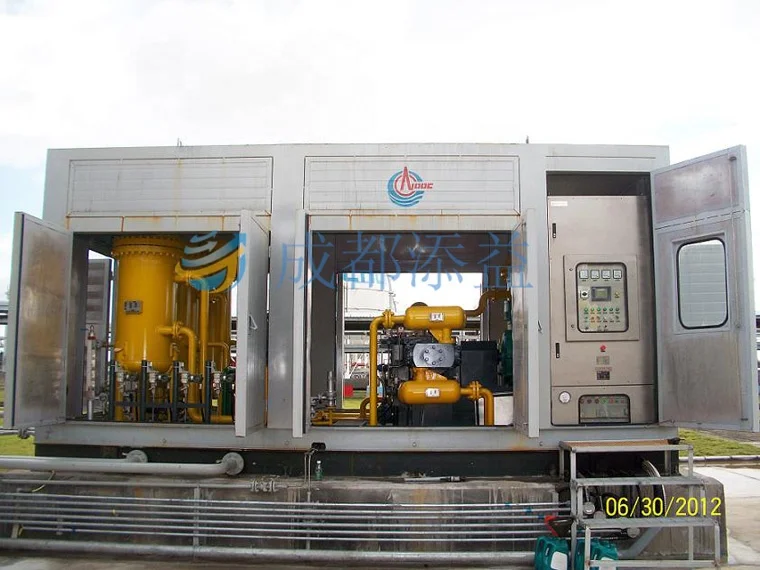

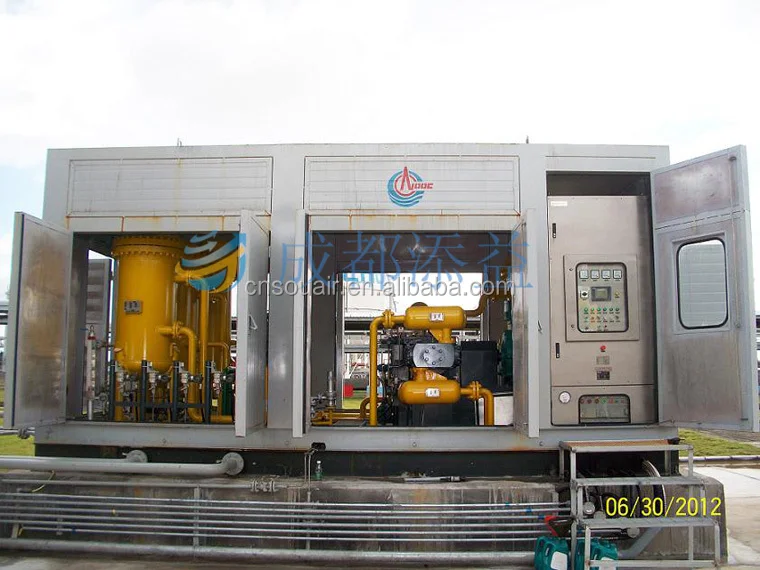

| Installation Mode | Cabinet/Skid, with Sound&Rain&Snow Proof Shell |
| Noise | ≤85dB(A) (1 meter from the shell) |
| Voltage | 380V |
| Control Mode | PLC + Touch Screen + Frequency Converter |
| Size | 7.0m X 2.8m X 2.7m |
| Weight | 12000kg |
| Minimum Life Time | 25 years |
| Big Repair Period | >30000 hours |
| Continuous Running Time per Year | >8000 hours |
Typical Case Specifications (CNOOC Zhuhai Project)
Compressor Code | D-4.96/(3-5)-70 |
Compressor Type | D Type Horizontal Symmetric Balanced Structure |
Compressing Stage | 3 |
Inlet Pressure | 0.3~0.5MPa (Design Point 0.4MPa) |
Discharge Capacity | 680~1080 Nm3/h (Design Point 880Nm3/h) |
Shaft Power | 79~105KW (Design Point 92KW) |
Main Motor Power | 110KW |
Cooling Method | Gas: Air Cooling or Water Cooling; Cylinder: Natural Cooling |
30-1600Nm3/hr At 1-250bar,15kw-315kw Motor Power chlorine hydride/chloro ethylene/methyl chloride gas compressor,oil free reciprocating medicine and experimental research gas compressor oil free reciprocating fueling cylinder project
Product features:
Product has no oil lubrication, low noise, small vibration, compact structure, smooth operation, safe and reliable, high automatic control level, a digital display and control over a long distance can be configured according to user request, has low compressor oil, water, lower the high temperature, low inlet pressure, exhaust pressure is high, stop functions such as alarm, take the compressor run more smoothly.
Product application:
Pressure, voltage, power and purging, can also be used for power plant, food industry, medicine and experimental research units to provide a stable source of power
(this series all pressure data can be modified according to customer specific requirements, if any requirements, please ask our online customer service, we will answer for you)
