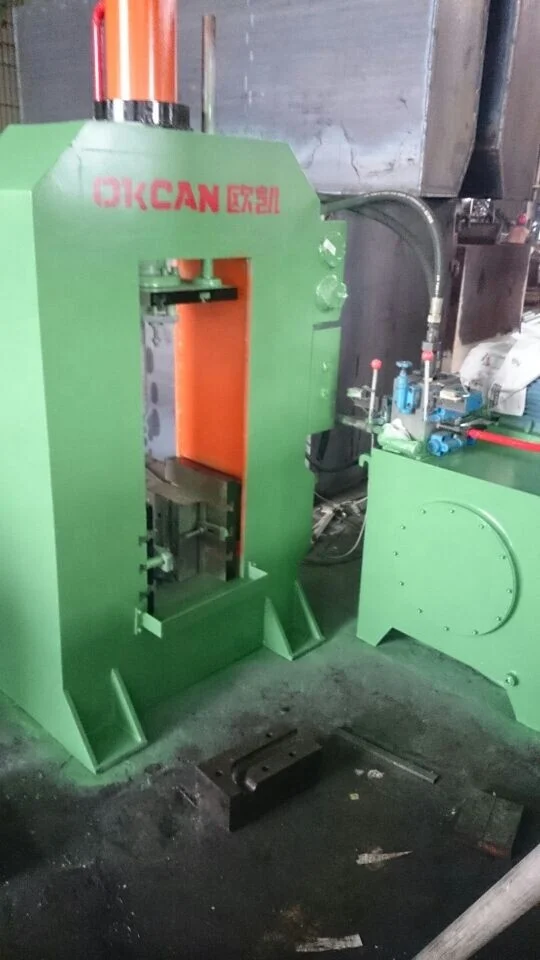

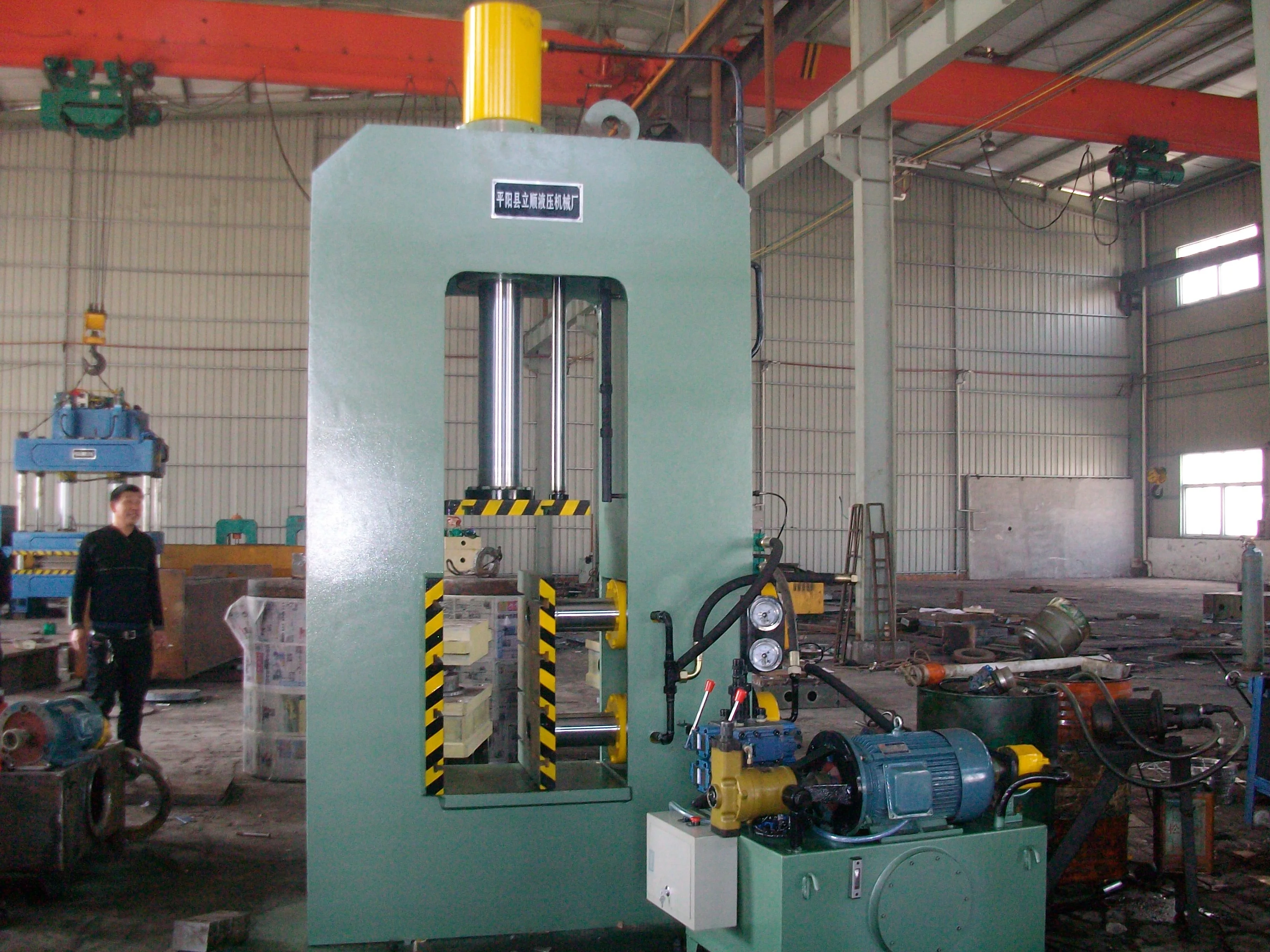

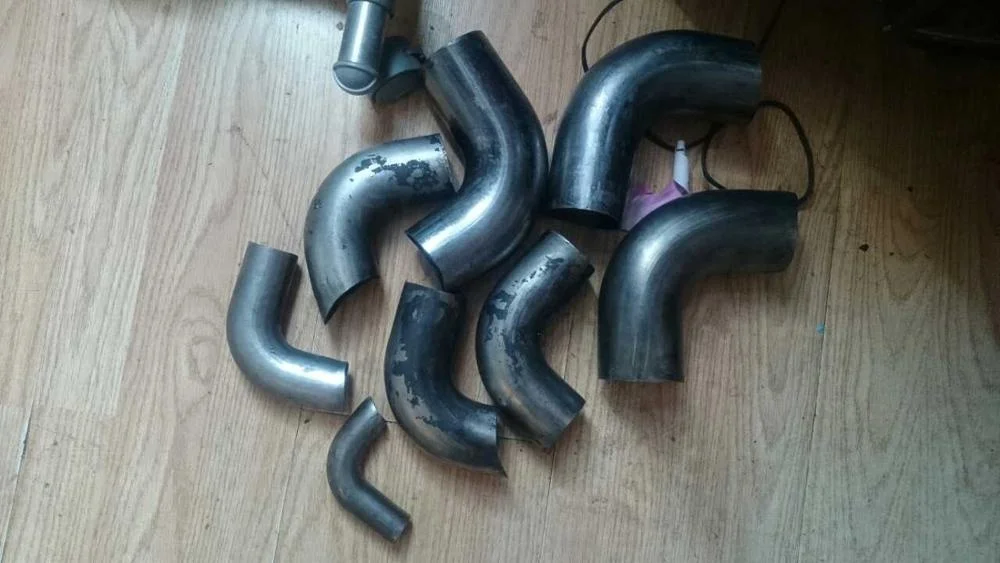

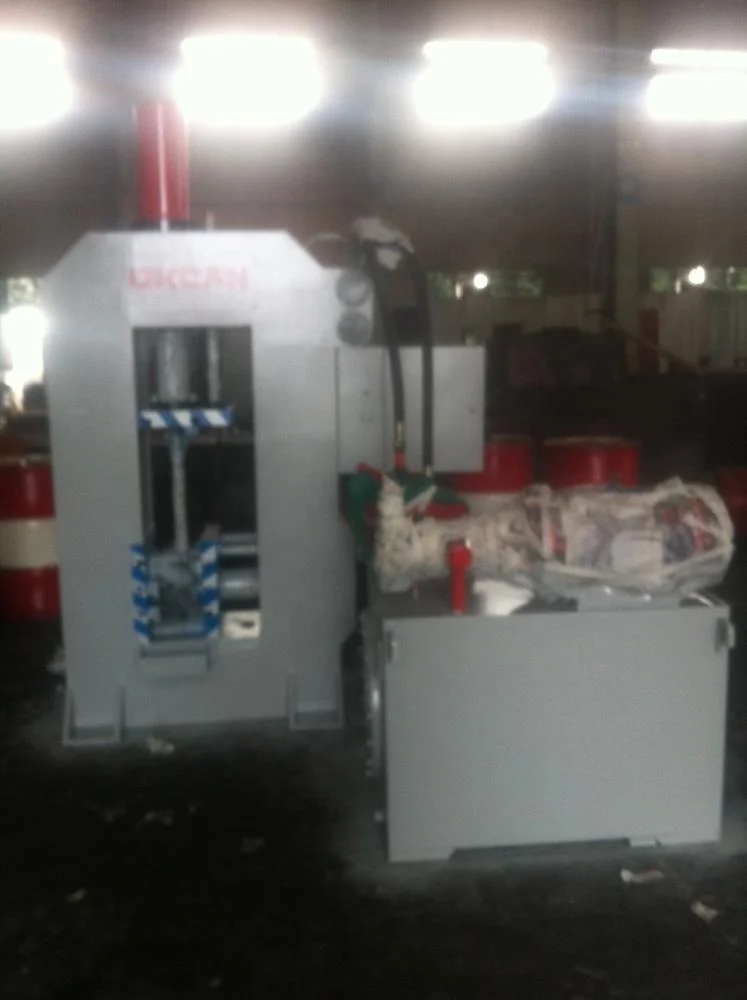

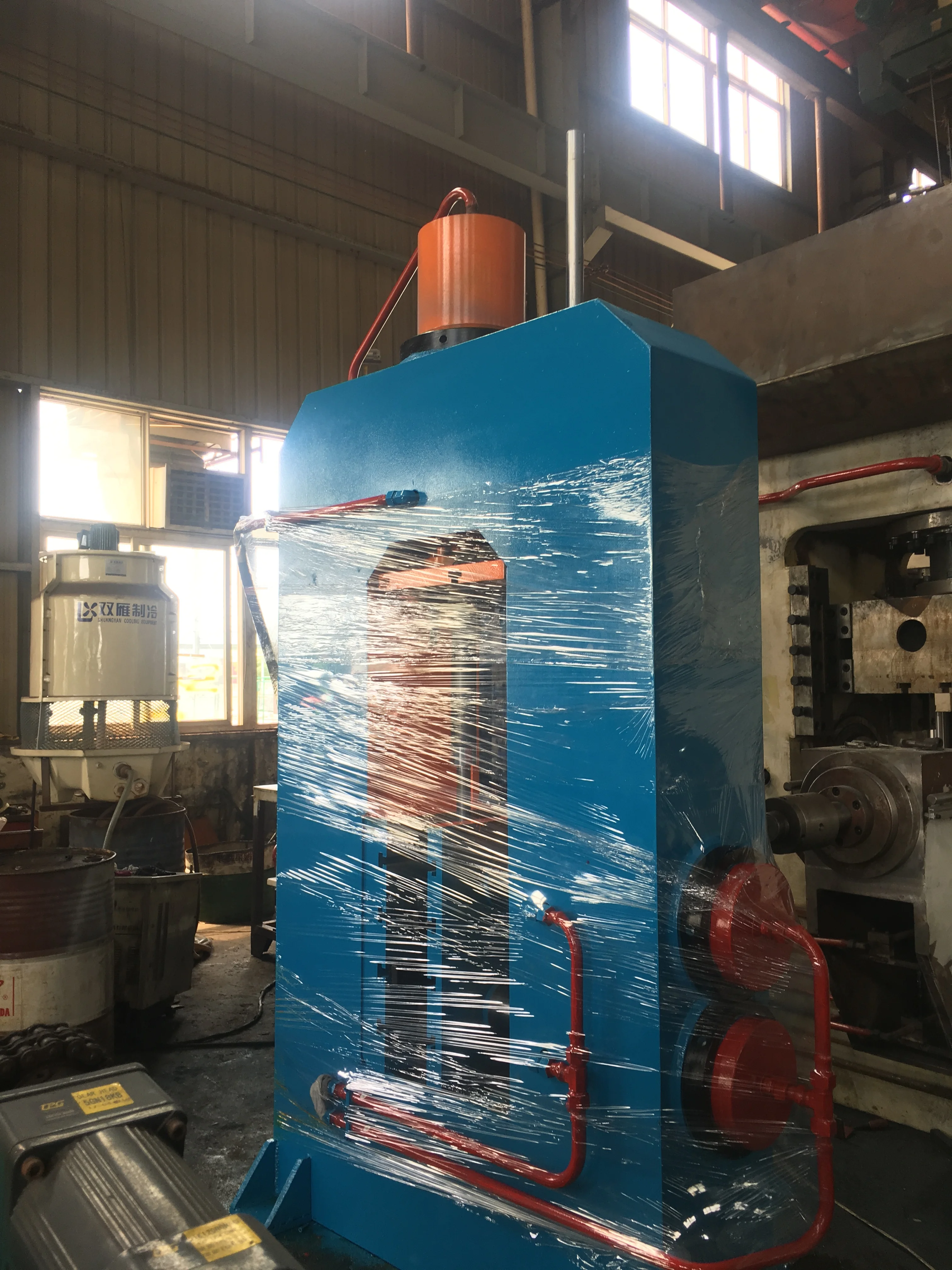

1.YWK-63T elbow making machine is mainly used for carbon steel, stainless steel ,alloy steel ,copper-nickel pipe fittings, to make the 90 °elbow,the maximum specification for less thanφ60.Equipment has independent electrical system and hydraulic system, Convenient maintenance, simple operation, high production efficiency, able to adapt to the customers’ production requirement .
model
Work range
Mould configuration
Forming speed
YWK-63T
1/2-2 ’’
φ32φ38φ45φ57
φ34φ42φ48φ60
15-20 s /pc
YWK-100T
2.1/2 -5 "
φ76φ89φ102φ108φ114
20-30 s /pc
YW-400T
5-8 "
φ133φ140φ159φ168φ219
40-50 s /pc
YW-630T
6-12 "
φ159φ168φ219φ273φ325
120-160 s /pc
YW-800T
10-16 "
φ273φ325φ377φ426
250-300 s /pc
YW-1000T
12-20 "
φ325φ377φ426φ530
350-450 s /pc
2.the main technical parameters of 63T elbow making machine:
pressure of main cylinder :63T
stroke of main cylinder :200mm
pressure of side cylinder :63T
stroke of side cylinder :470mm
daylight:500mm
working table size:400mm*400mm
motor power:11KW
operating way: manual (steel ball type)
forming specification :1/2" to 2 "

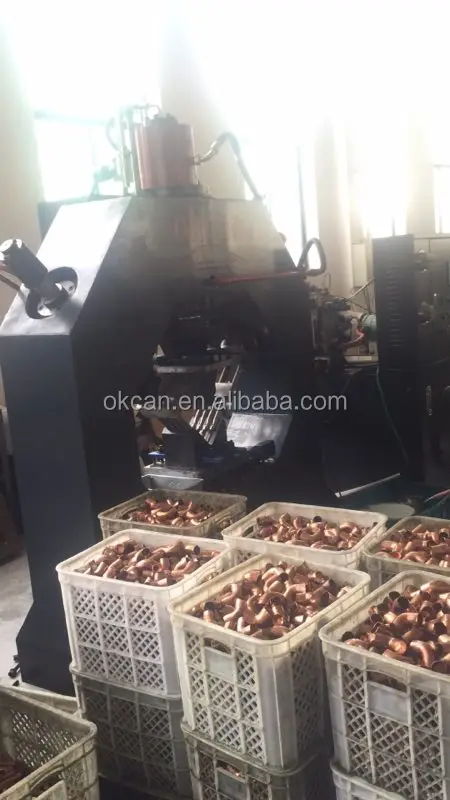

if your elbow is copper material ,just check the link below:
we can offer FOB ,C&F,CIF terms of quotation. our quality guarantee period for one year for free and offer life-span cost repairment .
Company Information
our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :smc /bmc composite plastic manhole cover machine ,copper pipefitting production line,hot die forging hydraulic machine,stainless steel and carbon steel pipefitting production line ,steel door skin embossing press ,metal sheet deep drawing machine ,smc hot press machine ,abs/pc and eva luggage production line , eva and metal eyeglasses case production line,etc
