BM 3 19Lpm 100 250Bar High Pressure Triplex Plunger Pump

Product Overview

Description

High Pressure Piston Water Jet Pump For Fogging and Misting Applications



♦♦ Description of Water Jet Pump

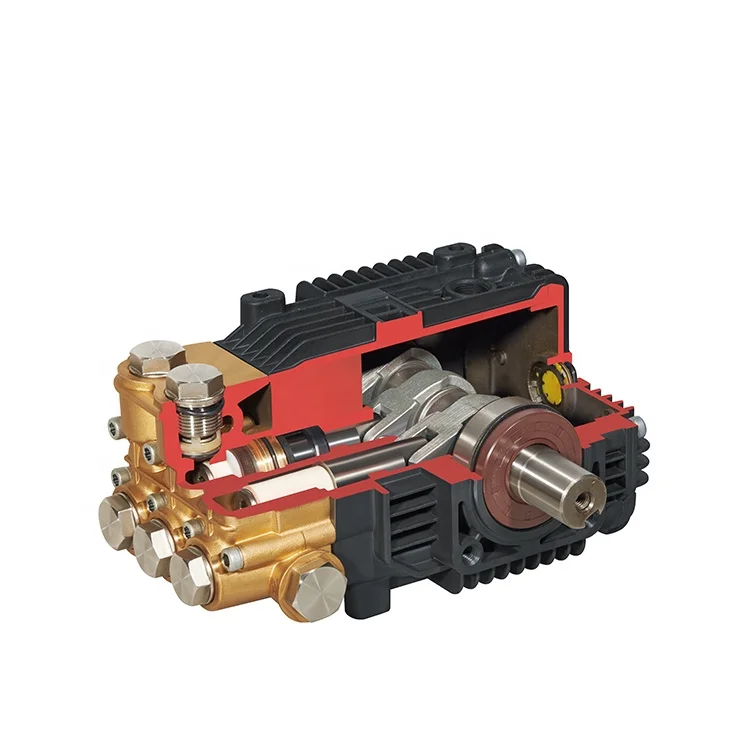

Water Jet Pump is designed for varieties of high pressure cleaning applications. The construction of the pump has die-cast crankcase, forged brass head, the internal components include solid ceramic-coated plungers, tapered roller bearing, one-piece connecting rod, and stainless steel checking valves.
The pump has the options of gearbox , belt drive, or coupling drive with electric motor, or gasoline, diesel engine.

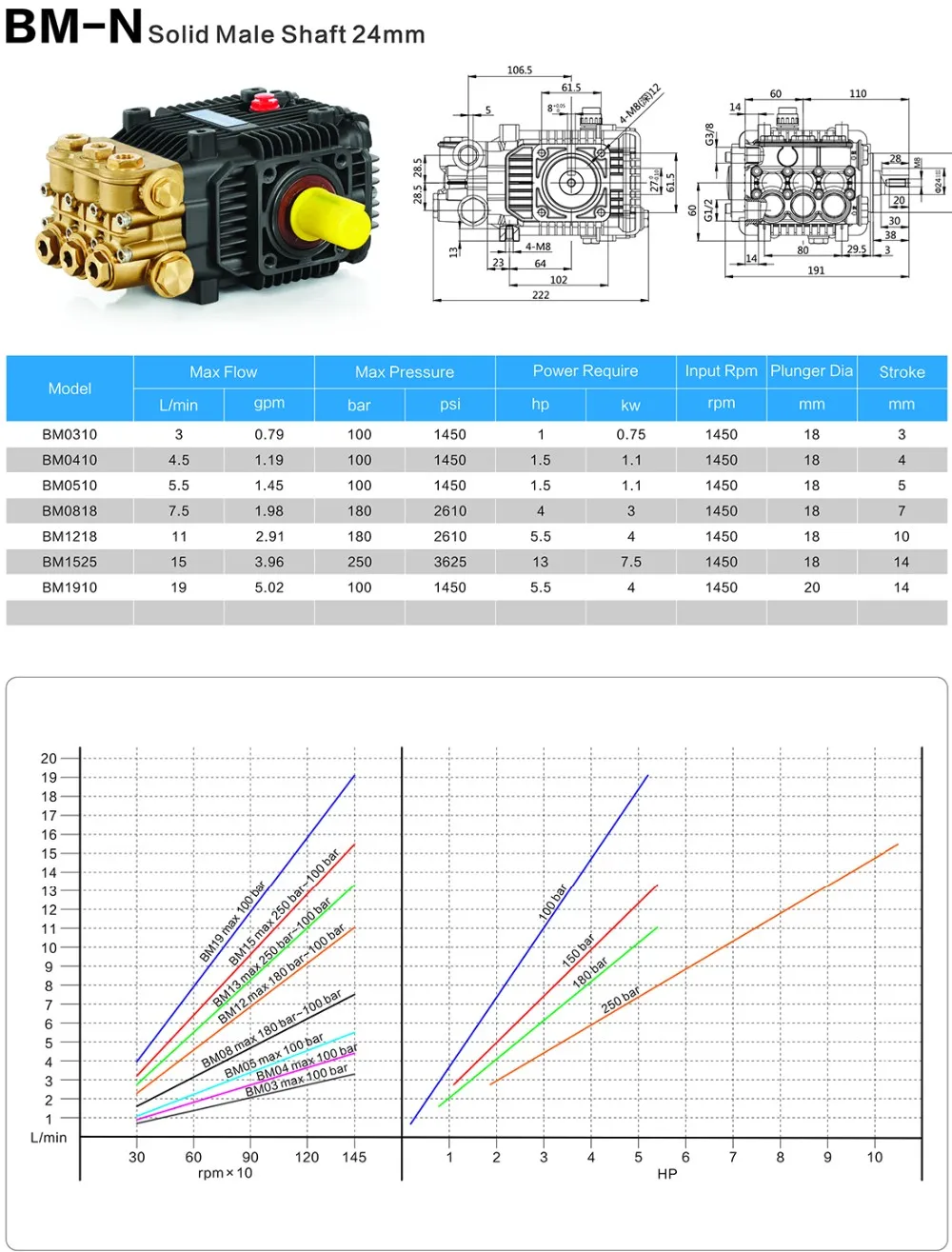

♦♦ Specification of Portable High Pressure Car Washer

Model	Flow		Pressure		Speed	Power
Type	L/min	gpm	Bar	psi	rpm	kw	hp
BM0310	3	0.79	100	1450	1450	0.75	1
BM0510	5.5	1.45	100	1450	1450	1.1	1.5
BM0818	7.5	1.98	180	2610	1450	3	4
BM1218	11	2.91	180	2610	1450	4	5.5
BM1525	15	3.96	250	3625	1450	7.5	13
BM1910	19	5.02	100	1450	1450	4	5.5



♦♦ Feature of Water Jet Pump

• Brass Manifold
• Ceramic Coated Plunger
• HP Seals
• Aluminum Alloy Crankcase, Anti-Corrosion, Heat Dissipation
• Forged Crankshaft, Hardened, Tempered Steel
• Aluminum Alloy Connecting Rod
• Connecting Flange Available

♦♦ Application of Water Jet Pump

This Water Jet Pump can be used in hot and cold pressure washers, engine driven pressure washers, pressure test equipment, industrial cleaning products, special duty applications.

• Food processing
• High Pressure Cleaning, Dust Suspension, Odor Control, Humidification
• Pharmaceutical & chemical industries
• Livestock, animal husbandry
• Car, Truck, Vehicles Washing
• High Pressure Sewer Jetting
• Others

♦♦ Advantage & Benefits

1. Cost-Effective & Profitable
Compared to other overseas companies, our pricing is more competitive, while the pump quality is very stable, durable, it has been proved by our valued clients around the world, therefore, to make the deal with us will become a profitable & pleased cooperation.



2. Stability & Dependability
We grasp all the technology of this Water Jet Pumps, and we utilize the highest quality materials & components, which makes this pressure pump durable & reliable.



3. Superior Service & Support
The technical support & assistance is available anytime, the quick-response will be effected. We will also find the most economical way to the spare parts requests.









♦♦ Certificate



♦♦ Trade Details

MOQ	5 sets Portable High Pressure Car Washer
Sample	Sample available, but charged
Port	Ningbo
Packaging	Strong carton box, single in one box
Payment	L/C at sight, T/T, Western Union
Delivery	Within 2-4 weeks after receipt of payment
Shippment	By air, by ship, by truck / train, express



♦♦ Our Service

1. We have a strong team that can offer the best service for our customers.
2. Stable product quality, strict quality control.
3. Accredited entity, fast delivery.
4. Available 7x24 Technical Assistance & Support.
5. Reasonable replacement parts service.



♦♦ Our Company

Name	Taizhou Bo Tuo Lini Machinery Co., Ltd.
Business type	Manufacturer
Manufacture Experience	20 years
Area	15000 sq.m.
Production Capacity	10000 sets / Month
Main Product	Portable High Pressure Car Washers, Portable High Pressure Car Washers, High Pressure Fog & Misting Systems, etc.
Equipment	Modern precise CNC lathes, Drilling Machines, Grinding Machines, Hi-Tech Test Desks and other High Precision Inspection Tools
Certificate	ISO 9001:2008 management systems, CE Certificate
Company Advantage	1. We have a 3A credit honored by state. 2. We introduce hi-efficiency management systems and have a quick-response team. 3. Dependable and durable products help us to achieve great reputations and make us be creative & unique in this industry. 4. We are pleased to share the value with our clients, the profit is not our pursuit only, but the clients satisfaction is.
Website	www.botuopump.com //btln.en.alibaba.com/ //botuopump.bossgoo.com/





♦♦ Workroom



♦♦ Production Equipment



♦♦ Testing Equipment
