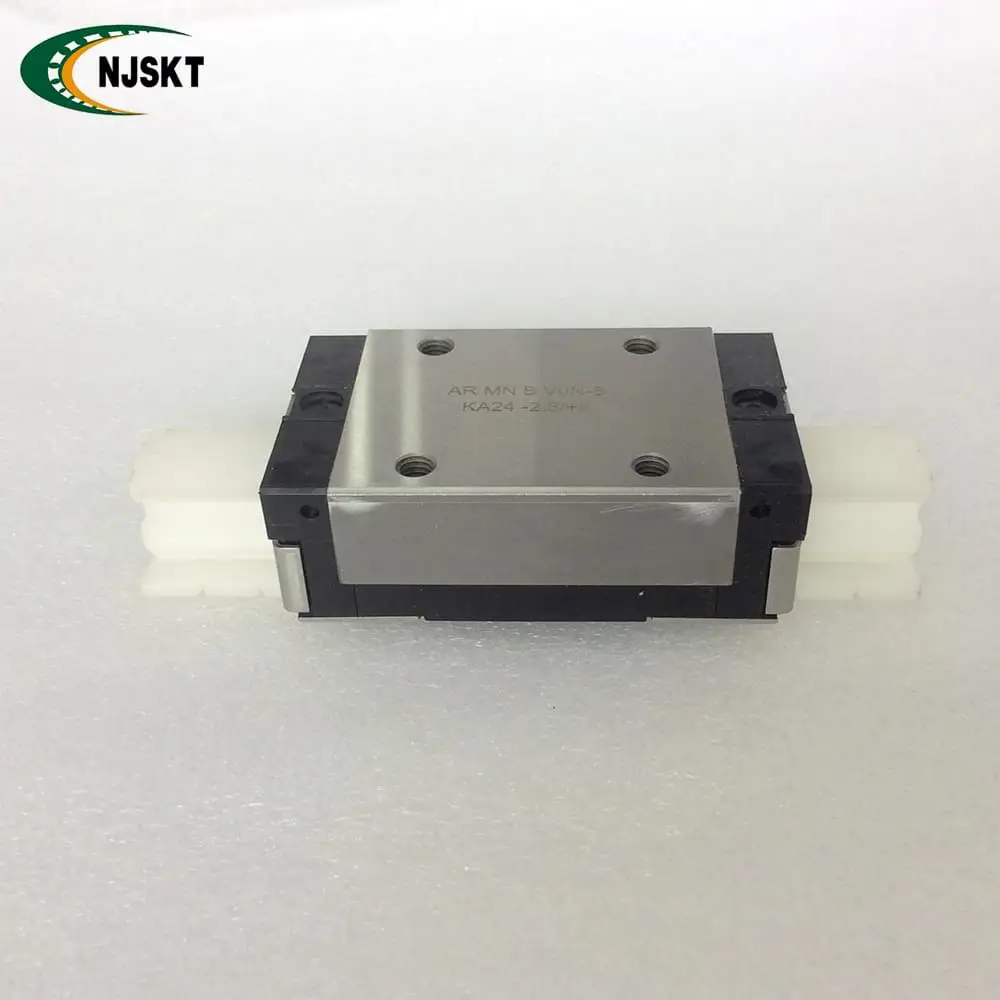

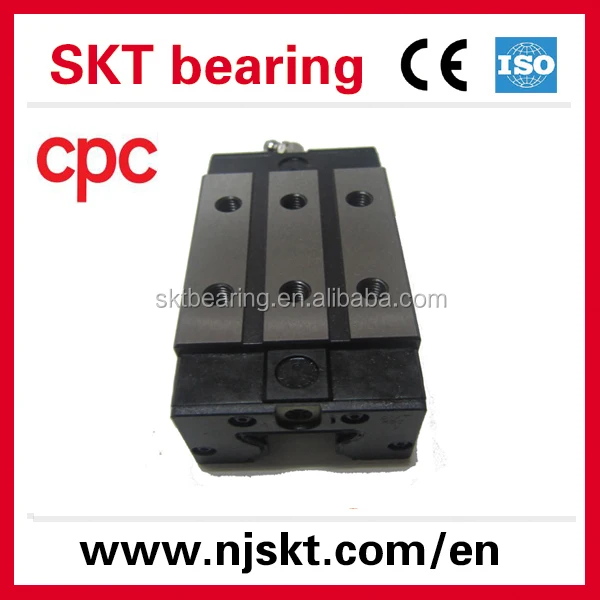

TaiWan CPC 25mm bearing block AR25FN 1000mm rail guide

Product Overview

Description

TaiWan CPC 25mm bearing block AR25FN 1000mm rail guide

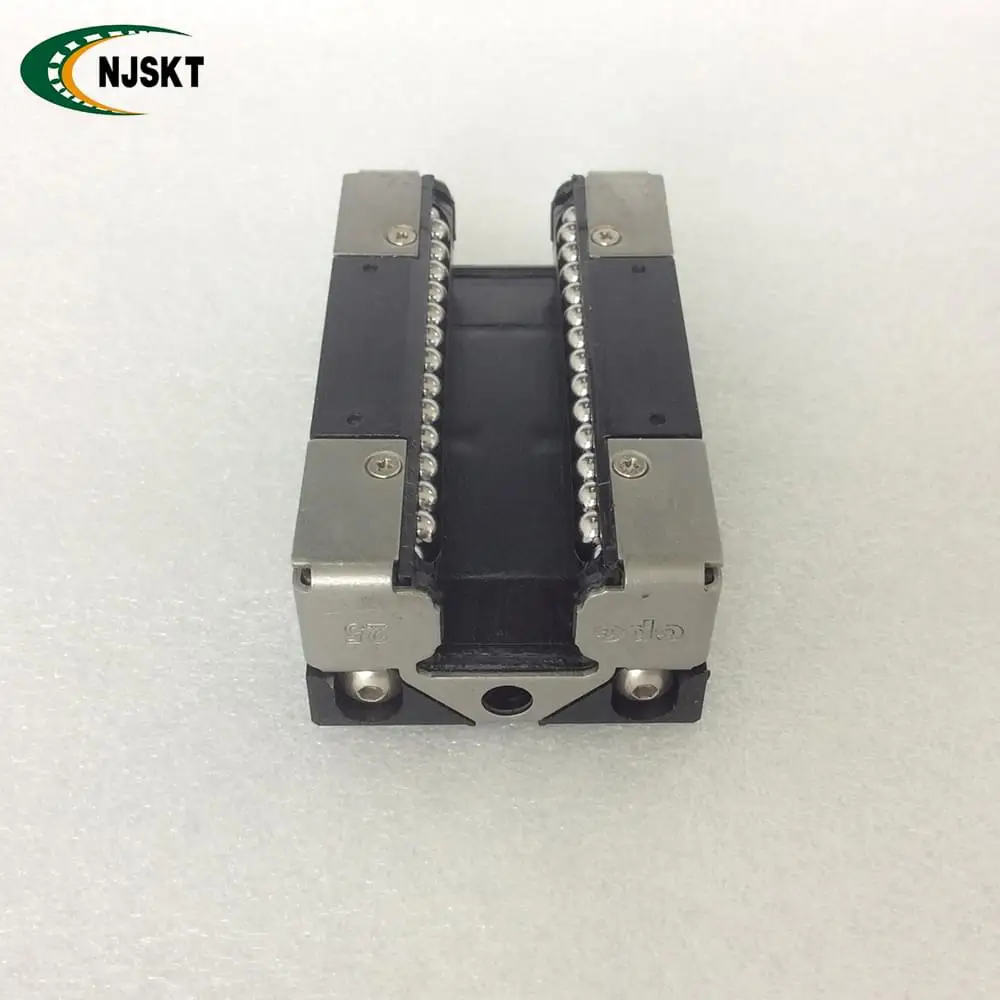

The CPC linear guideway ARC,HRC series used the O-type arrangement for the four row ball circulation design,The contact angle between the rail and ball is 45 degrees,and can realize the 4 directional load effects.The CPC linear guide places special emphasis on strengthening the Arm length(LO),So when susitating external forece F,Will have even higher Mr value to increase the rigidity and static moment capability .In addition the runner block for the same size uses larger and more balls,so will outperform comperitor's models by 10%-30% regarding load capabilities.The CPC linear guide has characteristics of high load,and high stiffness.

Country (Region) of origin :Made In TaiWan, This is Original part that we are selling.



Please be advised the CPC linear guide is the length of 1000mm each pieces,The butt-jointing is required when lengths exceed max. For detailed information,please contact me immediately.We can cut the length for your need.



CPC Linear guide Details:
A Different Name	linear guide rail, slide block, linear motion, linear guide
	CPC linear guideway, CPC linear module, CPC linear actuator,CPC linear guideway
Brand	CPC
Model	AR25FN
Rail lenght	60mm/-4000mm lenght can provide
size:	following list
Minimum quantity:	1 piece slide block and 1pcs 60mm rails each
Precision:	N, H, P
Pre-pressing	V0,VS,V1
Lubrication:	grease
Seal Types	seales SS
Material:	Chrome Steel
Packing	original color box packaging,OrWooden Carrying Case.
Block Type	flange  type block



ARC15MS		ARC20MS	ARC25MS	ARC30MS
ARC15MN		ARC20MN	ARC25MN	ARC30MN
ARC35MN		ARC45MN	ARC55MN	ARC15ML
ARC20ML		ARC30ML	ARC35ML	ARC45ML
ARC55ML
ARC15FS		ARC20FS	ARC25FS	ARC30FS
ARC15FN		ARC20FN	ARC25FN	ARC30FN
ARC35FN
HRC15MN		HRC20MN	HRC25MN	HRC30MN
HRC35MN		HRC45MN	HRC55MN	HRC15ML
HRC20ML		HRC25ML	HRC30ML	HRC35ML
HRC45ML		HRC55ML
HRC15FN		HRC20FN	HRC25FN	HRC30FN
HRC35FN		HRC45FN	HRC55FN
HRC20FL		HRC25FL	HRC30FL	HRC35FL
HRC45FL
AR15MS	AR15MN	AR15FS	AR15FN
AR20MS	AR20MN	AR20FS	AR20FN
AR25MS	AR25MN	AR25FS	AR25FN



Linear Drawing of the CPC linear guide

The Precision Data for CPC linear guide





Linear guide rail Mounting procedure



1. Clear and dry the mounting surface.
2. Coat each surface with low viscosity spindle oil,Then place the rail on the surface and then lightly tighten the mounting bolts temporarily.
3. Place the carriage plate on the blocks carefuly and tighten the mounting bolts temporarily.
4. Position the carriage plate by tightening the master block against the reference surface using the selected securing method and tighten the mounting bolts with a torque wrench.





Acceleration testing machine for CPC Linear guideway



1.The Acceleration testing machine is a slide-crank mechanism and it uses flywheel as the crank.Working under a limited stroke,it helps linear block to reach higher acceleration and celocity.Moreover with rotation velocity of the motor,it can be tested the service life under different acceleration and velocity.









Testing Summary for CPC linear guide items
According to CPC Linear guideway ARC25MN V2 its basic load capacities, preload and equivalent dynamic load, the calculation of the service life can be 708.6 km.
This test after running 30 hrs =720 km, the appearance of the CPC linear block and the plastic parts without damage, the upper and the bottom lubrication storage pads were in good condition and supplied well, the raceway surfaces were also in good condition which means it can continue running with high velocity.



Linear block mounting procedure



1. Clamp the reference rail in place and tighten the mounting bolts with a torque wrench,Making several passes to reach the desired torque.
2. Please acrefully position the table with bearings onto the rails and tighten the non refernence blocks with torque rrench.
3. Starting at one end,move the table along the rail and tighten the non reference rail slowly during swveral passes with a final pass using the torque wrench.Please don't over tiighten.

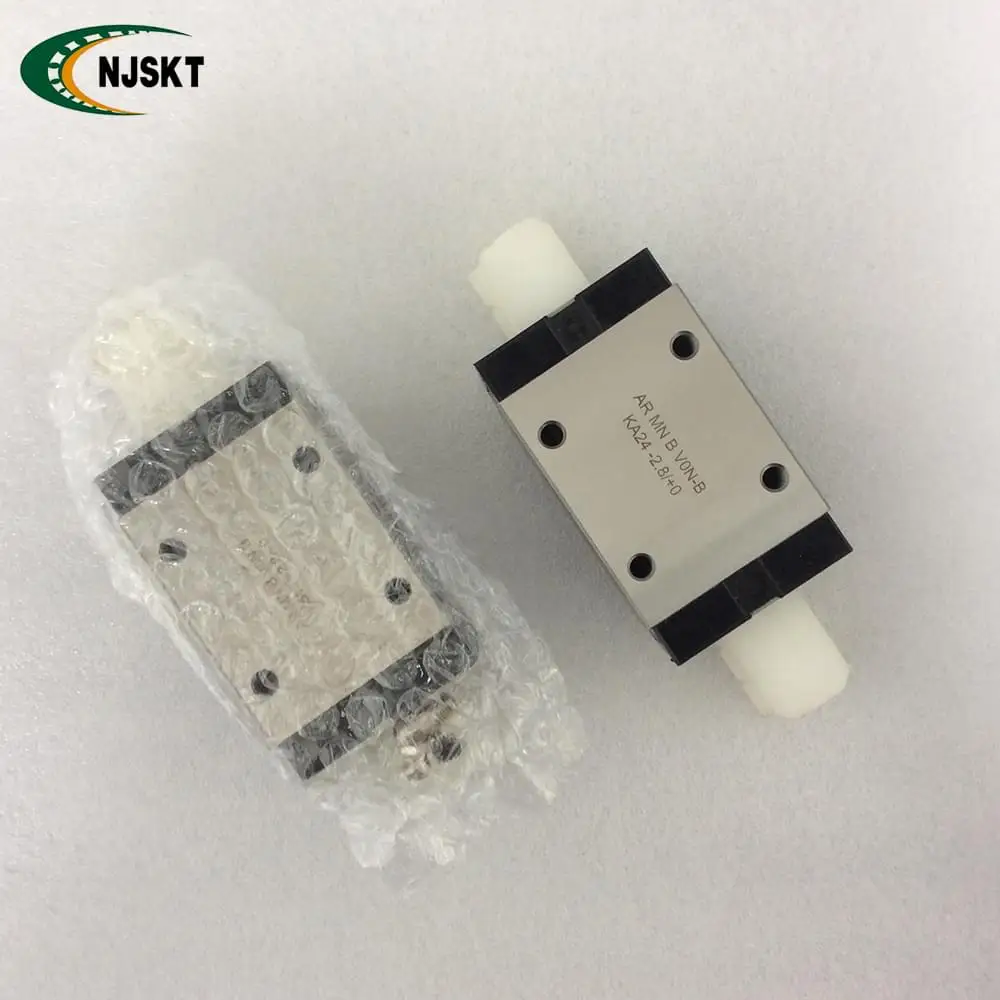

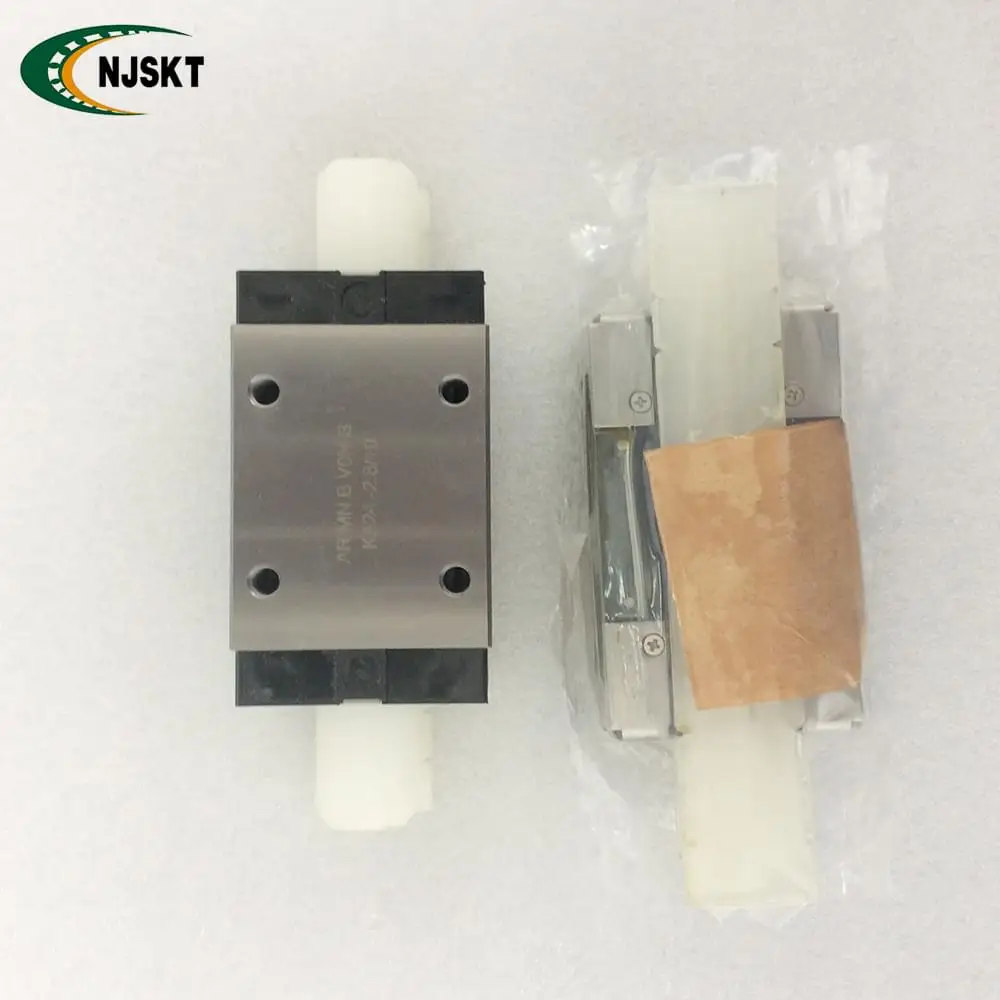

Picture  Showing



• Standard size:Different model and size have different requirement

• Non-standard size::500PCS to 1000PCS

Payment:

• T/T ,L/C, Western Union,PayPal, Credit Card

Sample:

• Free sample after deposit,or sample cost at buyer's cost(refundable)

Shipping:

• For Small orders (1pc-500pc)and samll Size,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
• For Big quantity (1000pc-100000pc), we will ship by sea.
