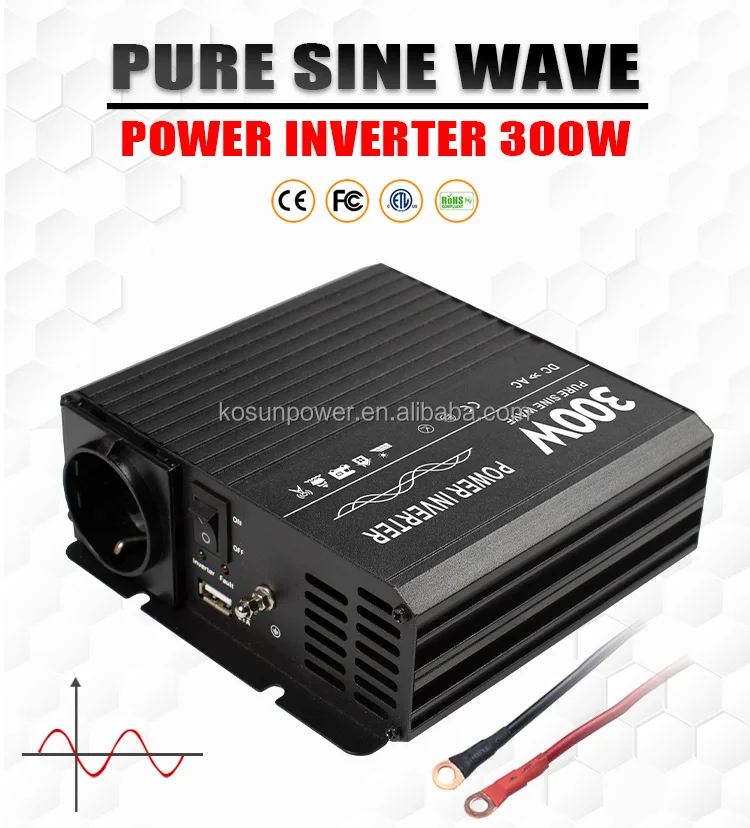

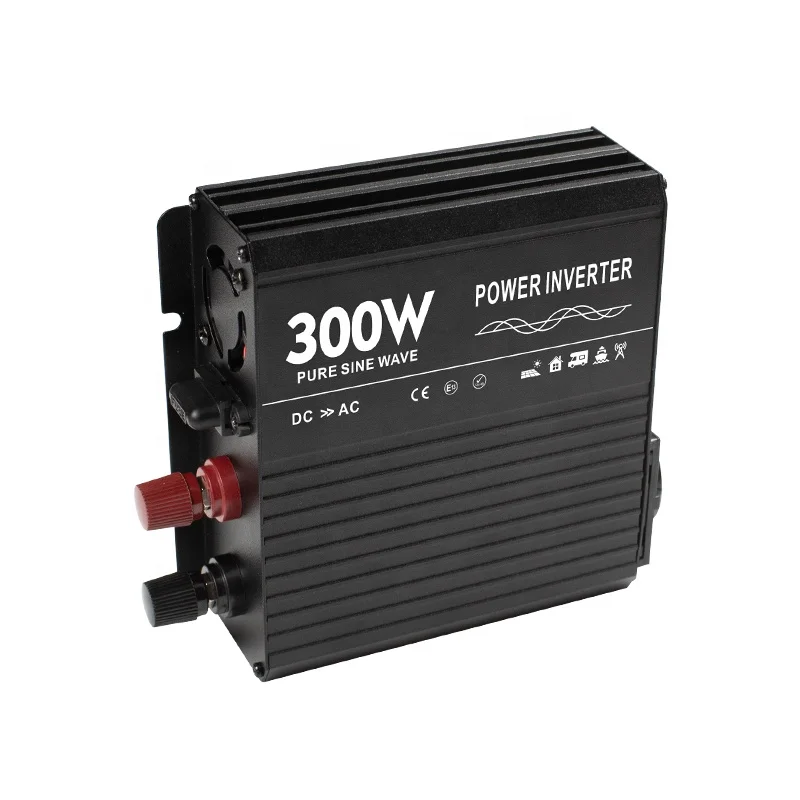

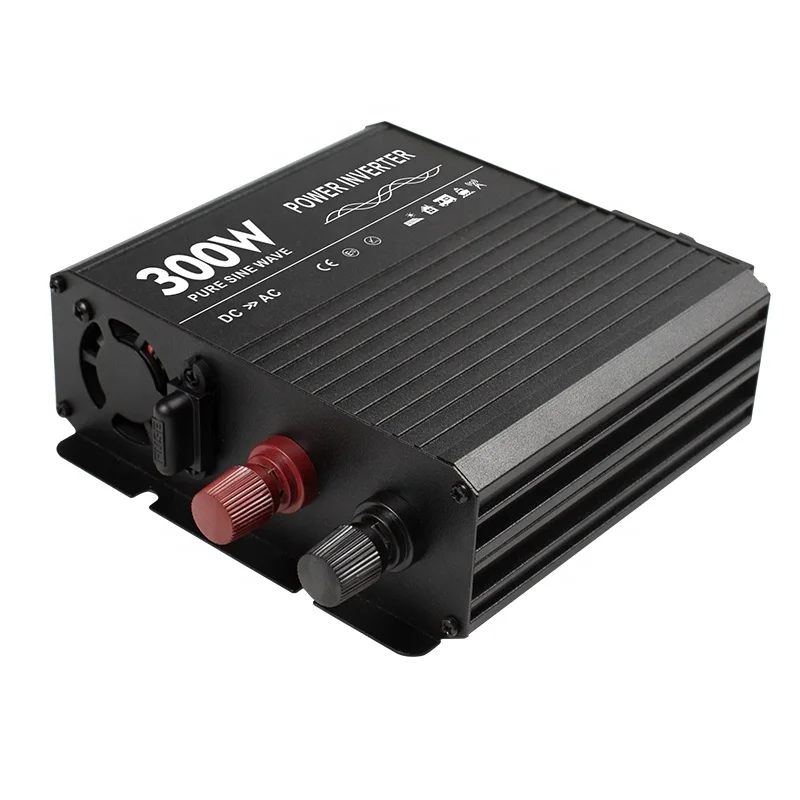

300wa solar power inverter with schuko sockets for hot sale in western market

MODEL

KS-300P-112

KS-300P-124

KS-300P-148

KS-300P-212

KS-300P-224

KS-300P-248

Output

Rated Power

300W

300W

300W

300W

300W

300W

Surge Power

450W for 10 sec,600W for 2sec.

AC Voltage

100 / 110 / 115 / 120VAC

200 / 220 / 230 / 240VAC

Frequency

60Hz±1%

50Hz±1%

Waveform

Pure sine wave (THD<4%) at rated input voltage

AC Regulation

±10%

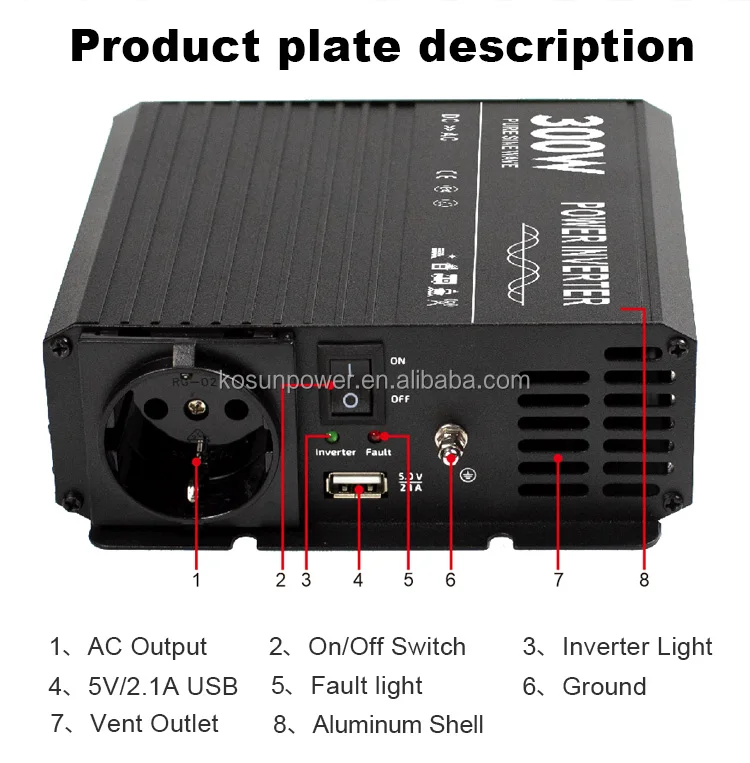

Front Panel Indicator

Fault and operation status

Input

BAT. Voltage

12V

24V

48V

12V

24V

48V

Voltage Range

10.8 ~ 15.5VDC

21.6~ 31VDC

43.2~ 62VDC

10.8.~15.5VDC

21.6~ 31VDC

43.2~ 62VDC

No Load Current

≤0.4A

≤0.2A

≤0.12A

≤0.4A

≤0.2A

≤0.12A

Efficiency

88%

89%

90%

90%

91%

92%

Battery Type

Open & sealed Lead Acid

Battery Input Protection

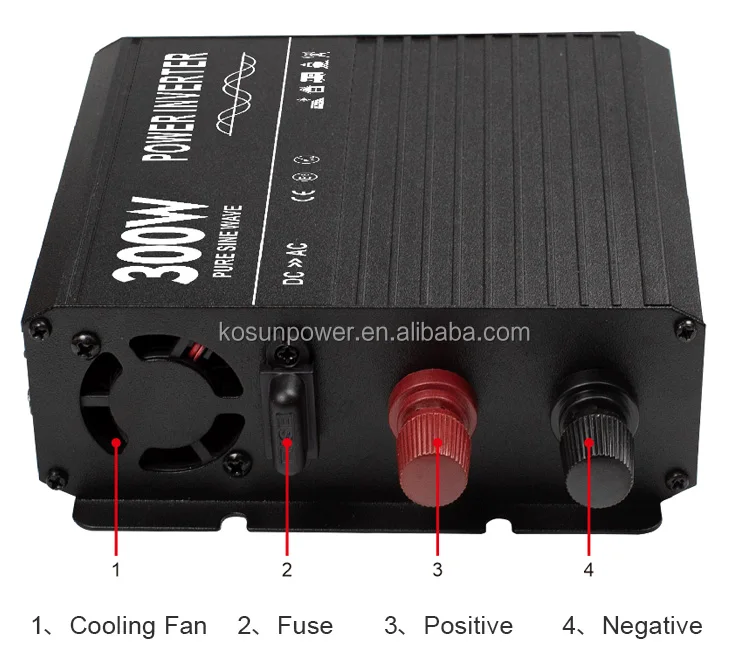

Fuse

35A*1

20A*1

10A*1

35A*1

20A*1

10A*1

BAT. Low Alarm

10.5±0.5

21±1V

42±2V

10.5±0.5

21±1V

42±2V

BAT. Low Shutdown

10.±0.5

20±1V

40±2V

10.±0.5

20±1V

40±2V

BAT. Over Shutdown

15±0.5

30±1V

60±2V

15±0.5

30±1V

60±2V

BAT. Polarity

By external/internal fuse open

Output protection

Over Temperature

≥45ºC or ≥40% rated power, cooling fan open;≥75ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heat-sink

of power transistor

Output Short

Protection type : Shut down o/p voltage, re-power on to recover

Overload

150% load for 10 sec,200% for 2sec.

Protection type : Shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

0 ~ +40°C @ 100% load ; 60°C@ 50% load

Working Humidity

20% ~ 90% RH non-condensing

Storage TEMP., Humidity

-30°C~ +70°C/ -22 ~ +158 °F, 10 ~ 95% RH

Certificates

CE-EMC,CE-LVD, RoHS

Mechanical

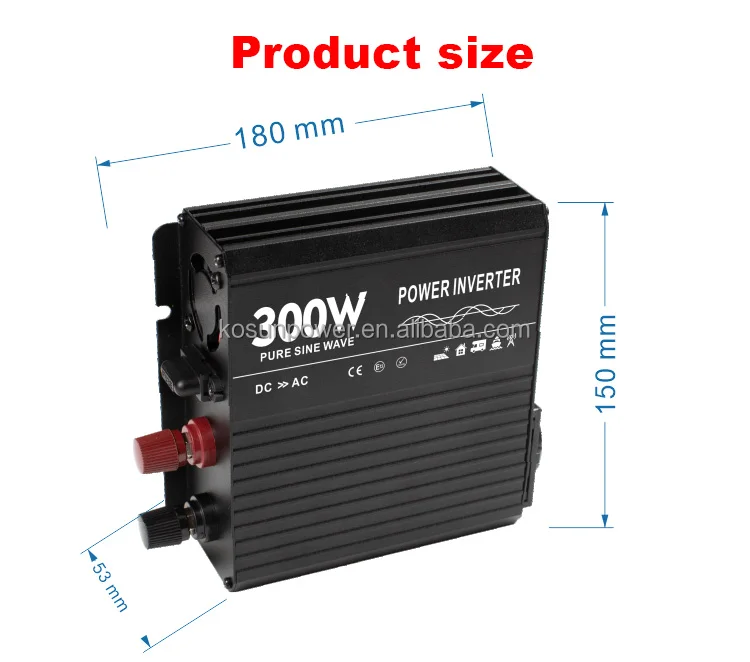

Dimension

130*150*52mm (L*W*H)

Packing

PCS/CTN

12PCS/CTN

Measurement

54*43*31cm

Gross weight

16.5KGS

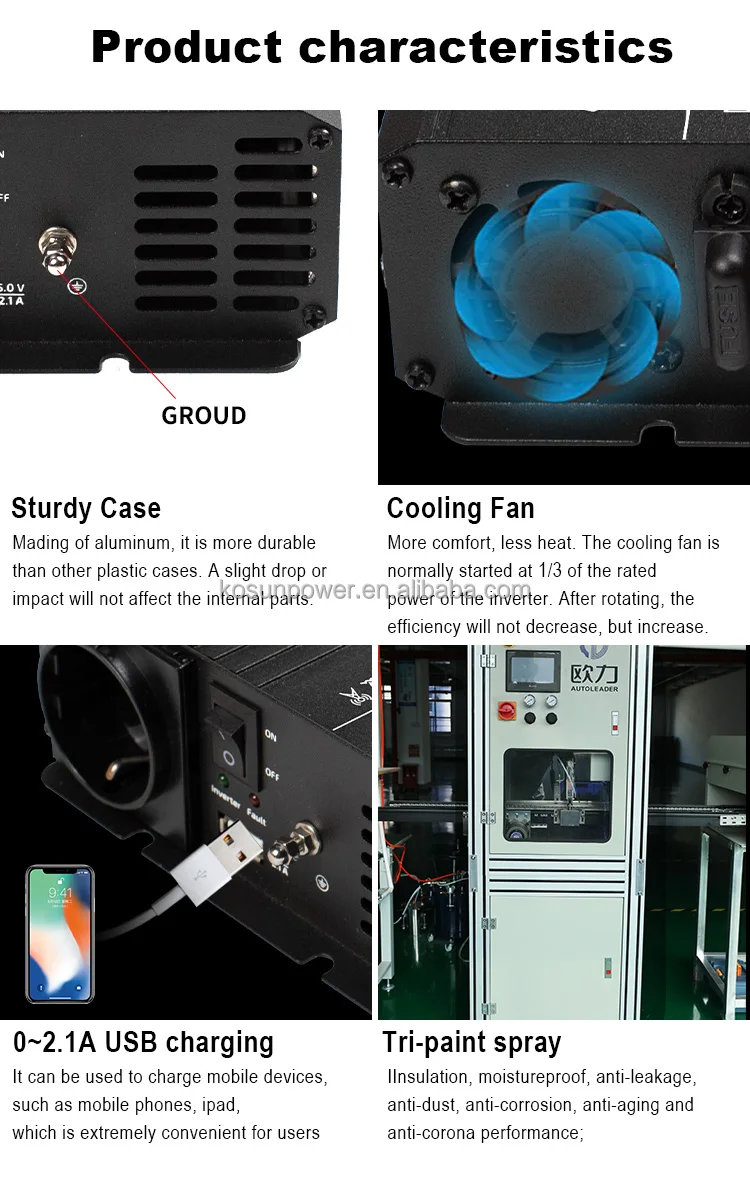

Cooling: Load and TEMP controlled

Load<40% or inner temperature less than 30°C,fan don’t run

40%≤Load<60%,the fan’s rotational speed is 40%

60%≤Load<80%,the fan’s rotational speed is 60%

80%≤Load<100%,the fan’s rotational speed is 80%

100%≤Load, the fan’s rotational speed is 100%

Once Inner temperature is more than 45°C, the fan’s rotational speed is 100%.

Buzzer/LED

Low Battery Alarm

Buzzer sound 2times and Red light blink 2times every 8sec.

Low Battery Shutdown

Buzzer sound 3times and Red light blink 3times every 8sec.

Over Voltage Shutdown

Buzzer sound 4times and Red light blink 4times every 8sec.

Over temperature Shutdown

Buzzer sound 5times and Red light blink 5times every 8sec.

Short Circuit/Overload Shutdown

Red light blink constantly

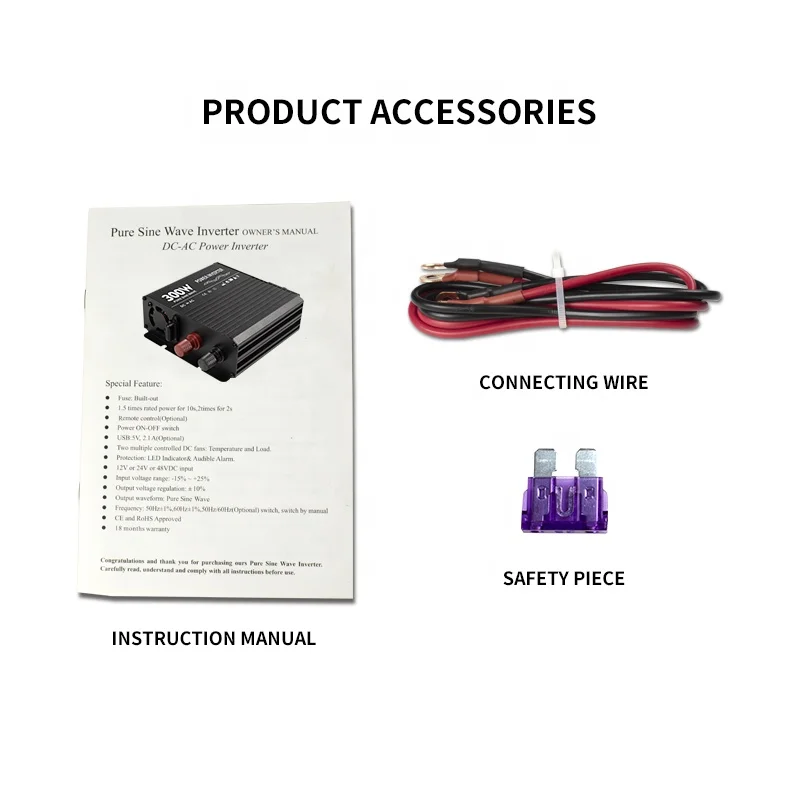

Accessories

1x Positive & 1x Negative Terminal to Terminal Connection Cable

1x Instruction/Specification Booklet

1x Replaceable fuse
