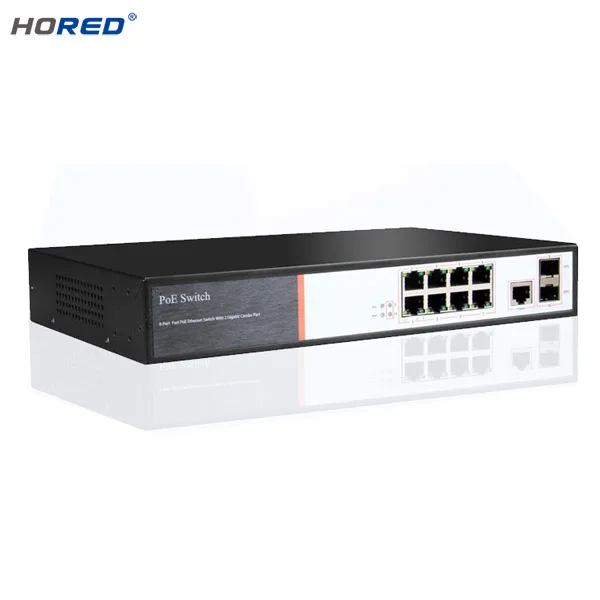

Shenzhen factory layer 2 managed 1000Mbps 8 port PoE switch for ip camera 2 gigabit uplink SFP
Product Description

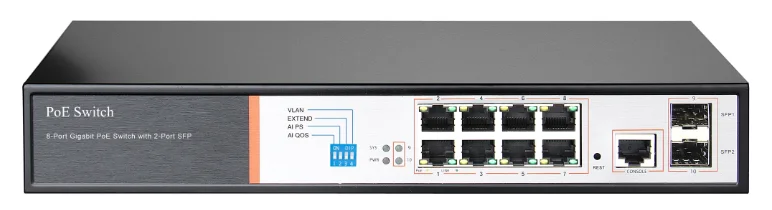

Shortcut button(working mode)
QOS: Improve video data processing capabilities and improve the monitoring of Caton and Mosaic phenomena in the network
Extend: 1-8 port rate down to 10Mbps, but the transmission distance up to 250 meters
VLAN: Isolating ports 1-8 from each other, suppress network storms effectively and improve network performance
AI power supply: Detect PD, power failure and restart dead equipment
Software Specifications
Shortcut function
One key VLAN
One key Extend(1-8 port 250meters PoE distance)
One key Q0S (Video priority)
One key AI power supply
VLAN
Support 4K VLAN
Support 802.1Q VLAN, Port VLAN, Voice VLAN
PoE
Support setting the PoE port priority
Support setting PoE power supply period
Support setting port power
MAC address table
Comply the IEEE 802.1d standard
Support MAC address learning and aging automatically
Support static, dynamic, filter address table
Safety
Based on user rating management and password protection
Support based on the port number, IP address, MAC address restrictions on user access
Icmp-echo, DoS protection
Support DHCP Snooping, DHCP attack protection
Support port security, port isolation
Access control (ACL)
Support L2(Layer 2)~L4(Layer 4) packet filtering function
Support port mirroring, port redirection, flow rate limit, QoS re-marking
Multicast
Support IGMP v1/v2 Snooping
Support static multicast
Support multicast VLAN
QoS
Support 8 port queue
Support port priority, 802.1p priority, DSCP priority
Support SP, RR, WRR, WFQ Priority scheduling algorithm
Spanning Tree
Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP (IEEE 802.1s) protocol
Support loop protection, BPDU protection
Management and maintenance
Support WEB management(HTTP)
Support CLI(Telnet, local serial port)
Support SNMP V1/V2/V3, Compatible with public MIBS
Support LLDP, RMON
Support IP Source protection, DoS protection
Support CPU monitor, memory monitoring
Support system log
Support cable testing
Multicast
Support IGMP v1/v2 Snooping
Support static multicast
Support Multicast VLAN
Detailed Images

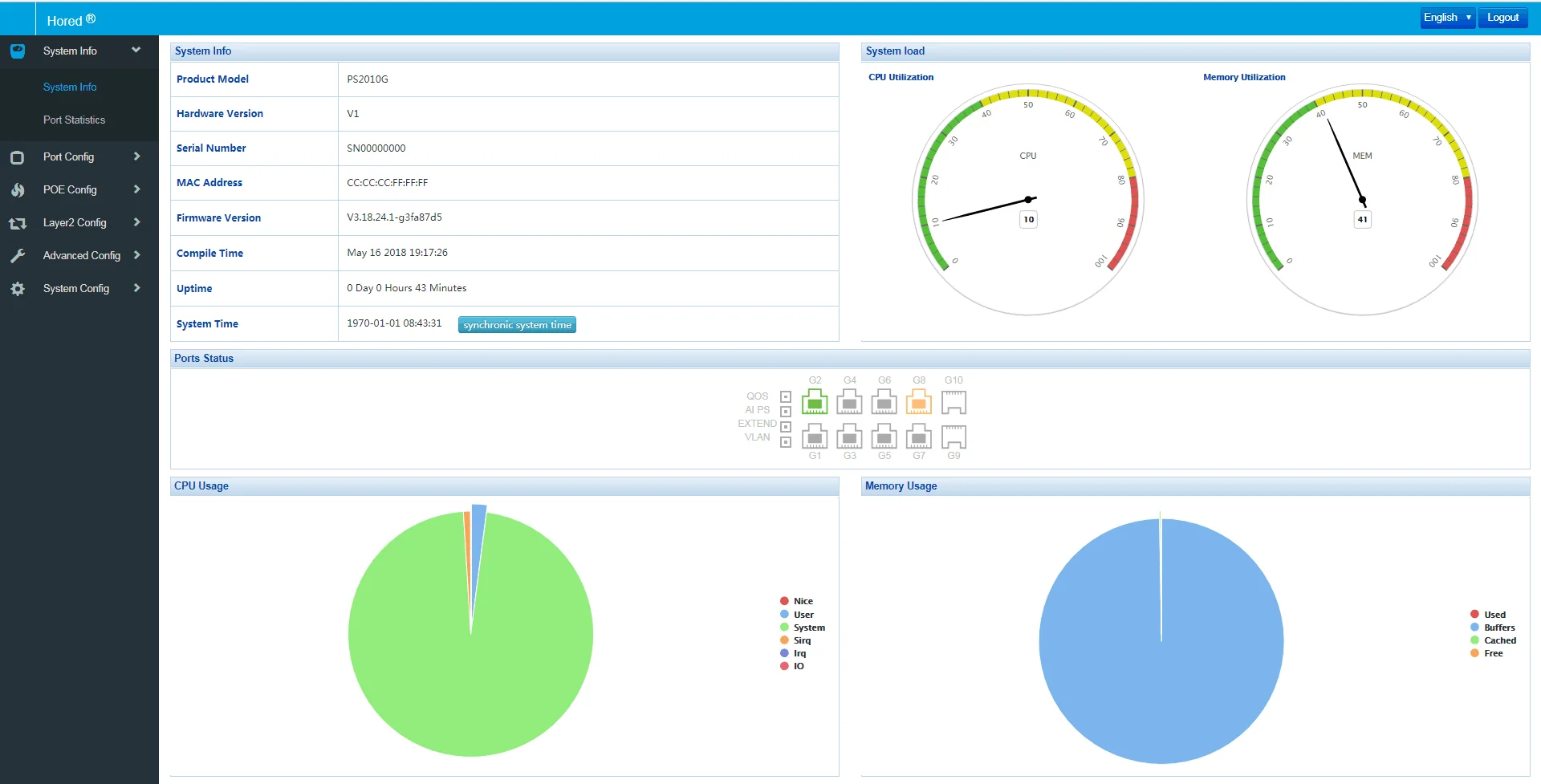

User interface
