Cylinder Tube Ice Machinery Used in Hotel and Coffee Shop For South America 15tons/day(TV150)
- Category: >>>
- Supplier: Guangzhou Koller Refrigeration Equipment Co. Ltd.
Share on (60319754737):
Product Overview
Description
Product Information
TITLE.
Capacity: 15000kg/day

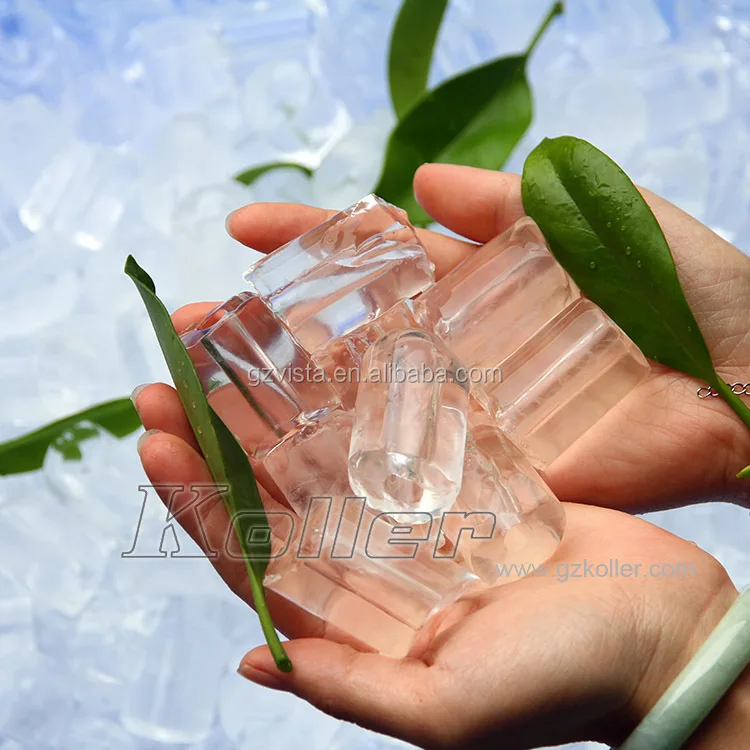

Ice shape: tube ice, looks like hollow cylinder
Ice outer diameter: 20mm, 28mm, 34mm, 40mm.
Ice length: 30mm, 35mm, 40mm, 45mm, 50mm.
Ice inner diameter: adjustable, Usually between 5mm-10mm.
1. Feature Tube Ice
1). Tube ice is a hollow cylinder shape with external diameter of 20mm, 28mm, 34mm, 40mm and other specifications.
2). The length of tube ice is 30mm, 35mm, 40mm, 45mm, 50mm.
3). The diameter of the inner hole can be adjusted according to the ice making time, generally between 5 and 10mm,or the solid ice can be customized according to customer requirements.
4). Tube ice is thick and transparent. It has the following characteristics: long storage time, not easy to melt, good air permeability, and meets the edible standard.
5). Tube ice main application: daily consumption, frozen beverage, beverage making, frozen food, vegetable preservation, chemical process, civil engineering and other places that need ice.
2). The length of tube ice is 30mm, 35mm, 40mm, 45mm, 50mm.
3). The diameter of the inner hole can be adjusted according to the ice making time, generally between 5 and 10mm,or the solid ice can be customized according to customer requirements.
4). Tube ice is thick and transparent. It has the following characteristics: long storage time, not easy to melt, good air permeability, and meets the edible standard.
5). Tube ice main application: daily consumption, frozen beverage, beverage making, frozen food, vegetable preservation, chemical process, civil engineering and other places that need ice.

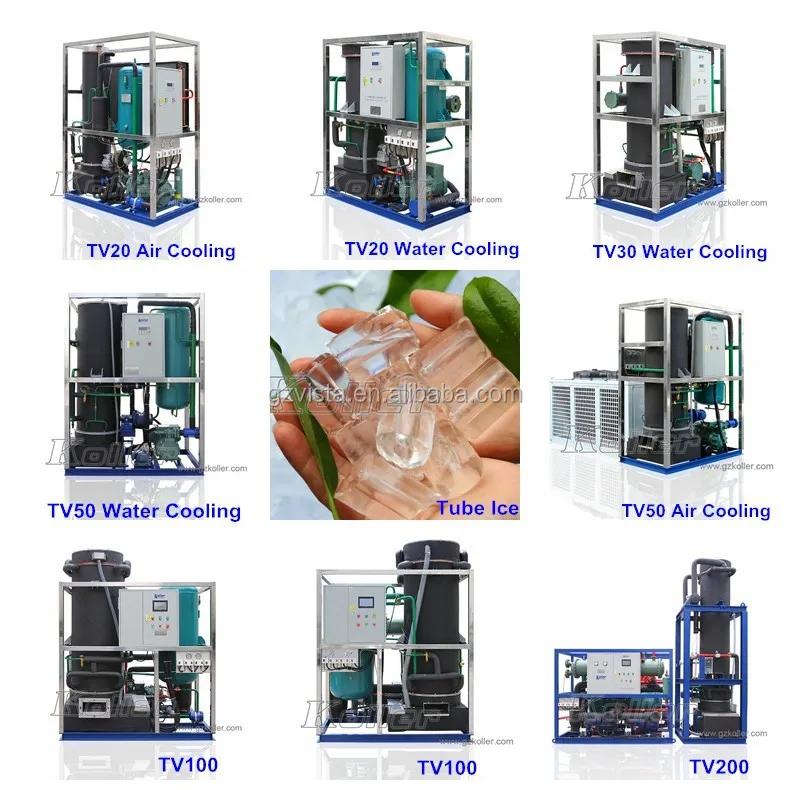

Model | TV10 | TV20 | TV30 | TV50 | TV80 | TV100 | TV200 | ||||||||
Capacity (Tons/24hours) | 1 | 2 | 3 | 5 | 8 | 10 | 20 | ||||||||
Refrigerant | R22/R404a/R507 | ||||||||||||||
Compressor Brand | Bitzer/ Refcomp | Bitzer/ Refcomp/ Hanbell | |||||||||||||
Cooling Way | Air/Water Cooling | Water Cooling | |||||||||||||
Compressor Power (HP) | 4 | 9 | 14 (12) | 28 | 44 (34) | 46 (44) | 102 (88) | ||||||||
Ice Cutter Motor (KW) | 0.37 | 0.37 | 0.55 | 0.75 | 1.1 | 1.1 | 2.2 | ||||||||
Circulating Water Pump (KW) | 0.37 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | ||||||||
Machinery Unit Dimension | L (mm) | 1500/1500 | 1500/1500 | 1660/1660 | 1660 | 2200 | 2320/1450 | 2800/1600 | |||||||
W (mm) | 1000/1100 | 860/1140 | 1000/1216 | 930 | 1900 | 1200/1200 | 2300/1354 | ||||||||
H (mm) | 1750/1750 | 2095/2120 | 2015/2320 | 2175 | 2550 | 2260/2645 | 2100/4537 | ||||||||

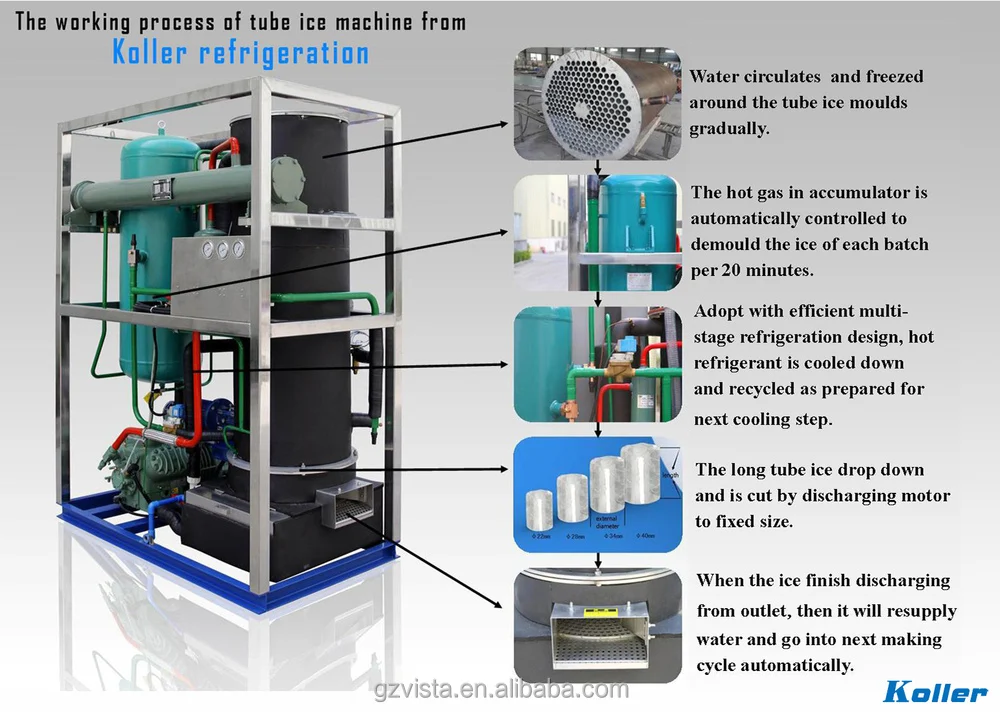

Evaporator

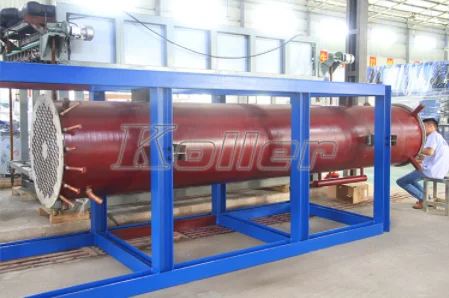

It is a vertical shell tube type device. The stainless steel heat exchange tube carries the upper and lower tube sheets, and each has a water tank at the top and bottom.
For the 15tons or 20tons capacity tube ice machine, the evaporator is a little bit high so that the evaporator can be laid down
during transportation and installed after being erected on site, which meets the requirements of container transportation.
For the 15tons or 20tons capacity tube ice machine, the evaporator is a little bit high so that the evaporator can be laid down
during transportation and installed after being erected on site, which meets the requirements of container transportation.

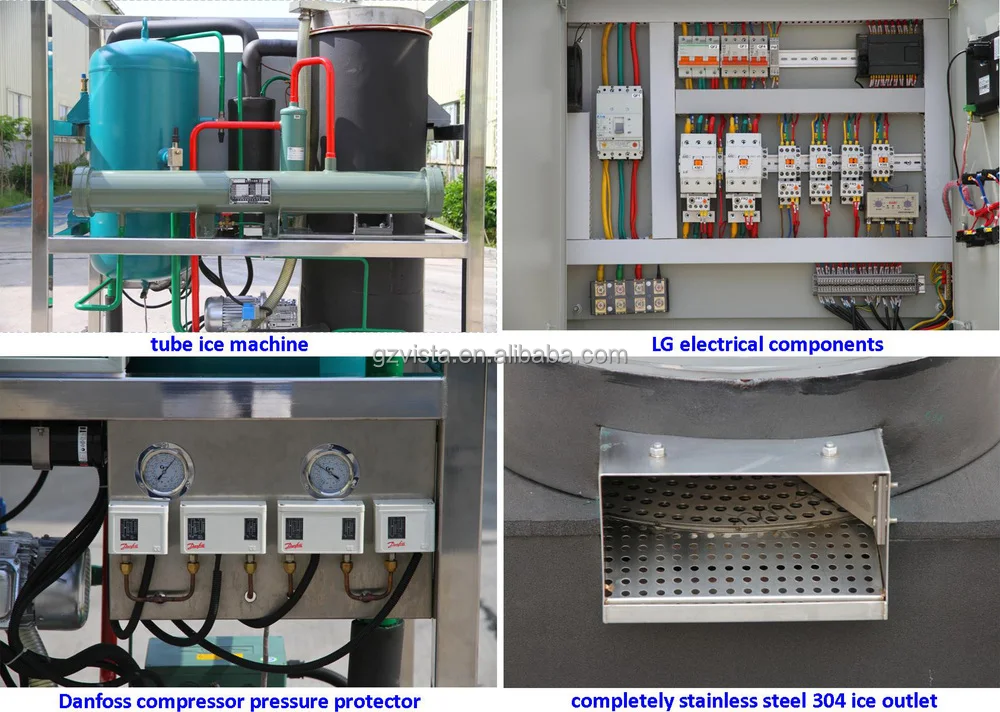

Refrigeration unit
Including compressor, condenser, receiver, oil separator, accummulator, receiver, electrical control box and other refrigeration components. It has low power consumption and high frozen efficiency, so it is very energy-saving.

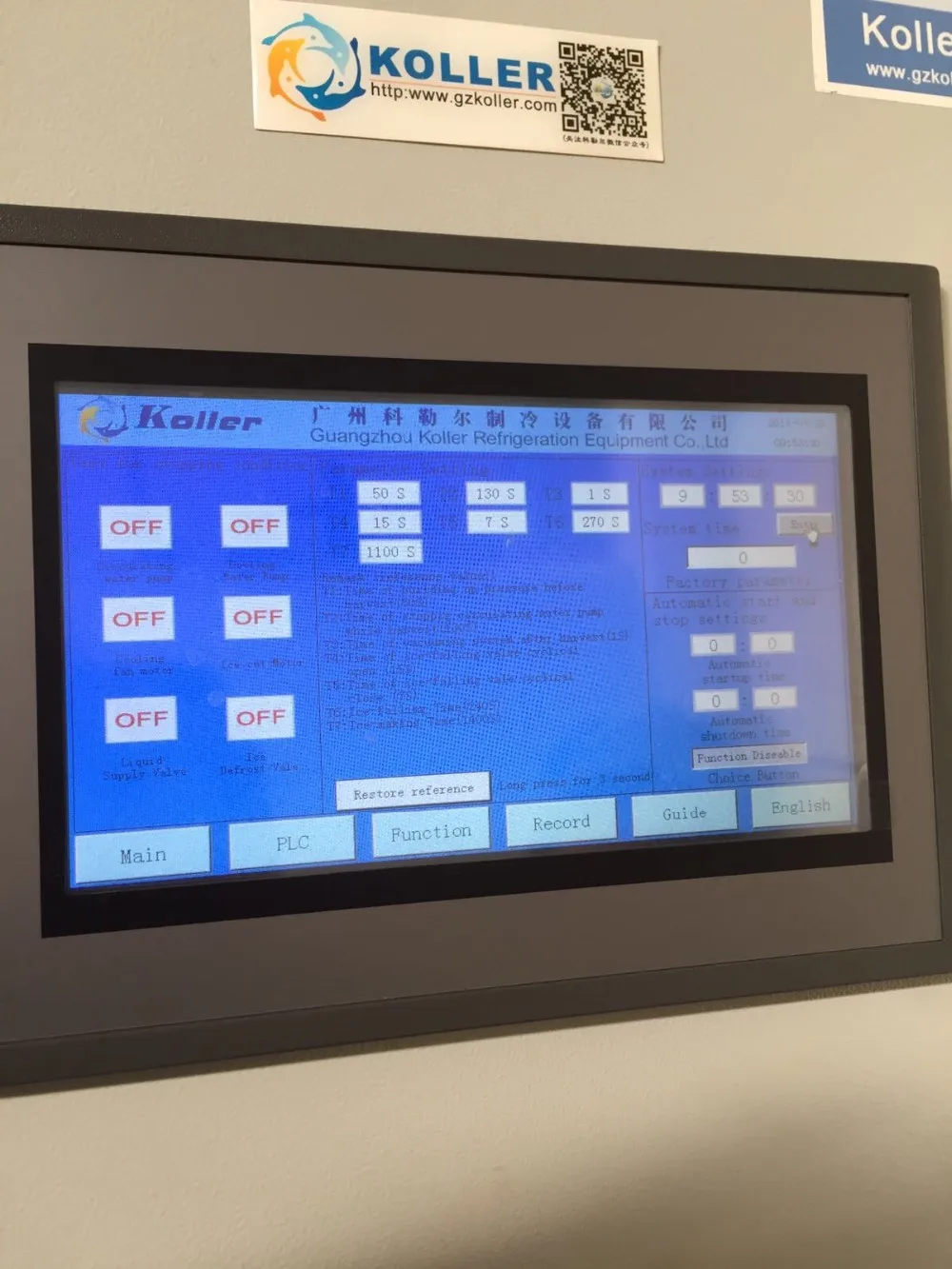

PLC program Logic Controller
Which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
Rotating Driver Ice Cutter
stainless steel 304 Ice Cutter Blade run by medium speed gear motor.

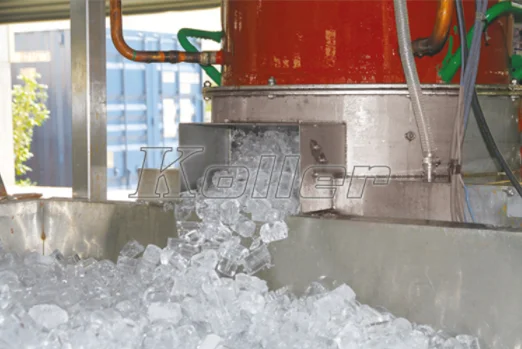

Special ice outlet
Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.

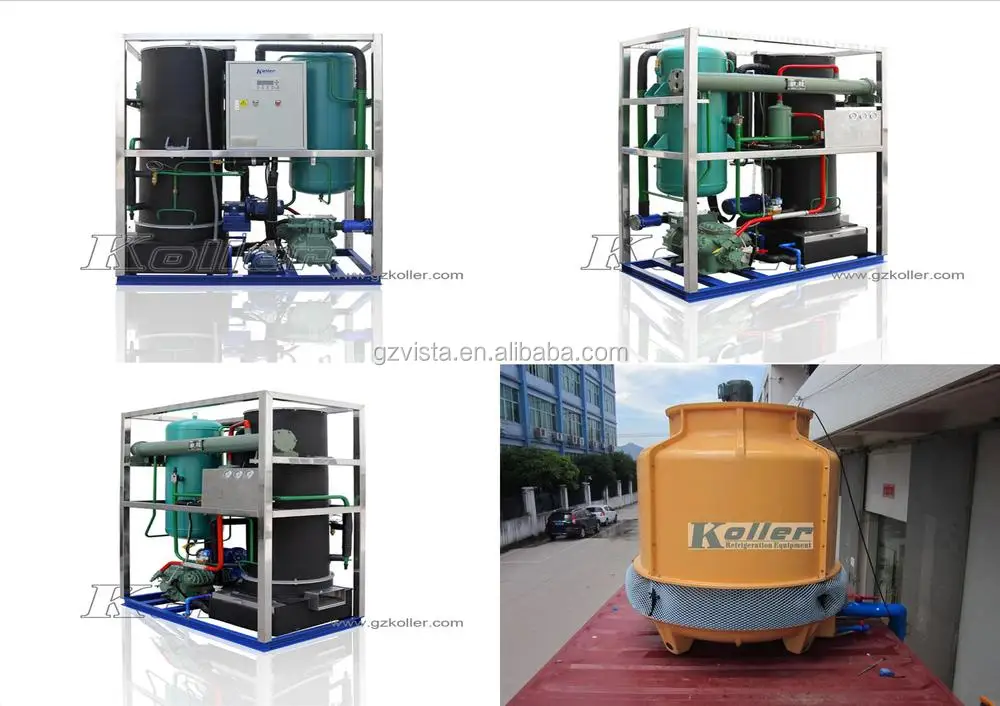

Product Display
Related Products
Client Feedback
Company Profile
FAQ
1. Why Should I Buy From You Not From Other Supplier?
1) We Have Rich Experience Since 2004.
2) We Have Sold Our Products To Over 180 Countries.
3) We Have Good Service With Quick Response.
4）we Have Many Customers Re-purchase Again And Again.
2. How Can You Guarantee The Quality?
1) We Have Our Quality Department To Inspect The Quality During The Production Process.
2) We Will Test The Whole Machine In Our Workshop And Testing Pictures Or Vedios Can Be Provided To You For Checking.
3. Is The Installation Difficult? Can You Supply Installation Service?
1) We Have Rich Experience Since 2004.
2) We Have Sold Our Products To Over 180 Countries.
3) We Have Good Service With Quick Response.
4）we Have Many Customers Re-purchase Again And Again.
2. How Can You Guarantee The Quality?
1) We Have Our Quality Department To Inspect The Quality During The Production Process.
2) We Will Test The Whole Machine In Our Workshop And Testing Pictures Or Vedios Can Be Provided To You For Checking.
3. Is The Installation Difficult? Can You Supply Installation Service?
The Installation Is Not Difficulty.
1) We Will Test And Install The Machine Before Shipment, All Necessary Spare Parts Will Be Provided. Also Operation Manual And Video Are Provided To Guide The Installation.
2) We Can Send Our Engineer To Assist The Installation And Provide Technical Support And Train Your Workers. But You Should Provide Accommodation And Round-trip Ticket For Our Engineer.
4. What After-sales Service Can You Supply?
1) 12 Months Warranty After Delivery.
2) Professional After-sales Department To Provide 24/7 Technical Support, All Complaints Should Be Replied Within 24 Hours.
3) Over 10 Engineers Available To Service Machinery Overseas.
4) Free Spare Parts Replacement Within Warranty Period.
5) Beyond Guarantee Period, We Will Charge Market Price For Spare Parts.
Any Other Question, Please Leave Your Meaasage Below, Our Salesman Will Reply You Immediately.
1) We Will Test And Install The Machine Before Shipment, All Necessary Spare Parts Will Be Provided. Also Operation Manual And Video Are Provided To Guide The Installation.
2) We Can Send Our Engineer To Assist The Installation And Provide Technical Support And Train Your Workers. But You Should Provide Accommodation And Round-trip Ticket For Our Engineer.
4. What After-sales Service Can You Supply?
1) 12 Months Warranty After Delivery.
2) Professional After-sales Department To Provide 24/7 Technical Support, All Complaints Should Be Replied Within 24 Hours.
3) Over 10 Engineers Available To Service Machinery Overseas.
4) Free Spare Parts Replacement Within Warranty Period.
5) Beyond Guarantee Period, We Will Charge Market Price For Spare Parts.
Any Other Question, Please Leave Your Meaasage Below, Our Salesman Will Reply You Immediately.
