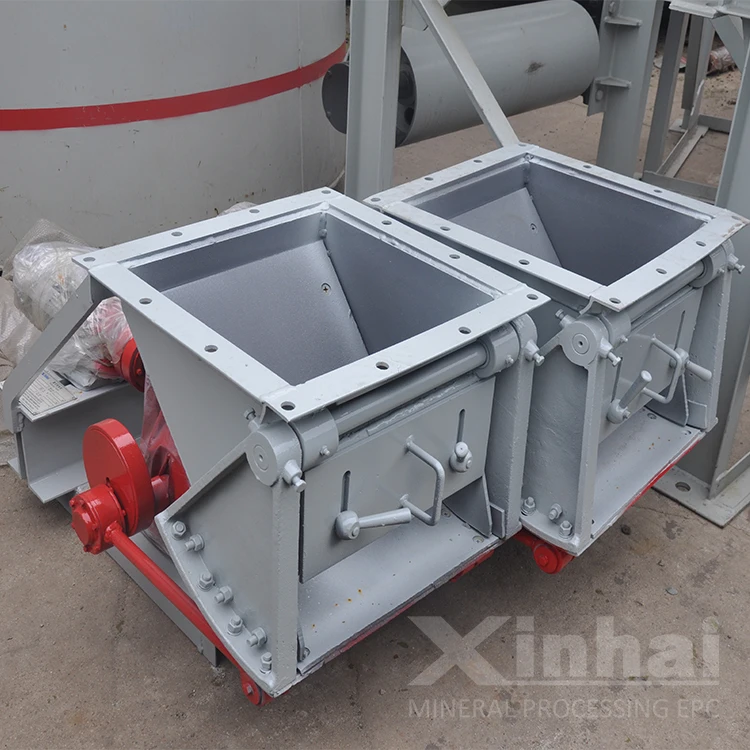

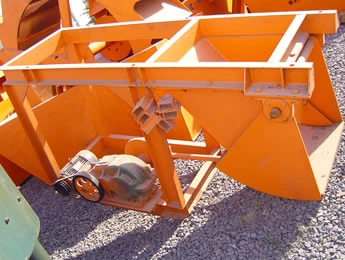

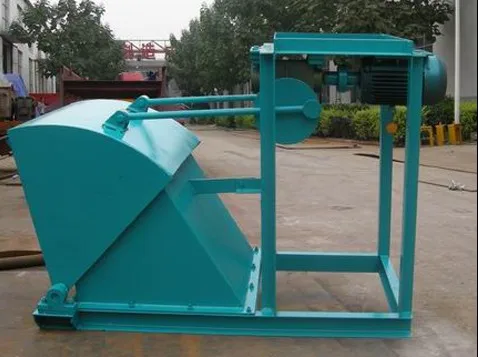

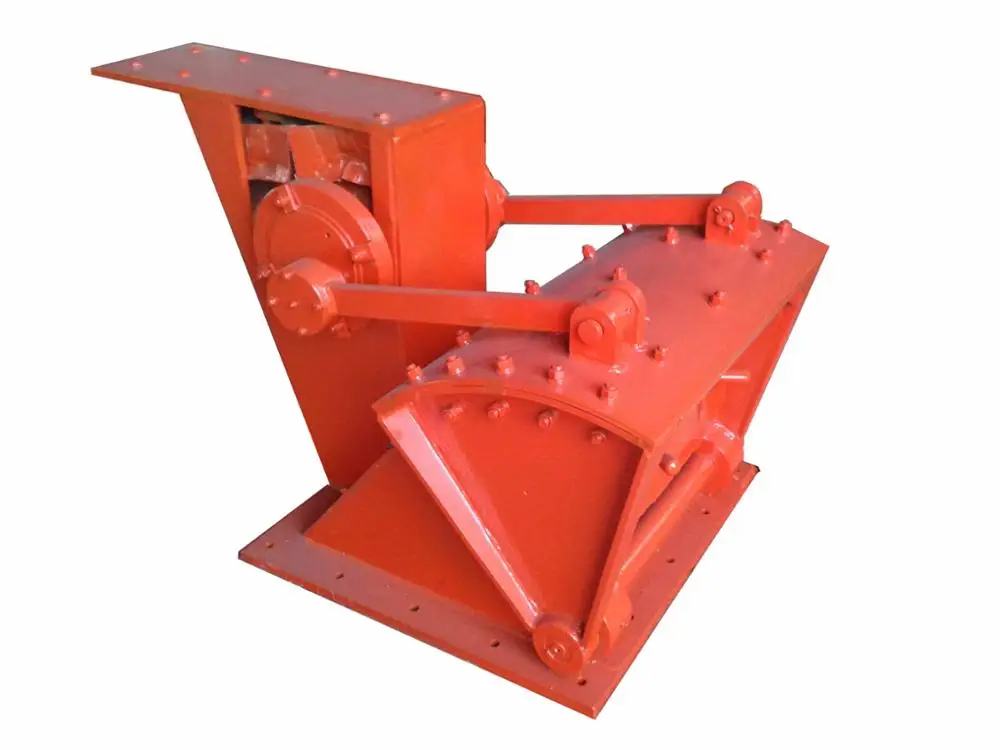

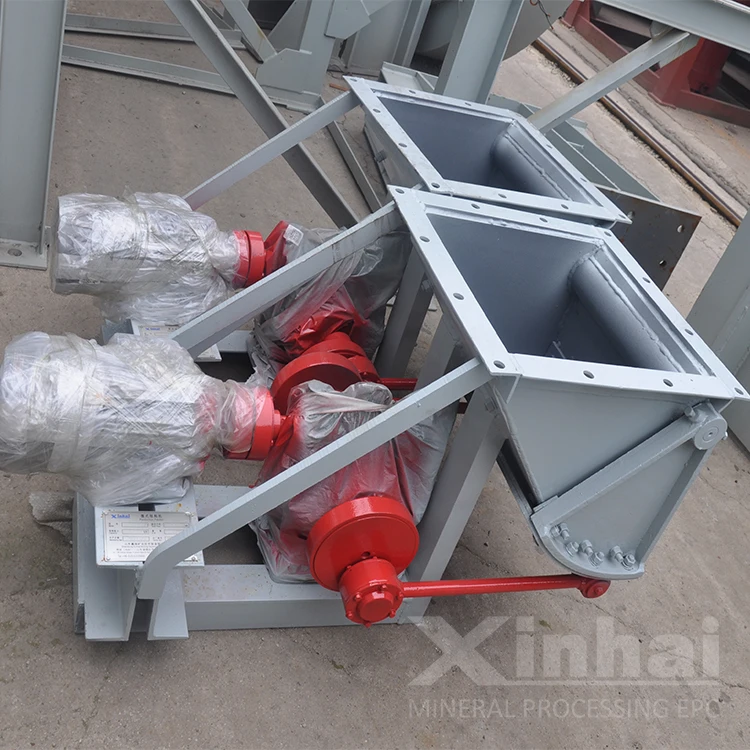

Pendulum Ore Feeder , Effective Feed Machinery Vibratory Feeder Motor Low Price of China
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (60319912909):
Product Overview
Description
Products Description
Vibratory Feeder---Product Description
【Introduction】:A feeder with periodic reciprocating motion for fine particles
【 Capacity 】:4.5~25t/h
【Improvement】:Worm gear reducer, compact structure, reliable sealing device
【 Capacity 】:4.5~25t/h
【Improvement】:Worm gear reducer, compact structure, reliable sealing device
Product Advantages
Vibratory Feeder---Product Advantages
Pendulum feeder is installed under the storage tank or hopper to convey the materials with particle size less than 50mm and the materials that are dry and not easy to agglomerate such as ore stones, coal blocks etc. It is not suitable to convey powder which
is easy to block feeding, and makes powder flyProduct Structure

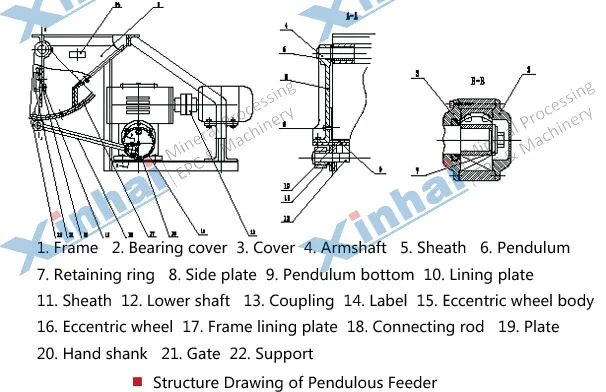

Vibratory Feeder---Product Structure
The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.
Technical Parameters
Model | Inlet (LXW) (mm) | Outlet (LXW) (mm) | Stroke of Eccentric Wheel (mm) | Frequency (n/min) | Max. Feed Size (mm) | Feed Capacity (t/h) | Motor Model | Motor Power (kW) | Rotating Speed of Motor (r/min) |
BG250X250 | 250X250 | 250 X (30~125) | 0~90 | 46 | 25 | 4.5 | Y80L-4 | 0.55 | 1390 |
BG300X300 | 300 X300 | 300 X (30~125) | 46 | 30 | 6.5 | Y802-4 | 0.75 | 1390 | |
BG400X400 | 400 X400 | 400 X (50~130) | 0~170 | 45.5 | 35 | 12 | Y90S-4 | 1.1 | 1410 |
BG600X600 | 600 X600 | 600 X (50~150) | 0 ~157 | 48 | 50 | 40 ~80 | Y100L-4 | 1.5 | 940 |
