KDS300 KDS50 KONE elevator push button
US $373.00-$890.00
Из алюминиевого сплава для грузового лифта датчик нагрузки 800 кг UC AP под кабины лифта
- Category: Elevator Parts >>>
- Supplier: Ningbo Summit Electric Co. Ltd.
Share on (60320089463):
Product Overview
Description
Product Description

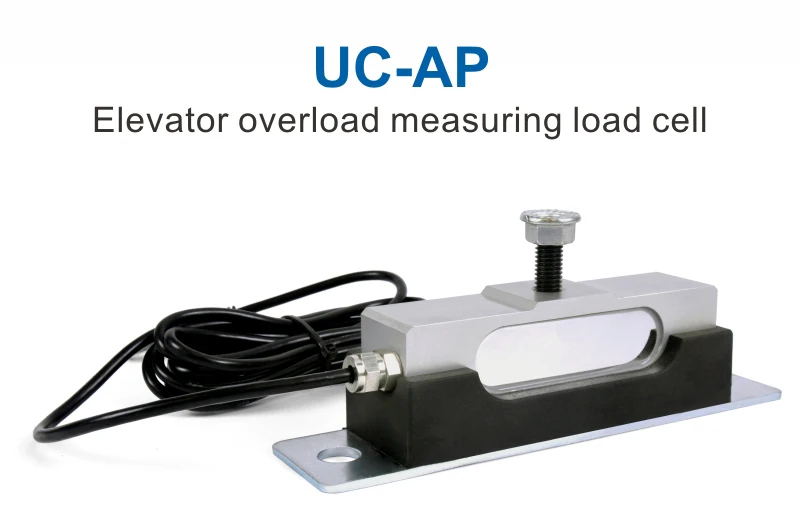

Elevator Car Load Cell Sensor UC-AP
| Rated load | 800kg |
| Safe overload | 150% F.S |
| Total error | ±0.5% F.S |
| Creep error | ±0.02% F.S |
| TC SPAN | ±0.02% F.S/10% |
| Working temperature | -30℃~70℃ |
| Input impedance | 760±10Ω |
| Output impedance | 760±2Ω |
| Sensitivity | 2.0±0.02%mV/V |
| Ultimate overload | 200% F.S |
| Excitation | 5-12V DC |
| Max. excitation | 15V DC |
| Insulation inpedance | ≥5000MΩ |
| Protection class | IP67/IP68 |
| Construction | Alloy steel |
| Cable length | 2.5m |
