35*80*100 mm extrusion aluminum box top selling aluminium electronics enclosure pcb/control box case
- Category: Electronics & Instrument Enclosures >>>
- Supplier: Shenzhen,Futian,Huaqiang,Electronic,World,Omk,Sales,Department
Share on:
Product Overview
Description
Specifications:
| Type: | Split type wall mounting aluminum box |
| Supplier: | Chinese manufacture from Zhejiang Province |
| Brand name: | SZOMK |
| Model number: | AK-C-B33 |
| Material: | The concluding aluminum |
| Color: | Black and silver |
| Weight: | 149 g/each |
| External dimension: | 35*80*100 mm |
| Internal dimension: | 29*75*100 mm |
| Surface: | Oxidation and sand blast |
| Custom process: | We can do custom process |
| Samples: | You can buy one or two as samples |
| Other size: | ask for other size, type and catalog |
The application of aluminum enclosure:
1. The aluminum enclosure is widly used in instrument, apparatus, cos and device to place instrumentation and measuring tool.
2. It can also be used in meter and gauges, to protect the internal components.
3. Electronics, automation, communication and correspondence.
4. Senser, transducer and load cell probe.
5. IC card, smart card, intelligence card and contactless smart card.
6. Industrial and general control, factory control.
7. Precision machinery, precision mechanics and fine mechanics.
What we can do about custom process ?
1. Cut defferent lengthes as required with 30pcs MOQ
2. Polish to make a smoth and beautiful light relecting surface
3. Change the color with a certain MOQ
4. Do drillings on the box and panels if the CAD drawing is offered
5. Do screen printing/silkscreen on the surface with a certain MOQ
6. Do laser engraving with certain MOQ
7. Produce a paster for the enclosure (certain MOQ)
8. Produce a plastic sticker/arcylic sheet for the enclosure (certain MOQ)
9. Produce "L" shape panel for hanging on the wall with a certail MOQ

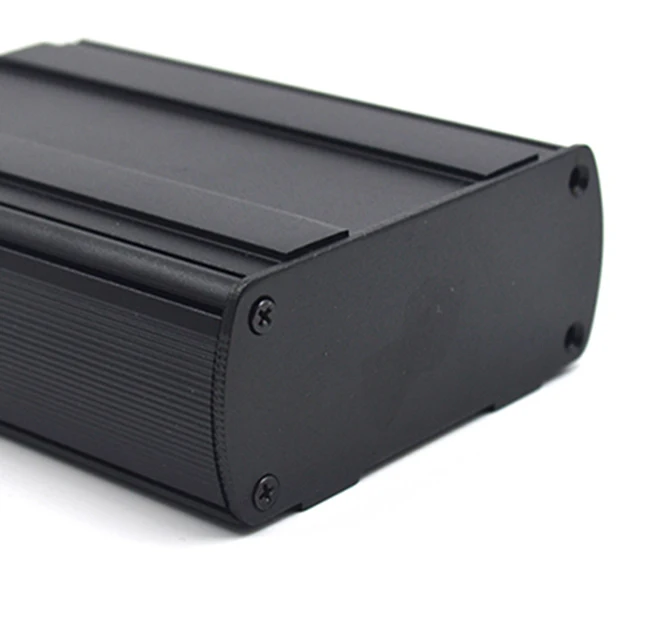

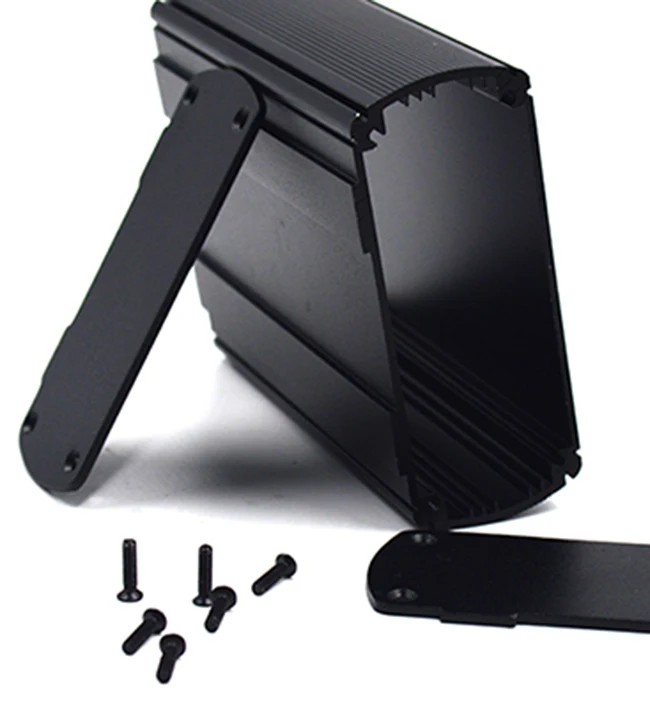

More pictures:

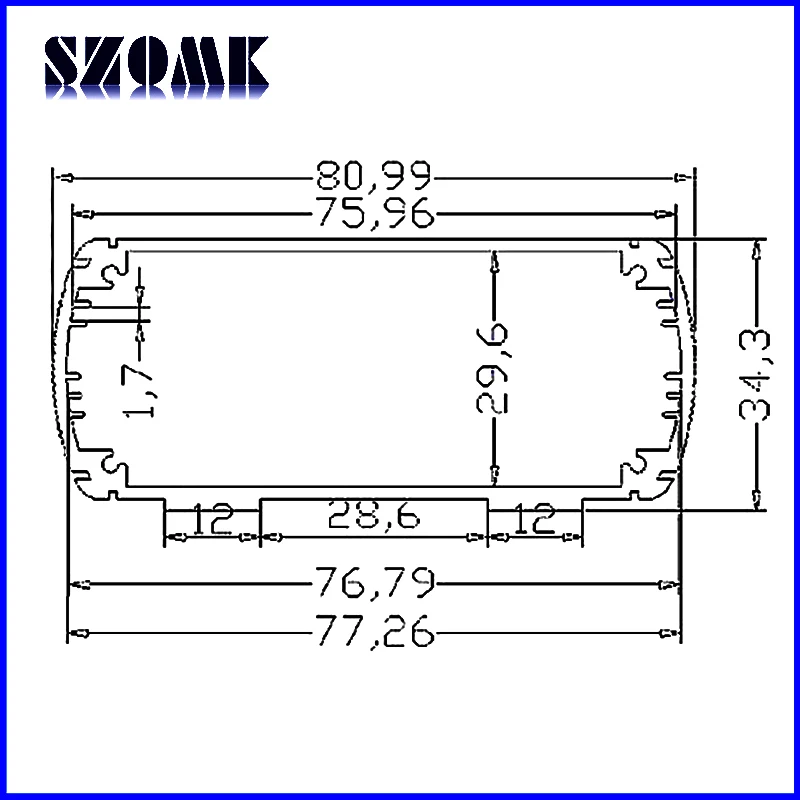

The drawing:
How to contact us ?
