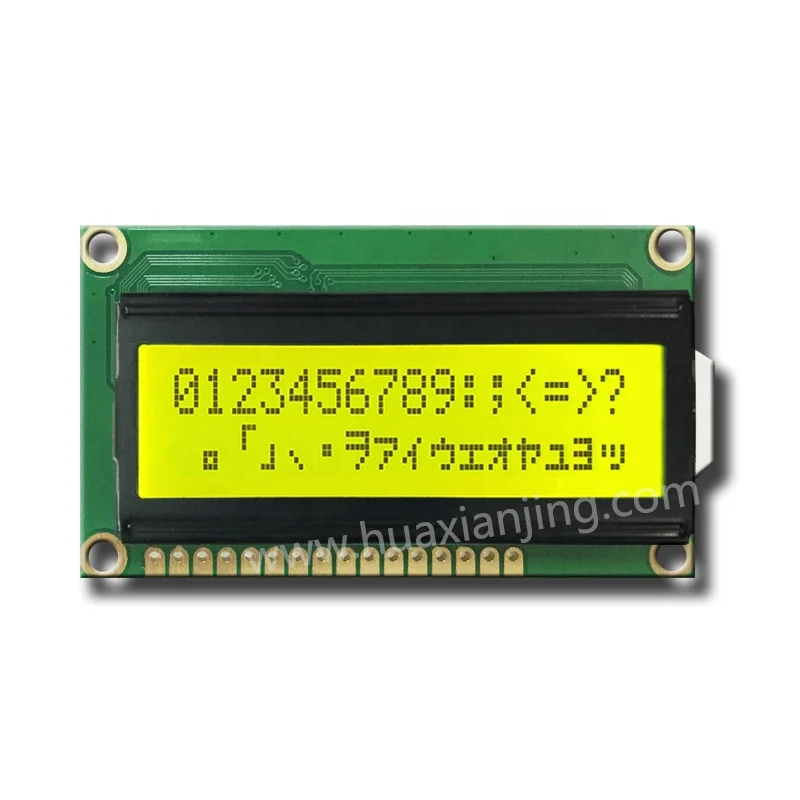

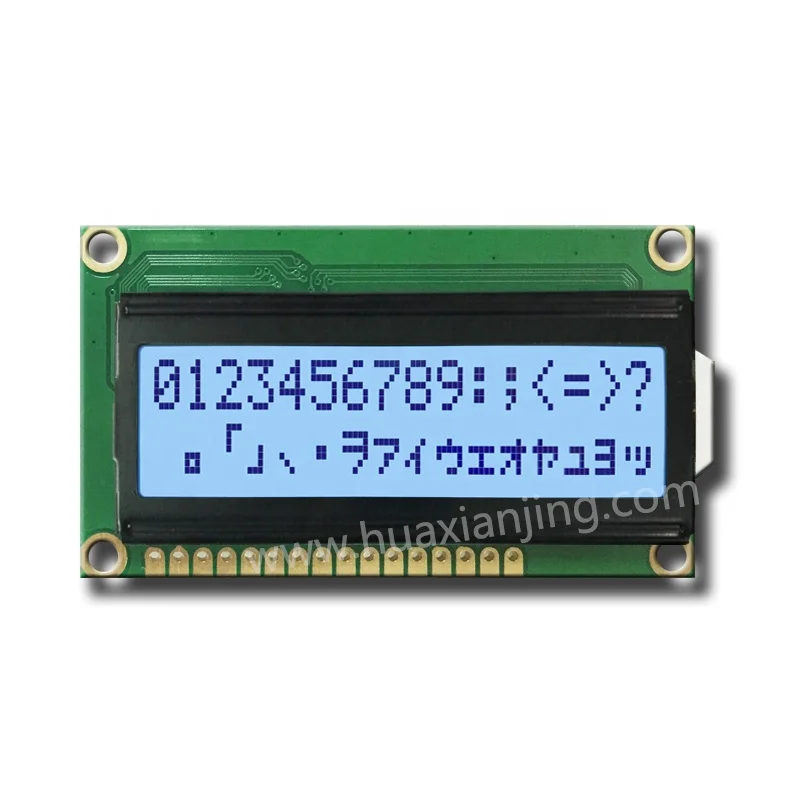

16x2 character lcd display module low price



Product Description







Product information:














































































Module No.:



HSM1602K



Display Type:



16 Characters x 2 Lines



Encapsulation:



COB



Outline Size:



65.5 x 36.7 x12.1 mm



Viewing Area:



51.8 x 14.8 mm



Screen Color:



Yellow-Green/Blue/Gray



Backlight Color:



Yellow-Green/Green/White/Blue/Orange/Red



Backlight::



Side LED



Driver IC:



AIP31066



Connector:



Conductive Silicon Rubber



Pin Number:



16



Interface:



8-bit MPU interface



Driver Condition:



1/16 Duty,1/5 Bias



Viewing Direction:



6 O’Clock



Operating Voltage:



5V/3.3V



Operating Temperature:



-20~+70℃



Storage Temperature:



-30~+80℃










Character LCD 16x2 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

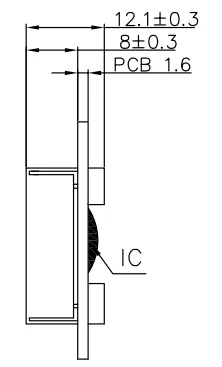

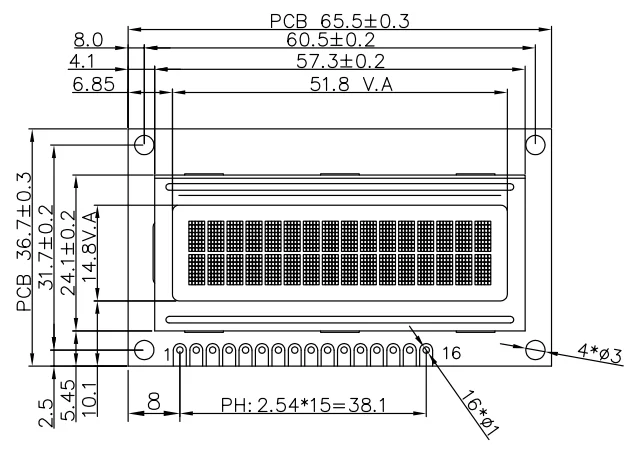

 Mechanical Diagram:







Interface Pin Description:



























































































No.



Symbol



Function



1



VSS



 Ground (0V)



2



VDD



 Supply Voltage for Logic (+5.0V )



3



VO



 Contrast Adjustment



4



RS



 Data/Instruction Select



5



R/W



 Read/Write Select



6



E



 Enable Signal



7



DB0



 Data Bus



8



DB1



 Data Bus



9



DB2



 Data Bus



10



DB3



 Data Bus



11



DB4



 Data Bus



12



DB5



 Data Bus



13



DB6



 Data Bus



14



DB7



 Data Bus



15



LED_A



 LED Power Supply + (5.0V)



16



LED_K



 LED Power Supply - (0V)
