supply all kinds of self lubricating copper brass oilless bearing bronze bushing

Product Overview

Description

Supply all kinds of self-lubricating copper brass oilless bearing bronze bushing

JDB

Solid Lubricant Inlaid Bearing



Material Features

JDB material is made of strong cast bronze based metal with special solid lubricants embedded.The base metal withstands high load and the solid lubricants provide for self-lubrication The bearing shows excellent performance with out pre-lubrication.The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed. This material provides a maintenance-free bearing solution,particularly for high load,intermittent of oscillating motion.

This kind of bearing can be applied under dry,high temperature,high pressure,corrosive,water or other chemical environments when no oil can be introduced.

Now is widely be used in automotive product line,water engineering,dam gate,plastic industries,successive casting machines,steel rollers in metallurgy industry,mineral machines ships,turbo generators,hydraulic turbines and injection molding machines.



Technical

Type	JDB-1	JDB-2	JDB-3	JDB-4	JDB-5
Base Material	CuZn25AL6Mn4	CuSn6Zn6Pb3	CuSn6Zn6Pb3	HT-250	Gcr15
Base Hardness	HB210-250(HB270)	HB80~120	HB60~90	HB180~230	HRC55~60
Friction Coef(u)	<0.16	<0.15	<0.14	<0.17	<0.17
Temperature Limit	300°C	350°C	300°C	400°C	350°C
Dynamic load limit:	100N/mm2	60N/mm2	70N/mm2	60N/mm2	250N/mm2
Load Limit Under 1m/mm	25N/mm2	15N/mm2	20N/mm2	15N/mm2	70N/mm2
Sliding Velocity Limit	dry0.4m/s oil5m/s	2m/s	2m/s	0.5m/s	0.1m/s
PV Limit	3.8N/mm2.m/s	0.5n/mm2.m/s	0.6N/mm2.m/s	0.8N/mm2.m/s	2.5N/mm2.m/s

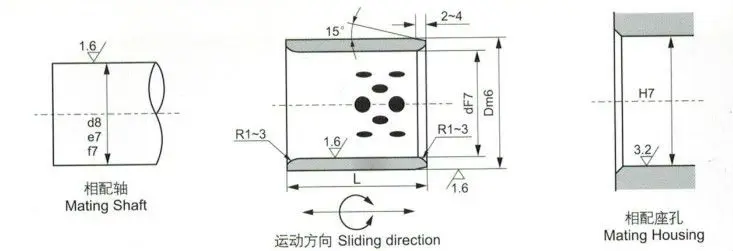

Metric dimensional drawing

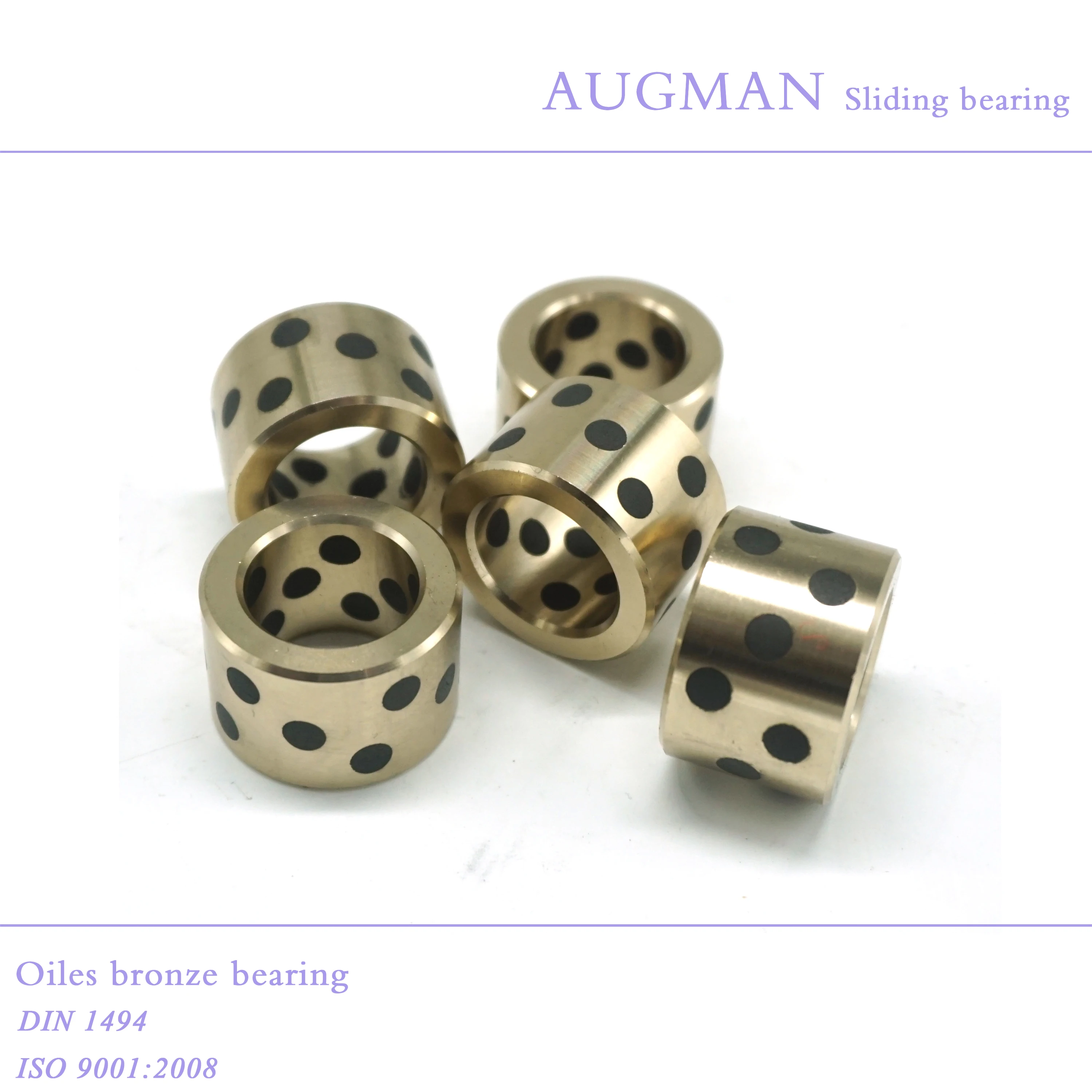

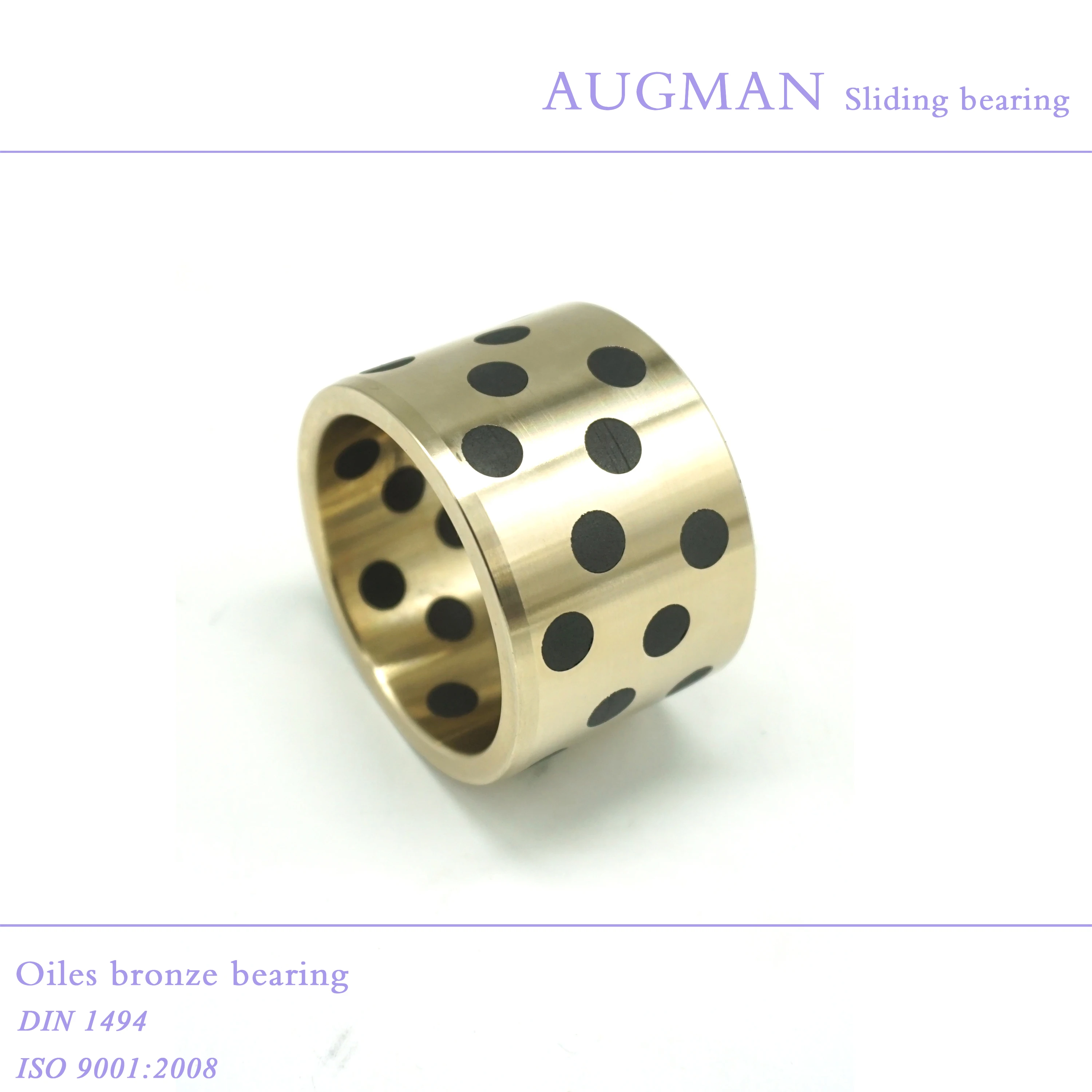

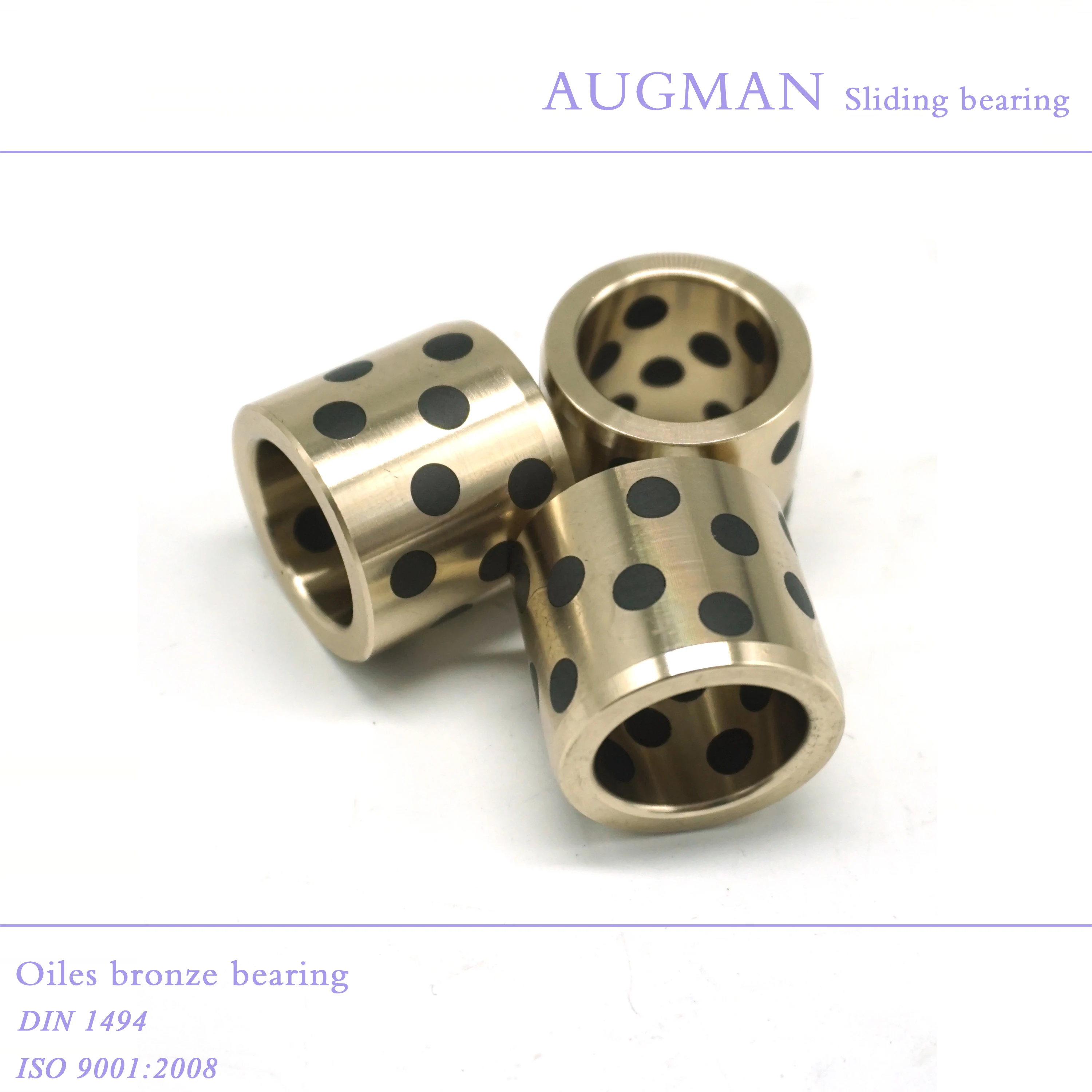

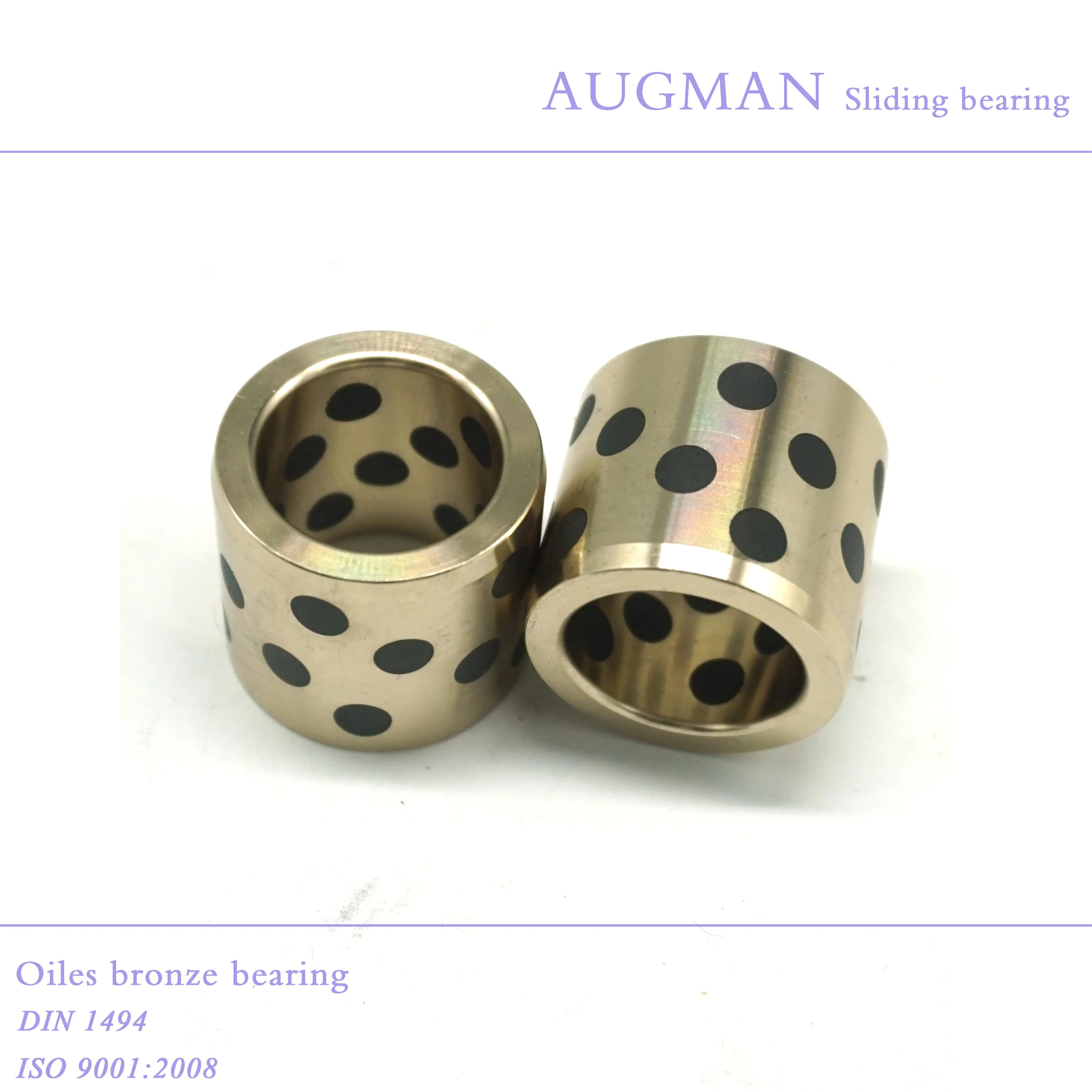

Picture showing





Factory

Our factory is located in the centre of Yangtze economy delta zone with convenient transportation, specialized in research, study and producing of self-lubricated bearings.

Our factory is equipped with advanced production and inspection line and managed by a high tech group.

Our factory dedicated in study and producing serials self-lubrication bearings which could be used in all sorts of condition respectively with high performance.

Our factory is looking forward to have an opportunity to work and cooperate with you.



Our Srevices

1. Sample order is available.

2. Small order is acceptable

3. Customized is available as per drawing or sample.



Please do not hesitate to contact us if you have any questions!



Tel : 0086-573-84457857

Fax: 0086-573-84647529

Cell: 0086-13600550024
