High quality suppository production line/suppository machine
- Category: Pharmaceutical Packaging Machines >>>
- Supplier: Shanghai Paikerui Packing Machinery Co. Ltd.
Share on (60320388561):
Product Overview
Description

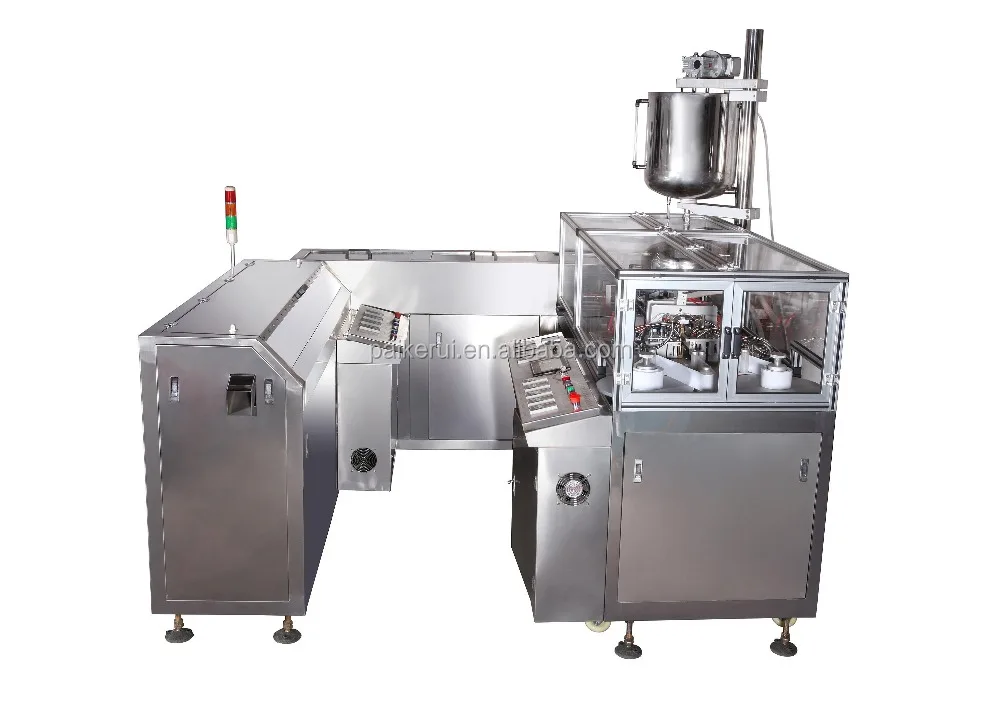

High-quality automatic suppository production line
Working Principle:
1, Thermoforming:

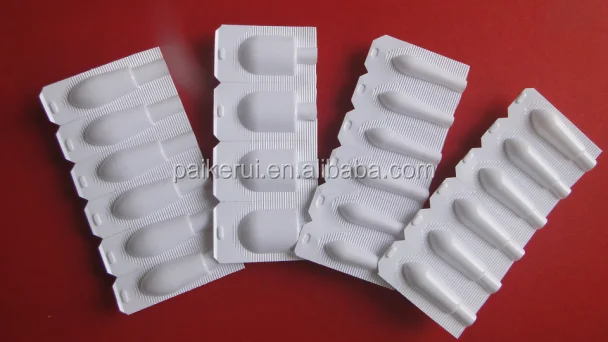

The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2, Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the drug in a uniform state, material barrel pump into the drugs by the high precision of filling head, filling a residual drugs through the other end of the cycle to the raw material filling barrel again next time.
3, Cooling:
Drugs into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4. Sealing and Cutting:

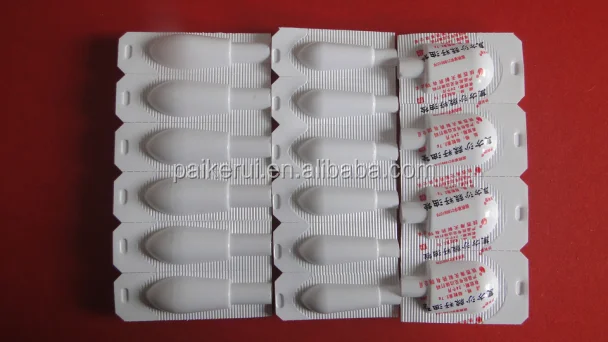

After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
Features:
Using inset filling,accurate in position, non-dribbling drug, non-hanging wall, high precise in counting.
Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.
Using PLC written formula control and industry grade person-machine inerface operation , possessing characteristics of high degree autoimmunization \ convenience in adjustment \ high precise thermo-control \ reliability in action and steady in running etc.
Having big volume storing fluid vessel, laying homoeothermic \ stirring and fluid surface auto control assembly.
Relieving worker’s physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.
One side operation and better sight.
Technical parameters:
output | 8000—12000granules/hr |
single dosage | 0.5—5ml |
dosage allowed | <±2% |
Suppository application form | Bullet-head form, torpedo form, duck-mouth form and other special forms |
used to the host | Synthesis of glycerin fatty acids, glycerin gelatin, polyethylene glycol etc. |
store the capacity of the liquid barrel | 50L |
working atmospheric pressure | 0.6Mpa |
consumption gas/minute | 1.5m3 |
used water quantity | 30kg /hr(cycle using) |
the voltage of the power | The three phase AC 380V |
total power | 7.5KW |
external dimension | 3070mm×3480mm×1500mm |
total weight | 2000kg |
Our advantages
1, Our suppository equipment bring in the Italy Sharon technology.
2, The equipment same type of Italy Sharon costs about $ 1.2 million.
3, After decades of technological improvements and market feedback, equipment performance become more mature and more stable
4, We present the highest market share in China
5, Most accessories use international imported brands
6, There are a number of independent research and development of technology to extend the life of wearing parts
7, Pass through a number of domestic and foreign certification authority
8, Among similar exported products, ours accounting for 90%.
9.We are factory near Shanghai Pudong international airport, very convenient to visit our factory.
