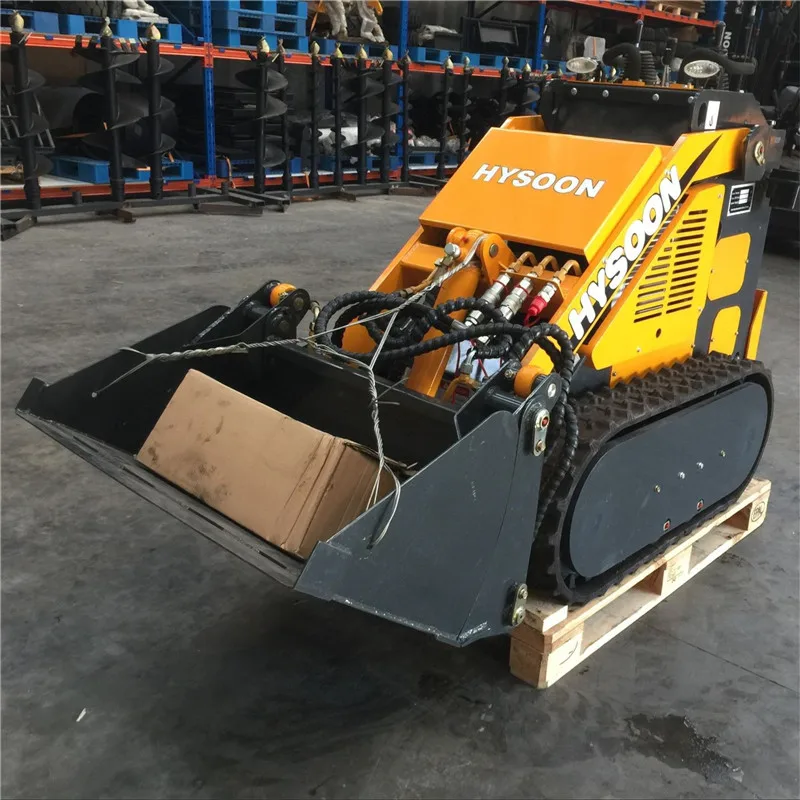

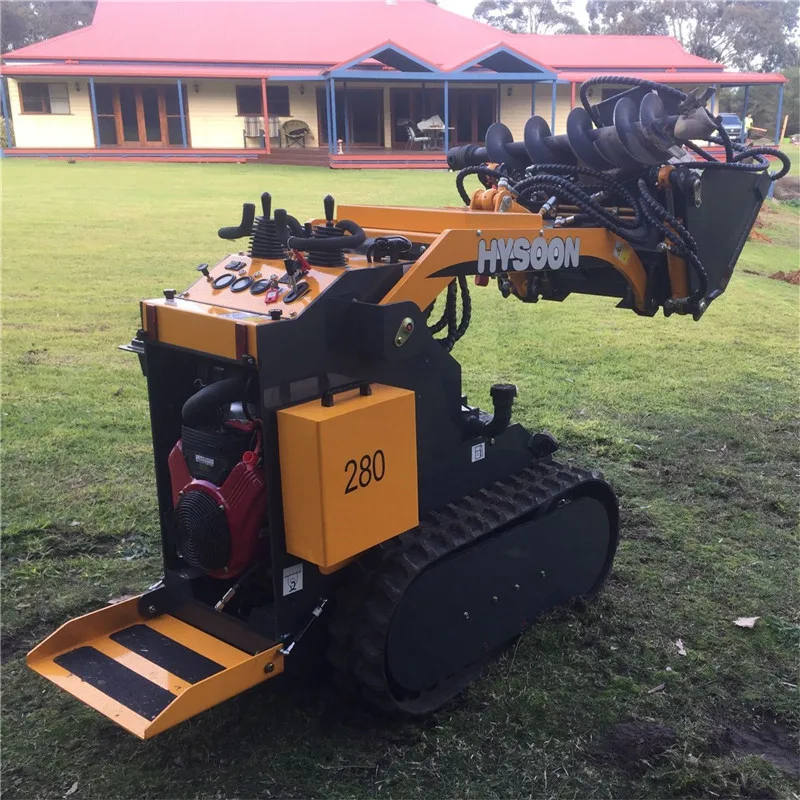

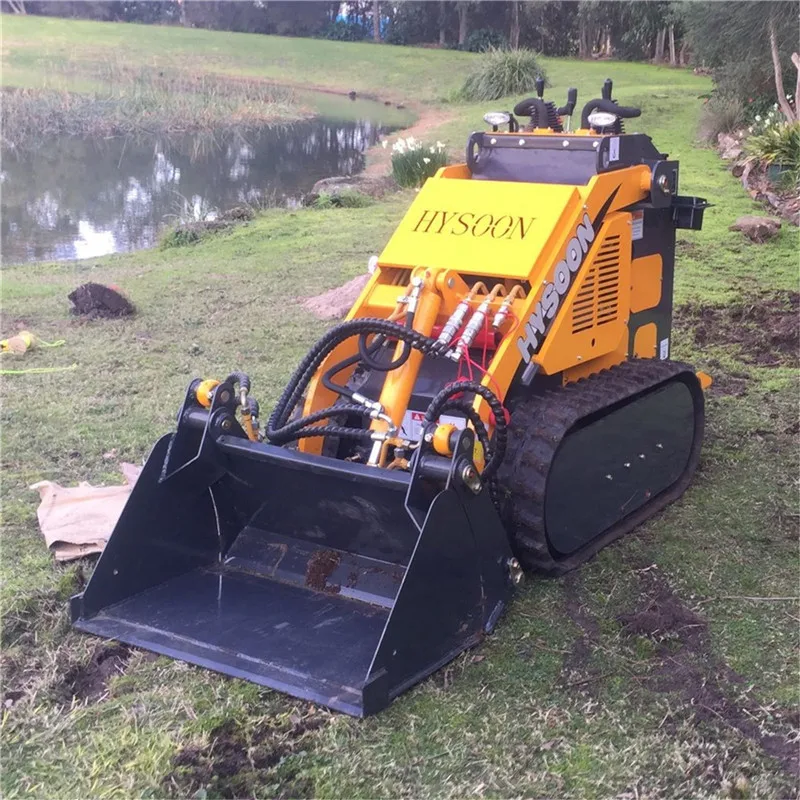

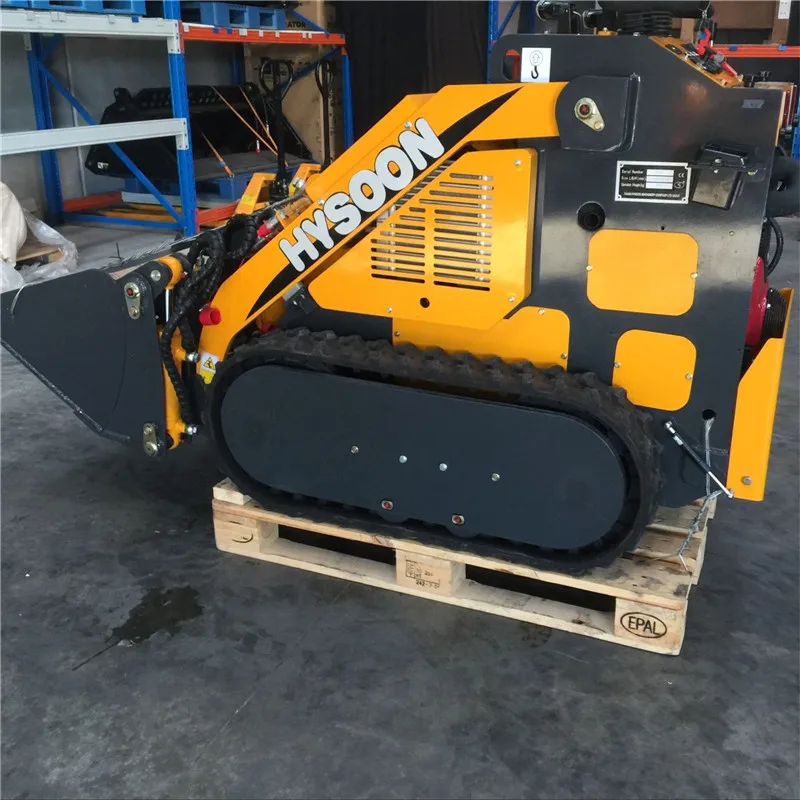

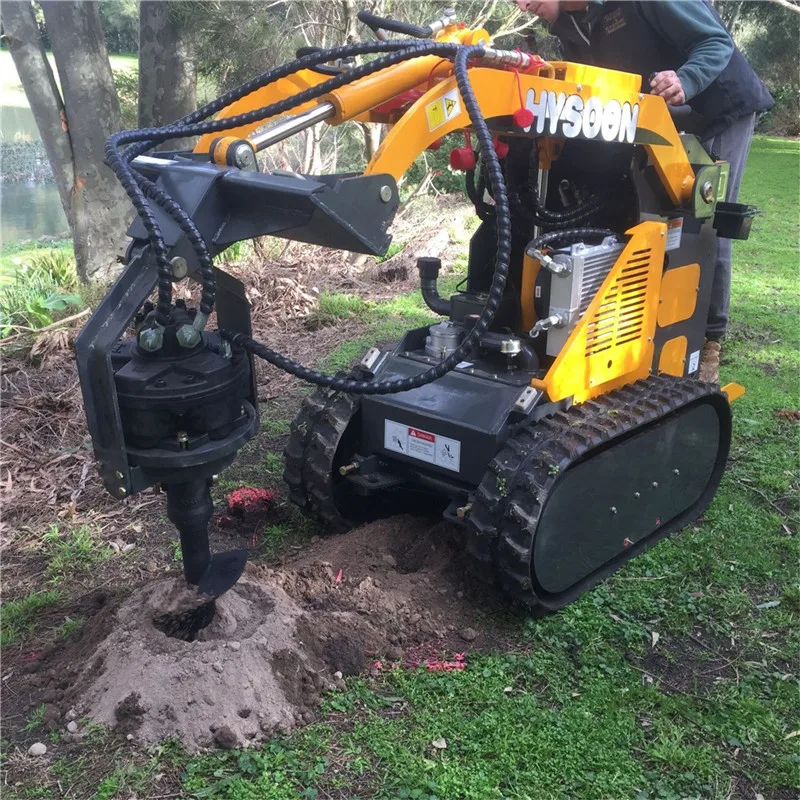

mini skid steer loader Hysoon HY280 for sale
- Category: >>>
- Supplier: Taian Hysoon Machinery Co. Ltd.
Share on (60320481408):
Product Overview
Description
mini skid steer loader Hysoon HY280 is with Briggs&stratton gasoline engine.
The mini skid steer loader Hysoon HY280 is only 800mm width,
can enter into much narrow space to do works.
Product Description
mini skid steer loader Hysoon HY280 is multifunction machines,its hitch plate can quickly and easily changing knids of attachments,such as digger,auger drill,backhoe,ripper,rock bucket,sweeper,high dumper,tiller,lawn mower,hydraulic grapple,fork,trencher,4 in 1 bucket,snow blower,leveller,snow blade,cement mixer,hydraulic breaker,trench filler,lawn ripper and so on.
mini skid steer loader Hysoon HY280 is easy to operate.
there is three joystick on the standard machine,two joystick for driving and arm lift up&down and bucket tilt&collect,The other joystick for attachment working.
And its is easy maintenance,Lift the working arms,you can see its structure,hydraulic pump,hydrualic motor,fan,easy to change the parts.
And its back protection plate,is also easy to remove,then you can see the Engine,easy to change the filter,engine oil and so on
mini skid steer loader Hysoon HY280 Spec
| Engine | Rated Power | 17.1Kw (23HP) | ||
| Rated Speed | 3600 rpm | |||
| Noise | <=95Db | |||
| Hydraulic system | Hydraulic Pressure | 17Mpa | ||
| Cycle time | Raise | Dump | Lower | |
| 3.31s | 0.72s | 1.95s | ||
| Load capacity | 200kg | |||
| Bucket Capacity | 0.12cbm | |||
| Max Lifting Force | 375kg | |||
| Speed | 0-5.5km/h | |||
| Total Weight | 855kg | |||
| Track model | 150*72*37 | |||
| Item | Data |
| Max Working Height (H3) | 2363mm |
| Max Pin Height (H2) | 1800mm |
| Max Dump Height (H1) | 1412mm |
| Dump Distance at highest point (E) | 533mm |
| Bucket dump angle | 29degree |
| Bucket collectiong angle | 36degree |
| Departure angle | 13degree |
| Total Height (H) | 1302mm |
| Ground Clearance (H1) | 143mm |
| Wheelbase (L1) | 652mm |
| Length without bucket (L3) | 1752mm |
| Total Width (B2) | 800mm |
| Bucket Width (B1) | 820mm |
| Total Length (with bucket) (L) | 2200mm |
| Turning Radius | 1440mm |
Packaging & Shipping
Company Info
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
HY380 mini skid steer loader,
HY280 Mini digger,
HY200 articulated mini loader,
HD10L 4wd mini loader,
HY700 skid steer loader like ,
HY850 skid steer loader which is special height design,only 1482mm height,
HY1000 skid steer loader with 1000kg load capacity,and big flow'
FD350 mini dumper is the smallest size,
HD05 mini dumper,can realize electric power driving,
HD10 wheel dumper is 4 wheel drive.
And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
Taian Hysoon Machinery Co.,Ltd. Products Range
Certifications
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
Contact Info
For further info about any Hysoon products,please do kindly contact
Elieen Liu
TAIAN HYSOON MACHINERY CO.,LTD.
ADD:Boyang Road,Tai'an City,Shandong,China
Tel:0086 538 6189955
Fax:0086 538 6189955
Cell:0086 186 53859083
Skype: elieen.l
QQ: 1459163274
Email/MSN:hysoon#hysoon.cn
