Hot sale zirconia ceramic lab spray dryer

15 years continuous development

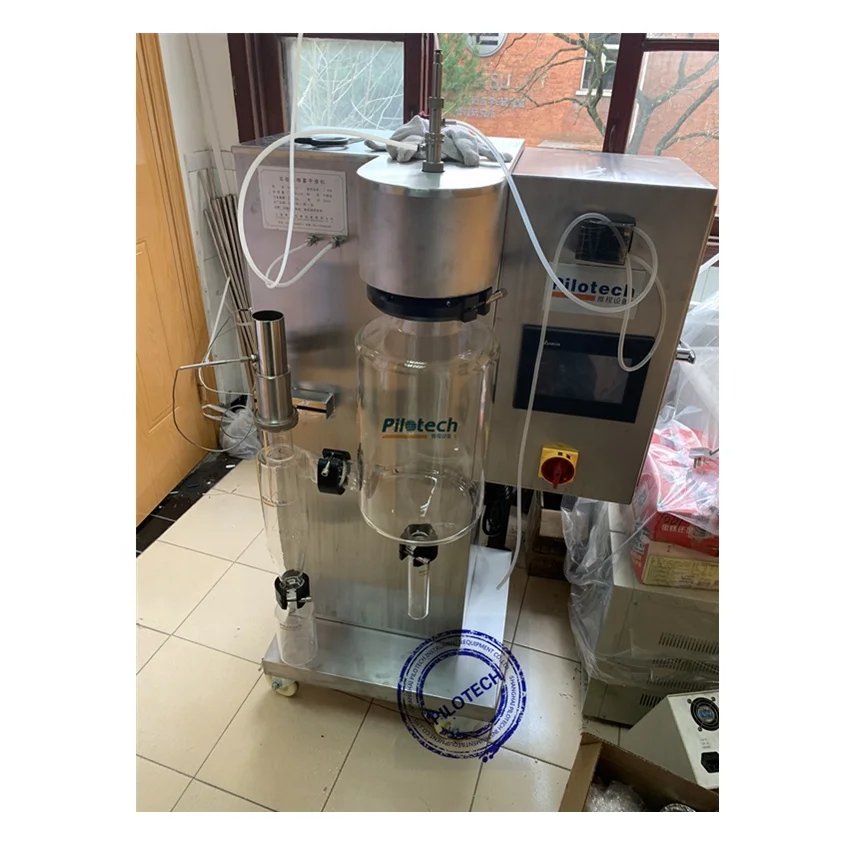

The Lab Spray Dryer YC-015 is the result of 15 years continuous development ,is your choice for the quick and gentle drying to powder of liquid material. The impressive features of the Lab Spray Dryer include its efficient performance with very short set-up times,an effective integrated nozzle cleaning mechanism and a high degree of flexibility thanks to the different cylinder geometries. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .

YC-015 Lab spray dryer easy to use

1.Color Touch Screen,Fast setup and cleaning times

2.Scale up to pilot or industrial scale possible.

3.Visible process due to glass assembly

4.Adjustable particle size (1 – 25 microns)

Controls & Functionality

YC-015 lab spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions:

• Inlet Temperature

• Airflow Volume

• Air compressor flow

• Pump Speed

• De-blocker Frequency

Preparation convenience

The minimum of materiel only needs 20-30 ml,  which is convenient for dealing with small amount of sample, and it's maximum capacity can up to 2000ml/H as well as the dealing with vast material is also very rapidly.

Temperature protection

The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-015 lab spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system .

Air compressor built-in

Oil free compressor built-in with cushion technique, lower noise and convenient to move the dryer. Compressed air container made from the SUS 304 stainless steel to avoid vapor corrosive damage.

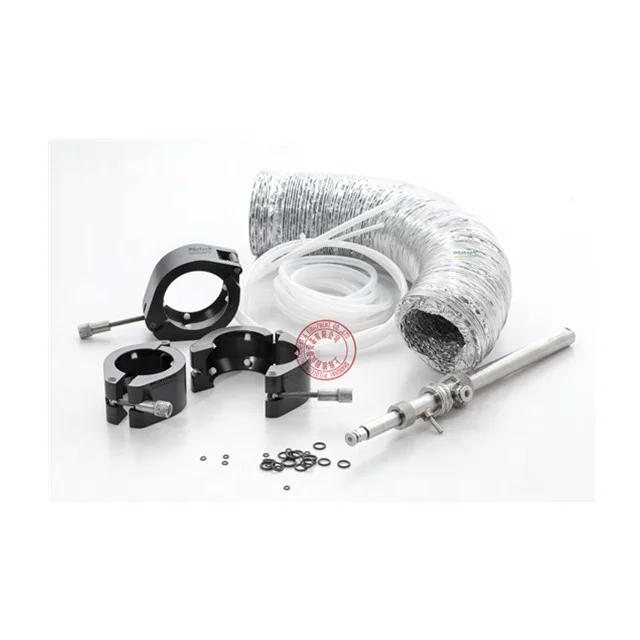

Two Fluid Nozzle with SUS316L stainless steel

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

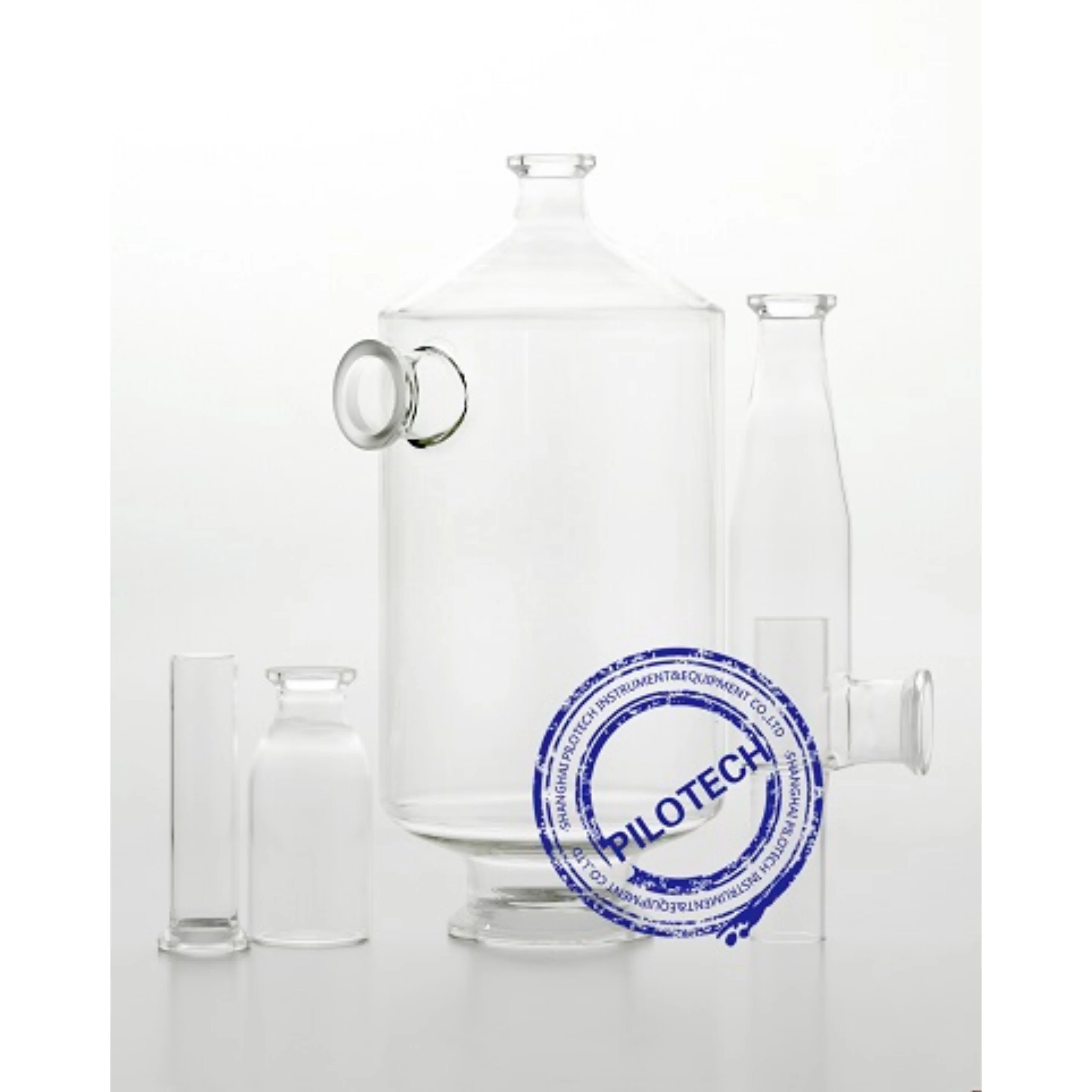

Borosilicate glass or SUS 304 stainless steel

Spray chamber, cyclone separator, collector are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. And we can provide SUS 304 stainless steel parts .All the spare parts are easy to install and clean.

(Model YC-015A lab spray dryer can be used for organic & water solvents, Model YC-1800 lab low temperature spray dryer can be used for thermo-sensitive materials and high carbohydrate compositions materials. Model YC-2000 lab vacuum spray dryer can be used for probiotics, enzyme and other thermo-sensitive materials. Model YC-3000 Lab spray freeze dryer is a new freeze dryer method which is faster than traditional freeze dryer. Model YC-1000 laboratory spray granulator (fluidized bed granulation) can be used for granulation and coating.)

PRODUCT PARAMETERS
