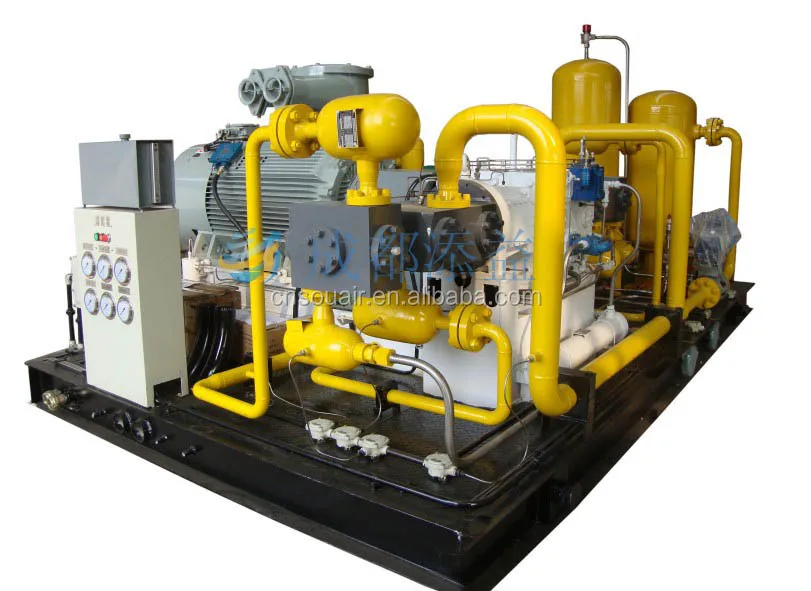

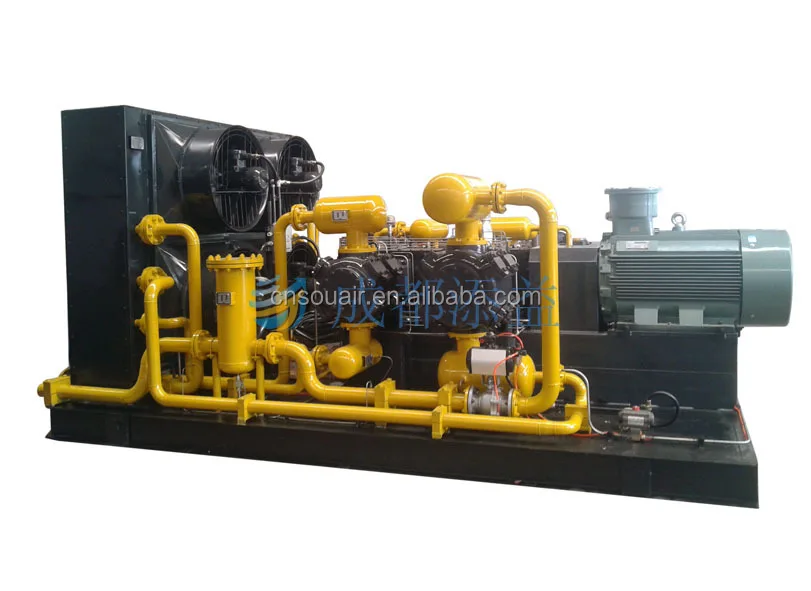

Hydrogen Compressor Oil & chemical process compressor
- Category: >>>
- Supplier: Shanghai Souair International Trade Co. Ltd.
Share on (60320600295):
Product Overview
Description
Hydrogen gas Compressor Oil & chemical process compressor
Oil & chemical process compressors produced by our company mainly include: Natural gas compressor, biogas compressor, coalbed compressor, shale gas compressor, gas compressor for underbalanced drilling, compressor for booster transferring, compressor for venting gas recovery, compressor for light hydrocarbon producing test, compressor for gas production with process gas lift, compressor for gas injection and recovery at gas storage, etc.
Description:
Hydrogen compressor is a device that increases the pressure of hydrogen by reducing its volume resulting in compressed hydrogen or liquid hydrogen.Tianyi offers a variety of oil-free hydrogen reciprocating compressors to fit both commercial and industrial applications. They are widely used in hydrogen recycle, booster,fuel cells, and hydrogen filling stations.
Features:
Symmetrical and balanced.
Long service life.
Automatic control.
Safety protection system.
Skid mounted.
Please contact us for the more details.
The Hydrogen Compressors are too numerous to enumerate.
If you have any specific requirements for a Hydrogen Compressor, please feel free to contact us with your query.
We also supply other series Hydrogen Compressors ,for filling,for refine,for recovery and gathering ,seperate ,etc. ,many types of them.
Package:
1.The compressor can enter into container, we adopt simple and rain-proof package.
2.If the compressor can not enter into container, the goods will be transported by train or other way, we adopt wooden or iron plate package.
Ask for a Turnkey Hydrogen Plant Solutions?
If you need a Turnkey Hydrogen Plant Solutions,please feel free to contact us with necessary information,then our team can start formulating a plan.
Hydrogen compressor is a device that increases the pressure of hydrogen by reducing its volume resulting in compressed hydrogen or liquid hydrogen.Tianyi offers a variety of oil-free hydrogen reciprocating compressors to fit both commercial and industrial applications. They are widely used in hydrogen recycle, booster,fuel cells, and hydrogen filling stations.
Features:
Symmetrical and balanced.
Long service life.
Automatic control.
Safety protection system.
Skid mounted.
Please contact us for the more details.
The Hydrogen Compressors are too numerous to enumerate.
If you have any specific requirements for a Hydrogen Compressor, please feel free to contact us with your query.
We also supply other series Hydrogen Compressors ,for filling,for refine,for recovery and gathering ,seperate ,etc. ,many types of them.
Package:
1.The compressor can enter into container, we adopt simple and rain-proof package.
2.If the compressor can not enter into container, the goods will be transported by train or other way, we adopt wooden or iron plate package.
Ask for a Turnkey Hydrogen Plant Solutions?
If you need a Turnkey Hydrogen Plant Solutions,please feel free to contact us with necessary information,then our team can start formulating a plan.
Technical Specifications
Typical Case Specifications (CNOOC Offshore)
| Compressor Code | D-19.77/0.9-8 Low Pressure Fuel Gas Compressor |
| Compressor Type | D Type Horizontal Symmetric Balanced Structure |
| Rotation | 988rpm |
| Compressor Stage | 2 |
| Medium | Natural Gas |
| Inlet Pressure (Gage) | Design Point 0.09MPa |
| Final Discharge Pressure(Gage) | 0.8MPa |
| Inlet Temperature | ≤20℃ |
| Diacharge Temperature(Behind Air Cooler) | Not Exceeding 15℃ of the Ambient Temperature |
| Discharge Capacity | Design Point 1500Nm3/h |
| Shaft Power | Design Point 107KW |
| Main Motor Power | 132KW,Electric Proof: Exd II BT4 |
| Cooling Method | Gas: Air Cooling; Cylinder: Natural Cooling |
| Drive Mode | Direct By Shaft Coupling |
| Lubrication | Cylinder, Packings: Less Oil Lubricated |
| Lubricated Oil Consumption | 150mm/hour |
| Installation Mode | Cabinet/Skid, with Sound&Rain&Snow Proof Shell |
| Noise | ≤85dB(A) (1 meter from the shell) |
| Voltage | 380V |
| Control Mode | PLC + Touch Screen + Frequency Converter |
| Size | 7.0m X 2.8m X 2.7m |
| Weight | 12000kg |
| Minimum Life Time | 25 years |
| Big Repair Period | >30000 hours |
| Continuous Running Time per Year | >8000 hours |
Typical Case Specifications (CNOOC Zhuhai Project)
Compressor Code | D-4.96/(3-5)-70 |
Compressor Type | D Type Horizontal Symmetric Balanced Structure |
Compressing Stage | 3 |
Inlet Pressure | 0.3~0.5MPa (Design Point 0.4MPa) |
Discharge Capacity | 680~1080 Nm3/h (Design Point 880Nm3/h) |
Shaft Power | 79~105KW (Design Point 92KW) |
Main Motor Power | 110KW |
Cooling Method | Gas: Air Cooling or Water Cooling; Cylinder: Natural Cooling |
30-1600Nm3/hr At 1-250bar,15kw-315kw Motor Power chlorine hydride/chloro ethylene/methyl chloride gas compressor,oil free reciprocating medicine and experimental research gas compressor oil free reciprocating fueling cylinder project
Product features:
Product has no oil lubrication, low noise, small vibration, compact structure, smooth operation, safe and reliable, high automatic control level, a digital display and control over a long distance can be configured according to user request, has low compressor oil, water, lower the high temperature, low inlet pressure, exhaust pressure is high, stop functions such as alarm, take the compressor run more smoothly.
Product application:
Pressure, voltage, power and purging, can also be used for power plant, food industry, medicine and experimental research units to provide a stable source of power
(this series all pressure data can be modified according to customer specific requirements, if any requirements, please ask our online customer service, we will answer for you)
