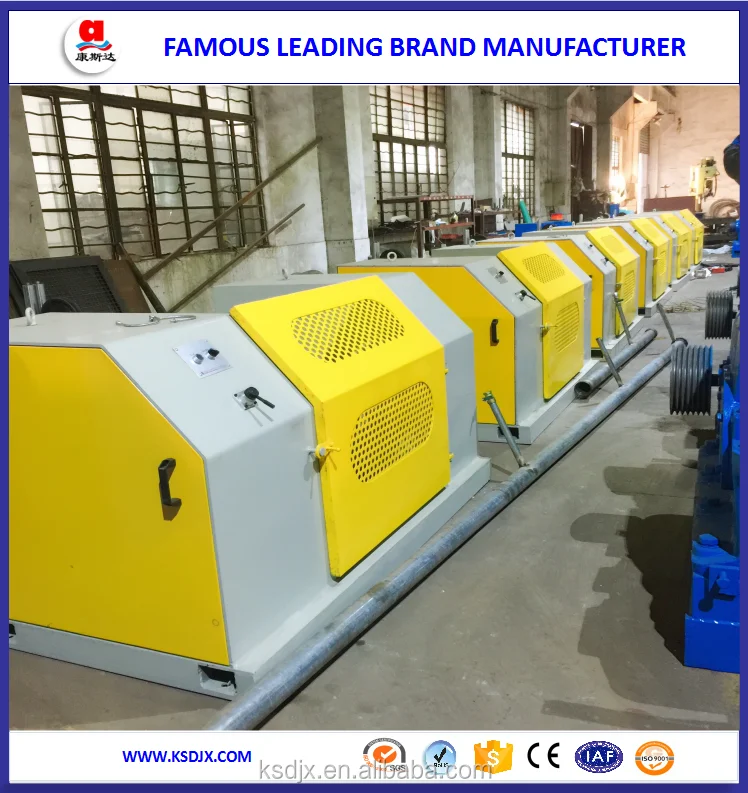

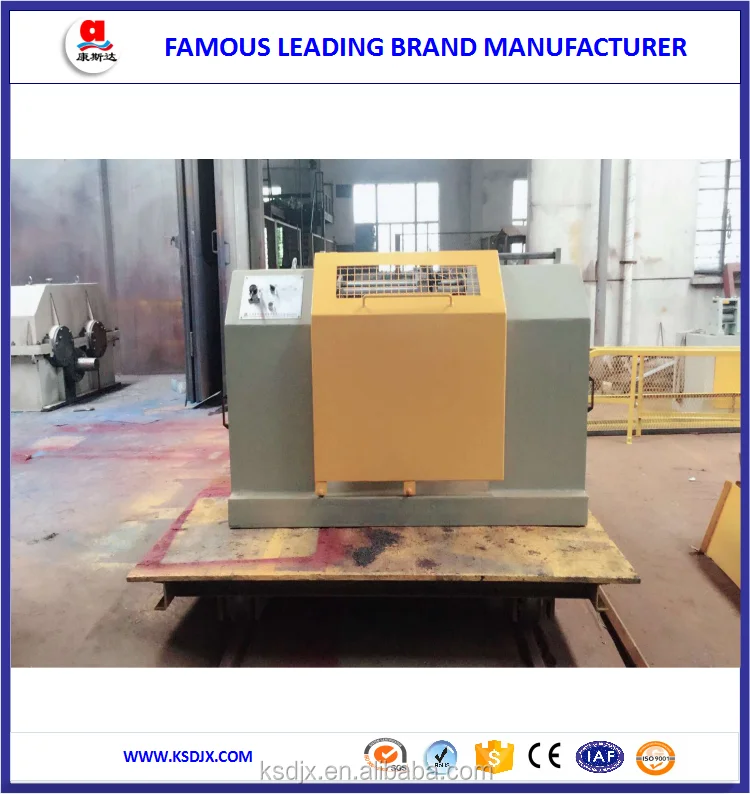

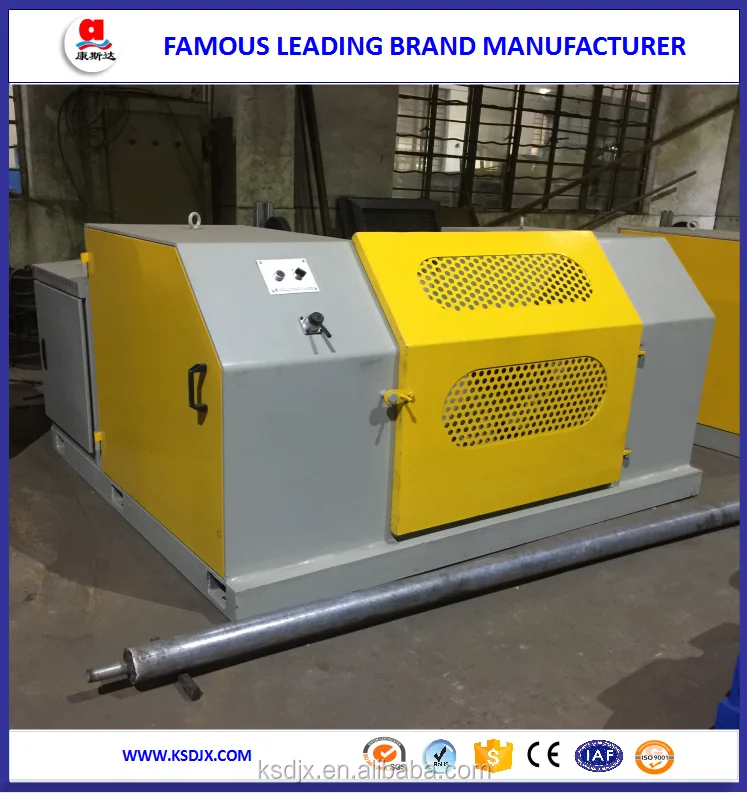

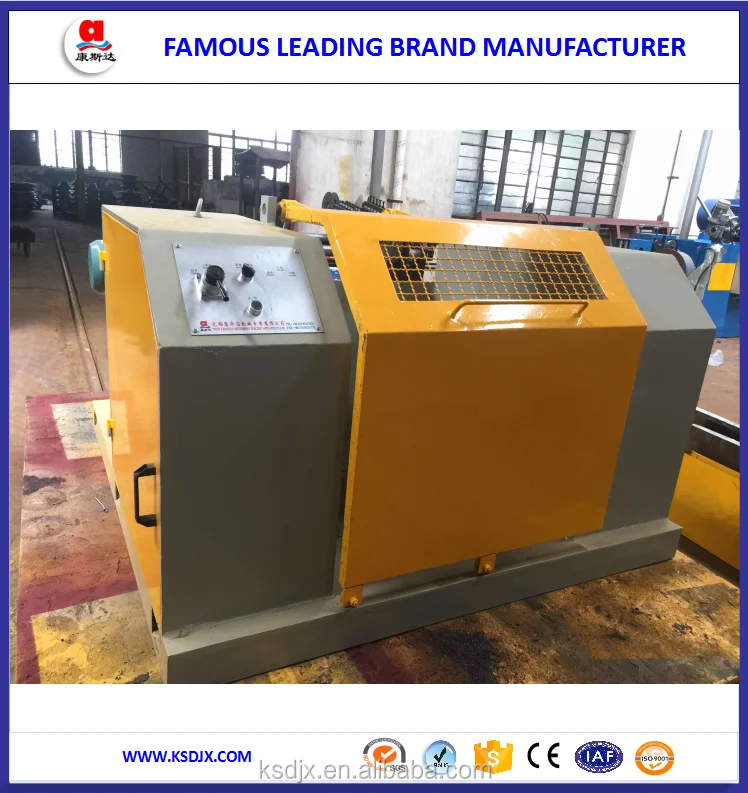

SG 800 Automatic Spool Type Done Wire Take up Machine
- Category: Metal Take-up Machines >>>
- Supplier: Wuxi Kangsida Mechanical Electric Appliance Co. Ltd.
Share on (60320646145):
Product Overview
Description
Company Information
Product Description

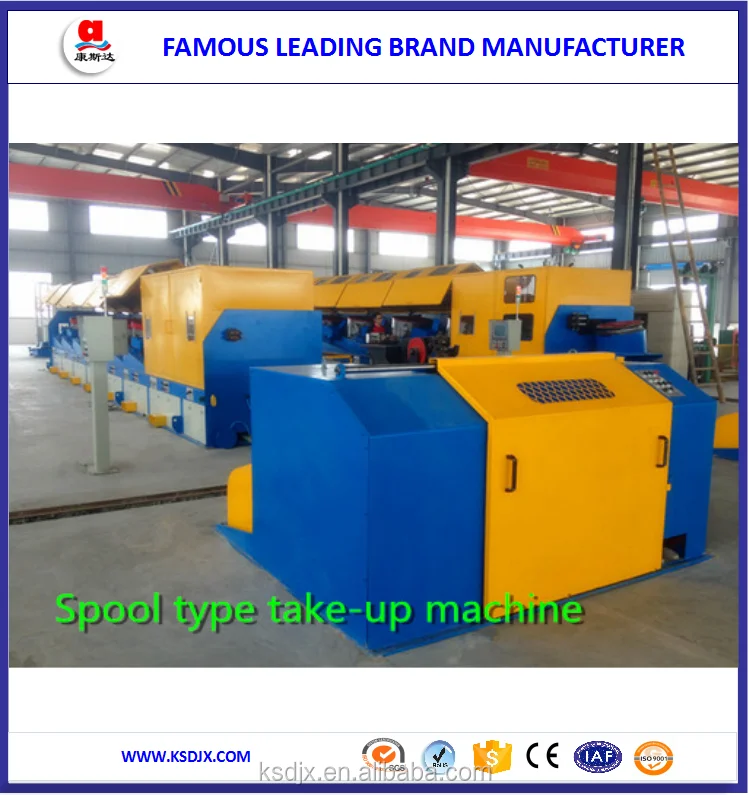

GS spool take-up machine improved by our company is mainly used for LZ straight line wire drawing machine,LT wet type wire drawing machine and LW pulley wire drawing machine.
Features of the machine:
V belt,drive by chains or synchronous belts,dragged by a torque motor or a frequency motor,hand wheel locking or pneumatic locking,the spooler can rise by automatically pneumatic or a conical top passively.
|
Model |
SG1150 |
SG800 |
SG630 |
SG300 |
|
Outer dia of spooler |
1150mm |
800mm |
630mm |
300mm |
|
Take-up dia |
4.5-3.0mm |
3.5-2.0mm |
2.5-1.5mm |
1.5-0.8mm |
|
Take-up torque |
125N·m |
100-80N·m |
80-60N·m |
60-40N·m |
|
Motor power |
30-22kw |
18.5-15kw |
15-11kw |
11-7.5kw |
|
Dragging mode |
Torque motor,variable frequency motor |
|||
|
Note |
The speed and tight device are optional according to users’ requirement |
|||

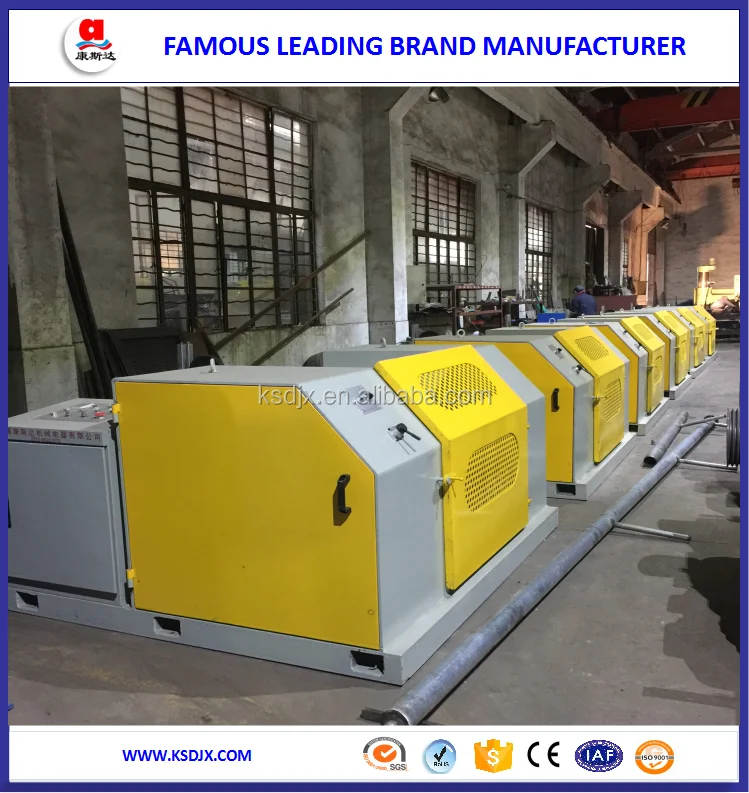

Finished Products
![_]CQMLN50M1PTYM{47Z{O3.png](http://sc02.alicdn.com/kf/HTB1M1oinsjI8KJjSspp760byVXaX/200407535/HTB1M1oinsjI8KJjSspp760byVXaX.png)
![F340EM09L0%MWXY`W]C`LQW.png](http://sc01.alicdn.com/kf/HTB1r6qqe3jN8KJjSZFC7623GpXal/200407535/HTB1r6qqe3jN8KJjSZFC7623GpXal.png)
![WE7C%ZT]1W`H0N1PCRDI~]0.png](http://sc02.alicdn.com/kf/HTB1yi.GnsbI8KJjy1zd762e1VXaZ/200407535/HTB1yi.GnsbI8KJjy1zd762e1VXaZ.png)
