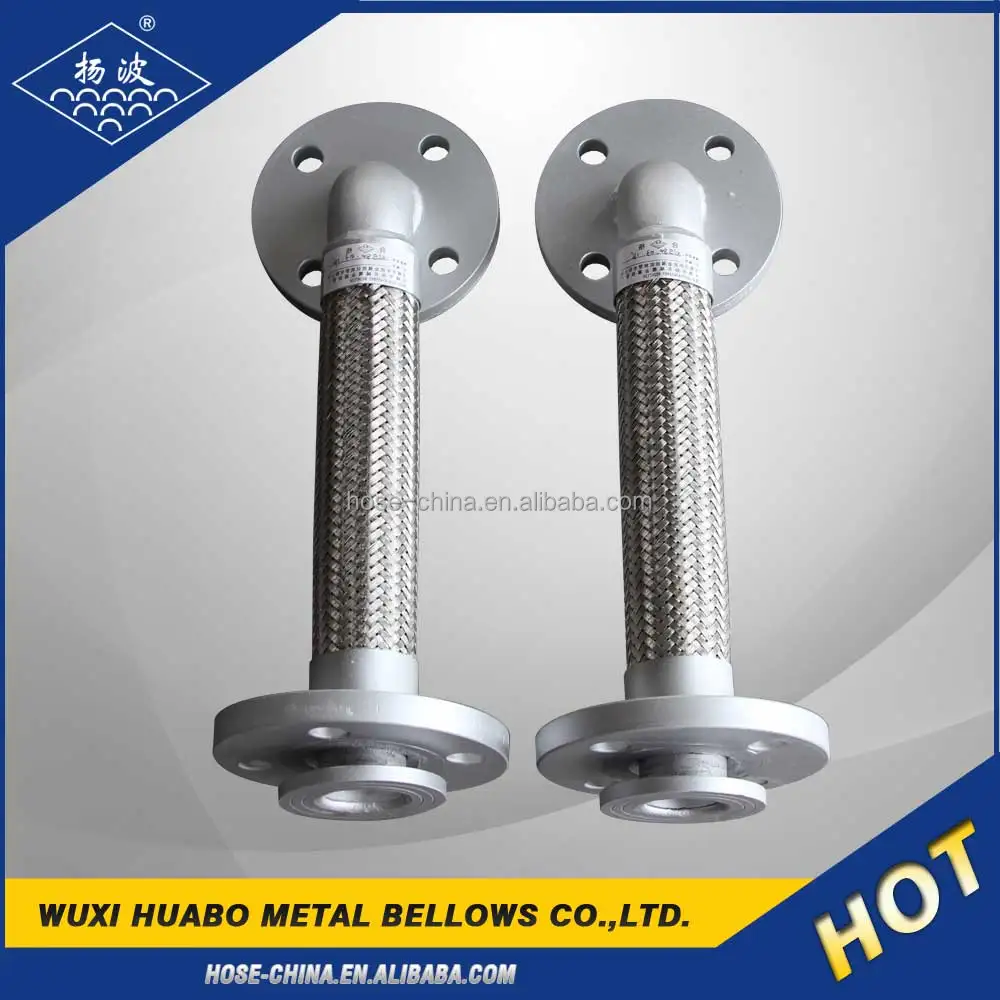

Supply Yangbo stainless steel corrugated flexible metallic hose

Share on (60320651250):


Price:RUB 371.64 - RUB 1,114.91

Quantity:


Product Overview

Description



Supply Yangbo stainless steel corrugated flexible metallic hose










Product Description



Basic Parameters:

Specification:DN50-DN8000
CompensatorAxial and lateral
Bellows Material: S.S.304,321,316L
Other Parts Material:   Carbon steel,stainless steel
Bellow TypeSingle layer or multi-layer
Connection type:Welded
Design Temp.:Max 1300 deg.C
Design Pressure:Max 4.0Mpa
Movement:0-40 deg.
CertificationISO9001
OEM/ODM ServiceAvailable for corrugated  hose
Testing: 1.Chemical analysis for material
2.Mechanical property testing for material
3.NDT will be carried out on all products
4.Pressure testing
5.Painting testing
6.Dimension and appearance quality inspection
7.Package inspection



Specification:
 .jpg



Features:


1. corrugated  hose to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;


2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;


3. All of our corrugated  hose are easy to clean and maintenance.
