electronic 80 ton industrial concrete weighbridge/truck scale

Product Overview

Description

China electronic industrial concrete weighbridge C5 series



Descriptions:



1)Two layers of steel bars in the frame

2)Different sizes of weighbridges can be grouped:3*8,10,12,14,16,18,20,22,24m

3)Easy installation , using special "box" structure for unstallation

4)Big lifting cranes is no need , while a forklift will be enough

5) one set 3*18m can be put into a 20GP container and 2 sets 3*18m can be put into a 40GP container



Picture of C5 concrete truck scale

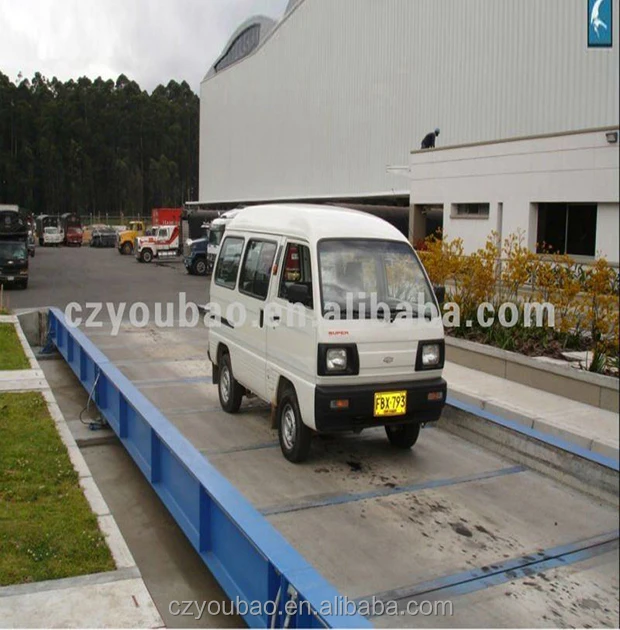

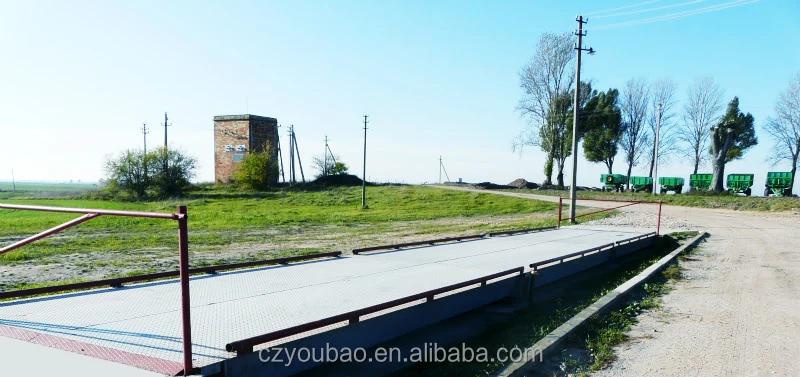

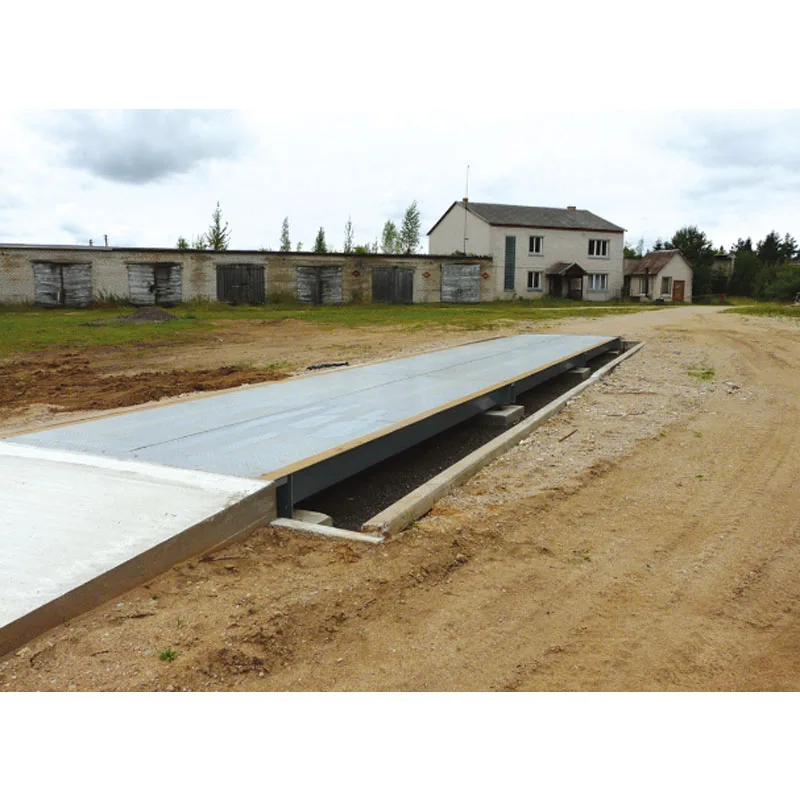

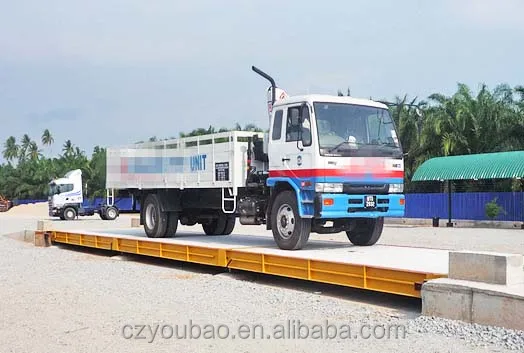

User site pictures of  scale model truck



Main advantages:



1) We are the first one that develops this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.

2)  Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.

3)  Easy installation, robust structure.



Platform Size and parameters:



Dimension	Section	Capacity	Division        (kg)	Load cell Qty
mxm		t
3x6	1	30	10	4
3x7	1	30	10	4
3x8	1	30	10	6
3x9	2	50/60	20	6
3x10	2	50/60	20	6
3x12	2	50/60	20	6
3x14	2	60	20	6
3x16	3	80	20	8
3x18	3	80	20	8
3x18	3	100	50	8
3x20	4	80	40	10
3x24	4	80	40	10





Remarks: Other different size or special capacity can be customized according to customers’ needs.

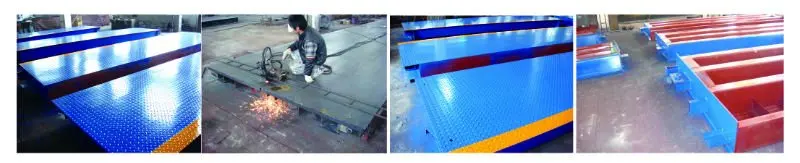

Our steelweighbridge used Production site:













Other models of truck scales for your reference:
