TEG 260W IP65 On Grid Tie Solar Micro Inverter 260w DC 22 50v to AC 90 130v/AC190 260w
- Category: >>>
- Supplier: Shanghai Tingen Electric Co. Ltd.
Share on (60320925826):
Product Overview
Description

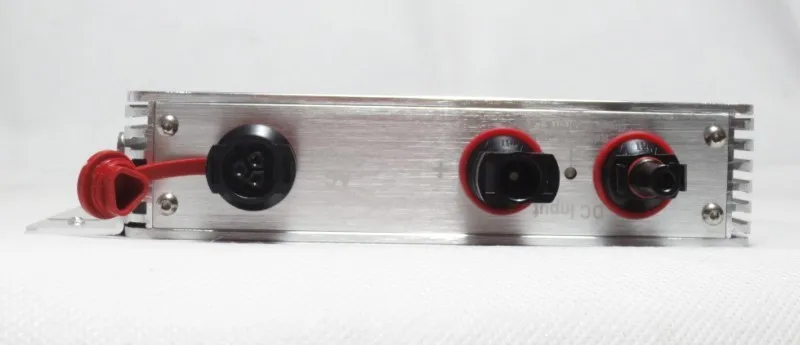

TEG-260W-IP65 On Grid Tie Solar Micro Inverter 260w DC 22-50v to AC 90-130v/AC190-260w
TEG-260W-IP65
TGE-260W Series Used IP65 waterproof streamline design, Can effectively prevent rainwater on the surface
erosion, Built-in highperformance Maximum Power Point Tracking(MPPT)Function, Better able to track changes
in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
Product Features:
Pure Sine Wave Output | High performance Maximum Power Point Tracking(MPPT) | Power Automatically Locked(APL) | Reverse power transmission |
High-Frequency High Conversion Rate | Anti-Islanding Protect | Input /output is fully isolated to protect the electrical safety | Multiple parallel stacking |
Power Line Communications | IP65 WaterProof | Intelligent Monitoring Systems | Smaller Size & Lighter Weight |
The Leading Patent Technology | Flexible Installation | Simplify maintenance (user serviceable) | Installation and maintenance costs low |
High Efficiency & Best Cost-Effectiveness:
Product Parameters/Details
Inverter Input Data | TEG-260W-IP65 | |
Recommended input power | 200-300Watt | |
Recommend the use of PV modules | 300W/Vmp>34V/Voc<50V | |
Maximum input DC voltage | 50V | |
Peak power tracking voltage | 25-40V | |
Operating Voltage Range | 17-50V | |
Min / Max start voltage | 22-50V | |
Maximum DC short current | 15A | |
Maximum Input Current | 9.8A | |
Micro inverter Output Data | 120VAC | 230VAC |
Peak power output | 260Watt | 260Watt |
Rated output power | 250Watt | 250Watt |
Rated output current | 2.08A | 0.92A |
Rated voltage range | 80-160VAC | 180-260VAC |
Rated frequency range | 57-62.5Hz | 47-52.5Hz |
Power factor | >96% | >96% |
Maximum units per branch circuit | 15PCS(Single-phase) | 30PCS(Single-phase) |
Output Efficiency | 120VAC | 230VAC |
Static MPPT efficiency | 99.5% | 99.5% |
Maximum output efficiency | 92.3% | 94.6% |
The average efficiency | 91.2% | 93.1% |
Night time power consumption | <50mW Max | <70mW Max |
THDI | <5% | <5% |
solar micro inverter Exterior | ||
Ambient temperature | -40°C to +60°C | |
Operating temperature range (inverter inside) | -40°C to +82°C | |
Dimensions (WxHxD) | 191mm*176mm*38mm | |
Weight | 0.83kg | |
Waterproof Rating | IP65 | |
Cooling | Self-cooling | |
Feature | ||

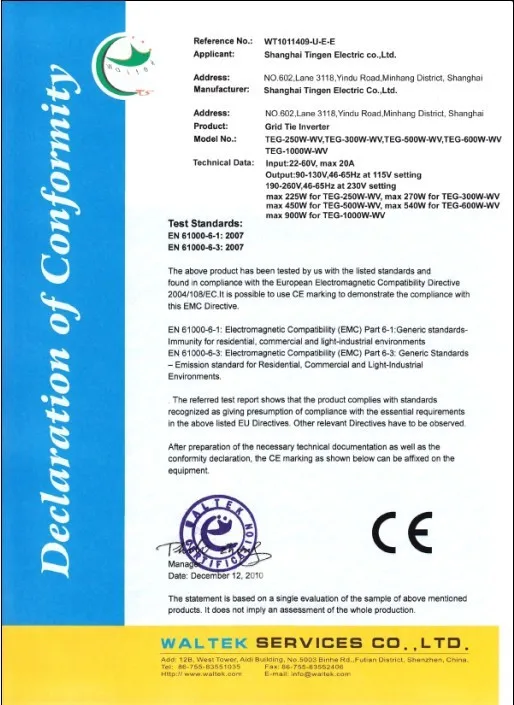

Certificate | CEC,CE National patent technology | |

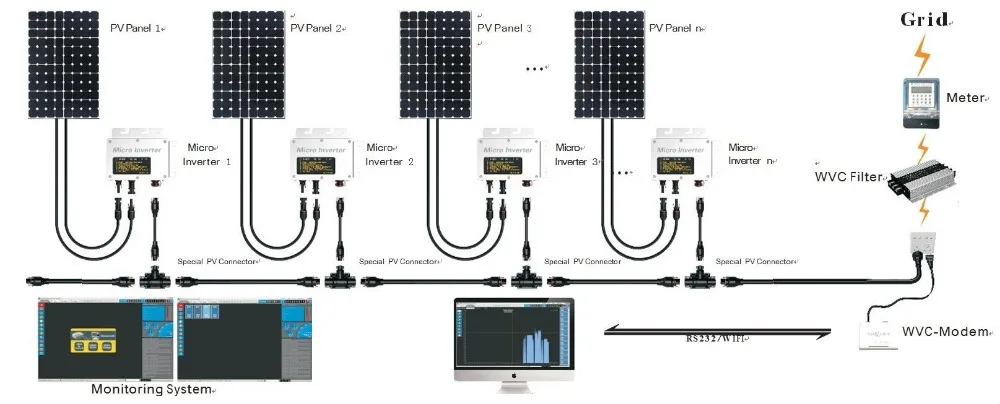

System Block Diagram & Application
In order to achieve higher power, we can use this inverter in stack. For example:
10 pcs of 260W grid tie inverter used in stack can achieve 2600W. And the stacking number is unlimited.
Easy Installation:
