Yatour mp3 aux digital cd changer volvo

Product Overview

Description

Yatour mp3 aux digital cd changer volvo

1.  Features:

* Support USB / SD / AUX IN;

* Deliver Original CD quality sound through CD Changer port ;

* Plug and Play ;

* Direct controls from car radio panel ;

* Supports last position memory(LPM) ;

* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;

* Optional Bluetooth function support.



2. Specifications :

Voltage input:11v~14.6v DC	Operational current: 200mA
Standby current : 3mA	Operating Temperature : -35 °C~+85 °C
DAC resolution : 20bit	Total harmonic distortion : 0.05%
SN ratio : 90dB	Frequency response : 20Hz-20KHZ





3. Compatible car :

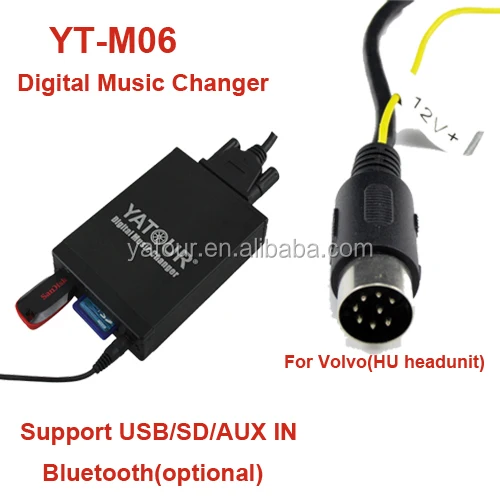

YTM06-VOLHU	Includes: l Module unit for Volvo HU l Volvo HU 8pin Din plug l AUX cable
Compatible Models	Volvo (HU-xxx)	1995-2005 C70 , 2001-2004 S40 , 1999-2009 S60 , 1999-2005 S80 ,2001-2004 V40 ,  1999-2007 V70 , 1999-2007 XC70
Compatible Head Units	HU401,HU403,HU405,HU415, HU450,HU555 , HU601, HU603, HU605, HU611,  HU613,HU615,HU655,HU801, HU803, HU650RDS(with Selector knob), HU650(6CDs),  HU850RDS(with Selector knob), HU850(6CDs), HU1205, CR-504,etc
Compatibility Notice	1. YT-VHY or YT-V813  are needed for Volvo HU-xxx radios with RTI navigation module. 2. Supports only one folder/Disc on HU650 without Selector knob /HU850 without Selector knob

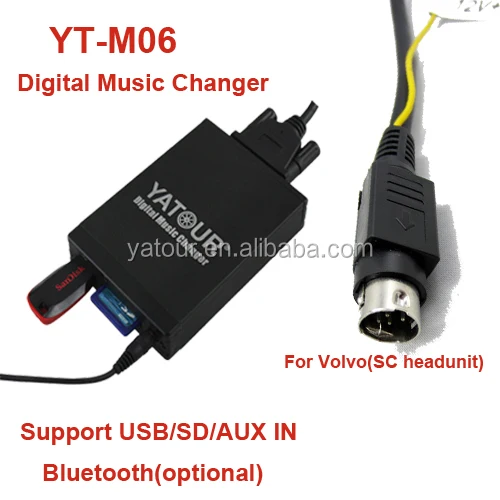

YTM06-VOLSC	Includes: l Module unit for Alpine M-bus l Volvo SC 8pin Mini-Din plug l AUX cable
Compatible  Models	Volvo (SC-xxx )	1994-2000 Volvo models with SC-xxx head unit(excluding S80) 2001-2006 Volvo C70 with SC-xxx head unit
Compatible Head Units	SC700,SC800, SC801,SC802, SC805, SC810R,SC811,SC814,  SC815, SC816, SC836, SC900, SC901,CR905 etc
Notice	Not work with Volvo SC-710 head unit



4. Installation Diagram :

This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.





Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.



5. How to save music into folders :

1. Name folders as CD01 ,CD02 ,CD03...etc

2. The naming of songs is unrestricted .

3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .

4. Support mp3 / wma .

Below is showing example .





6. Accessories:

1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual





7. Package:

• Standard packing box : 210 x 150 x 60 mm

• Half-size packing box : 150 x 105 x 60 mm

• Module weight : 90g

• Gross weight : 220g~400g .
