hydrogen and oxygen digital flow meters Vortex flowmeter
- Category: >>>
- Supplier: Dalian Metern Measurement And Control System Co. Ltd.
Share on (60321363542):
Product Overview
Description
Features
hydrogen and oxygen digital flow meters Vortex flowmeter Features
- All welded, non-clog design provides maximum performance, reliability and enhanced safety by eliminating ports and gaskets. No seals, just steel.
- Available with optional output. Internal temperature compensation provides cost-effective saturated steam mass flow measurement.
- Adaptive Digital Signal Processing provides vibration immunity and flow range optimization.
- Vortex extends the measurable flow range, reduces installation costs, and minimizes project risk.

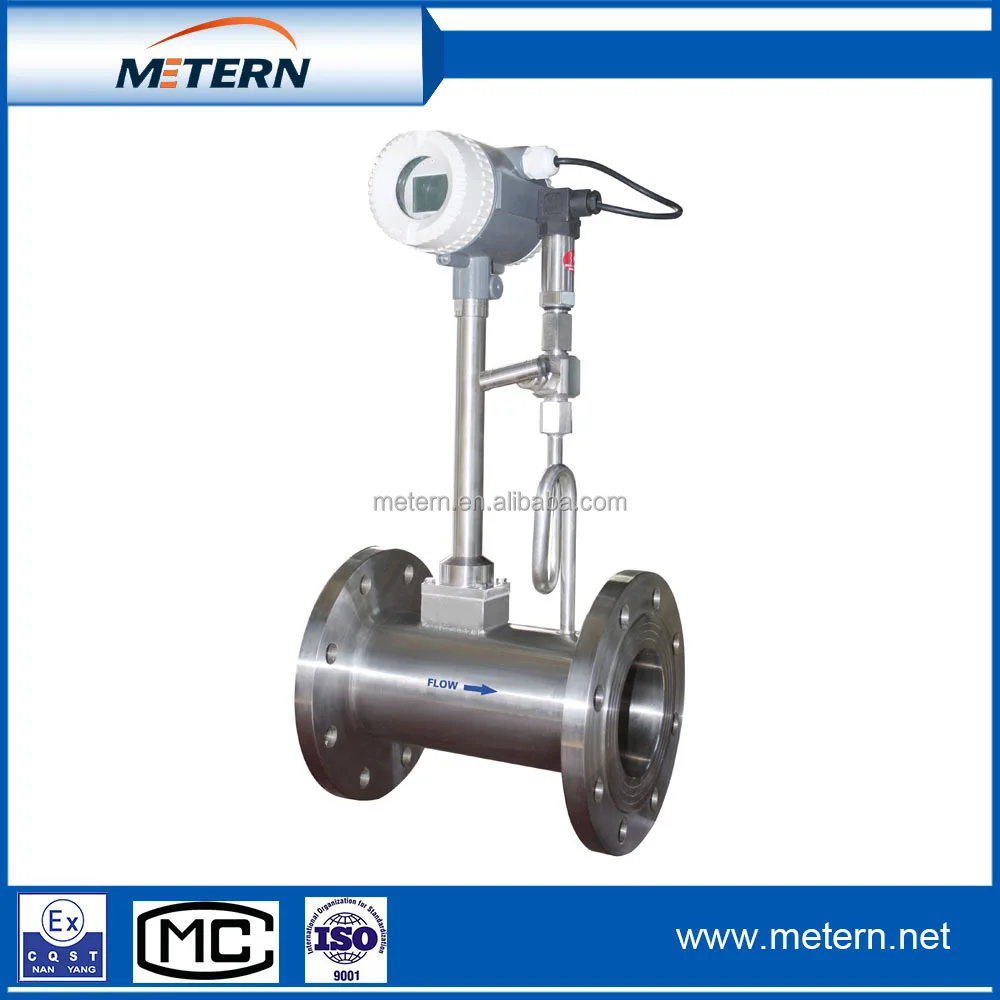

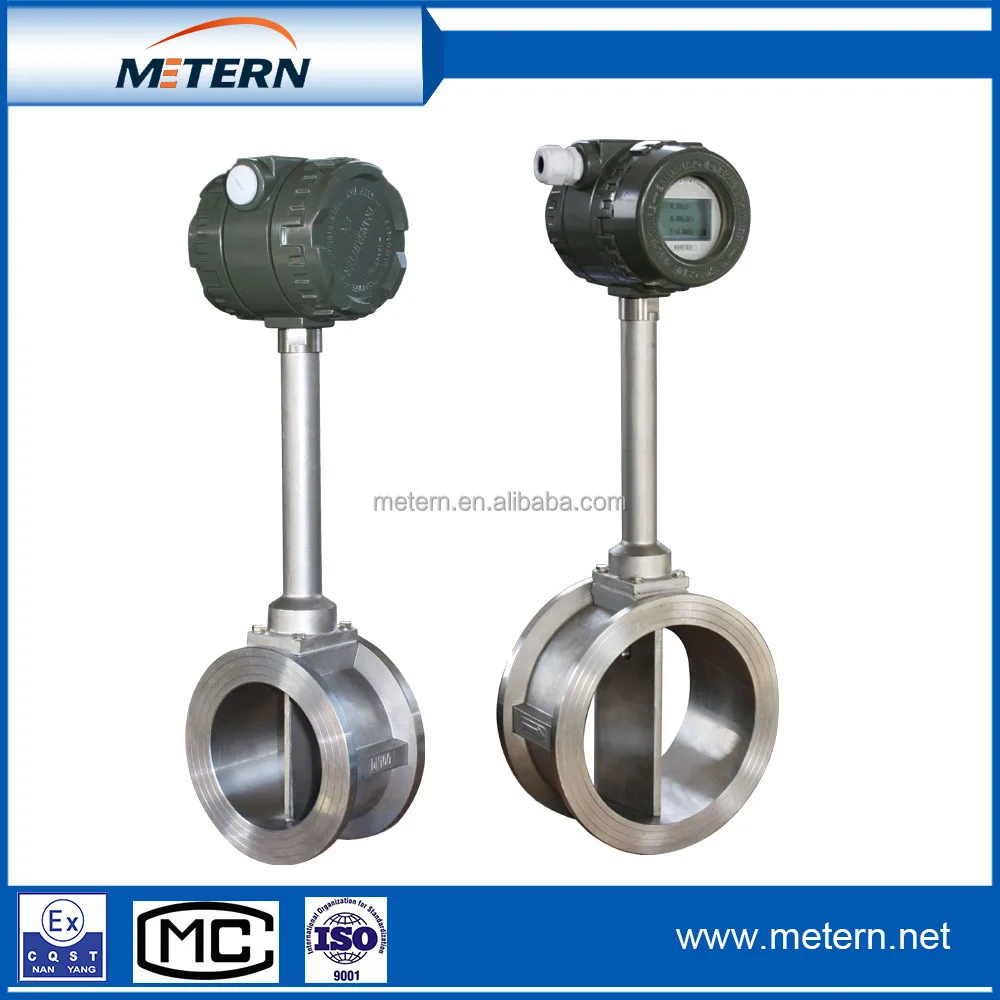

- Available in wafer, flanged, and high pressure designs.
Specifications
hydrogen and oxygen digital flow meters Vortex flowmeter Specifications
| Medium | Liquid, Gas, Steam |
| Nominal Diameter | DN15…DN400 |
| Medium Temperature | -50~+500℃ |
| Nominal Pressure | 1.6Mpa, 2.5Mpa, 4.0Mpa, Higher pressure can be customized. |
| Range ability | Normal range 1:10 Extended range 1:15 |
| Accuracy | Liquid: ±1.0% reading Gas, Steam: ±1.5% reading |
| Repeatability | ≤1/3 accuracy |
| Power Supply | Pulse output: 12VDC, 24VDC 4-20mA: 24VDC Local display: built in 3.6V lithium battery, working life >2 years |
| Output Signal | Pulse frequency signal 0.1…3000Hz (low level≤1V, high level≥6V) Two-wire 4-20mA.DC current signal (HART is available) Three-wire 4-20mA.DC current signal (RS485 is available) |
| Ambient | Ambient temperature: Normal -30…60℃, Ex-proof -20…50℃, Local display -10…50℃ Ambient humidity: relatively humidity 5%...85% Atmospheric pressure: (86…106)Kpa |
| Allowed vibration acceleration | Capacitive≤1.0g |
| Signal Transmitting distance | Pulse≤500m 4-20mA≤1000m RS485≤1200m |
| Electrical interface | M20x1.5 |
| Ex-proof | Flame proof: ExdIIBT5 Intrinsic safety: ExiaIICT5 |
| Protection level | IP65, IP68 |
| Housing Material | 1Cr18Ni9Ti (available for other material) |
Flow range
hydrogen and oxygen digital flow meters Vortex flowmeter Flow range
| Nominal Diameter | Flow range (m3/h) | ||
| Liquid | Gas | Steam | |
| 25 | 0.9-9 | 9.5-95 | 9.5-95 |
| 40 | 2.3-23 | 22-220 | 22-220 |
| 50 | 3.5-35 | 32-320 | 32-320 |
| 65 | 6-60 | 60-600 | 60-600 |
| 80 | 9-90 | 78-780 | 78-780 |
| 100 | 14-140 | 105-1050 | 105-1050 |
| 125 | 22-220 | 220-2200 | 220-2200 |
| 150 | 32-320 | 300-3000 | 300-3000 |
| 200 | 56-560 | 560-5600 | 560-5600 |
| 250 | 90-900 | 900-9000 | 900-9000 |
| 300 | 130-1300 | 1300-13000 | 1300-13000 |
Product details
hydrogen and oxygen digital flow meters Vortex flowmeter Products details
