Mp3 usb sd card yatour digital music changer for toyota
US $35.00-$60.00
VW car mp3/usb/sd card AUDl cd changer
- Category: Car CD Player >>>
- Supplier: Guangzhou Yatour Electronics Technology Co. Ltd.
Share on (60321540518):
Product Overview
Description

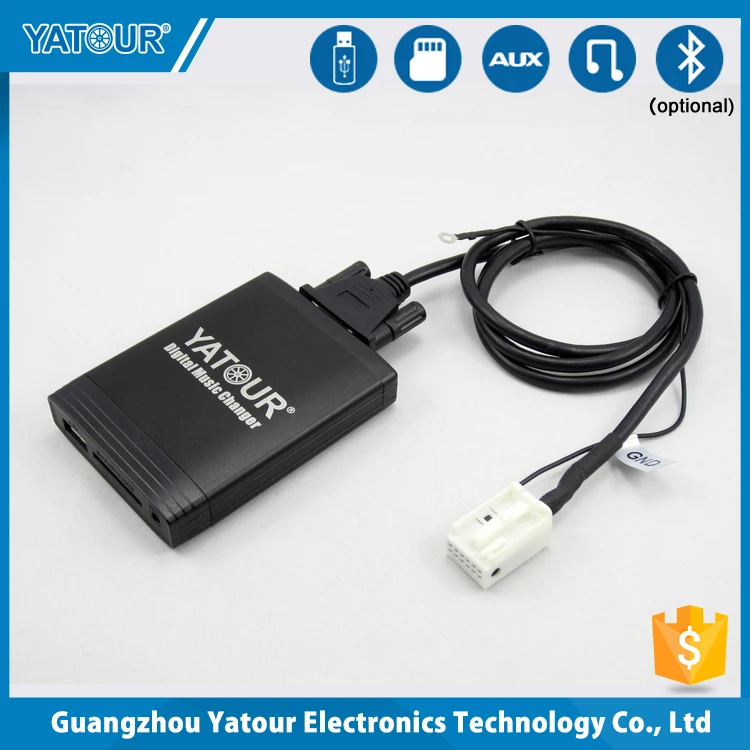

VW car mp3/usb/sd card AUDl cd changer
1. Features:
* Support USB / SD / AUX IN;
* Deliver Original CD quality sound through CD Changer port ;
* Plug and Play ;
* Direct controls from car radio panel ;
* Supports last position memory(LPM) ;
* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;
* Optional Bluetooth function support.
2. Specifications :
| Voltage input:11v~14.6v DC | Operational current: 200mA |
| Standby current : 3mA | Operating Temperature : -35 °C~+85 °C |
| DAC resolution : 20bit | Total harmonic distortion : 0.05% |
| SN ratio : 90dB | Frequency response : 20Hz-20KHZ |
3. Compatible car :
YTM06-VW8D | Includes: l Module unit for VW l VW 8pin plug(with built-in splitter cable) l AUX cable | ||
Compatible Models | VW | 1999-2008 Beetle, 1998-2001 Cabrio, 1998-2002 Golf/GTI/R32, 1999-2002 Jetta, 1999-2001 Passat, 1999-2004 Polo, 1999-2002 T5, 1998-2001 Sharan | |
| Skoda | 2003-2008 SuperB ,2003-2007 Octavia ,2003-2008 Fabia , | |
| Audi | 1999-2005 A2, 2001-2006 A3,1998-2006 A4/S4,2001-2004 A6/S6, 1999-2003 A8/S8,2000-2005 AllRoad, 1999-2003 TT | |
| Seat | 1996-2004 Ahambra ,1997-2004 Arosa, 2003-2006 Cordoba, 1999-2007 Ibiza, 2000-2005 Leon, 1999-2005 Toledo, 1999-2005 Vario | |
Compatible Head Units | VW | Alpha 5, Beta 5,Gamma 5,New Beetle Alpha 5, Gamma, New Beetle Gamma CD, Monsoon, Phaeton Rhapsody, Premium 4 Clarion, Premium 5 Delco, RNS-MCD,Z6Z9(Phaeton), Z9Z7(New Beetle), MFD Navi | |
| Audi | Chorus 1, Chorus 2, Concert 1, Concert 2, Symphony 1, Symphony 2, Navigation Plus 1 (non MMI), Navigation Plus 2 (non MMI),Delta(excluding Delta CC), etc | |
| Skoda | MFD Navi, MS 303, MS 501, MS 502, Symphony CD & Kassette, Melody, Rhapsody, SatCompass; | |
| Seat | Alana, Aura, Aura CD,Beta,Elba,Lena, Liceo, Scala, MFD, Highline, Odeon, Dynamic Navigation ,etc | |
| Ford | Sound 2, MFD, Navi RNS, | |
Compatibility Notice | 1. Able to hook up with existing CD Changer | ||
4. Installation Diagram :
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
Note : Mp3 / CDC Swith cable is optional , available for some vehicles only.
5. How to save music into folders :
1. Name folders as CD01 ,CD02 ,CD03...etc
2. The naming of songs is unrestricted .
3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .
4. Support mp3 / wma .
Below is showing example .
6. Accessories:
1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual
7. Package:
• Standard packing box : 210 x 150 x 60 mm
• Half-size packing box : 150 x 105 x 60 mm
• Module weight : 90g
• Gross weight : 220g~400g .
