Smart mortise door lock of 2020 most popular model
- Category: >>>
- Supplier: ORBITA TECHNOLOGY CO. LTD
Share on (60322500231):
Product Overview
Description
Smart mortise door lock of 2020 most popular model
Product Overviews
| Main Feature & Function | ||

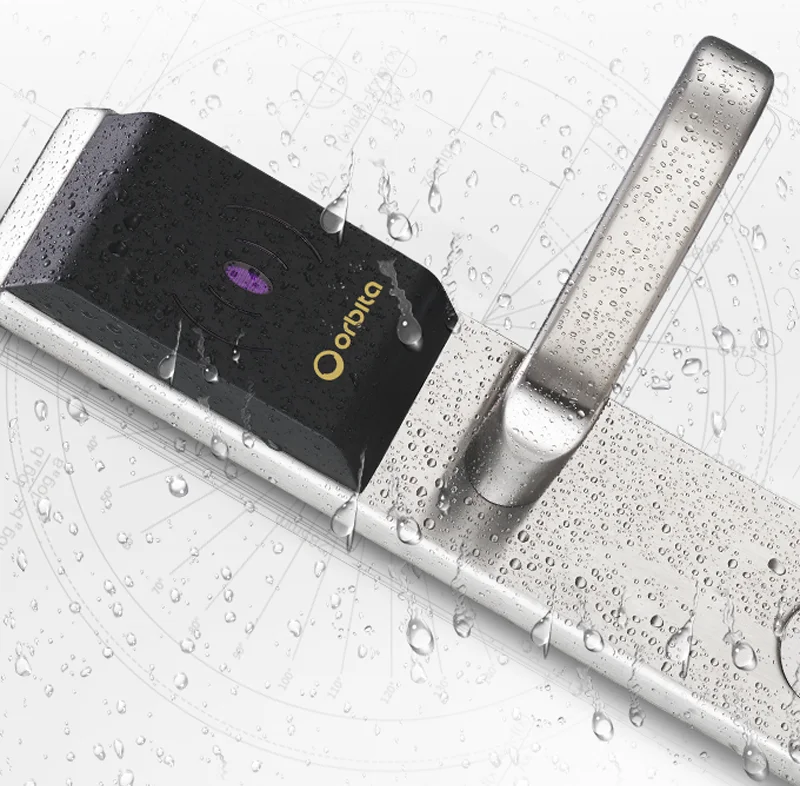

  | ORBITA RFID hotel swipe key card door lock--Waterproof Design | |
| Key feature | Waterproof Function,Good Performance Under Hyperthermia and Humid Environment. | |
| Material | Complete 304 Stainless Steel,2.0mm. | |
| Mortise type | 5 latch ANSI U.S. standard mortise. | |
| Certificates | CE,FCC,BHMA((America army standards,unlock last more than 800,000 times circles). | |
| External Panel Dimension | L290*W60*H34mm. | |
| Keycard Options | 125khz Temic card, 13.56 mhz M1/MF card,RFID card. | |
| PMS system | Interface with most of the PMS systems, Fidelio/Opera registered. | |
| Opening Records | 240pcs. | |
| Door Thickness Range | 30-60mm. | |
| Color Optional | silver, gold (PVD). | |
| Application | star/economic hotel, resort, apartment, dormitory,motel,cruise ship etc. | |
| Warranty time | 2 years. | |
| life span | About 10 to 15 years. | |

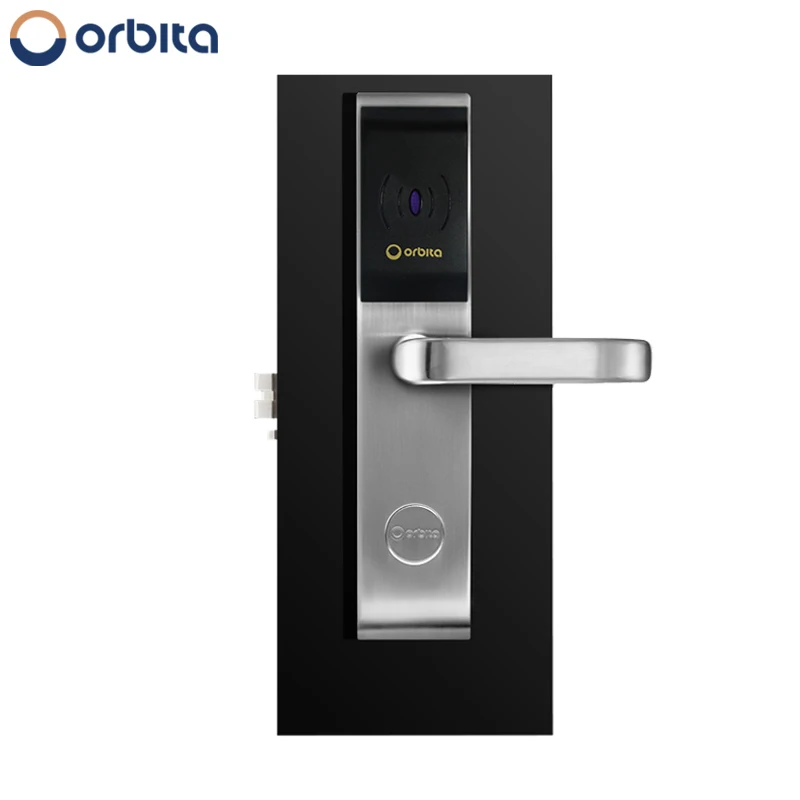

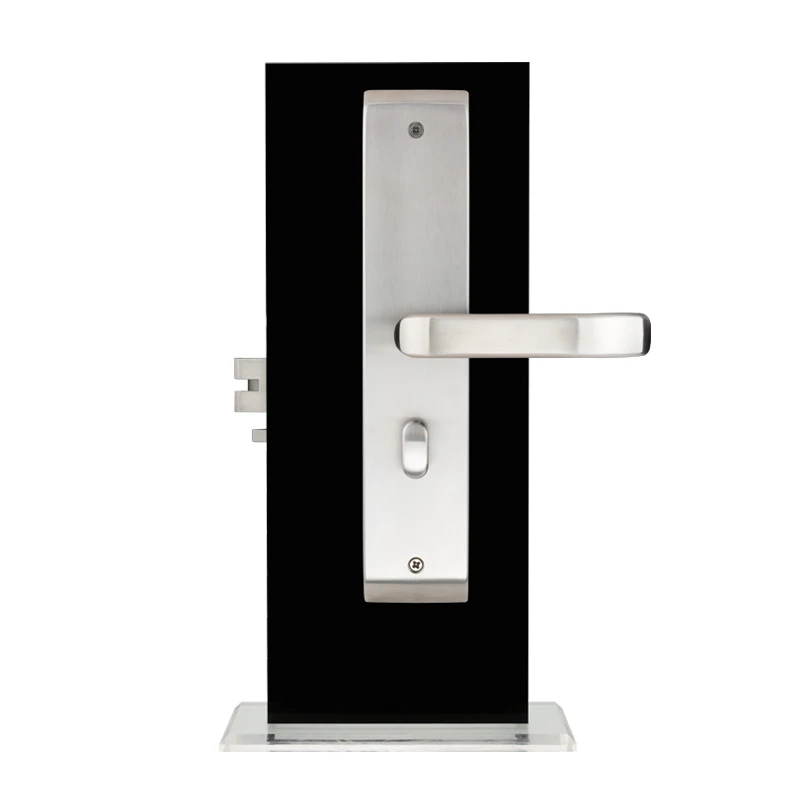

The detailed photos of the door lock
Lock Specifications
Description | Technical Parameters |
Product name: | Orbita alkaline batteries electronic door lock, ceraduras electronicas, cerradura electronica inteligente |
Power: | DC6V or 4pcs #5 AA alkaline batteries, |
Static Electric Current: | Static Load<10Ua,Working Load: 100Ma-150Ma |
Working Electric Current: | 100-300mA |
Card type: | M 1K card |
Battery Life: | 18 months’ duration |
Lock operation records: | 240pcs |
Insert Reliability: | No mistake even inserted continuously 2000 times |
Insert Guarantee: | Still work well after inserting any illegal card |
Low Voltage Warning: | low Battery Voltage warning. (Lower than 3.5 V) |
mortise: | Ansi standard |
Humidity: | 20%-90% |
Working tempreture: | -50°C-80°C |
Suitable door: | Wooden door, fire-proof door, metal door and so on. |
Fancy Feature :
The door lock mortise and the locking system:
ANSI standard mortise.Inside dead bolt.Inside handle retracts latches and deadbolts
How ORBITA LCD screen fashion smart hotel door lock system works?

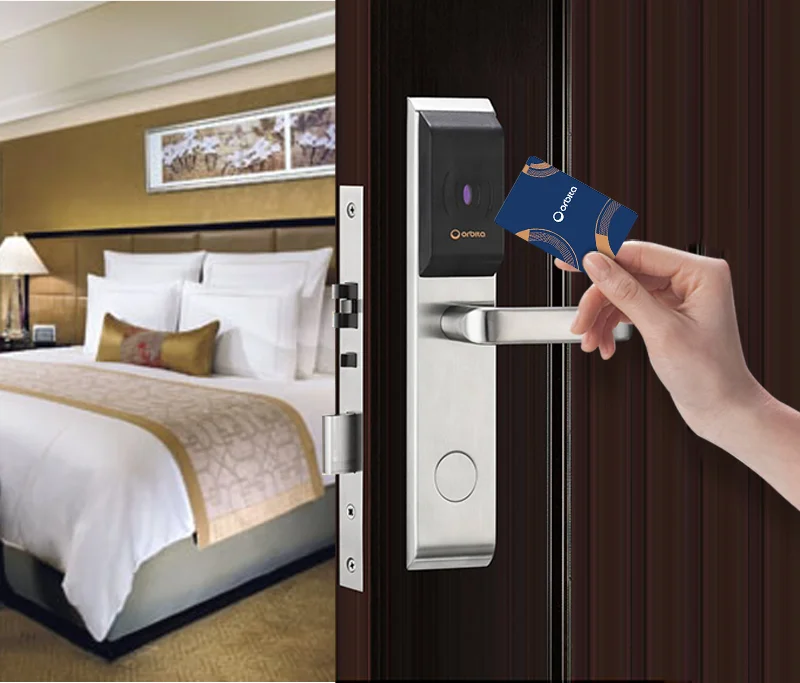

1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )

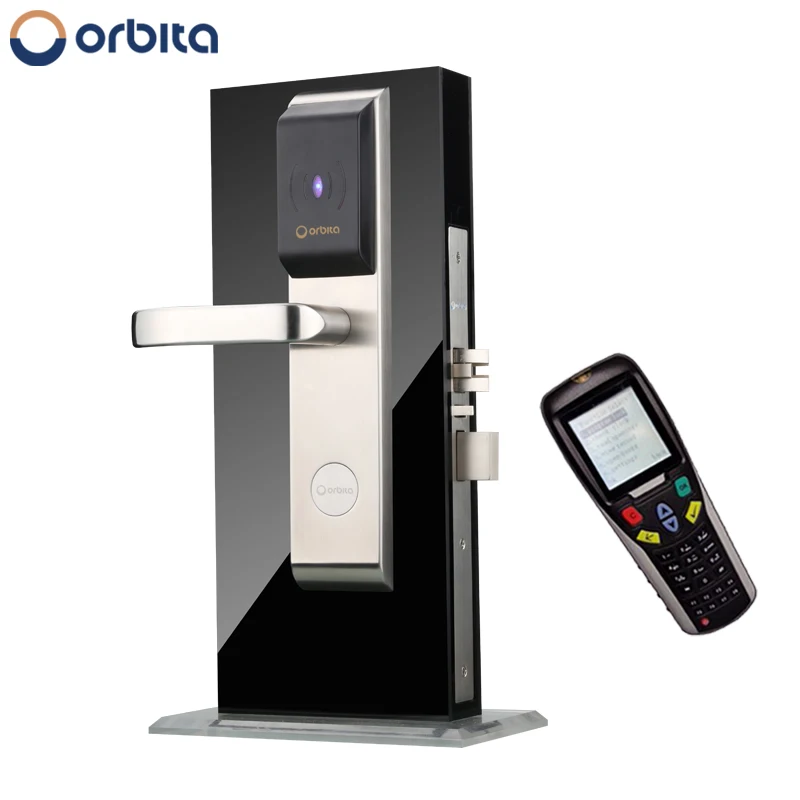

4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
We will make the lock according to your door thickness and door open way!
ANSI standard mortise.Inside dead bolt.Inside handle retracts latches and deadbolts
How ORBITA LCD screen fashion smart hotel door lock system works?1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
We will make the lock according to your door thickness and door open way!| RELATIVE PRODUCTS | |||
 |  |  |  |
| Please click the above pictures for more detailed information. | |||
Packaging & Shipping
1.Packing Size(W*D*H):490*360*450mm
2.Package sort:PP bag+foam
3.Net/Gross Weight(KGS):16.3/17.0
4.Qty/Carton:6 pieces in one carton
Company Information
The Advantage of ORBITA:
1.Professional:15 years in hospitality industry.
2.Factory scale: 45000 square meter garden factory, No. 1 in this industry in China.
3.Production Facility: In house molding, punching, injection, die casting, polishing, assembling.
4.Fast Delivery: delivery within 1-3 weeks operated by professional logistic staff.
5.International Certificate: ISO, BHMA, SIRIM, CE, FCC, SASO, SONCAP.
6.Compatibility: PMS interface with Opera Fidelio and other popular PMS.
7.OEM, ODM facility: Can accept OEM, ODM .
8.Concentration: 100% exporting.
9.Efficiency: Quick response and professional overseas operation from professional sales team..
10.World wide reference: more than 10,000 hotels covering most of the international hotel chains in 100 countries.
11.Innovative: Strong R&D team, keep designing unique new products.
12.Quality: Best material plus model test equipment by most experienced management team
13.After service: Professional service people offer online or onsite support and service. World wide support network. Overseas office and service center available in some countries
14.Two years warrante
Our Ceitificates:
Our Factory and Foreign Exihibition:
Our Successful Hotel Project Reference:
FAQ
1.What is the main advantage of ORBITA?
1) biggest hotel lock factory in China with 46000 square meter factory.
2) 90% of components made in House, better quality control, better cost control.
3) Products design and produced according to EU,US market demand.
4)OEM supplier for famous E.U. & U.S. brands.
5) PMS connected such as Opera.
2.What is the quality difference between your products and other Chinese products?
1)E.U and U.S. standard products at affordable price.
2)Passed BHMA, EU fireproof, water proof, Fidelio Opera certified.
3)We offer local service.
4)we are the professional and biggest manufacturer with full supplier chain control.
5) ORBITA is the most famous Chinese brand with 15 years overseas market experience and big market share.
3.Are your product as good as European products?
1) We passed all Eu certificate and products made according to Eu, U.S standards
2) we are the OEM supplier for a lot of Eu & U.S. famous brands in hospitality industry.
4.What certificate do you have?
We have maintained ISO9001/2008, CE, FCC, BHMA,Fidelio/Opera,SASO, SONCAP,etc.
5.What is the warrantee of your products? How?
We give 18 year warrantee for our products, free maintenance and spare parts will be offered during the during warrantee period. Spare parts and technical support will be offered life time after warrantee for all models at reasonable prices.
